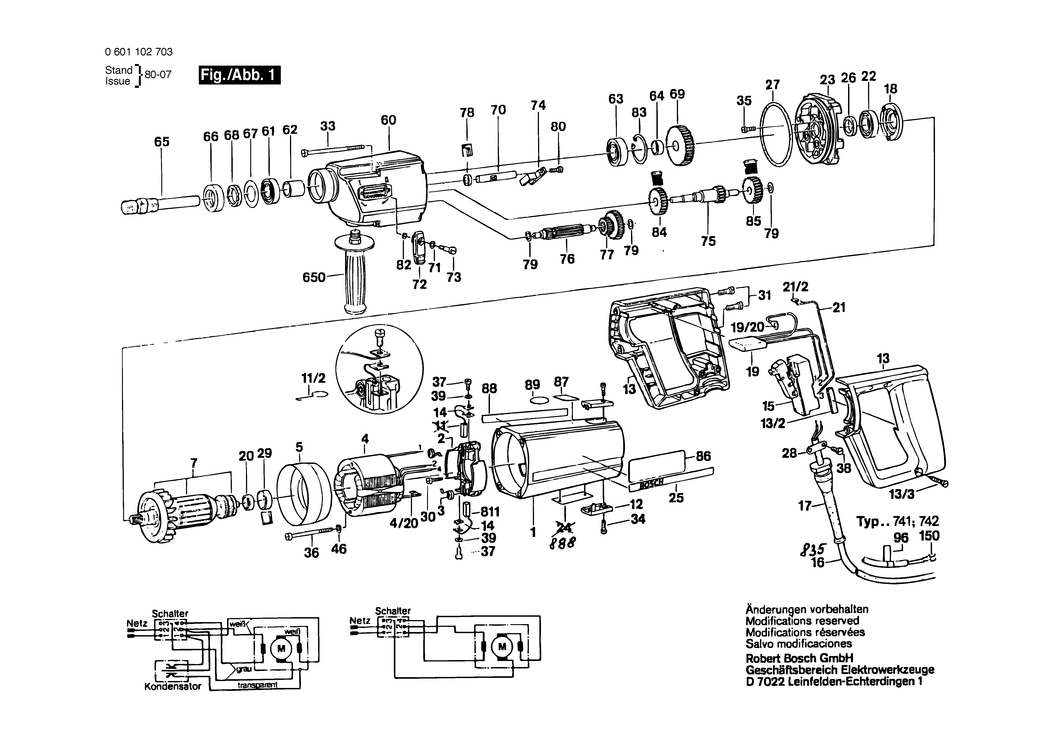

1 - MOTOR HOUSING
BSD-3605108094.A25
3605108094
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336005.A19
1604336005
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652001.A6
1604652001
|
-
|
|
|
|
4 - FIELD 220-230V
BSD-1604220082.A10
1604220082
|
-
|
|
|
|
4/20 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A346
1901350003
|
£1.84
|
£2.21
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A208
1600209002
|
£5.30
|
£6.36
|
|
|
7 - ARMATURE 220-240V
BSD-1609991109.A9
1609991109
|
-
|
|
|
|
12 - SEALING CAP
BSD-3605500057.A222
3605500057
|
-
|
|
|
|
13 - HANDLE
BSD-3605133012.A106
3605133012
|
-
|
|
|
|
13/2 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A13
1602381006
|
£1.75
|
£2.10
|
|
|
13/3 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A105
2910211220
|
-
|
|
|
|
15 - SWITCH
BSD-1607200078.A69
1607200078
|
£42.84
|
£51.41
|
|
|
15 - SWITCH
BSD-1607200037.A48
1607200037
|
£47.95
|
£57.54
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1429
3600703011
|
£2.94
|
£3.53
|
|
|
18 - BEARING COVER
BSD-1600501019.A300
1600501019
|
£25.05
|
£30.06
|
|
|
19/20 - SUPPRESSION CAPACITOR
BSD-1607328012.A83
1607328012
|
-
|
|
|
|
20 - BALL BEARING 7x19x6
BSD-2600905032.A851
2600905032
|
£5.57
|
£6.68
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A520
1602381001
|
-
|
|
|
|
22 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A113
1600900001
|
-
|
|
|
|
23 - INTERMEDIATE BEARING
BSD-3605820033.A85
3605820033
|
-
|
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A83
1601110004
|
-
|
|
|
|
26 - FELT DISC
BSD-1600108003.A101
1600108003
|
£1.38
|
£1.66
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A137
1600210006
|
£1.84
|
£2.21
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A858
1601302014
|
£2.74
|
£3.29
|
|
|
29 - INTERMEDIATE RING
BSD-1600502011.A260
1600502011
|
£2.74
|
£3.29
|
|
|
30 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2317
2910211019
|
£1.84
|
£2.21
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A139
2910021154
|
£1.75
|
£2.10
|
|
|
33 - TAPPING SCREW B4.8x90 MM
BSD-1603435006.A7
1603435006
|
-
|
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8
BSD-2910021176.A84
2910021176
|
-
|
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM5x22-8.8
BSD-2910021163.A22
2910021163
|
-
|
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A88
2910021125
|
£1.75
|
£2.10
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1635
2910021118
|
£1.84
|
£2.21
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A220
2910021116
|
£2.27
|
£2.72
|
|
|
39 - SPRING WASHER DIN 137-A4
BSD-1600150006.A218
1600150006
|
-
|
|
|
|
46 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A169
2916010410
|
-
|
|
|
|
60 - SPINDLE BEARING
BSD-1605806186.A39
1605806186
|
-
|
|
|
|
61 - GROOVE BALL BEARING 15x32x8
BSD-1900900201.A42
1900900201
|
-
|
|
|
|
62 - SPACER BUSHING
BSD-1600300026.A35
1600300026
|
-
|
|
|
|
63 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A66
1900900303
|
-
|
|
|
|
64 - SPACER BUSHING
BSD-1600300027.A72
1600300027
|
-
|
|
|
|
65 - DRILLING SPINDLE
BSD-1603124039.A79
1603124039
|
-
|
|
|
|
66 - RETAINING SNAP RING
BSD-3607030355.A80
3607030355
|
£19.91
|
£23.89
|
|
|
67 - SHIM 0.5 MM
BSD-1600102003.A21
1600102003
|
£1.75
|
£2.10
|
|
|
68 - SEALING DISK
BSD-1600108000.A89
1600108000
|
-
|
|
|
|
69 - CYLINDRICAL GEAR Z=50
BSD-1606317045.A23
1606317045
|
-
|
|
|
|
70 - ADJUSTING BOLT
BSD-1603104005.A64
1603104005
|
-
|
|
|
|
71 - SHIM 0.2 MM
BSD-1420100620.A72
1420100620
|
£1.38
|
£1.66
|
|
|
72 - CONTROL LEVER
BSD-1602026026.A48
1602026026
|
-
|
|
|
|
73 - SOCKET HEAD CAP SCREW M3.5x5.5 MM
BSD-1603413005.A96
1603413005
|
£2.64
|
£3.17
|
|
|
74 - CONTROL LEVER
BSD-1602120006.A60
1602120006
|
-
|
|
|
|
75 - SPINDLE WITH GEAR Z=20/33/50
BSD-1606328048.A40
1606328048
|
-
|
|
|
|
76 - SPINDLE WITH GEAR Z=12
BSD-1606309036.A45
1606309036
|
-
|
|
|
|
77 - CYLINDRICAL GEAR Z=12/20/36
BSD-1606328058.A6
1606328058
|
-
|
|
|
|
78 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A161
1600283003
|
£4.26
|
£5.11
|
|
|
79 - SHIM 0.5 MM
BSD-1600100631.A239
1600100631
|
£1.75
|
£2.10
|
|
|
80 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A856
2910021122
|
£2.27
|
£2.72
|
|
|
82 - SPRING LOCK WASHER DIN 127-B3.5
BSD-2916680004.A93
2916680004
|
-
|
|
|
|
83 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A493
2916660014
|
£1.75
|
£2.10
|
|
|
84 - CYLINDRICAL GEAR Z=35
BSD-1606317043.A16
1606317043
|
-
|
|
|
|
85 - CYLINDRICAL GEAR Z=33
BSD-1606320041.A16
1606320041
|
-
|
|
|
|
86 - REFERENCE PLATE
BSD-1601110153.A8
1601110153
|
-
|
|
|
|
87 - REFERENCE PLATE
BSD-1601110058.A293
1601110058
|
£1.75
|
£2.10
|
|
|
88 - REFERENCE PLATE
BSD-1601110076.A15
1601110076
|
-
|
|
|
|
89 - STICKER
BSD-2601110041.A237
2601110041
|
-
|
|
|
|
150 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A529
1900452012
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A822
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A40
1602025030
|
£19.91
|
£23.89
|
|
|
651 - KEY CHUCK dia1.5-13 MM. B16
BSD-1608571027.A51
1608571027
|
-
|
|
|
|
811 - CARBON-BRUSH SET
BSD-1607014101.A114
1607014101
|
£11.87
|
£14.24
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A349
1607000227
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2202
160111A3H3
|
£2.74
|
£3.29
|
|
