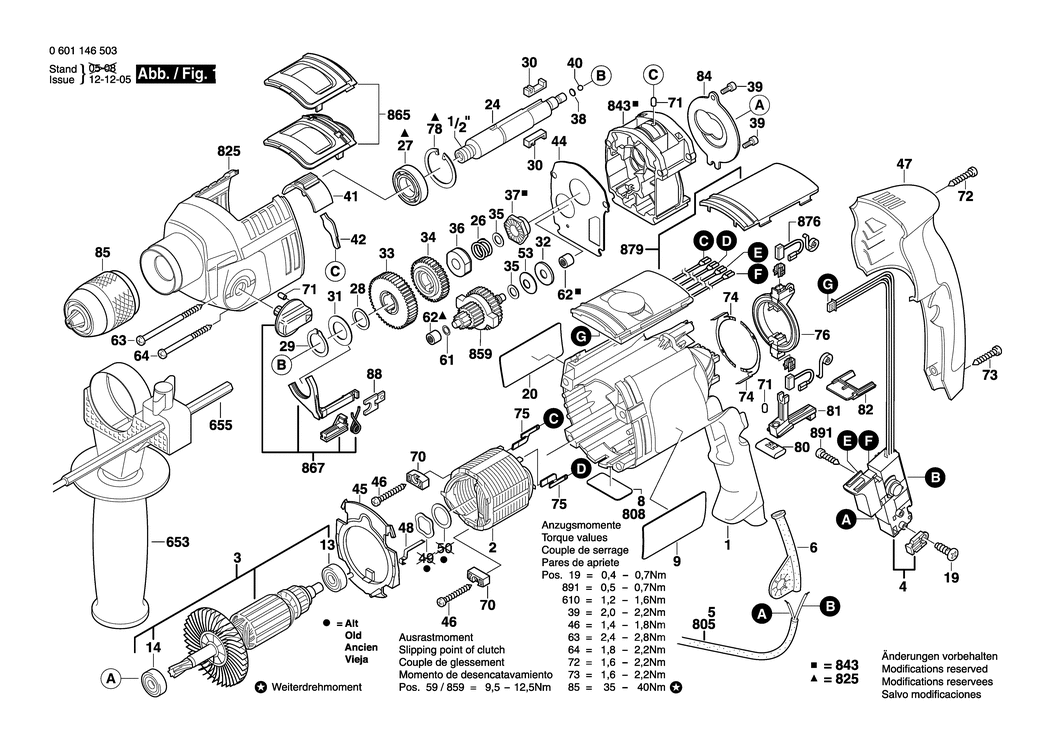

An exploded drawing and listing for the Bosch GSB 22-2 RE / 0601146541 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104784.A9 2605104784 £24.45 £29.34
2 - FIELD 115V BSD-1614220146.A0 1614220146 -
3 - ARMATURE WITH FAN 115V BSD-2604011281.A0 2604011281 £48.38 £58.06
4 - SWITCH BSD-2607200544.A8 2607200544 £31.64 £37.97
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460204.A29 2604460204 £31.64 £37.97
6 - GROMMET dia7.0-dia8.1x90MM BSD-2600707067.A1 2600707067 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601116658.A1 2601116658 £1.95 £2.34
13 - BALL BEARING 7x19x6 BSD-2600905032.A2157 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905017.A26 1610905017 £13.12 £15.75
19 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A724 2603490017 £2.16 £2.59
20 - REFERENCE PLATE BSD-2601117956.A0 2601117956 £3.34 £4.01
24 - DRILLING SPINDLE BSD-2606135099.A6 2606135099 £13.41 £16.09
26 - COMPRESSION SPRING BSD-2604616013.A15 2604616013 £2.61 £3.13
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A295 1900905163 £11.30 £13.56
28 - SHIM 0.5 MM BSD-2600100695.A135 2600100695 £1.75 £2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A156 2916650008 £1.75 £2.10
30 - FLAT KEY BSD-2602300032.A64 2602300032 £3.72 £4.47
31 - RETAINING WASHER BSD-2600101671.A145 2600101671 £1.75 £2.10
32 - SHIM BSD-2600101056.A12 2600101056 £1.75 £2.10
33 - CYLINDRICAL GEAR BSD-2606317084.A58 2606317084 £13.12 £15.75
34 - CYLINDRICAL GEAR BSD-2606317098.A77 2606317098 £12.04 £14.45
35 - SHIM 0.3 MM BSD-2600101047.A174 2600101047 £1.75 £2.10
36 - CATCH DISK BSD-2600190090.A9 2600190090 £2.52 £3.02
37 - CATCH DISK BSD-2600190078.A41 2600190078 £5.87 £7.04
38 - SHIM WASHER 1.35 MM BSD-2600000030.A78 2600000030 £1.75 £2.10
38 - SHIM WASHER 1.7 MM BSD-2600000031.A56 2600000031 £1.75 £2.10
39 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A20 2603410048 £1.75 £2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A70 1903230010 £1.75 £2.10
41 - CHANGEOVER LEVER BSD-2602098014.A9 2602098014 £1.95 £2.34
42 - PRESSURE PLATE BSD-2600114016.A10 2600114016 £2.33 £2.80
44 - GASKET BSD-2601073014.A9 2601073014 £1.32 £1.58
45 - AIR GUIDE PLATE BSD-2600148007.A11 2600148007 £1.75 £2.10
46 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A693 2603490024 £1.75 £2.10
47 - HOUSING COVER BSD-2605132053.A7 2605132053 £9.49 £11.39
48 - CONTACT SPRING BSD-2601324046.A7 2601324046 -
53 - DISC SPRING BSD-2600550008.A124 2600550008 £1.75 £2.10
61 - SHIM 0.3 MM BSD-2600100607.A206 2600100607 £1.75 £2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A100 2600914010 £2.80 £3.36
63 - HEADLESS SCREW BSD-2603435070.A50 2603435070 £2.16 £2.59
64 - HEADLESS SCREW BSD-2603435077.A14 2603435077 £1.75 £2.10
70 - HOLDING-DOWN-APPLIANCE BSD-2601328068.A7 2601328068 £1.75 £2.10
71 - RATCHET CAP BSD-2600590006.A19 2600590006 £1.75 £2.10
72 - TORX OVAL-HEAD SCREW 4x30 BSD-2603490025.A70 2603490025 £1.75 £2.10
73 - SCREW 4x16 BSD-2603490022.A2088 2603490022 £1.75 £2.10
74 - CONTACT BAR BSD-2601324045.A16 2601324045 -
75 - BLADE TERMINAL BSD-2604477005.A7 2604477005 £1.75 £2.10
76 - BRUSH PLATE BSD-2604337100.A1 2604337100 £16.74 £20.09
78 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A175 2916660014 £1.75 £2.10
80 - CHANGE-OVER SWITCH BSD-2602099016.A5 2602099016 £2.33 £2.80
81 - CARRIER BRACKET BSD-2602319024.A14 2602319024 £1.75 £2.10
82 - END STOP BSD-2602319025.A9 2602319025 £1.32 £1.58
84 - RETAINING WASHER BSD-2601098067.A13 2601098067 £2.33 £2.80
85 - KEYLESS CHUCK HSB 4 BSD-2608572143.A8 2608572143 £63.50 £76.20
88 - HOLDING PLATE BSD-2601328070.A16 2601328070 £1.75 £2.10
653 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A110 2602025118 £14.91 £17.89
655 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A473 1613001009 £3.72 £4.47
808 - MARKING PLATE BSD-2601117703.A0 2601117703 -
825 - GEAR HOUSING BSD-2605806894.A7 2605806894 £33.74 £40.49
843 - INTERMEDIATE FLANGE BSD-2605700942.A8 2605700942 £33.45 £40.14
859 - TRANSMISSION BSD-1600A00MM2.A7 1600A00MM2 £37.72 £45.27
865 - BULB SHIELD BSD-2605510901.A4 2605510901 £11.78 £14.13
867 - TOOTHED RACK BSD-2606308923.A7 2606308923 £3.34 £4.01
876 - CARBON-BRUSH SET BSD-2604321931.A1 2604321931 £10.82 £12.99
879 - SPEED GOVERNOR 115V BSD-2607230901.A0 2607230901 £37.72 £45.27
891 - CROSS RECESSED-HEAD SCREW M3x5 BSD-2603410046.A65 2603410046 £2.16 £2.59
