Bosch GDB 1600 WE / 0601189732 / CH 230 Volt Spare Parts

Home Details Reviews Delivery

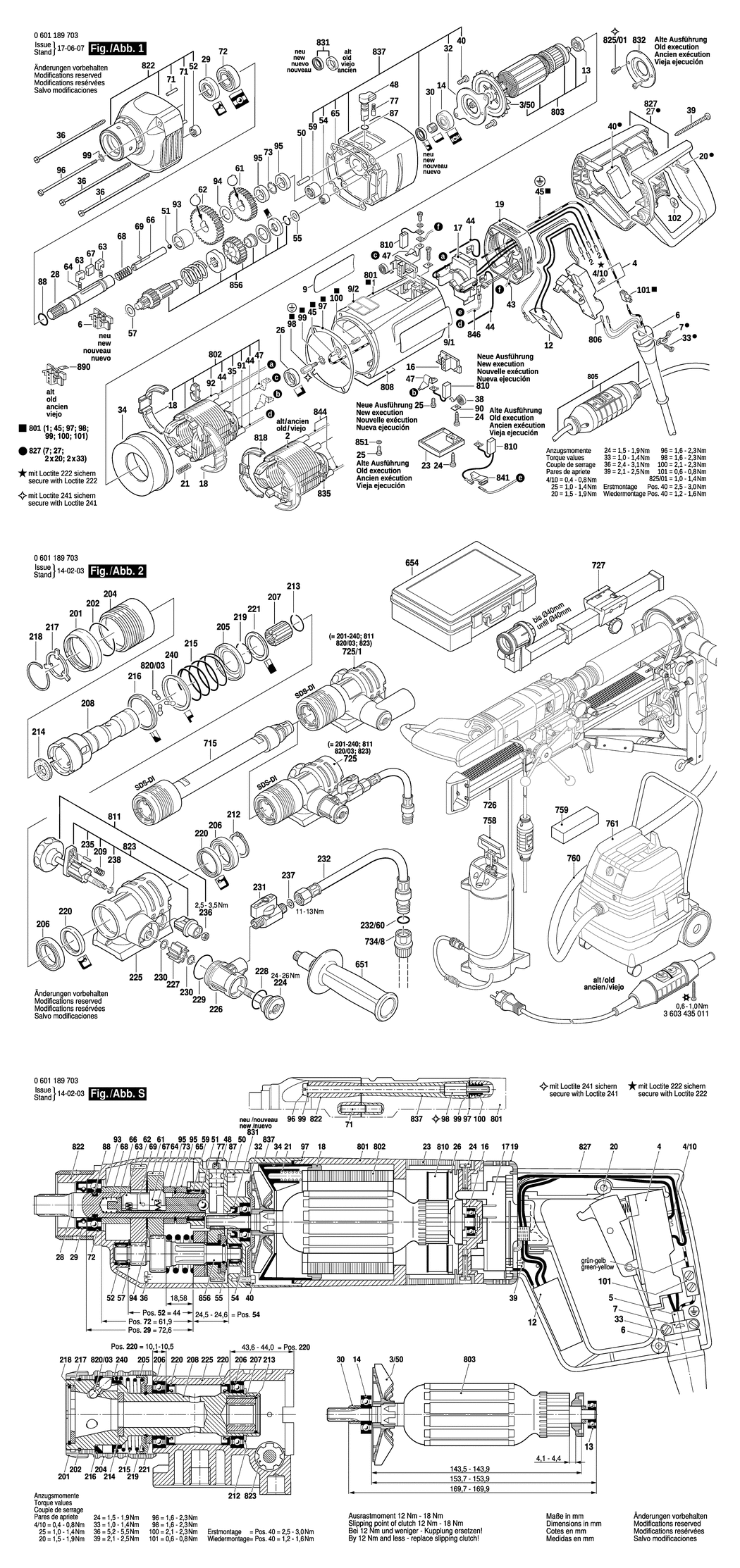

An exploded drawing and listing for the Bosch GDB 1600 WE / 0601189732 / CH 230 Volt

	Ex VAT	Inc VAT
3/50 - FAN BSD-3606610002.A39 3606610002	£2.45	£2.94
4 - SWITCH BSD-3607200074.A2 3607200074	£40.80	£48.96
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A60 2910011082	£1.75	£2.10
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A991 3600703011	£2.94	£3.53
7 - FASTENING CLAMP BSD-1601302013.A61 1601302013	£1.84	£2.21
9 - MANUFACTURER'S NAMEPLATE BSD-3601110511.A2 3601110511	£2.64	£3.17
9/1 - REFERENCE PLATE BSD-3601110434.A7 3601110434	£3.51	£4.21
9/2 - REFERENCE PLATE BSD-3601110513.A7 3601110513	£1.84	£2.21
12 - SUPPRESSION FILTER BSD-3607328013.A7 3607328013	-
13 - BALL BEARING 7x19x6 BSD-2600905032.A178 2600905032	£5.57	£6.68
14 - GROOVE BALL BEARING BSD-1619P00290.A30 1619P00290	£6.85	£8.22
16 - BRUSH HOLDER BSD-3604336012.A51 3604336012	£5.58	£6.70
17 - SPEED GOVERNOR 220-240V BSD-1607233156.A3 1607233156	£45.67	£54.80
18 - SEGMENTED RING BSD-3600460006.A4 3600460006	£2.61	£3.13
19 - COVER BSD-3605500153.A14 3605500153	£4.48	£5.37
20 - TORX OVAL-HEAD SCREW BSD-2914201507.A25 2914201507	£1.75	£2.10
21 - COMPRESSION SPRING BSD-1604613006.A114 1604613006	£1.75	£2.10
23 - SEALING CAP BSD-3605500063.A96 3605500063	£4.48	£5.37
24 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1784 2910211019	£1.84	£2.21
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1250 2910021118	£1.84	£2.21
26 - INTERMEDIATE RING BSD-1600502011.A22 1600502011	£2.74	£3.29
28 - DRILLING SPINDLE BSD-3606135006.A5 3606135006	£66.68	£80.01
29 - ROTARY SHAFT LIP SEAL 17X32X7 BSD-3600283042.A8 3600283042	£19.91	£23.89
30 - INTERMEDIATE RING BSD-1600300090.A157 1600300090	£3.72	£4.47
32 - BEARING COVER BSD-3605500156.A4 3605500156	£5.87	£7.04
33 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A252 2910211018	£1.75	£2.10
34 - AIR-DEFLECTOR RING BSD-3600499016.A5 3600499016	£4.26	£5.11
35 - WIRE GUIDE BSD-3601025003.A88 3601025003	£1.75	£2.10
36 - LENS HEAD SCREW BSD-3603435024.A7 3603435024	£1.95	£2.34
38 - SPIRAL SPRING BSD-3604652001.A10 3604652001	£2.74	£3.29
39 - TAPPING SCREW DIN 79-4.8x45-C-ST BSD-2910211239.A17 2910211239	£1.75	£2.10
40 - THREAD-FORMING TAP. SCREW BSD-3604411040.A24 3604411040	£2.61	£3.13
43 - CONNECTING CABLE L=160 MM BSD-3604460068.A16 3604460068	£2.61	£3.13
44 - CONNECTING CABLE BSD-3604438031.A12 3604438031	£2.27	£2.72
45 - EARTH CONDUCTOR L=415 MM BSD-3604414049.A11 3604414049	£13.78	£16.54
47 - BLADE TERMINAL BSD-1604477001.A163 1604477001	£1.75	£2.10
48 - ROTARY KNOB BSD-3603231008.A9 3603231008	£14.91	£17.89
50 - STRAIGHT PIN DIN 6325-4m6x20 BSD-2917550099.A35 2917550099	£1.75	£2.10
51 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A163 1903230013	£2.27	£2.72
52 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A768 2600910001	£4.48	£5.37
54 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A737 1600910018	£5.57	£6.68
55 - SHIM 0.5 MM BSD-1600100617.A67 1600100617	£1.75	£2.10
57 - SHIM BSD-3600100083.A8 3600100083	£1.75	£2.10
59 - NEEDLE BEARING BSD-1610910088.A35 1610910088	£5.58	£6.70
61 - CYLINDRICAL GEAR Z=34 BSD-3606317047.A8 3606317047	£57.14	£68.57
62 - CYLINDRICAL GEAR Z=45 BSD-3606317048.A9 3606317048	£54.42	£65.30
63 - WEDGE BSD-3602317037.A8 3602317037	£18.96	£22.75
64 - COMPRESSION SPRING BSD-3604610048.A9 3604610048	£1.84	£2.21
65 - SEAL BSD-3601015009.A4 3601015009	£2.74	£3.29
66 - CARRIER BSD-3600101051.A9 3600101051	£54.42	£65.30
67 - GUIDE KEY BSD-3602317050.A8 3602317050	£5.30	£6.36
68 - COMPRESSION SPRING BSD-3604610049.A8 3604610049	£2.27	£2.72
69 - COILED SPRING PIN DIN 7343-4x2 BSD-2917800032.A10 2917800032	£1.75	£2.10
71 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A117 2917500121	£1.75	£2.10
72 - GROOVE BALL BEARING 6003 Y DIN 625 BSD-1900900273.A9 1900900273	£21.68	£26.01
73 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A359 2916650008	£1.84	£2.21
77 - RATCHET CAP BSD-2600590006.A712 2600590006	£1.84	£2.21
87 - O-RING 6.0x2.0 MM BSD-3600210028.A10 3600210028	£2.27	£2.72
88 - O-RING 12.5x2.5 MM BSD-3600210115.A0 3600210115	£1.75	£2.10
91 - SHRINKABLE TUBE BSD-3600707022.A43 3600707022	£3.72	£4.47
92 - SHRINKABLE TUBE BSD-3600707022.A44 3600707022	£3.72	£4.47
93 - SPACER SLEEVE BSD-3600400028.A16 3600400028	£9.11	£10.93
94 - PLAIN WASHER BSD-3600400025.A9 3600400025	£2.94	£3.53
95 - SPACER SLEEVE BSD-3600400026.A8 3600400026	£10.10	£12.12
96 - SOCKET HEAD CAP SCREW M4x103 MM BSD-3603414022.A9 3603414022	£9.11	£10.93
97 - CONTACT SHEET BSD-3601016003.A15 3601016003	£22.76	£27.31
98 - BOLT BSD-3603100033.A0 3603100033	£2.80	£3.36
99 - TOOTHED LOCK WASHER BSD-2916031006.A12 2916031006	£1.75	£2.10
100 - THREADED INSERT BSD-3603100034.A17 3603100034	£1.84	£2.21
101 - SOCKET-TERMINAL STRIP 1x1.5 MM BSD-3602319041.A14 3602319041	£1.75	£2.10
102 - REFERENCE PLATE BSD-3601119070.A5 3601119070	£3.72	£4.47
201 - PROTECTIVE CAP BSD-3605500152.A1 3605500152	£2.80	£3.36
202 - RETAINING RING BSD-3600224046.A10 3600224046	£1.84	£2.21
204 - SLEEVE BSD-3600400023.A5 3600400023	£2.33	£2.80
205 - RETAINING WASHER BSD-3600100079.A5 3600100079	£2.61	£3.13
206 - GROOVE BALL BEARING 30x47x9 BSD-3600905114.A9 3600905114	£33.22	£39.87
207 - CARRIER BSD-3606319030.A3 3606319030	£50.80	£60.96
208 - HOLLOW SHAFT BSD-3603130004.A5 3603130004	£142.02	£170.42
209 - COMPRESSION SPRING BSD-3604610155.A4 3604610155	£2.61	£3.13
212 - SPRING RETAINING RING DIN 471 30x1.5 MM BSD-2916650017.A28 2916650017	£1.75	£2.10
213 - RETAINING RING BSD-3600224050.A17 3600224050	£1.84	£2.21
214 - SEALING DISK BSD-3600109013.A6 3600109013	£1.75	£2.10
215 - COMPRESSION SPRING BSD-3604610053.A6 3604610053	£5.57	£6.68
216 - STOP RING BSD-3600300056.A6 3600300056	£21.52	£25.83
217 - DRIVER DISC BSD-3600113021.A5 3600113021	£12.64	£15.17
218 - RETAINING RING BSD-3600224051.A0 3600224051	£1.38	£1.66
219 - RETAINING RING BSD-3600224047.A0 3600224047	£1.75	£2.10
220 - ROTARY SHAFT LIP SEAL 30X42X6 BSD-3600283041.A0 3600283041	£12.04	£14.45
221 - SUPPORTING DISC BSD-3600190021.A4 3600190021	£6.85	£8.22
224 - RETAINING PIN BSD-3603100037.A4 3603100037	£48.38	£58.06
225 - HOUSING BSD-3605102084.A3 3605102084	£164.02	£196.83
226 - SIGHT GLASS BSD-3600700053.A21 3600700053	£13.12	£15.75
227 - IMPELLER WHEEL BSD-3605510041.A3 3605510041	£2.27	£2.72
228 - O-RING 25.0x2.65 MM BSD-3600210112.A4 3600210112	£1.75	£2.10
229 - O-RING 33.0x2.5 MM BSD-3600210114.A21 3600210114	£1.75	£2.10
230 - PLAIN WASHER BSD-3600100082.A0 3600100082	£2.16	£2.59
231 - ISOLATING VALVE BSD-3602380011.A20 3602380011	£25.05	£30.06
232 - FLEXIBLE CONNECTION BSD-3600760107.A13 3600760107	£45.67	£54.80
232/60 - O-RING 11x2.5 MM BSD-1609351000.A111 1609351000	-
235 - STRAIGHT PIN DIN 6325-3M6x12 BSD-2917550077.A6 2917550077	£1.75	£2.10
236 - SELF-LOCKING NUT M5 BSD-3603386057.A4 3603386057	£2.27	£2.72
237 - SEALING DISC BSD-3600109014.A0 3600109014	£2.80	£3.36
238 - SPRING RETAINING RING BSD-3600224056.A14 3600224056	£1.75	£2.10
240 - RETAINING SNAP RING BSD-3600300057.A4 3600300057	£22.60	£27.12
651 - AUXILIARY HANDLE M14 BSD-3602025014.A12 3602025014	£4.26	£5.11
654 - CARRYING CASE BSD-1615438373.A14 1615438373	-
715 - LENGTHENING PIECE SDS-DI. L=300 MM BSD-2608598112.A5 2608598112	£294.89	£353.87
725 - FLUSHING JET BSD-2609390317.A4 2609390317	-
725/1 - EXTRACTOR HEAD BSD-2609390318.A1 2609390318	-
726 - DRILL STAND BSD-0601190025.A9 0601190025	-
727 - DRILLING AND BORING JIG BSD-2609390313.A9 2609390313	-
734/8 - HOSE COUPLING 1/2 BSD-3603386050.A5 3603386050	-
758 - CALIBRATING UNIT BSD-2609390308.A0 2609390308	£405.05	£486.06
759 - WHETSTONE BSD-2609390315.A12 2609390315	-
760 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A35 1609202230	£85.74	£102.89
761 - ALL PURPOSE VACUUM CLEANE BSD-0601989132.A2 0601989132	-
801 - MOTOR HOUSING BSD-3605108181.A9 3605108181	£54.42	£65.30
802 - FIELD 220-240V BSD-3604220154.A5 3604220154	£47.95	£57.54
803 - ARMATURE 220-240V BSD-3604010088.A8 3604010088	-
805 - POWER SUPPLY CORD BSD-3604460121.A1 3604460121	-
806 - END SPLICE BSD-3604477009.A333 3604477009	£2.61	£3.13
808 - NAMEPLATE BSD-160111A3H7.A7 160111A3H7	£2.74	£3.29
810 - CARBON-BRUSH SET BSD-3607014003.A6 3607014003	£33.22	£39.87
811 - STAR KNOB BSD-3603349003.A9 3603349003	£22.60	£27.12
818 - SEGMENTED RING BSD-3600460005.A2 3600460005	£3.34	£4.01
820/03 - FASTENER BSD-3602319043.A7 3602319043	£16.74	£20.09
822 - SPINDLE BEARING BSD-3605806184.A6 3605806184	£142.02	£170.42
823 - CLAMP BUSHING BSD-3600300055.A8 3600300055	£13.78	£16.54
825/01 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1249 2910021118	£1.84	£2.21
827 - HANDLE BSD-3605133019.A11 3605133019	-
831 - ROTARY SHAFT LIP SEAL BSD-3600290070.A5 3600290070	£12.64	£15.17
832 - BEARING COVER BSD-3605500043.A35 3605500043	£4.48	£5.37
835 - WIRE GUIDE BSD-1601025001.A15 1601025001	£1.75	£2.10
837 - INTERMEDIATE BEARING BSD-3607030438.A2 3607030438	£142.02	£170.42
841 - FLYWEIGHT BSD-3602329031.A2 3602329031	£33.74	£40.49
844 - CONNECTING CABLE L=330 MM BSD-3604438017.A3 3604438017	-
846 - CONNECTING CABLE L=170 MM BSD-3604441010.A1 3604441010	£2.27	£2.72
851 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A193 2916060005	£1.84	£2.21
856 - SPUR WHEEL CLUTCH BSD-3606309054.A5 3606309054	£375.13	£450.16
890 - TAB WASHER BSD-1601030022.A249 1601030022	£1.84	£2.21

Attribute Name	Value
Brand	Bosch
