Bosch GDB 1600 DE / 0601188732 / CH 230 Volt Spare Parts

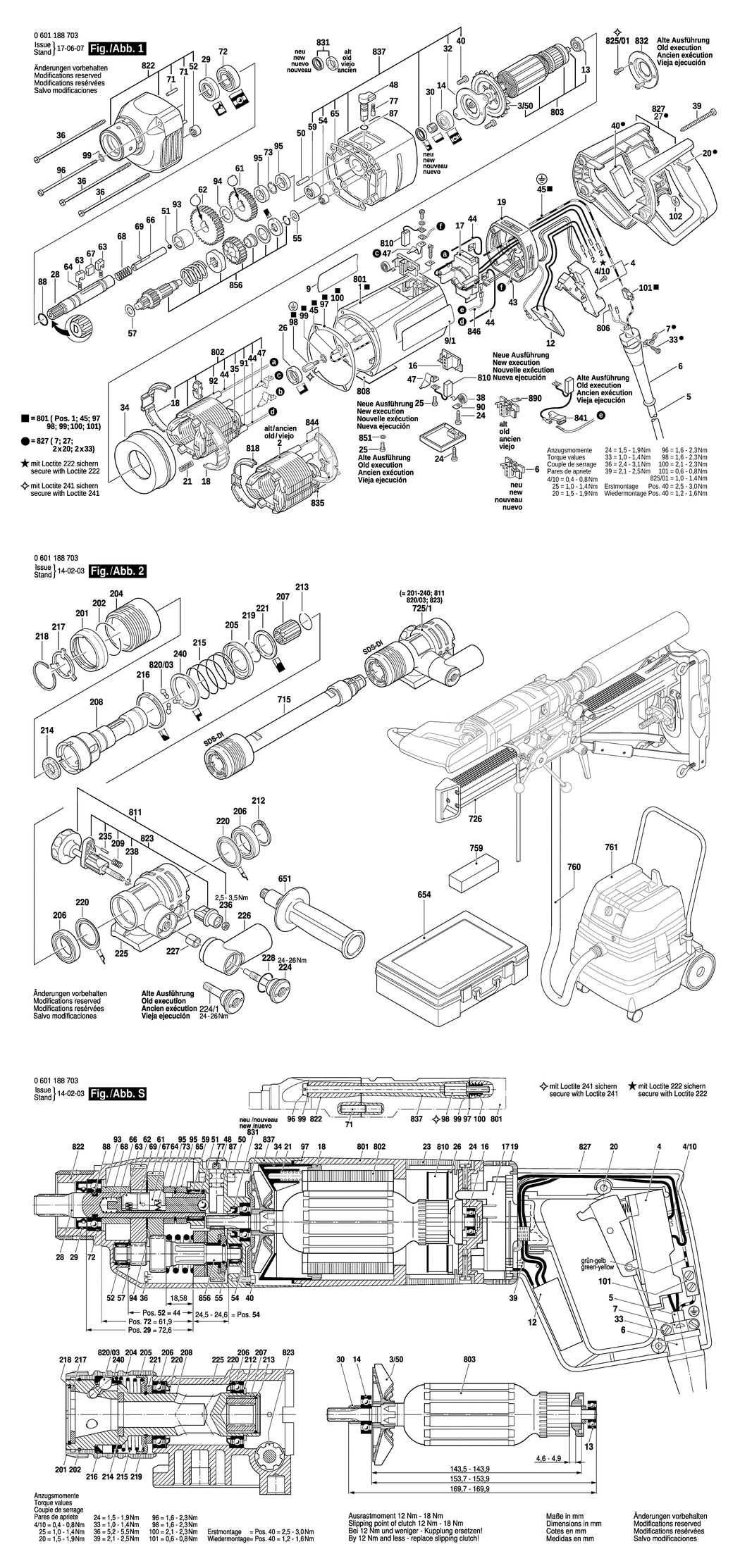

An exploded drawing and listing for the Bosch GDB 1600 DE / 0601188732 / CH 230 Volt

	Ex VAT	Inc VAT
3/50 - FAN BSD-3606610002.A75 3606610002	£2.33	£2.80
4 - SWITCH BSD-3607200074.A12 3607200074	£40.80	£48.96
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A32 2910011082	£1.75	£2.10
5 - POWER SUPPLY CORD CH 5m BSD-3604460097.A1 3604460097	£31.64	£37.97
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A530 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302013.A486 1601302013	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601110512.A4 3601110512	£2.80	£3.36
9/1 - REFERENCE PLATE BSD-3601110433.A3 3601110433	£4.26	£5.11
12 - SUPPRESSION FILTER BSD-3607328013.A3 3607328013	-
13 - BALL BEARING 7x19x6 BSD-2600905032.A1400 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A45 3600905131	£11.30	£13.56
16 - BRUSH HOLDER BSD-3604336012.A121 3604336012	£5.58	£6.70
17 - SPEED GOVERNOR 220-240V BSD-1607233156.A13 1607233156	£45.67	£54.80
18 - SEGMENTED RING BSD-3600460006.A14 3600460006	£2.61	£3.13
19 - COVER BSD-3605500153.A1 3605500153	£4.26	£5.11
20 - TORX OVAL-HEAD SCREW BSD-2914201507.A39 2914201507	£1.75	£2.10
21 - COMPRESSION SPRING BSD-1604613006.A32 1604613006	£1.75	£2.10
23 - SEALING CAP BSD-3605500063.A178 3605500063	£4.26	£5.11
24 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A114 2910211019	£1.75	£2.10
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A363 2910021118	£1.75	£2.10
26 - INTERMEDIATE RING BSD-1600502011.A497 1600502011	£2.61	£3.13
28 - DRILLING SPINDLE BSD-3606135005.A6 3606135005	£93.88	£112.65
29 - ROTARY SHAFT LIP SEAL 17X32X7 BSD-3600283042.A16 3600283042	£18.96	£22.75
30 - INTERMEDIATE RING BSD-1600300090.A47 1600300090	£3.72	£4.47
32 - BEARING COVER BSD-3605500156.A16 3605500156	£5.58	£6.70
33 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A422 2910211011	£1.75	£2.10
34 - AIR-DEFLECTOR RING BSD-3600499016.A3 3600499016	£4.26	£5.11
35 - WIRE GUIDE BSD-3601025003.A70 3601025003	£1.75	£2.10
36 - LENS HEAD SCREW BSD-3603435024.A1 3603435024	£1.95	£2.34
38 - SPIRAL SPRING BSD-3604652001.A18 3604652001	£2.61	£3.13
39 - TAPPING SCREW DIN 79-4.8x45-C-ST BSD-2910211239.A1 2910211239	£1.75	£2.10
40 - THREAD-FORMING TAP. SCREW BSD-3604411040.A19 3604411040	£2.61	£3.13
43 - CONNECTING CABLE L=160 MM BSD-3604460068.A8 3604460068	£2.61	£3.13
44 - CONNECTING CABLE BSD-3604438031.A5 3604438031	£2.16	£2.59
45 - EARTH CONDUCTOR L=415 MM BSD-3604414049.A4 3604414049	£13.12	£15.75
47 - BLADE TERMINAL BSD-1604477001.A155 1604477001	£1.75	£2.10
48 - ROTARY KNOB BSD-3603231008.A13 3603231008	£14.91	£17.89
50 - STRAIGHT PIN DIN 6325-4m6x20 BSD-2917550099.A23 2917550099	£1.75	£2.10
51 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A159 1903230013	£2.16	£2.59
52 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A772 2600910001	£4.26	£5.11
54 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A742 1600910018	£5.30	£6.36
55 - SHIM 0.5 MM BSD-1600100617.A63 1600100617	£1.75	£2.10
57 - SHIM BSD-3600100083.A13 3600100083	£1.75	£2.10
59 - NEEDLE BEARING BSD-1610910088.A44 1610910088	£5.58	£6.70
61 - CYLINDRICAL GEAR Z=34 BSD-3606317047.A0 3606317047	£54.42	£65.30
62 - CYLINDRICAL GEAR Z=45 BSD-3606317048.A17 3606317048	£54.42	£65.30
63 - WEDGE BSD-3602317037.A16 3602317037	£18.96	£22.75
64 - COMPRESSION SPRING BSD-3604610048.A0 3604610048	£1.75	£2.10
65 - SEAL BSD-3601015009.A8 3601015009	£2.61	£3.13
66 - CARRIER BSD-3600101051.A4 3600101051	£54.42	£65.30
67 - GUIDE KEY BSD-3602317050.A0 3602317050	£5.30	£6.36
68 - COMPRESSION SPRING BSD-3604610049.A17 3604610049	£2.16	£2.59
69 - COILED SPRING PIN DIN 7343-4x2 BSD-2917800032.A9 2917800032	£1.75	£2.10
71 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A105 2917500121	£1.75	£2.10
72 - GROOVE BALL BEARING 6003 Y DIN 625 BSD-1900900273.A0 1900900273	£21.68	£26.01
73 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A347 2916650008	£1.75	£2.10
77 - RATCHET CAP BSD-2600590006.A703 2600590006	£1.75	£2.10
87 - O-RING 6.0x2.0 MM BSD-3600210028.A11 3600210028	£2.16	£2.59
88 - O-RING 12.5x2.5 MM BSD-3600210115.A8 3600210115	£1.75	£2.10
91 - SHRINKABLE TUBE BSD-3600707022.A27 3600707022	£3.72	£4.47
92 - SHRINKABLE TUBE BSD-3600707022.A28 3600707022	£3.72	£4.47
93 - SPACER SLEEVE BSD-3600400028.A4 3600400028	£8.67	£10.41
94 - PLAIN WASHER BSD-3600400025.A13 3600400025	£2.80	£3.36
95 - SPACER SLEEVE BSD-3600400026.A4 3600400026	£10.10	£12.12
96 - SOCKET HEAD CAP SCREW M4x103 MM BSD-3603414022.A0 3603414022	£8.67	£10.41
97 - CONTACT SHEET BSD-3601016003.A11 3601016003	£21.68	£26.01
98 - BOLT BSD-3603100033.A9 3603100033	£2.80	£3.36
99 - TOOTHED LOCK WASHER BSD-2916031006.A0 2916031006	£1.75	£2.10
100 - THREADED INSERT BSD-3603100034.A8 3603100034	£1.75	£2.10
101 - SOCKET-TERMINAL STRIP 1x1.5 MM BSD-3602319041.A21 3602319041	£1.75	£2.10
102 - REFERENCE PLATE BSD-3601119070.A12 3601119070	£3.72	£4.47
201 - PROTECTIVE CAP BSD-3605500152.A6 3605500152	£2.80	£3.36
202 - RETAINING RING BSD-3600224046.A5 3600224046	£1.75	£2.10
204 - SLEEVE BSD-3600400023.A1 3600400023	£2.33	£2.80
205 - RETAINING WASHER BSD-3600100079.A6 3600100079	£2.61	£3.13
206 - GROOVE BALL BEARING 30x47x9 BSD-3600905114.A10 3600905114	£31.64	£37.97
207 - CARRIER BSD-3606319029.A4 3606319029	£48.38	£58.06
208 - HOLLOW SHAFT SDS-DI BSD-3603130005.A3 3603130005	£186.77	£224.12
209 - COMPRESSION SPRING BSD-3604610155.A13 3604610155	£2.61	£3.13
212 - SPRING RETAINING RING DIN 471 30x1.5 MM BSD-2916650017.A40 2916650017	£1.75	£2.10
213 - RETAINING RING BSD-3600224050.A8 3600224050	£1.75	£2.10
214 - SEALING DISK BSD-3600109013.A10 3600109013	£1.75	£2.10
215 - COMPRESSION SPRING BSD-3604610053.A1 3604610053	£5.30	£6.36
216 - STOP RING BSD-3600300056.A2 3600300056	£21.52	£25.83
217 - DRIVER DISC BSD-3600113021.A6 3600113021	£12.04	£14.45
218 - RETAINING RING BSD-3600224051.A5 3600224051	£1.32	£1.58
219 - RETAINING RING BSD-3600224047.A5 3600224047	£1.75	£2.10
220 - SEAL RING BSD-3600283044.A3 3600283044	£5.58	£6.70
221 - SUPPORTING DISC BSD-3600190021.A3 3600190021	£6.52	£7.83
224 - RETAINING PIN BSD-3603100037.A13 3603100037	£48.38	£58.06
225 - HOUSING BSD-3605102083.A7 3605102083	£156.22	£187.46
226 - SUCTION CONNECTOR BSD-3603386046.A4 3603386046	£3.72	£4.47
227 - CLAMPING SLEEVE BSD-3600400027.A3 3600400027	£3.72	£4.47
228 - O-RING 25.0x2.65 MM BSD-3600210112.A3 3600210112	£1.75	£2.10
235 - STRAIGHT PIN DIN 6325-3M6x12 BSD-2917550077.A18 2917550077	£1.75	£2.10
236 - SELF-LOCKING NUT M5 BSD-3603386057.A13 3603386057	£2.16	£2.59
238 - SPRING RETAINING RING BSD-3600224056.A5 3600224056	£1.75	£2.10
240 - RETAINING SNAP RING BSD-3600300057.A8 3600300057	£21.52	£25.83
651 - AUXILIARY HANDLE M14 BSD-3602025014.A5 3602025014	£4.26	£5.11
654 - CARRYING CASE BSD-1615438373.A5 1615438373	-
715 - LENGTHENING PIECE SDS-DI. L=300 MM BSD-2608598112.A6 2608598112	£294.89	£353.87
725/1 - EXTRACTOR HEAD BSD-2609390318.A9 2609390318	-
726 - DRILL STAND BSD-0601190025.A0 0601190025	-
759 - WHETSTONE BSD-2609390315.A21 2609390315	-
760 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A28 1609202230	£85.74	£102.89
761 - ALL PURPOSE VACUUM CLEANE BSD-0601989132.A0 0601989132	-
801 - MOTOR HOUSING BSD-3605108181.A13 3605108181	£54.42	£65.30
802 - FIELD 220-240V BSD-3604220154.A12 3604220154	£45.67	£54.80
803 - ARMATURE 220-240V BSD-3604010088.A14 3604010088	-
806 - END SPLICE BSD-3604477009.A338 3604477009	£2.61	£3.13
808 - NAMEPLATE BSD-160111A3H7.A0 160111A3H7	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-3607014003.A0 3607014003	£31.64	£37.97
811 - STAR KNOB BSD-3603349003.A5 3603349003	£21.52	£25.83
818 - SEGMENTED RING BSD-3600460005.A10 3600460005	£3.34	£4.01
820/03 - FASTENER BSD-3602319043.A0 3602319043	£16.74	£20.09
822 - SPINDLE BEARING BSD-3605806184.A13 3605806184	£135.25	£162.30
823 - CLAMP BUSHING BSD-3600300055.A12 3600300055	£13.12	£15.75
825/01 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1270 2910021118	£1.75	£2.10
827 - HANDLE BSD-3605133019.A7 3605133019	-
831 - ROTARY SHAFT LIP SEAL BSD-3600290070.A1 3600290070	£12.04	£14.45
832 - BEARING COVER BSD-3605500043.A39 3605500043	£4.26	£5.11
835 - WIRE GUIDE BSD-1601025001.A10 1601025001	£1.75	£2.10
837 - INTERMEDIATE BEARING BSD-3607030438.A13 3607030438	£135.25	£162.30
841 - HOLDING PLATE BSD-3602329036.A11 3602329036	£1.75	£2.10
844 - CONNECTING CABLE L=330 MM BSD-3604438017.A7 3604438017	-
846 - CONNECTING CABLE L=170 MM BSD-3604441010.A9 3604441010	£2.16	£2.59
851 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A205 2916060005	£1.75	£2.10
856 - SPUR WHEEL CLUTCH BSD-3606309054.A12 3606309054	£357.27	£428.72
890 - TAB WASHER BSD-1601030022.A254 1601030022	£1.75	£2.10
