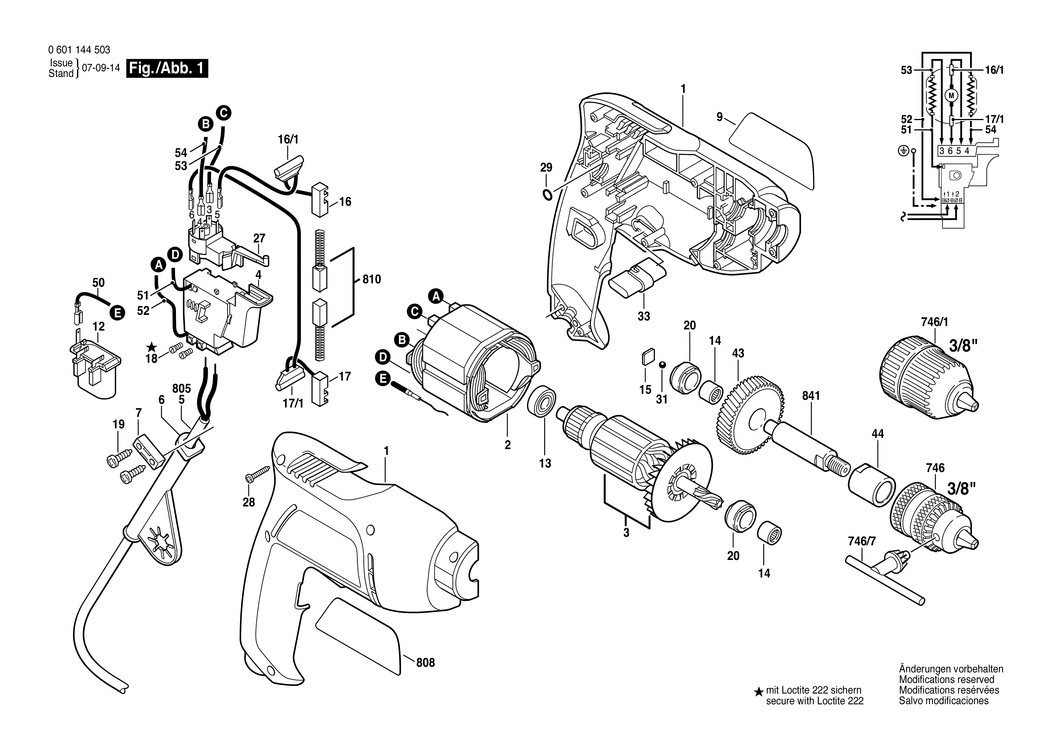

1 - HOUSING SECTION
BSD-2605104590.A2
2605104590
|
£16.74
|
£20.09
|
|
|
2 - FIELD 220-240V
BSD-2604220625.A3
2604220625
|
£15.49
|
£18.59
|
|
|
3 - ARMATURE 220-240V
BSD-2604011203.A1
2604011203
|
-
|
|
|
|
4 - SWITCH
BSD-2607200398.A13
2607200398
|
£24.45
|
£29.34
|
|
|
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460283.A1
2604460283
|
£12.64
|
£15.17
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A287
2600707059
|
£3.91
|
£4.69
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1628
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2609130751.A3
2609130751
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A339
2607329114
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A94
2600905046
|
£11.30
|
£13.56
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A228
2600917003
|
£2.94
|
£3.53
|
|
|
15 - PRESSURE PLATE
BSD-2609110019.A0
2609110019
|
£2.61
|
£3.13
|
|
|
16/1 - SUPPRESSOR BOX
BSD-2604465108.A16
2604465108
|
£4.26
|
£5.11
|
|
|
17/1 - SUPPRESSOR BOX
BSD-2604465107.A0
2604465107
|
£2.33
|
£2.80
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1952
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A429
2910611019
|
£2.94
|
£3.53
|
|
|
20 - BEARING PIECE
BSD-2609110018.A36
2609110018
|
-
|
|
|
|
27 - CHANGE-OVER SWITCH
BSD-2607200416.A14
2607200416
|
£13.78
|
£16.54
|
|
|
28 - TAPPING SCREW
BSD-2603435065.A32
2603435065
|
£1.38
|
£1.66
|
|
|
29 - O-RING 5.0x1.5 MM
BSD-1900210000.A206
1900210000
|
£1.84
|
£2.21
|
|
|
31 - BALL DIN 5401-5 G28
BSD-1903230009.A814
1903230009
|
£1.84
|
£2.21
|
|
|
33 - PROTECTION COVER
BSD-2609100002.A17
2609100002
|
£1.32
|
£1.58
|
|
|
43 - CYLINDRICAL GEAR Z=45
BSD-2609110021.A11
2609110021
|
-
|
|
|
|
44 - SINTERED-METAL BUSHING
BSD-2600301013.A62
2600301013
|
-
|
|
|
|
50 - EARTH CONDUCTOR
BSD-2609120006.A17
2609120006
|
£2.33
|
£2.80
|
|
|
51 - CONNECTING CABLE
BSD-2604448212.A1
2604448212
|
£1.84
|
£2.21
|
|
|
52 - CABLE L=173 MM
BSD-2604448060.A276
2604448060
|
-
|
|
|
|
53 - CONNECTING CABLE
BSD-2609120004.A18
2609120004
|
£1.84
|
£2.21
|
|
|
54 - CONNECTING CABLE
BSD-2609120005.A0
2609120005
|
£1.75
|
£2.10
|
|
|
746/1 - KEYLESS CHUCK
BSD-2608572200.A24
2608572200
|
-
|
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A32
2607950007
|
£6.85
|
£8.22
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A5085
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A171
2604321904
|
£10.61
|
£12.73
|
|
|
841 - DRILLING SPINDLE 3/8
BSD-2609110023.A0
2609110023
|
£15.65
|
£18.78
|
|
