Bosch GBM 16-2 RE / 0601120541 / GB 110 Volt Spare Parts

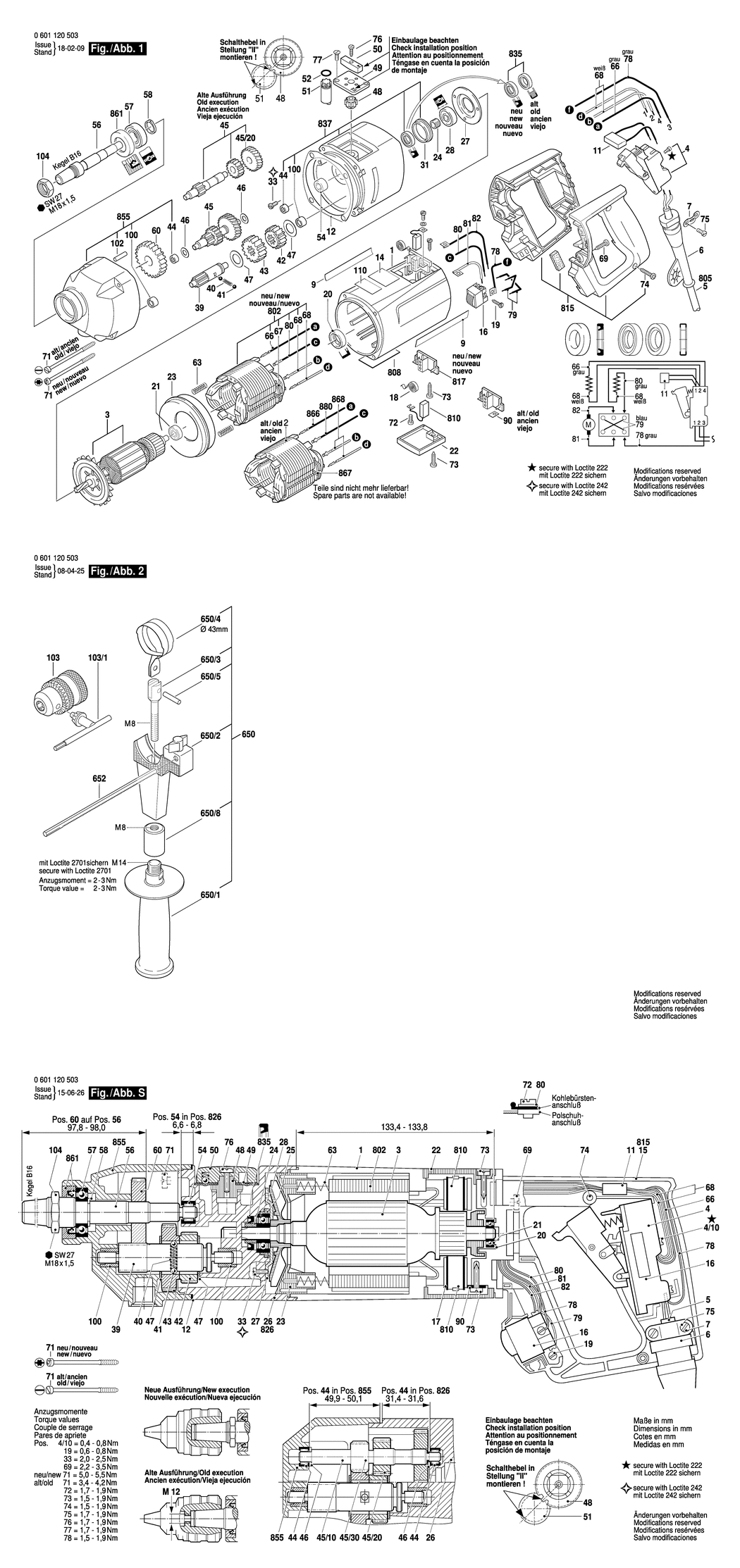

An exploded drawing and listing for the Bosch GBM 16-2 RE / 0601120541 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108092.A0 3605108092	£27.23	£32.68
3 - ARMATURE BSD-1619P13764.A0 1619P13764	£54.42	£65.30
4 - SWITCH BSD-1607200076.A12 1607200076	£120.11	£144.13
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460201.A19 1604460201	£37.27	£44.72
6 - GROMMET dia7.9-dia12.0x120 MM BSD-1600703022.A16 1600703022	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302014.A901 1601302014	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-3601110514.A0 3601110514	£2.61	£3.13
11 - SUPPRESSION FILTER BSD-1607328028.A411 1607328028	£5.30	£6.36
12 - SEALING PLATE BSD-1601015013.A77 1601015013	£1.75	£2.10
16 - SWITCH BSD-3607200025.A1 3607200025	£27.23	£32.68
18 - SPIRAL SPRING BSD-1604652006.A92 1604652006	£1.75	£2.10
19 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A551 2910211006	£1.75	£2.10
20 - INTERMEDIATE RING BSD-1600502011.A271 1600502011	£2.61	£3.13
21 - BALL BEARING 7x19x6 BSD-2600905032.A825 2600905032	£5.30	£6.36
22 - SEALING CAP BSD-3605500063.A38 3605500063	£4.26	£5.11
23 - AIR-DEFLECTOR RING BSD-1600502019.A107 1600502019	£3.72	£4.47
24 - INTERMEDIATE RING BSD-1600300090.A82 1600300090	£3.72	£4.47
27 - BEARING COVER BSD-3605500034.A6 3605500034	£6.52	£7.83
28 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A93 3600905131	£11.30	£13.56
31 - INTERMEDIATE RING BSD-1600221003.A114 1600221003	£2.61	£3.13
33 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1585 2910021118	£1.75	£2.10
39 - TOOTHED SHAFT Z=17 BSD-1606309063.A22 1606309063	£45.67	£54.80
40 - COMPRESSION SPRING BSD-1604611022.A21 1604611022	£1.75	£2.10
41 - BALL DIN 5401-5 G28 BSD-1903230009.A135 1903230009	£1.75	£2.10
42 - CYLINDRICAL GEAR Z=32 BSD-1606317074.A15 1606317074	£31.64	£37.97
43 - CYLINDRICAL GEAR Z=43 BSD-1606317082.A3 1606317082	£37.27	£44.72
44 - NEEDLE BEARING BSD-1600910013.A189 1600910013	£5.58	£6.70
45 - PINION SHAFT Z=14/24/33 BSD-1606309065.A41 1606309065	£81.81	£98.17
45/20 - CYLINDRICAL GEAR Z=33 BSD-1606320077.A5 1606320077	£23.86	£28.63
45/20 - CYLINDRICAL GEAR Z=24 BSD-1606317081.A1 1606317081	£16.74	£20.09
46 - SHIM 0.5 MM BSD-1600100631.A338 1600100631	£1.75	£2.10
47 - SHIM 0.6 MM BSD-1600101647.A30 1600101647	£2.16	£2.59
48 - CONTROL SHAFT Z=20 BSD-1606325025.A11 1606325025	£2.80	£3.36
49 - NOTCHED PLATE BSD-1601038025.A90 1601038025	£1.75	£2.10
50 - CONTROL LEVER BSD-1602026044.A5 1602026044	£7.36	£8.83
51 - CONTROL SHAFT Z=10 BSD-1606325027.A56 1606325027	£8.67	£10.41
52 - O-RING 8x2.5 MM BSD-1900210105.A14 1900210105	£1.75	£2.10
54 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A567 2600910001	£4.26	£5.11
56 - DRILLING SPINDLE B16 BSD-3603523016.A1 3603523016	£48.38	£58.06
57 - GROOVE BALL BEARING 15x32x9 BSD-1900905162.A37 1900905162	£18.96	£22.75
58 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A288 2916650006	£1.75	£2.10
60 - CYLINDRICAL GEAR Z=41 BSD-1606317080.A10 1606317080	£27.23	£32.68
63 - COMPRESSION SPRING BSD-1604613006.A158 1604613006	£1.75	£2.10
66 - CONNECTING CABLE L=375 MM BSD-3604438027.A38 3604438027	£10.10	£12.12
67 - WIRE GUIDE BSD-3601025003.A108 3601025003	£1.75	£2.10
68 - CONNECTING CABLE L=360 MM BSD-3604460027.A0 3604460027	£6.52	£7.83
69 - TORX OVAL-HEAD SCREW BSD-2914201527.A12 2914201527	£2.16	£2.59
71 - LENS HEAD SCREW BSD-3603435042.A12 3603435042	£1.75	£2.10
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1586 2910021118	£1.75	£2.10
73 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2239 2910211019	£1.75	£2.10
74 - TORX OVAL-HEAD SCREW BSD-2914201507.A7 2914201507	£1.75	£2.10
75 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A126 2910211018	£1.75	£2.10
76 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2238 2910211019	£1.75	£2.10
77 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8 BSD-2910501120.A54 2910501120	£1.75	£2.10
78 - CONNECTING CABLE L=330 MM BSD-1604412053.A1 1604412053	£5.30	£6.36
79 - CONNECTING CABLE L=60 MM BSD-3604412002.A5 3604412002	£7.36	£8.83
80 - CONNECTING CABLE L=230 MM BSD-3604438022.A0 3604438022	£8.67	£10.41
81 - CONNECTING CABLE L=150 MM BSD-3604445005.A0 3604445005	£2.33	£2.80
82 - CONNECTING CABLE L=200 MM BSD-3604460012.A2 3604460012	£2.80	£3.36
90 - TAB WASHER BSD-1601030022.A31 1601030022	£1.75	£2.10
100 - BUSHING BSD-3600328033.A7 3600328033	£8.49	£10.19
102 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A134 2917500121	£1.75	£2.10
103 - CHUCK BSD-3608571003.A3 3608571003	£72.18	£86.62
103/1 - CHUCK WRENCH BSD-3607950018.A0 3607950018	£10.10	£12.12
104 - HEX NUT M 18x1.5 MM. SW27 BSD-2915031057.A3 2915031057	£1.75	£2.10
650 - AUXILIARY HANDLE dia43 MM BSD-3602025021.A15 3602025021	£40.80	£48.96
650/1 - AUXILIARY HANDLE dia 66 MM BSD-1612025022.A3 1612025022	-
650/2 - SUPPORT CLAMP BSD-1618040077.A175 1618040077	-
650/3 - STUD BOLT M8 BSD-1613521001.A139 1613521001	£5.58	£6.70
650/4 - CLAMPING BAND dia43 MM BSD-3601038048.A39 3601038048	£18.96	£22.75
650/5 - STRAIGHT PIN BSD-1613100012.A239 1613100012	£2.61	£3.13
650/8 - HANDLE BAR BSD-3602025022.A36 3602025022	£18.96	£22.75
652 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A0 1613001008	£8.67	£10.41
802 - FIELD 110-115V BSD-3604220119.A0 3604220119	£48.38	£58.06
808 - NAMEPLATE BSD-160111A3H3.A2160 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-3607014012.A12 3607014012	£23.86	£28.63
815 - HANDLE BSD-3605133015.A1 3605133015	£21.68	£26.01
817 - BRUSH HOLDER BSD-3604336012.A3 3604336012	£5.58	£6.70
835 - ROTARY SHAFT LIP SEAL BSD-3600290070.A29 3600290070	£12.04	£14.45
837 - INTERMEDIATE BEARING BSD-3607030437.A4 3607030437	£93.88	£112.65
855 - SPINDLE BEARING M14 BSD-1605806368.A27 1605806368	£72.18	£86.62
861 - RETAINING SNAP RING BSD-3607030355.A47 3607030355	£18.96	£22.75
866 - CONNECTING CABLE L=345 MM BSD-1604438013.A50 1604438013	£7.36	£8.83
867 - WIRE GUIDE BSD-1601025001.A62 1601025001	£1.75	£2.10
868 - CONNECTING CABLE L=330 MM BSD-1604438012.A12 1604438012	£7.36	£8.83
880 - CONNECTING CABLE L=200 MM BSD-3604460010.A1 3604460010	-
