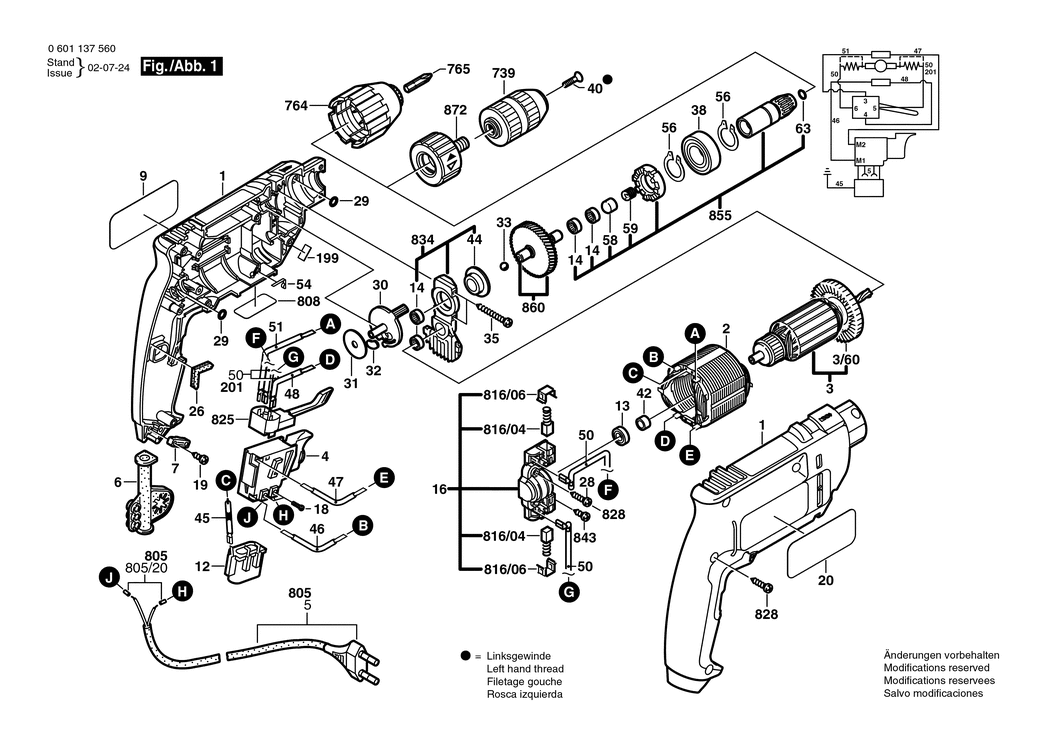

1 - HOUSING SECTION
BSD-2605104378.A9
2605104378
|
£16.74
|
£20.09
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A198
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220-240V
BSD-2604010707.A6
2604010707
|
-
|
|
|
|
3/60 - FAN
BSD-1606610116.A129
1606610116
|
£2.52
|
£3.02
|
|
|
4 - SWITCH
BSD-2607200202.A11
2607200202
|
£37.27
|
£44.72
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460147.A179
2604460147
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.2-dia6.9x84 MM
BSD-2600703036.A13
2600703036
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2498
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116661.A8
2601116661
|
£3.34
|
£4.01
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A375
2607329114
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1367
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A95
2600917003
|
£2.80
|
£3.36
|
|
|
16 - BRUSH PLATE
BSD-2609992606.A14
2609992606
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2498
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2227
2603490022
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2601118585.A9
2601118585
|
£1.32
|
£1.58
|
|
|
26 - DAMPING PLATE
BSD-2601022000.A153
2601022000
|
£1.75
|
£2.10
|
|
|
29 - O-RING 5.0x1.5 MM
BSD-1900210000.A136
1900210000
|
£1.75
|
£2.10
|
|
|
30 - INDEXING DISK
BSD-2601990005.A11
2601990005
|
£1.75
|
£2.10
|
|
|
31 - SUPPORTING DISC
BSD-2600100034.A19
2600100034
|
£1.75
|
£2.10
|
|
|
32 - PRESSURE PLATE
BSD-2600025005.A64
2600025005
|
£1.75
|
£2.10
|
|
|
33 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A840
1903230013
|
£2.16
|
£2.59
|
|
|
35 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A47
2603490025
|
£1.75
|
£2.10
|
|
|
38 - GROOVE BALL BEARING DIN 625-6003-2RS
BSD-1900905166.A9
1900905166
|
£10.82
|
£12.99
|
|
|
40 - COUNTERSUNK-HEAD SCREW M6x23
BSD-2603421229.A251
2603421229
|
£1.75
|
£2.10
|
|
|
42 - SPACER RING
BSD-2600209004.A87
2600209004
|
-
|
|
|
|
44 - BUSHING
BSD-2600220026.A1
2600220026
|
-
|
|
|
|
45 - EARTH CONDUCTOR
BSD-2604448103.A29
2604448103
|
-
|
|
|
|
46 - CABLE L=173 MM
BSD-2604448060.A198
2604448060
|
-
|
|
|
|
47 - CABLE L=98 MM
BSD-2604448045.A242
2604448045
|
-
|
|
|
|
48 - CONNECTING CABLE L=88 MM
BSD-2604448034.A6
2604448034
|
£1.75
|
£2.10
|
|
|
50 - CONNECTING CABLE L=73 MM
BSD-2604448115.A29
2604448115
|
£1.75
|
£2.10
|
|
|
51 - CONNECTING CABLE L=103 MM
BSD-2604448132.A24
2604448132
|
£1.75
|
£2.10
|
|
|
54 - CONTACT STRAP
BSD-2601329043.A196
2601329043
|
£1.32
|
£1.58
|
|
|
56 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A29
2916650008
|
£1.75
|
£2.10
|
|
|
58 - THRUST MEMBER
BSD-2600506009.A5
2600506009
|
-
|
|
|
|
59 - COMPRESSION SPRING
BSD-2604611040.A46
2604611040
|
-
|
|
|
|
63 - RETAINING RING
BSD-2604601004.A21
2604601004
|
£1.75
|
£2.10
|
|
|
739 - KEYLESS CHUCK
BSD-2608572196.A1
2608572196
|
£48.38
|
£58.06
|
|
|
764 - DEPTH-GAUGE
BSD-2600460026.A21
2600460026
|
-
|
|
|
|
765 - SCREWDRIVER BLADE
BSD-2607000239.A7
2607000239
|
-
|
|
|
|
805/20 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A42
1900452012
|
£1.75
|
£2.10
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4167
160111A3H3
|
£2.61
|
£3.13
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321911.A3
2604321911
|
-
|
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A295
2601322013
|
£1.75
|
£2.10
|
|
|
825 - CHANGE-OVER SWITCH
BSD-2607200231.A140
2607200231
|
£16.41
|
£19.69
|
|
|
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A12
2910611020
|
£1.75
|
£2.10
|
|
|
834 - BEARING BRACKET
BSD-2605807924.A12
2605807924
|
£18.96
|
£22.75
|
|
|
843 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A452
2910611006
|
£1.75
|
£2.10
|
|
|
855 - DRILLING SPINDLE
BSD-2606135919.A8
2606135919
|
£40.80
|
£48.96
|
|
|
860 - JACK SHAFT
BSD-2606100916.A1
2606100916
|
£14.75
|
£17.70
|
|
|
872 - ADAPTER
BSD-2608500006.A7
2608500006
|
£61.98
|
£74.38
|
|
