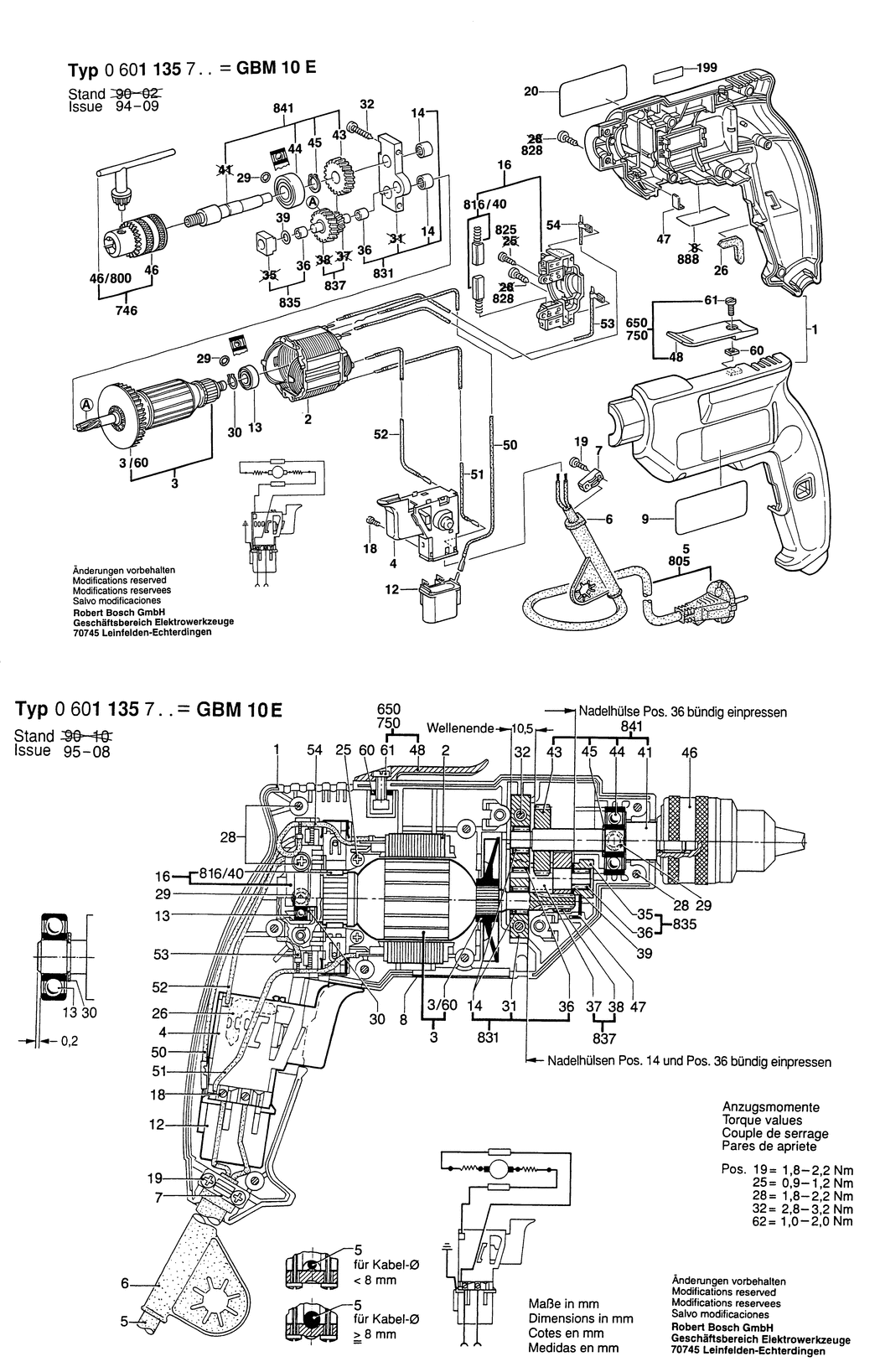

1 - HOUSING SECTION
BSD-2605104316.A1
2605104316
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A54
2604220423
|
£25.68
|
£30.81
|
|
|
3 - ARMATURE 230-240V
BSD-2604010780.A13
2604010780
|
£53.78
|
£64.54
|
|
|
3/60 - FAN
BSD-1606610116.A96
1606610116
|
£2.64
|
£3.17
|
|
|
4 - SWITCH
BSD-1617200089.A32
1617200089
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.0mm H05 VV-F
BSD-2604420032.A0
2604420032
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A690
2600707059
|
£3.91
|
£4.69
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A384
2600707061
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1170
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118576.A6
2601118576
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A76
2607329114
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A743
2600905032
|
£5.57
|
£6.68
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A501
2600917003
|
£2.94
|
£3.53
|
|
|
16 - BRUSH PLATE
BSD-2609992606.A37
2609992606
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1062
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A46
2910611019
|
£2.94
|
£3.53
|
|
|
20 - REFERENCE PLATE
BSD-2601118572.A22
2601118572
|
£3.72
|
£4.47
|
|
|
29 - O-RING 5.0x1.5 MM
BSD-1900210000.A589
1900210000
|
£1.84
|
£2.21
|
|
|
30 - SPACER RING
BSD-2600209004.A43
2600209004
|
-
|
|
|
|
32 - TAPPING SCREW DIN 7983 ST4.2x32-C-H
BSD-2910611096.A2
2910611096
|
£1.32
|
£1.58
|
|
|
36 - NEEDLE BEARING
BSD-2600917004.A21
2600917004
|
£3.91
|
£4.69
|
|
|
39 - SHIM 0.3 MM
BSD-2600100627.A256
2600100627
|
-
|
|
|
|
43 - CYLINDRICAL GEAR Z=27
BSD-2606320046.A21
2606320046
|
-
|
|
|
|
44 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A63
1900905232
|
£21.68
|
£26.01
|
|
|
45 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A396
2916650001
|
£2.74
|
£3.29
|
|
|
46/800 - CHUCK WRENCH SG2
BSD-2607950007.A1007
2607950007
|
£6.85
|
£8.22
|
|
|
50 - EARTH CONDUCTOR
BSD-2604448103.A69
2604448103
|
-
|
|
|
|
51 - CABLE L=98 MM
BSD-2604448045.A50
2604448045
|
-
|
|
|
|
52 - CABLE L=173 MM
BSD-2604448060.A95
2604448060
|
-
|
|
|
|
53 - CONNECTING CABLE L=88 MM
BSD-2604448130.A30
2604448130
|
£1.75
|
£2.10
|
|
|
54 - CONNECTING CABLE L=73 MM
BSD-2604448123.A111
2604448123
|
-
|
|
|
|
60 - SQUARE NUT DIN 562-M4-04
BSD-2915121004.A66
2915121004
|
-
|
|
|
|
61 - PAN HEAD SCREW DIN 85-M4x10-4.8
BSD-2910091120.A48
2910091120
|
£1.84
|
£2.21
|
|
|
63 - RETAINING RING
BSD-2604601004.A407
2604601004
|
£1.75
|
£2.10
|
|
|
746 - KEY CHUCK dia1-10 MM. 1/2-24UNF
BSD-1608571054.A3
1608571054
|
-
|
|
|
|
750 - CHANNEL END-PLATE
BSD-2608040050.A25
2608040050
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-160701417J.A19
160701417J
|
£10.61
|
£12.73
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A180
2601329051
|
£2.33
|
£2.80
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A156
2601322013
|
£1.84
|
£2.21
|
|
|
825 - TAPPING SCREW DIN 7981-B2.9x16-C-H
BSD-2910611007.A79
2910611007
|
£1.84
|
£2.21
|
|
|
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A490
2910611020
|
£1.84
|
£2.21
|
|
|
831 - BEARING BRACKET
BSD-2605807920.A4
2605807920
|
-
|
|
|
|
835 - BEARING PIECE
BSD-2600917903.A22
2600917903
|
£6.94
|
£8.33
|
|
|
837 - TOOTHED SHAFT Z=12/24
BSD-2606311906.A4
2606311906
|
£22.76
|
£27.31
|
|
|
841 - DRILLING SPINDLE 1/2. M6
BSD-2606135912.A2
2606135912
|
£35.12
|
£42.15
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2328
160111A3H3
|
£2.74
|
£3.29
|
|
