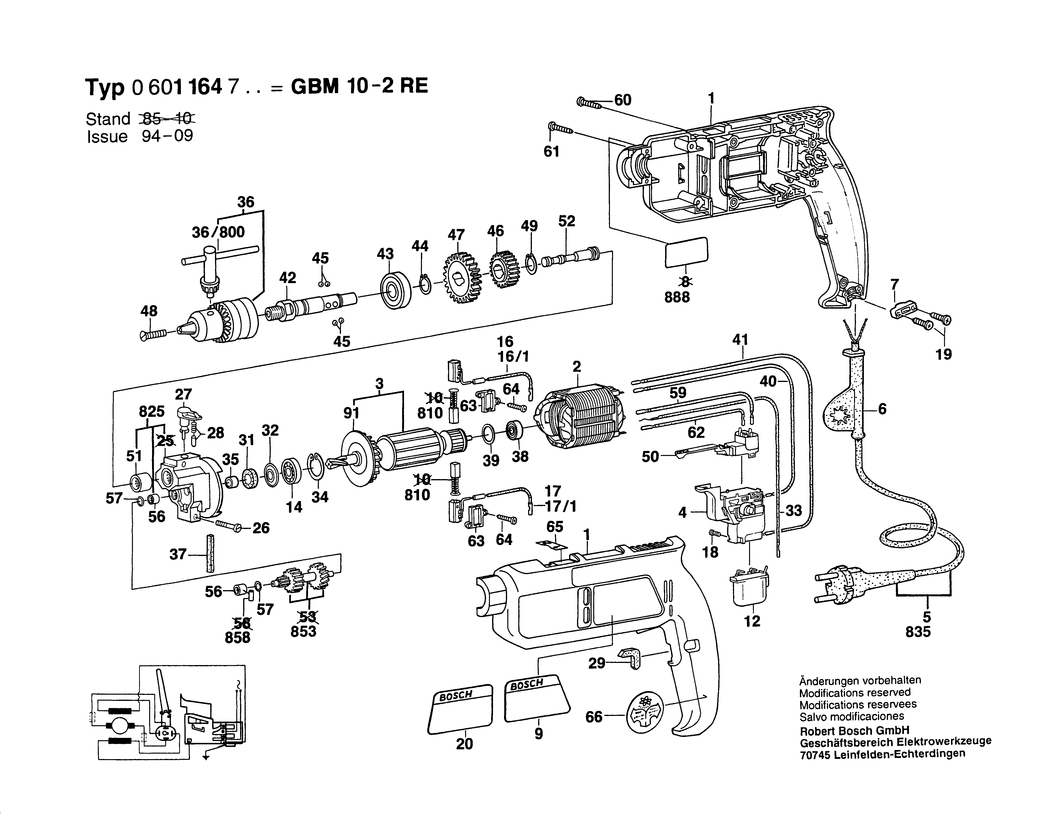

1 - HOUSING SECTION
BSD-2605104212.A12
2605104212
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A61
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220V
BSD-2604010620.A3
2604010620
|
-
|
|
|
|
4 - SWITCH
BSD-2607200202.A70
2607200202
|
£37.27
|
£44.72
|
|
|
4 - SWITCH
BSD-2607200357.A20
2607200357
|
-
|
|
|
|
5 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A101
2604460053
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A678
2600707059
|
£3.72
|
£4.47
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A6
2600707060
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A370
2600707061
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1144
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110888.A0
2601110888
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A68
2607329114
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A639
2600905021
|
£8.67
|
£10.41
|
|
|
16 - CARB BRUSH HOLD W-SUPR
BSD-2604465064.A2
2604465064
|
-
|
|
|
|
17 - CARB BRUSH HOLD W-SUPR
BSD-2604465063.A0
2604465063
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1027
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A79
2910611019
|
£2.80
|
£3.36
|
|
|
20 - REFERENCE PLATE
BSD-2601110440.A6
2601110440
|
-
|
|
|
|
26 - CYL HEAD TAPPING SCREW
BSD-2603435005.A14
2603435005
|
-
|
|
|
|
27 - ROTARY KNOB
BSD-2602026042.A3
2602026042
|
-
|
|
|
|
28 - RATCHET CAP
BSD-2600590006.A1110
2600590006
|
£1.75
|
£2.10
|
|
|
29 - DAMPING PLATE
BSD-2601022000.A730
2601022000
|
£1.75
|
£2.10
|
|
|
31 - FELT WASHER
BSD-2600108002.A9
2600108002
|
£2.16
|
£2.59
|
|
|
32 - CUPPED WASHER
BSD-2600500002.A200
2600500002
|
£1.75
|
£2.10
|
|
|
33 - EARTH CONDUCTOR
BSD-2604448097.A63
2604448097
|
£1.75
|
£2.10
|
|
|
34 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A785
2916660008
|
£2.16
|
£2.59
|
|
|
35 - RECEPTACLE
BSD-2600400008.A327
2600400008
|
£1.75
|
£2.10
|
|
|
36 - KEY CHUCK 1/2-20 UNF
BSD-1608571061.A14
1608571061
|
£19.24
|
£23.09
|
|
|
36/800 - CHUCK WRENCH SG2
BSD-2607950007.A989
2607950007
|
£6.52
|
£7.83
|
|
|
37 - FELT STRIP
BSD-2601005009.A8
2601005009
|
-
|
|
|
|
38 - GROOVE BALL BEARING
BSD-2600905029.A0
2600905029
|
-
|
|
|
|
39 - O-RING 15x2 MM
BSD-1900210012.A94
1900210012
|
£1.75
|
£2.10
|
|
|
40 - CONNECTING CABLE L=154 MM
BSD-2604448000.A33
2604448000
|
-
|
|
|
|
41 - CONNECTING CABLE L=124 MM
BSD-2604448018.A73
2604448018
|
£2.33
|
£2.80
|
|
|
42 - DRILLING SPINDLE 1/2-20 UNF
BSD-2606135017.A11
2606135017
|
-
|
|
|
|
43 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A399
1900905163
|
£11.30
|
£13.56
|
|
|
44 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A319
2916650008
|
£1.75
|
£2.10
|
|
|
45 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A581
1903230006
|
£2.16
|
£2.59
|
|
|
46 - CYLINDRICAL GEAR Z=35
BSD-2606317051.A6
2606317051
|
-
|
|
|
|
47 - CYLINDRICAL GEAR Z=48
BSD-2606317050.A8
2606317050
|
-
|
|
|
|
48 - COUNTERSUNK-HEAD SCREW M6x20 MM
BSD-2603421211.A10
2603421211
|
£1.95
|
£2.34
|
|
|
49 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A327
2916650006
|
£1.75
|
£2.10
|
|
|
50 - SWITCH
BSD-1617200042.A67
1617200042
|
£16.41
|
£19.69
|
|
|
51 - NEEDLE BEARING
BSD-2600910000.A25
2600910000
|
-
|
|
|
|
52 - CONTROL SHAFT
BSD-2603105035.A11
2603105035
|
-
|
|
|
|
56 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A448
2600914010
|
£2.80
|
£3.36
|
|
|
57 - SHIM 0.3 MM
BSD-2600100607.A1007
2600100607
|
£1.75
|
£2.10
|
|
|
59 - CONNECTING CABLE L=115MM
BSD-2604448096.A36
2604448096
|
-
|
|
|
|
60 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A684
2912401020
|
£2.16
|
£2.59
|
|
|
61 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A2
2603490018
|
£1.75
|
£2.10
|
|
|
62 - CONNECTING CABLE L=88 MM
BSD-2604448034.A355
2604448034
|
£1.75
|
£2.10
|
|
|
63 - BRUSH PLATE
BSD-2601015054.A3
2601015054
|
-
|
|
|
|
64 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1528
2603490017
|
£2.16
|
£2.59
|
|
|
65 - STICKER
BSD-2601110445.A6
2601110445
|
-
|
|
|
|
66 - STICKER
BSD-2601110230.A11
2601110230
|
-
|
|
|
|
91 - FAN
BSD-2606610022.A76
2606610022
|
£4.26
|
£5.11
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A385
2604321905
|
£11.30
|
£13.56
|
|
|
825 - BEARING BRACKET
BSD-2605807911.A8
2605807911
|
-
|
|
|
|
853 - SPINDLE WITH GEAR Z= 9/22/21
BSD-2606100912.A14
2606100912
|
-
|
|
|
|
858 - O-RING 28x3 MM
BSD-1900210129.A47
1900210129
|
£2.61
|
£3.13
|
|
|
859 - RUBBER PLUG
BSD-2603239013.A3
2603239013
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2356
160111A3H3
|
£2.61
|
£3.13
|
|
