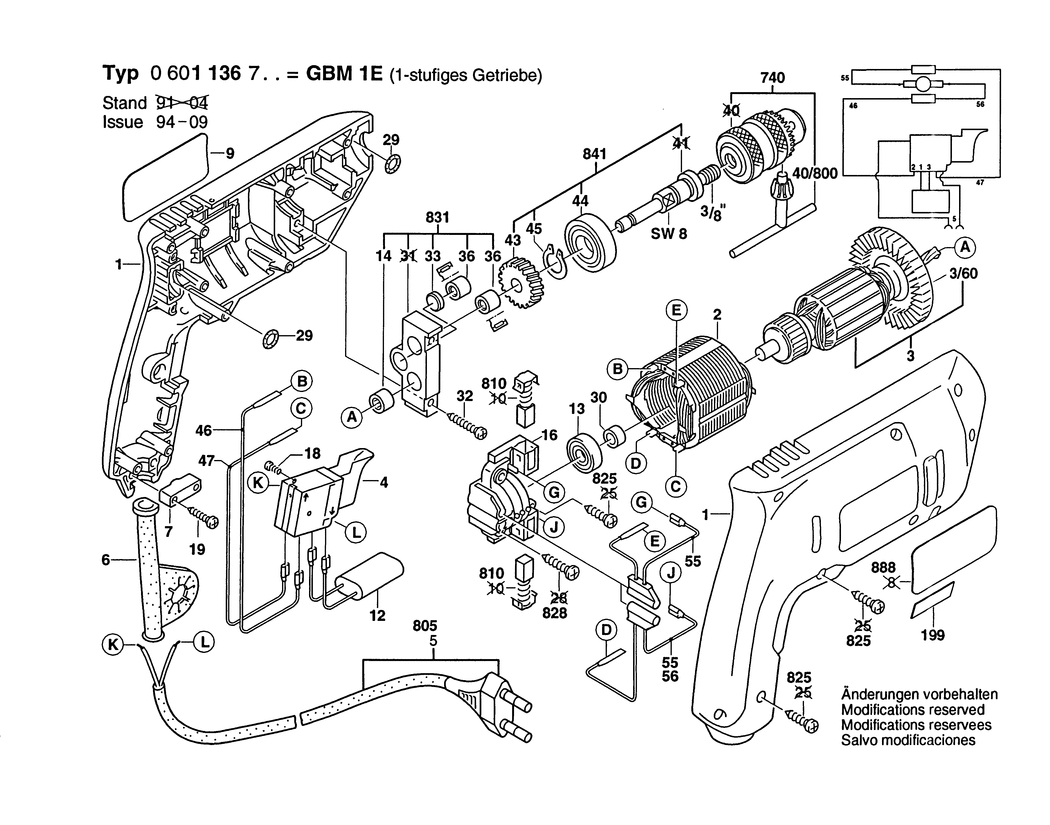

1 - HOUSING SECTION
BSD-2605104342.A3
2605104342
|
£13.41
|
£16.09
|
|
|
2 - FIELD 220-240V
BSD-2604220466.A1
2604220466
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604010842.A0
2604010842
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A101
2606610027
|
£2.80
|
£3.36
|
|
|
4 - ON-OFF SWITCH
BSD-2607200277.A4
2607200277
|
£36.63
|
£43.96
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-3604460069.A56
3604460069
|
£39.61
|
£47.53
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A38
2600707061
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia7x8.4 MM
BSD-2600707062.A24
2600707062
|
£1.84
|
£2.21
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2520
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118582.A3
2601118582
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329127.A3
2607329127
|
£6.94
|
£8.33
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1358
2600905032
|
£5.57
|
£6.68
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A103
2600917003
|
£2.94
|
£3.53
|
|
|
16 - BRUSH PLATE
BSD-2605807039.A16
2605807039
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2513
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A693
2910611019
|
£2.94
|
£3.53
|
|
|
29 - O-RING 5.0x1.5 MM
BSD-1900210000.A132
1900210000
|
£1.84
|
£2.21
|
|
|
30 - SPACER RING
BSD-2600209004.A99
2600209004
|
-
|
|
|
|
32 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A801
2603490024
|
£1.84
|
£2.21
|
|
|
33 - SEALING CAP
BSD-2605500111.A30
2605500111
|
-
|
|
|
|
36 - NEEDLE BEARING
BSD-2600917004.A72
2600917004
|
£3.91
|
£4.69
|
|
|
40/800 - CHUCK WRENCH DIN 6349-S1
BSD-1607950028.A11
1607950028
|
-
|
|
|
|
43 - CYLINDRICAL GEAR Z=55
BSD-2606319060.A10
2606319060
|
-
|
|
|
|
44 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A116
1900905232
|
£21.68
|
£26.01
|
|
|
45 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A276
2916650001
|
£2.74
|
£3.29
|
|
|
46 - CONNECTING CABLE
BSD-2604448152.A16
2604448152
|
-
|
|
|
|
47 - CONNECTING CABLE
BSD-2604448153.A4
2604448153
|
-
|
|
|
|
55 - BRUSH HOLDER
BSD-2604465103.A1
2604465103
|
-
|
|
|
|
740 - KEY CHUCK dia1.5-10 MM. 3/8
BSD-1608571053.A24
1608571053
|
£20.99
|
£25.19
|
|
|
810 - CARBON-BRUSH SET
BSD-2607014004.A4
2607014004
|
-
|
|
|
|
825 - TAPPING SCREW DIN 7981-B2.9x16-C-H
BSD-2910611007.A4
2910611007
|
£1.84
|
£2.21
|
|
|
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A4
2910611020
|
£1.84
|
£2.21
|
|
|
831 - BEARING BRACKET
BSD-2605807922.A15
2605807922
|
-
|
|
|
|
841 - DRILLING SPINDLE 3/8 - 24 UNF 2A
BSD-2606135916.A11
2606135916
|
£28.59
|
£34.31
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4163
160111A3H3
|
£2.74
|
£3.29
|
|
