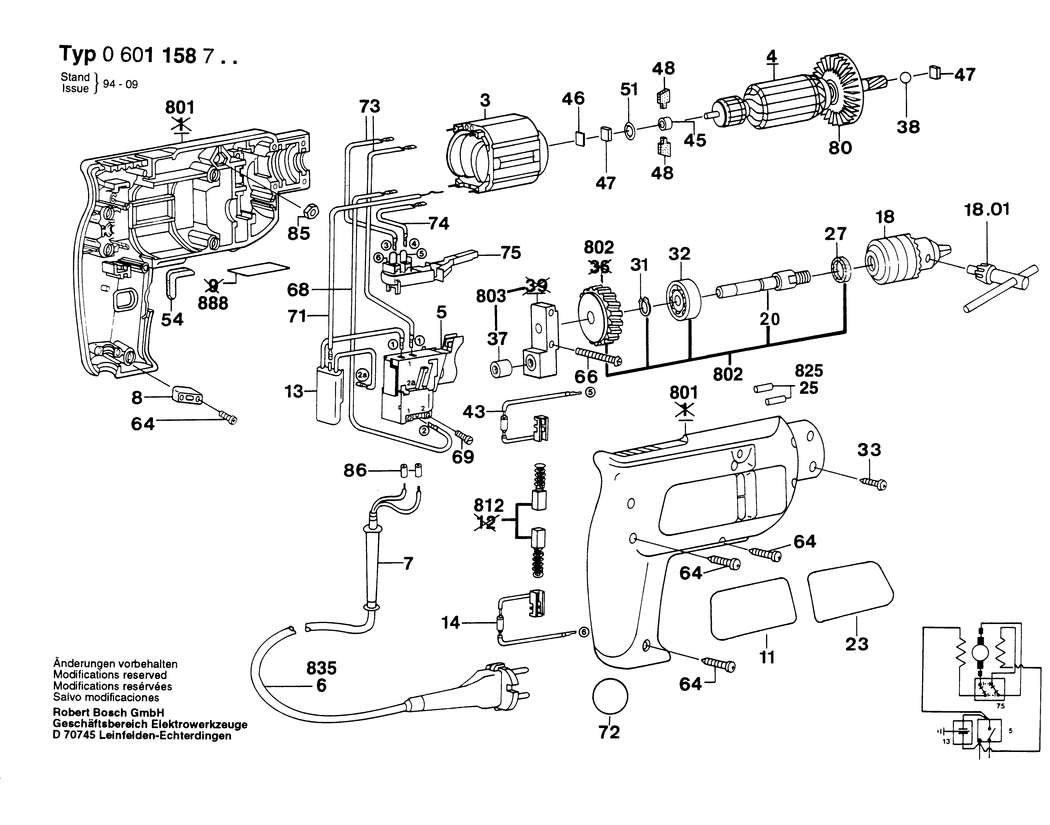

3 - FIELD 240V
BSD-2604220398.A40
2604220398
|
-
|
|
|
|
4 - ARMATURE 220-230V
BSD-2604010570.A2
2604010570
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-2607200137.A81
2607200137
|
-
|
|
|
|
5 - SWITCH
BSD-2607200202.A50
2607200202
|
£39.13
|
£46.96
|
|
|
6 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A50
2604460053
|
-
|
|
|
|
7 - GROMMET dia6.9 MM
BSD-2600707059.A356
2600707059
|
£3.91
|
£4.69
|
|
|
7 - GROMMET dia8.8 MM
BSD-2600707061.A210
2600707061
|
£2.80
|
£3.36
|
|
|
8 - CABLE CLIP
BSD-2601035001.A27
2601035001
|
£1.84
|
£2.21
|
|
|
11 - STICKER
BSD-2601110079.A35
2601110079
|
-
|
|
|
|
13 - SUPPRESSION FILTER
BSD-2607329096.A43
2607329096
|
£7.72
|
£9.27
|
|
|
14 - SUPPRESSOR BOX
BSD-2604465020.A20
2604465020
|
-
|
|
|
|
18 - KEY CHUCK dia1.5-10 MM. 3/8
BSD-1608571053.A37
1608571053
|
£20.99
|
£25.19
|
|
|
18/1 - CHUCK WRENCH SG2
BSD-2607950007.A1401
2607950007
|
£6.85
|
£8.22
|
|
|
18 - KEYLESS CHUCK dia 1-10 MM. 3/8
BSD-1608572018.A23
1608572018
|
-
|
|
|
|
23 - STICKER
BSD-2601110881.A3
2601110881
|
-
|
|
|
|
27 - FELT WASHER
BSD-2600205002.A49
2600205002
|
-
|
|
|
|
31 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A594
2916650001
|
£2.74
|
£3.29
|
|
|
32 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A8
1900905232
|
£21.68
|
£26.01
|
|
|
33 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A182
2603490018
|
£1.75
|
£2.10
|
|
|
37 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A687
2600917003
|
£2.94
|
£3.53
|
|
|
38 - BALL DIN 5401-5 G28
BSD-1903230009.A259
1903230009
|
£1.84
|
£2.21
|
|
|
43 - SUPPRESSOR BOX
BSD-2604465020.A21
2604465020
|
-
|
|
|
|
45 - SINTERED-METAL BUSHING
BSD-1900301004.A55
1900301004
|
£14.08
|
£16.89
|
|
|
46 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A137
2601000018
|
-
|
|
|
|
47 - PRESSURE PLATE 1.5 MM
BSD-1601000013.A0
1601000013
|
-
|
|
|
|
48 - LUBRICATING FELT
BSD-2601020005.A0
2601020005
|
-
|
|
|
|
51 - O-RING 8.0x2.5 MM
BSD-1610210014.A353
1610210014
|
-
|
|
|
|
54 - DAMPING PLATE
BSD-2601022000.A459
2601022000
|
£1.75
|
£2.10
|
|
|
64 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A340
2910611019
|
£2.94
|
£3.53
|
|
|
66 - TAPPING SCREW
BSD-2910611296.A6
2910611296
|
-
|
|
|
|
68 - CONNECTING CABLE L=154 MM
BSD-2604448000.A95
2604448000
|
-
|
|
|
|
69 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A301
2603410001
|
£1.84
|
£2.21
|
|
|
71 - CABLE
BSD-2604448003.A184
2604448003
|
-
|
|
|
|
72 - STICKER
BSD-2601110230.A80
2601110230
|
-
|
|
|
|
73 - CONNECTING CABLE L=124 MM
BSD-2604448018.A2
2604448018
|
£2.33
|
£2.80
|
|
|
74 - CONNECTING CABLE
BSD-2604448017.A20
2604448017
|
-
|
|
|
|
75 - CHANGE-OVER SWITCH
BSD-2607200206.A39
2607200206
|
-
|
|
|
|
75 - CHANGE-OVER SWITCH
BSD-2607200198.A14
2607200198
|
-
|
|
|
|
80 - FAN
BSD-2606610022.A123
2606610022
|
£4.26
|
£5.11
|
|
|
85 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1196
2915011007
|
-
|
|
|
|
86 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A392
1900452012
|
£1.75
|
£2.10
|
|
|
801 - HOUSING SECTION
BSD-2605104949.A4
2605104949
|
-
|
|
|
|
802 - DRILLING SPINDLE Z=46
BSD-2606135901.A4
2606135901
|
-
|
|
|
|
803 - BEARING BRACKET
BSD-2605807904.A2
2605807904
|
-
|
|
|
|
812 - CARBON-BRUSH SET
BSD-2604321904.A24
2604321904
|
£10.61
|
£12.73
|
|
|
825 - RUBBER PLUG
BSD-2603239010.A42
2603239010
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2340
160111A3H3
|
£2.74
|
£3.29
|
|
