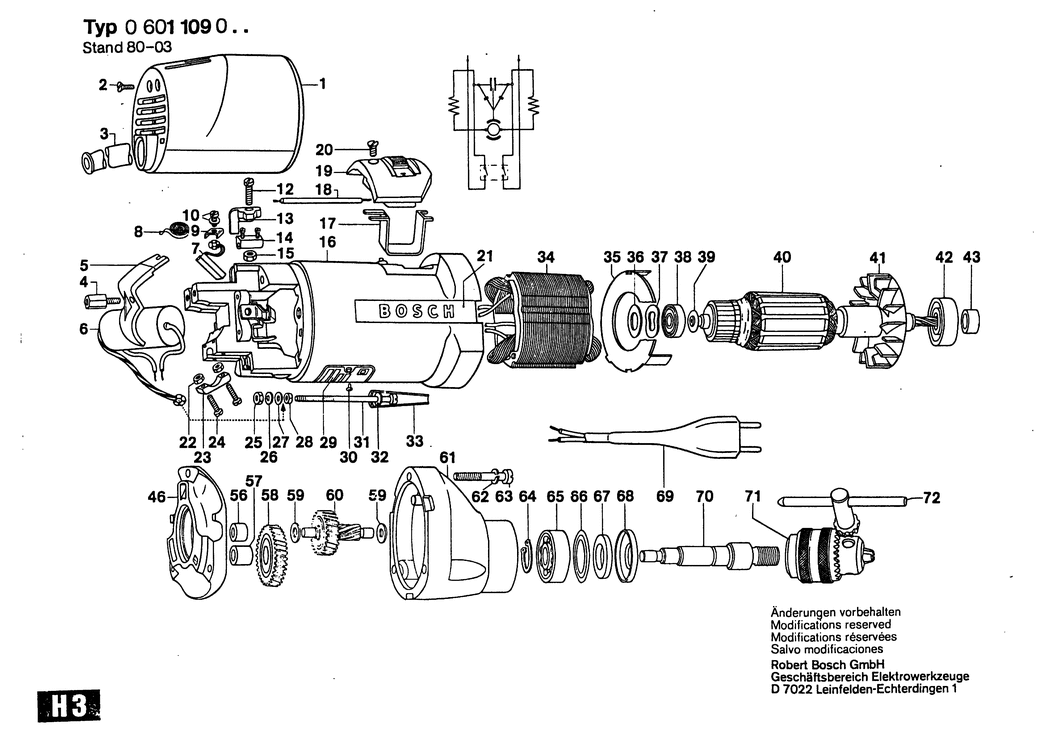

1 - HOUSING COVER
BSD-3600508023.A82
3600508023
|
£13.41
|
£16.09
|
|
|
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8
BSD-2910501084.A68
2910501084
|
-
|
|
|
|
3 - GROMMET dia9.5 MM
BSD-2600703006.A7
2600703006
|
-
|
|
|
|
3 - GROMMET dia7 MM
BSD-2600703007.A388
2600703007
|
-
|
|
|
|
3 - GROMMET dia8.2 MM
BSD-2600703008.A11
2600703008
|
£1.75
|
£2.10
|
|
|
4 - HEX SCREW
BSD-2603527004.A60
2603527004
|
£1.75
|
£2.10
|
|
|
5 - FASTENING CLAMP
BSD-2601301002.A62
2601301002
|
£2.16
|
£2.59
|
|
|
6 - SUPPRESSION FILTER
BSD-2607329048.A50
2607329048
|
-
|
|
|
|
7 - CARBON-BRUSH SET
BSD-2604320905.A64
2604320905
|
-
|
|
|
|
8 - SPIRAL SPRING
BSD-2604652000.A238
2604652000
|
-
|
|
|
|
9 - CLAMPING SADDLE
BSD-2601321005.A56
2601321005
|
-
|
|
|
|
10 - SOCKET HEAD CAP SCREW
BSD-2603410010.A329
2603410010
|
-
|
|
|
|
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84
BSD-2910011028.A30
2910011028
|
-
|
|
|
|
13 - CLAMPING PIECE
BSD-2602305034.A23
2602305034
|
-
|
|
|
|
14 - CONNECTING TERMINAL
BSD-2604490003.A47
2604490003
|
-
|
|
|
|
15 - HEX NUT M 2.6 DIN 934-M-6
BSD-2915011002.A47
2915011002
|
-
|
|
|
|
16 - MOTOR HOUSING
BSD-2605108032.A62
2605108032
|
-
|
|
|
|
17 - INSULATING PART
BSD-2601322002.A68
2601322002
|
£1.75
|
£2.10
|
|
|
18 - CABLE
BSD-2604411061.A4
2604411061
|
-
|
|
|
|
19 - SWITCH
BSD-2607200045.A36
2607200045
|
-
|
|
|
|
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8
BSD-2910501048.A29
2910501048
|
-
|
|
|
|
21 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A270
2601007003
|
-
|
|
|
|
22 - HEX NUT M 2.6 DIN 934-M-6
BSD-2915011002.A46
2915011002
|
-
|
|
|
|
23 - CABLE CLIP
BSD-2601035005.A7
2601035005
|
£1.75
|
£2.10
|
|
|
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8
BSD-2910011033.A20
2910011033
|
-
|
|
|
|
25 - HEX NUT DIN 439-BM 3
BSD-2915051103.A35
2915051103
|
£1.75
|
£2.10
|
|
|
26 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A177
2916690001
|
-
|
|
|
|
27 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A269
2916011005
|
£1.75
|
£2.10
|
|
|
28 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A80
2915011003
|
£1.75
|
£2.10
|
|
|
29 - NAMEPLATE
BSD-2601100038.A96
2601100038
|
-
|
|
|
|
29 - NAMEPLATE
BSD-160111A3H3.A4813
160111A3H3
|
£2.61
|
£3.13
|
|
|
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A47
2917724031
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8
BSD-2910011074.A87
2910011074
|
£1.75
|
£2.10
|
|
|
32 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A270
2916011005
|
£1.75
|
£2.10
|
|
|
33 - CABLE CLIP
BSD-2601099015.A14
2601099015
|
£1.75
|
£2.10
|
|
|
34 - FIELD 110V
BSD-2604220268.A0
2604220268
|
-
|
|
|
|
35 - SEAL RING
BSD-2600113019.A37
2600113019
|
£2.80
|
£3.36
|
|
|
36 - SHIM
BSD-2600100699.A62
2600100699
|
£1.75
|
£2.10
|
|
|
37 - SHIM
BSD-2600150002.A88
2600150002
|
-
|
|
|
|
38 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A5
1900905015
|
£30.42
|
£36.51
|
|
|
39 - SHIM 0.3 MM
BSD-2600100612.A95
2600100612
|
£2.61
|
£3.13
|
|
|
40 - ARMATURE WITH FAN 100-115V
BSD-2604010278.A0
2604010278
|
-
|
|
|
|
41 - FAN
BSD-2606610038.A17
2606610038
|
-
|
|
|
|
42 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A131
1900905007
|
-
|
|
|
|
43 - BEARING SLEEVE
BSD-2600300044.A41
2600300044
|
-
|
|
|
|
46 - MOTOR FLANGE
BSD-2605700133.A6
2605700133
|
-
|
|
|
|
56 - SINTERED-METAL BUSHING
BSD-1900301005.A10
1900301005
|
-
|
|
|
|
58 - CYLINDRICAL GEAR Z=39
BSD-2606319046.A8
2606319046
|
-
|
|
|
|
59 - SHIM 0.3 MM
BSD-2600100612.A94
2600100612
|
£2.61
|
£3.13
|
|
|
60 - SPINDLE WITH GEAR Z= 8/27
BSD-2606100047.A1
2606100047
|
-
|
|
|
|
61 - ASSEMBLY OF SERVICE PARTS
BSD-2605806947.A9
2605806947
|
-
|
|
|
|
62 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A982
2916690003
|
£1.75
|
£2.10
|
|
|
63 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8
BSD-2910021132.A46
2910021132
|
£1.75
|
£2.10
|
|
|
64 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A153
2916650001
|
£2.61
|
£3.13
|
|
|
65 - GROOVE BALL BEARING 6000 Z DIN 625
BSD-1900905100.A59
1900905100
|
-
|
|
|
|
66 - SEALING DISK
BSD-2600108031.A32
2600108031
|
-
|
|
|
|
67 - THREADED RING M 28x1 MM
BSD-3603344013.A35
3603344013
|
£11.78
|
£14.13
|
|
|
69 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A788
1607000227
|
£23.86
|
£28.63
|
|
|
70 - DRILLING SPINDLE 3/8-24 UNF-2
BSD-3603124002.A31
3603124002
|
-
|
|
|
|
71 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A62
1608571020
|
-
|
|
|
|
72 - CHUCK WRENCH SG2
BSD-2607950007.A136
2607950007
|
£6.52
|
£7.83
|
|
|
73 - SUSPENSION LOOP
BSD-1604682003.A17
1604682003
|
-
|
|
|
