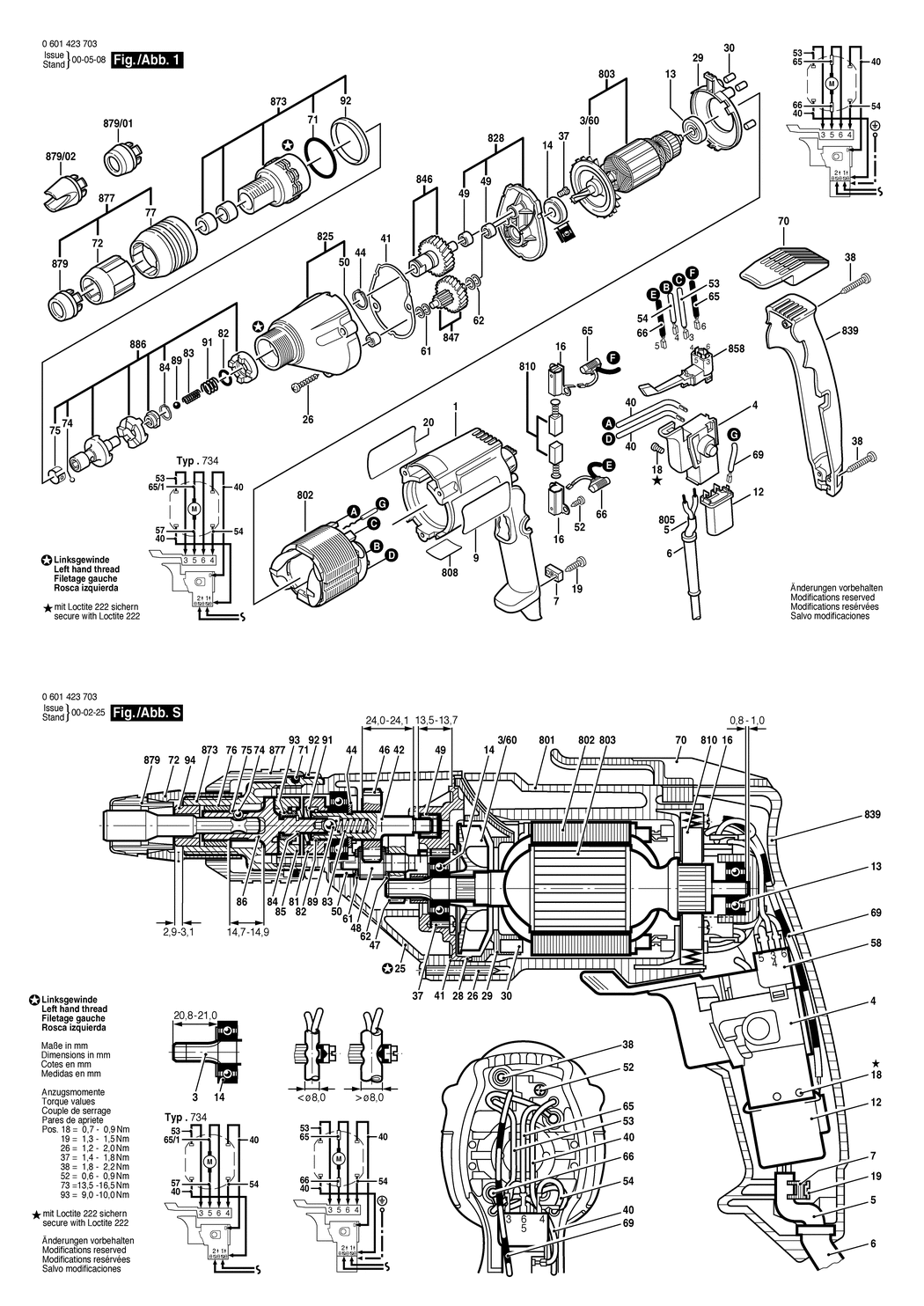

1 - MOTOR HOUSING
BSD-2605104332.A23
2605104332
|
£15.49
|
£18.59
|
|
|
3/60 - FAN
BSD-2606610029.A262
2606610029
|
£2.74
|
£3.29
|
|
|
4 - SWITCH
BSD-2607200202.A24
2607200202
|
£39.13
|
£46.96
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A180
2600703012
|
£2.94
|
£3.53
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1878
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116666.A0
2601116666
|
£2.33
|
£2.80
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A310
2607329114
|
-
|
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A159
1900905018
|
£19.91
|
£23.89
|
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A274
2600905095
|
£12.04
|
£14.45
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A60
2604337003
|
£2.16
|
£2.59
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1777
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2017
2603490022
|
£1.84
|
£2.21
|
|
|
20 - MANUFACTURER'S NAMEPLATE
BSD-9920490119.A6
9920490119
|
£3.99
|
£4.79
|
|
|
26 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A107
2603490025
|
£1.84
|
£2.21
|
|
|
29 - COVER DISC
BSD-2601328046.A24
2601328046
|
£2.80
|
£3.36
|
|
|
30 - RUBBER BUFFER
BSD-3602391503.A21
3602391503
|
-
|
|
|
|
37 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A92
2603410048
|
£1.84
|
£2.21
|
|
|
38 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A576
2603490023
|
£1.84
|
£2.21
|
|
|
40 - CABLE L=130 MM
BSD-2604448005.A299
2604448005
|
£1.84
|
£2.21
|
|
|
41 - FLAT SEAL RING
BSD-3601016502.A19
3601016502
|
-
|
|
|
|
44 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A174
2916650003
|
£1.75
|
£2.10
|
|
|
49 - NEEDLE BEARING
BSD-2600917004.A54
2600917004
|
£3.91
|
£4.69
|
|
|
50 - NEEDLE BEARING dia6/12 MM
BSD-2600914017.A39
2600914017
|
£11.30
|
£13.56
|
|
|
52 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A591
2603490017
|
£2.27
|
£2.72
|
|
|
53 - CONNECTING CABLE L=98 MM
BSD-2604448074.A85
2604448074
|
£2.16
|
£2.59
|
|
|
54 - CONNECTING CABLE L=68 MM
BSD-2604448100.A123
2604448100
|
£1.75
|
£2.10
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A132
2600100607
|
£1.75
|
£2.10
|
|
|
62 - SHIM 0.5 MM
BSD-2600100628.A238
2600100628
|
£1.84
|
£2.21
|
|
|
65 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A219
2604465086
|
£5.58
|
£6.70
|
|
|
66 - SUPPRESSION FILTER L=126 MM
BSD-2604465097.A121
2604465097
|
£5.58
|
£6.70
|
|
|
69 - EARTH CONDUCTOR
BSD-2604448097.A14
2604448097
|
£1.84
|
£2.21
|
|
|
70 - CLIP
BSD-3600690503.A12
3600690503
|
-
|
|
|
|
71 - O-RING
BSD-2600210043.A7
2600210043
|
£1.75
|
£2.10
|
|
|
72 - SPACER SLEEVE
BSD-3600360505.A5
3600360505
|
£7.78
|
£9.33
|
|
|
74 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A115
1903230006
|
£2.27
|
£2.72
|
|
|
75 - BALL SUPPORT
BSD-3600034504.A6
3600034504
|
£2.52
|
£3.02
|
|
|
77 - LOCKING RING
BSD-3600390502.A9
3600390502
|
£6.61
|
£7.93
|
|
|
82 - RETAINING RING
BSD-3600200516.A33
3600200516
|
£1.75
|
£2.10
|
|
|
83 - SPRING
BSD-3604613507.A19
3604613507
|
£2.05
|
£2.46
|
|
|
84 - SPRING RETAINING RING
BSD-3600118502.A2
3600118502
|
£2.45
|
£2.94
|
|
|
89 - BALL DIN 5401-6 G28
BSD-1903230011.A427
1903230011
|
£2.74
|
£3.29
|
|
|
91 - SPRING
BSD-3604613506.A15
3604613506
|
£1.95
|
£2.34
|
|
|
92 - INSULATING SLEEVE
BSD-3600113506.A12
3600113506
|
£1.84
|
£2.21
|
|
|
802 - FIELD 220-240V
BSD-1604220254.A129
1604220254
|
£22.76
|
£27.31
|
|
|
803 - ARMATURE 230-240V
BSD-2604010739.A4
2604010739
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A53
1607000385
|
£15.65
|
£18.78
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A5436
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A103
2604321905
|
£11.87
|
£14.24
|
|
|
825 - GEAR HOUSING
BSD-3605190526.A5
3605190526
|
£31.79
|
£38.15
|
|
|
828 - BEARING BRACKET
BSD-3605806537.A6
3605806537
|
£28.59
|
£34.31
|
|
|
839 - HOUSING COVER
BSD-2605132050.A4
2605132050
|
£10.61
|
£12.73
|
|
|
846 - DRIVE SHAFT Z=32
BSD-3606120567.A6
3606120567
|
-
|
|
|
|
847 - TOOTHED SHAFT Z=14/31
BSD-3606319525.A3
3606319525
|
-
|
|
|
|
858 - CHANGE-OVER SWITCH
BSD-2607200231.A77
2607200231
|
£17.22
|
£20.67
|
|
|
873 - CLUTCH
BSD-3605190522.A0
3605190522
|
£33.45
|
£40.14
|
|
|
877 - SLEEVE
BSD-3600552510.A4
3600552510
|
-
|
|
|
|
879 - DEPTH-GAUGE
BSD-3600552507.A2
3600552507
|
-
|
|
|
|
879/01 - DEPTH-GAUGE
BSD-3600552506.A4
3600552506
|
£3.31
|
£3.97
|
|
|
879/02 - DEPTH-GAUGE
BSD-2607000160.A1
2607000160
|
-
|
|
|
|
886 - CLUTCH
BSD-3606441503.A4
3606441503
|
-
|
|
|
