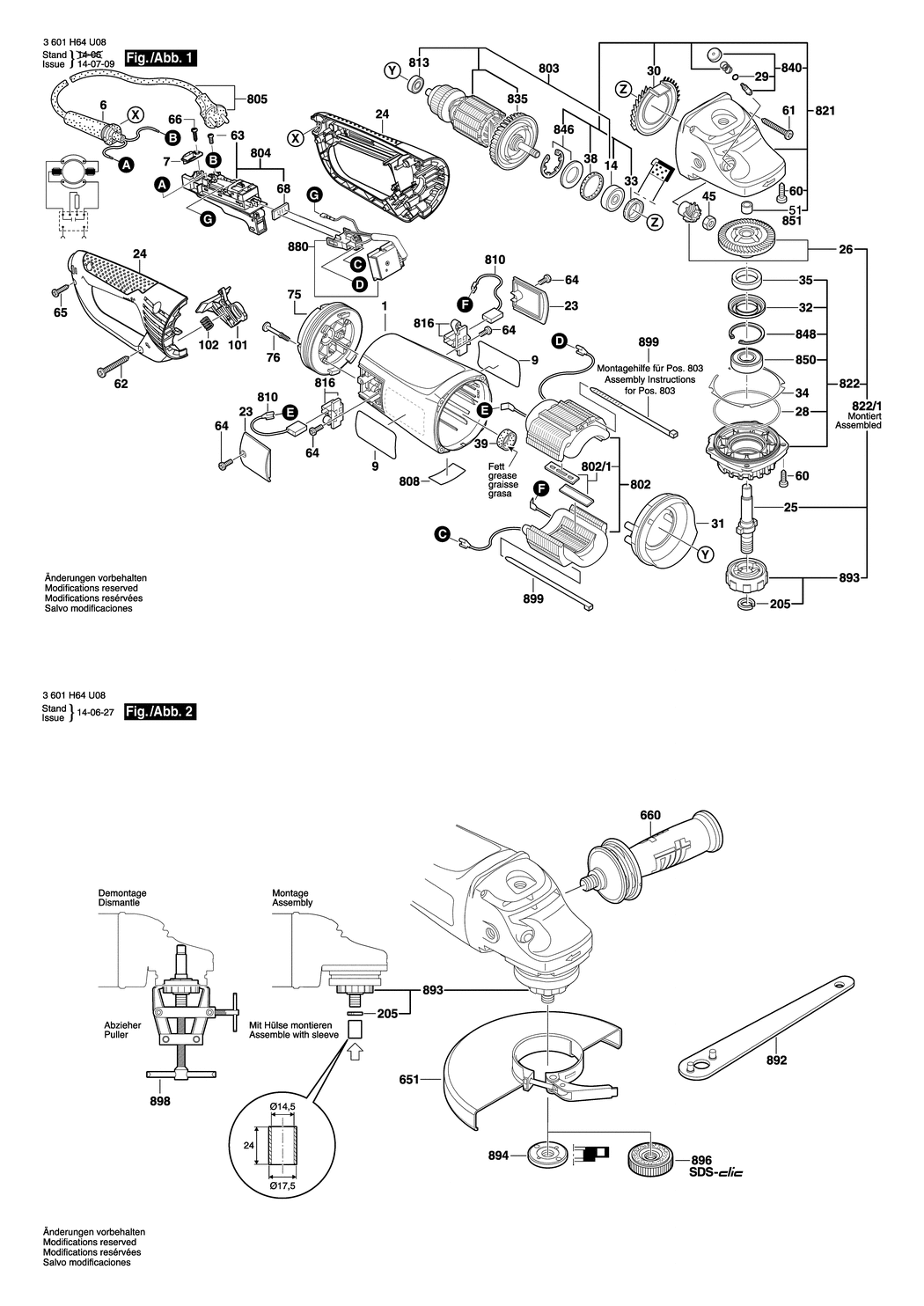

1 - MOTOR HOUSING
BSD-160510829V.A2
160510829V
|
£33.45
|
£40.14
|
|
|
6 - GROMMET dia10.5-dia11.0x100 MM
BSD-1600703036.A96
1600703036
|
£2.16
|
£2.59
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A230
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE SPIT 230 MB AGP
BSD-160111C01R.A0
160111C01R
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING
BSD-1600905028.A244
1600905028
|
£12.04
|
£14.45
|
|
|
23 - SEALING CAP
BSD-1605500246.A4
1605500246
|
£3.72
|
£4.47
|
|
|
24 - HANDLE
BSD-160513212C.A0
160513212C
|
£27.23
|
£32.68
|
|
|
25 - GRINDING SPINDLE
BSD-160312305Z.A6
160312305Z
|
£33.45
|
£40.14
|
|
|
26 - BEVEL GEAR SET
BSD-1600A012VU.A4
1600A012VU
|
-
|
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A383
1600210033
|
£1.75
|
£2.10
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A354
1600210045
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A223
1600591029
|
£2.61
|
£3.13
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A124
1600591028
|
£2.33
|
£2.80
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A311
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A132
1600290064
|
£2.16
|
£2.59
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A503
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A324
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A503
1600190022
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A232
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A155
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A232
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A155
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A505
1600205034
|
£1.75
|
£2.10
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A276
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A529
1600206030
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A382
1603300019
|
£1.75
|
£2.10
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A64
1600200031
|
£2.80
|
£3.36
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A416
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A525
2912401038
|
£1.75
|
£2.10
|
|
|
62 - OVAL-HEAD SCREW
BSD-1603415006.A62
1603415006
|
£2.16
|
£2.59
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A566
1603410014
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A238
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A1093
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1302
2910211019
|
£1.75
|
£2.10
|
|
|
68 - SEALING PLATE
BSD-1601006011.A145
1601006011
|
£2.61
|
£3.13
|
|
|
75 - DAMPER
BSD-1600A0020W.A0
1600A0020W
|
£21.52
|
£25.83
|
|
|
76 - COLLAR SCREW TORX-PLUS-20-IP
BSD-1603414016.A24
1603414016
|
£1.75
|
£2.10
|
|
|
101 - CATCH SLIDE
BSD-1600A001XM.A2
1600A001XM
|
£3.72
|
£4.47
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A141
1604616022
|
£1.75
|
£2.10
|
|
|
205 - SPRING RETAINING RING
BSD-1600209015.A8
1600209015
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER
BSD-1600A001XL.A0
1600A001XL
|
£40.80
|
£48.96
|
|
|
660 - AUXILIARY HANDLE
BSD-160202507J.A2
160202507J
|
£31.64
|
£37.97
|
|
|
802 - FIELD 230V
BSD-1607000C07.A26
1607000C07
|
£88.07
|
£105.68
|
|
|
802/1 - BRAKE SHOE
BSD-1607000363.A16
1607000363
|
£40.80
|
£48.96
|
|
|
803 - ARMATURE 230V
BSD-1604011257.A8
1604011257
|
£103.14
|
£123.77
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C14.A61
1607000C14
|
£30.28
|
£36.33
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A493
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A126
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A439
1607014171
|
£14.91
|
£17.89
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 171
BSD-1607000480.A182
1607000480
|
£102.57
|
£123.08
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A472
1600905011
|
£5.58
|
£6.70
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A204
1604336048
|
£7.36
|
£8.83
|
|
|
821 - GEAR HOUSING
BSD-160703129C.A2
160703129C
|
£72.18
|
£86.62
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000C24.A45
1607000C24
|
£27.31
|
£32.77
|
|
|
822/1 - BEARING FLANGE
BSD-160703129D.A0
160703129D
|
£120.11
|
£144.13
|
|
|
835 - FAN
BSD-1600A00J93.A144
1600A00J93
|
£2.80
|
£3.36
|
|
|
840 - PUSH-BUTTON
BSD-1607000354.A237
1607000354
|
£6.52
|
£7.83
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A22
1607000C3E
|
£12.04
|
£14.45
|
|
|
848 - RETAINING CLIP
BSD-1600119010.A144
1600119010
|
£1.75
|
£2.10
|
|
|
850 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A55
1600905026
|
£8.67
|
£10.41
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1131
2600910001
|
£4.26
|
£5.11
|
|
|
880 - ELECTRONICS MODULE
BSD-1607233319.A16
1607233319
|
£40.80
|
£48.96
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A237
1607950061
|
£5.42
|
£6.50
|
|
|
893 - CLAMPING-FLANGE
BSD-1607000368.A10
1607000368
|
£31.64
|
£37.97
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A551
1603345043
|
£8.67
|
£10.41
|
|
|
896 - FAST LOCKING FLANGE M14
BSD-1603340034.A27
1603340034
|
£36.63
|
£43.96
|
|
|
898 - PULLER
BSD-1609244A78.A10
1609244A78
|
-
|
|
|
|
899 - CABLE TIE 250x13.8x2
BSD-1609203H18.A17
1609203H18
|
£4.26
|
£5.11
|
|
