Bosch GWS 20-180 / 0601356042 / GB 240 Volt Spare Parts

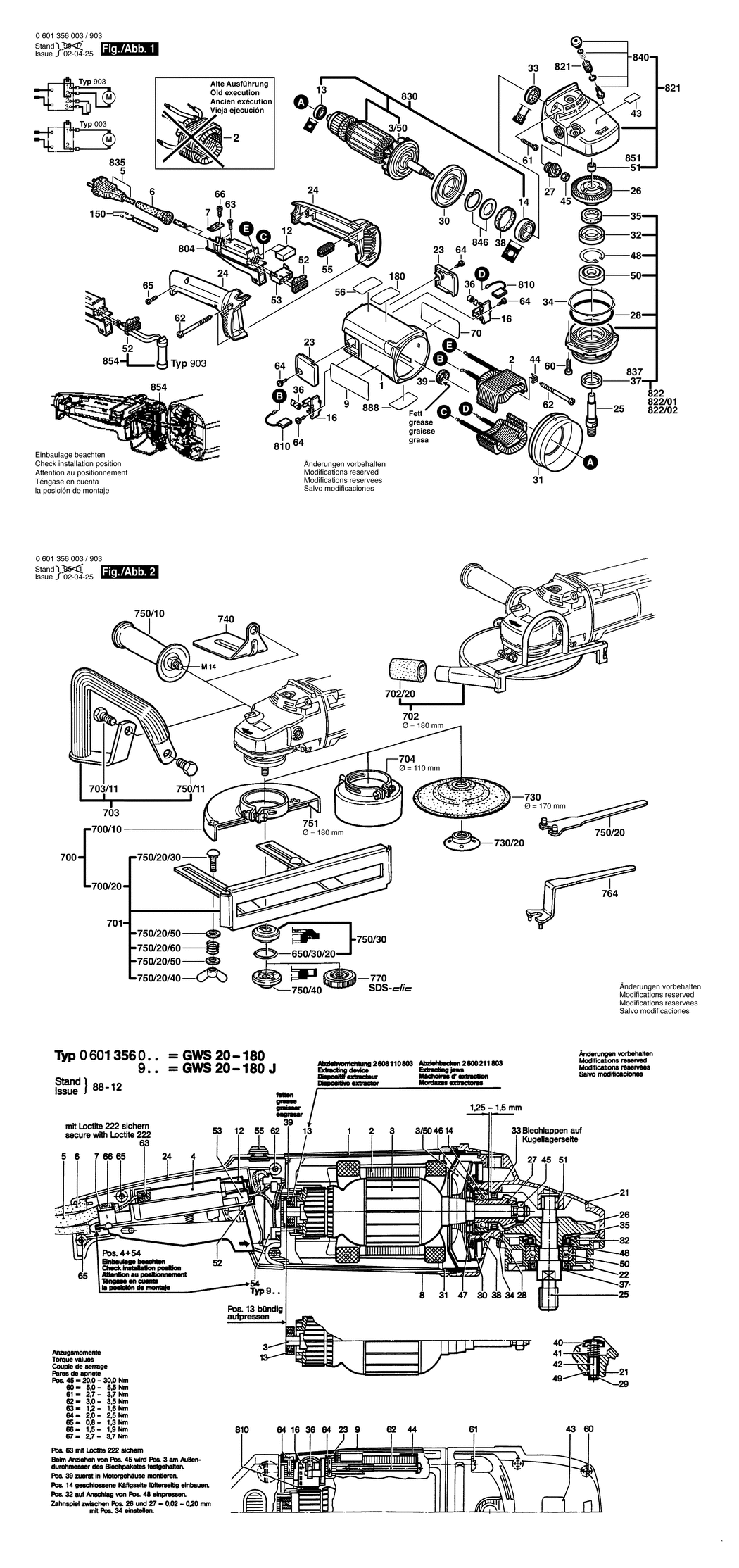

An exploded drawing and listing for the Bosch GWS 20-180 / 0601356042 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108144.A59 1605108144	-
2 - FIELD 230-240V BSD-1604220386.A1 1604220386	-
3/50 - FAN BSD-1606610127.A92 1606610127	£2.80	£3.36
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-1604460144.A64 1604460144	£37.27	£44.72
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A170 1600703023	£2.61	£3.13
6 - GROMMET dia7.9-dia12.0x120 MM BSD-1600703022.A74 1600703022	£2.80	£3.36
6 - GROMMET dia8.8-dia9.0x70 MM BSD-1600703024.A72 1600703024	-
7 - FASTENING CLAMP BSD-1601302018.A417 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118325.A6 1601118325	-
12 - SUPPRESSION FILTER BSD-1607328035.A31 1607328035	£4.26	£5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A221 1600905011	£5.58	£6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905025.A66 1600905025	-
16 - BRUSH HOLDER BSD-1604336021.A12 1604336021	£2.80	£3.36
23 - SEALING CAP BSD-1605500150.A31 1605500150	£3.72	£4.47
24 - HANDLE BSD-1605132117.A50 1605132117	£11.30	£13.56
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A32 1603523100	£14.91	£17.89
26 - CROWN GEAR Z=55 BSD-1606333248.A12 1606333248	-
27 - BEVEL GEAR Z=16 BSD-1606333246.A5 1606333246	-
28 - O-RING 79.0x1.78 MM BSD-1600210033.A298 1600210033	£1.75	£2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A92 1600591010	£2.16	£2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A86 1600591011	£1.75	£2.10
32 - RETAINING SNAP RING BSD-1600290019.A198 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A342 1600290013	£2.61	£3.13
34 - SHIM 0.15 MM BSD-1600190020.A414 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A413 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A414 1600190022	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A326 1600205034	£1.75	£2.10
36 - SPIRAL SPRING BSD-1604652015.A207 1604652015	£2.80	£3.36
37 - SEAL RING BSD-1600290036.A102 1600290036	£2.16	£2.59
38 - RUBBER RING 7 MM BSD-1600206020.A22 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A298 1600206030	£1.75	£2.10
43 - REFERENCE PLATE BSD-1601110470.A30 1601110470	£1.75	£2.10
44 - HOLDING BRACKET BSD-1601334008.A123 1601334008	£2.61	£3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A212 1603300019	£1.75	£2.10
48 - RETAINING CLIP BSD-1600119010.A404 1600119010	£1.75	£2.10
50 - GROOVE BALL BEARING BSD-3600905134.A21 3600905134	£11.30	£13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A358 1600200031	£2.80	£3.36
52 - CABLE ROUTING BSD-1602388027.A32 1602388027	£2.61	£3.13
53 - SOCKET HOUSING BSD-1605190038.A82 1605190038	£1.75	£2.10
55 - STORAGE LEDGE BSD-1602388029.A144 1602388029	£1.75	£2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A276 1603435023	£2.16	£2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A317 2912401038	£1.75	£2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A69 1603435024	£1.75	£2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A207 1603410014	£1.75	£2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A18 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A745 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1609 2910211019	£1.75	£2.10
70 - REFERENCE PLATE BSD-1601110551.A2 1601110551	-
150 - END SPLICE BSD-3604477009.A293 3604477009	£2.61	£3.13
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A661 1600210039	£2.16	£2.59
700/10 - PROTECTIVE COVER dia180 MM BSD-1605510222.A170 1605510222	-
700/20 - GUIDE BLOCK BSD-1608135006.A23 1608135006	-
701 - GUIDE BLOCK BSD-1608135003.A312 1608135003	-
702 - SUCTION HOOD dia180 MM BSD-1605510179.A49 1605510179	£61.24	£73.49
702/20 - UNION dia32.3xdia34.9x75 MM BSD-1600309009.A105 1600309009	-
703 - STRAP-SHAPED HANDLE BSD-1607000247.A198 1607000247	£50.82	£60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A153 2603450007	£5.58	£6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A106 1605510181	-
730 - BACKING PAD dia180 MM BSD-1608601006.A139 1608601006	-
730/20 - ROUND NUT M14 BSD-1603345004.A78 1603345004	£7.87	£9.44
740 - PROTECTING COVER BSD-1601329013.A152 1601329013	£11.37	£13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A134 2602025075	£10.30	£12.36
750/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A152 2603450007	£5.58	£6.70
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A185 1607950048	£4.88	£5.86
750/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A131 2910281244	-
750/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A14 2915191007	£3.72	£4.47
750/20/50 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A106 2600100041	£1.75	£2.10
750/20/60 - COMPRESSION SPRING BSD-1604643003.A243 1604643003	£6.52	£7.83
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A405 1605703099	£7.45	£8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A159 1603340040	£6.20	£7.44
751 - PROTECTIVE COVER dia180 MM BSD-1605510222.A171 1605510222	-
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A11 1607950004	£8.33	£10.00
770 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A404 1603340027	£46.82	£56.18
804 - SWITCH BSD-1607200104.A7 1607200104	£31.64	£37.97
810 - CARBON-BRUSH SET BSD-1607014171.A188 1607014171	£14.91	£17.89
821 - GEAR HOUSING BSD-1605805592.A92 1605805592	£72.18	£86.62
822 - BEARING FLANGE dia180 MM BSD-1607000986.A8 1607000986	-
822/01 - BEARING FLANGE dia180 MM BSD-1607000931.A46 1607000931	£30.28	£36.33
822/02 - BEARING FLANGE dia180 MM BSD-1607000921.A33 1607000921	£36.63	£43.96
830 - ARMATURE 230-240V BSD-1604011148.A4 1604011148	£103.14	£123.77
837 - SEAL RING BSD-1600290020.A154 1600290020	£1.75	£2.10
840 - PUSH-BUTTON BSD-1607000206.A26 1607000206	£11.30	£13.56
846 - RETAINING WASHER BSD-1607000342.A19 1607000342	£3.72	£4.47
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A811 2600910001	£4.26	£5.11
888 - NAMEPLATE BSD-160111A3H3.A742 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
