Bosch GWS 13-125 CIEX / 3601G9F100 / EU 230 Volt Spare Parts

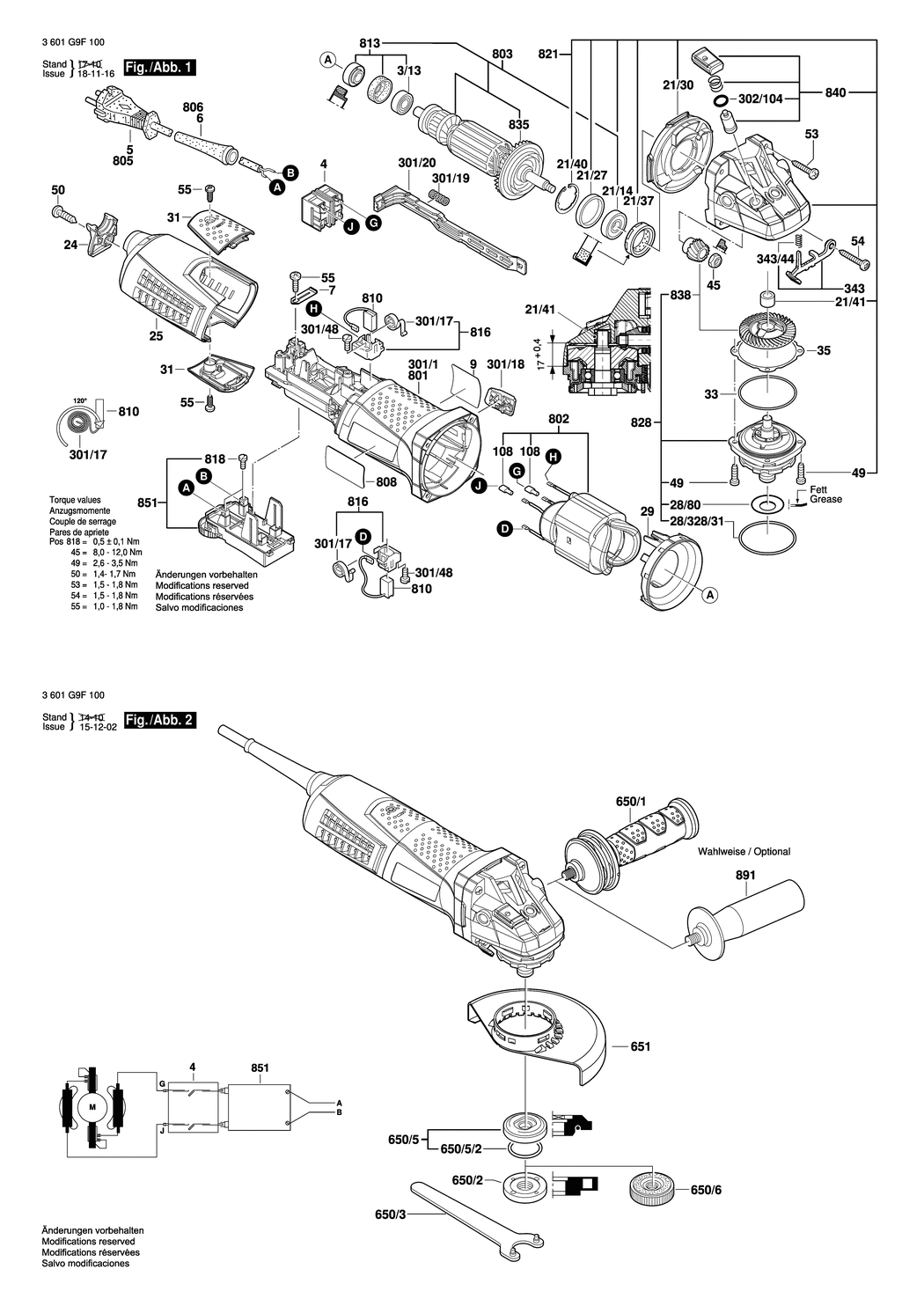

An exploded drawing and listing for the Bosch GWS 13-125 CIEX / 3601G9F100 / EU 230 Volt

	Ex VAT	Inc VAT
3/13 - BALL BEARING 7x19x6 BSD-2600905032.A539 2600905032	£5.30	£6.36
4 - SWITCH BSD-1607200256.A9 1607200256	£12.04	£14.45
6 - GROMMET BSD-1600703043.A46 1600703043	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302017.A681 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GWS 13-125 CIEX BSD-160111C07Z.A0 160111C07Z	£2.61	£3.13
21/14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A348 1600905032	£5.58	£6.70
21/27 - RUBBER RING BSD-1600206025.A596 1600206025	£2.16	£2.59
21/30 - AIR DISTRIBUTOR BSD-1600591048.A41 1600591048	£2.61	£3.13
21/37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A314 1600290016	£2.61	£3.13
21/40 - RETAINING CLIP BSD-1600119011.A347 1600119011	£2.16	£2.59
21/41 - PLAIN BEARING BSD-1600200029.A274 1600200029	£4.26	£5.11
24 - COVER BSD-1605500275.A8 1605500275	£2.80	£3.36
25 - HOUSING COVER BSD-1605500276.A28 1605500276	£8.67	£10.41
28/80 - SEALING DISK BSD-3600150021.A195 3600150021	£3.80	£4.56
28/328/31 - O-RING 47.0x1.5 MM BSD-3600210109.A101 3600210109	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1600591047.A44 1600591047	£2.16	£2.59
31 - BRUSH-COVER BSD-1605500277.A35 1605500277	£2.16	£2.59
33 - O-RING 46.0x1.1 MM BSD-1600210035.A111 1600210035	£1.75	£2.10
35 - SHIM 0.1 MM BSD-1600136013.A368 1600136013	£2.61	£3.13
35 - SHIM 0.2 MM BSD-1600136014.A152 1600136014	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136015.A368 1600136015	£2.61	£3.13
35 - SHIM 0.15 MM BSD-1600136020.A150 1600136020	£3.72	£4.47
45 - HEX NUT M7. SW10 BSD-1603300016.A113 1603300016	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A143 2914491410	£1.75	£2.10
50 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1276 2603490023	£1.75	£2.10
53 - TORX OVAL-HEAD SCREW BSD-1603435078.A84 1603435078	£1.75	£2.10
54 - TORX OVAL-HEAD SCREW 4x30 BSD-1603414026.A200 1603414026	£1.75	£2.10
55 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A621 2603490021	£1.75	£2.10
108 - INSULATING PART BSD-1600712030.A57 1600712030	£1.75	£2.10
301/1 - MOTOR HOUSING BSD-1605108285.A11 1605108285	£13.12	£15.75
301/17 - SPIRAL SPRING BSD-1604652021.A46 1604652021	£1.75	£2.10
301/18 - SWITCH HANDLE BSD-1602026091.A6 1602026091	£1.75	£2.10
301/19 - COMPRESSION SPRING BSD-1604611031.A100 1604611031	£2.80	£3.36
301/20 - ADJUSTING SLIDE BSD-1602319025.A6 1602319025	£2.16	£2.59
301/48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A102 1613435034	£1.75	£2.10
302/104 - O-RING 4.5x1.0 MM BSD-1600210044.A88 1600210044	£1.75	£2.10
343 - CATCH LEVER BSD-1607000742.A158 1607000742	£7.36	£8.83
343/44 - COMPRESSION SPRING BSD-1604611042.A75 1604611042	£1.75	£2.10
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION BSD-16020250A0.A153 16020250A0	£21.42	£25.71
650/2 - ROUND NUT BSD-1600A001PG.A7 1600A001PG	£2.61	£3.13
650/3 - PIN-TYPE FACE-WRENCH BSD-1607950052.A99 1607950052	£3.72	£4.47
650/5 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A927 2605703014	£7.36	£8.83
650/5/2 - O-RING 20.35x1.78 MM BSD-1600210055.A51 1600210055	-
650/6 - FAST LOCKING FLANGE BSD-1600A008BN.A0 1600A008BN	£36.62	£43.95
651 - PROTECTIVE COVER BSD-1600A00XK9.A68 1600A00XK9	£14.72	£17.67
802 - FIELD ASSEMBLY 230V BSD-160422052Z.A15 160422052Z	£27.31	£32.77
803 - ARMATURE WITH FAN 230V BSD-1607000V33.A6 1607000V33	£58.76	£70.51
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A70 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3HG.A2 160111A3HG	£2.16	£2.59
810 - CARBON-BRUSH SET BSD-1607000V37.A2 1607000V37	£14.91	£17.89
813 - GROOVE BALL BEARING BSD-1607000V38.A72 1607000V38	£7.36	£8.83
816 - BRUSH HOLDER BSD-1607000V43.A32 1607000V43	£3.72	£4.47
818 - PAN HEAD SCREW BSD-1607000V42.A55 1607000V42	£1.75	£2.10
821 - GEAR HOUSING BSD-1605806559.A3 1605806559	£30.28	£36.33
828 - BEARING FLANGE BSD-1607000D67.A7 1607000D67	£59.53	£71.44
835 - FAN BSD-1606610132.A84 1606610132	£2.16	£2.59
838 - GEAR UNIT BSD-1600A001X6.A5 1600A001X6	£31.64	£37.97
840 - PUSH-BUTTON BSD-1607000V41.A26 1607000V41	£4.26	£5.11
851 - SPEED GOVERNOR BSD-1607233471.A6 1607233471	£37.72	£45.27
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A880 160202509T	£3.72	£4.47

Attribute Name	Value
Brand	Bosch
