Bosch GWS 12-125 CIPX / 3601G93300 / EU 230 Volt Spare Parts

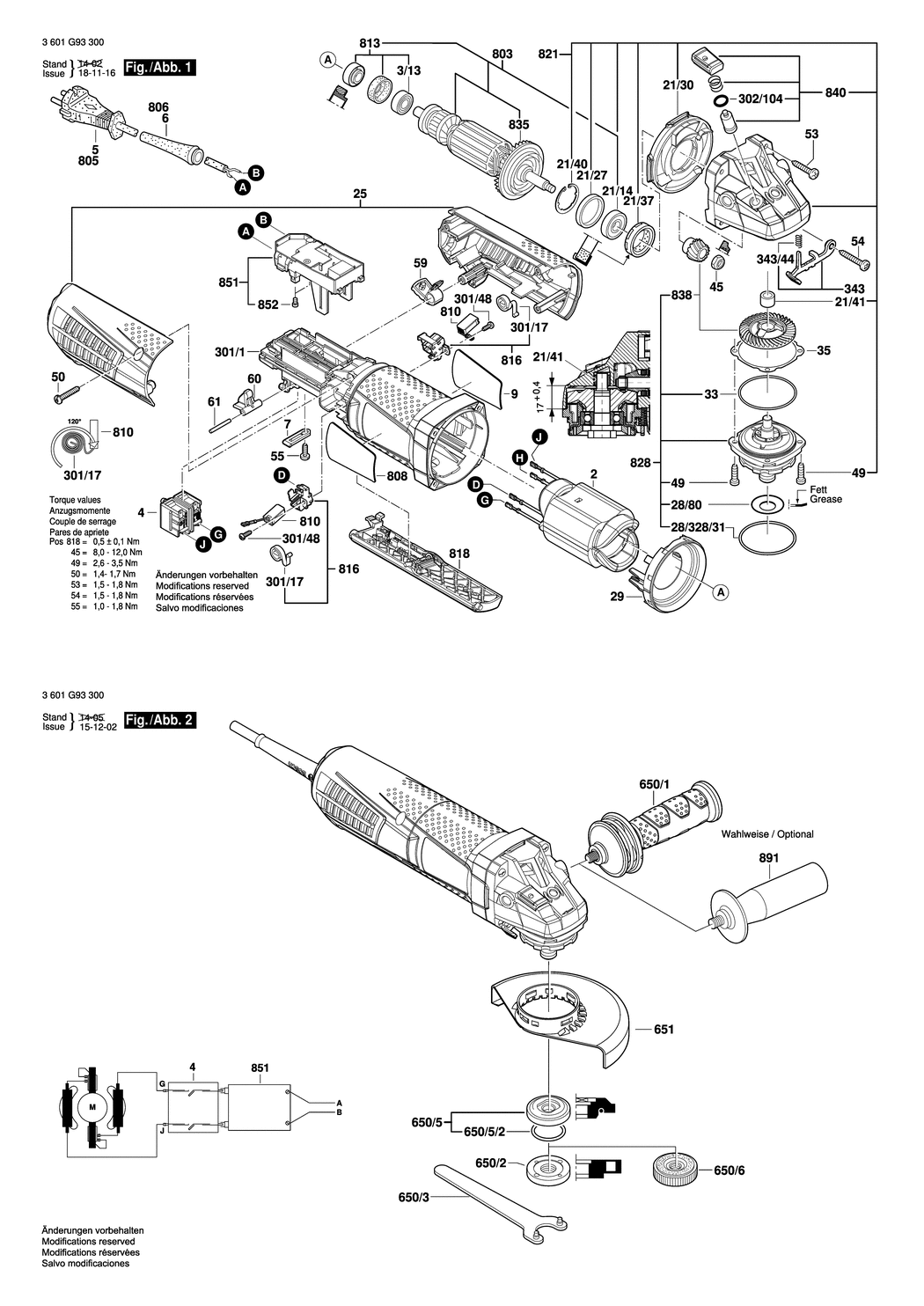

An exploded drawing and listing for the Bosch GWS 12-125 CIPX / 3601G93300 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1604220475.A2 1604220475	£31.64	£37.97
3/13 - BALL BEARING 7x19x6 BSD-2600905032.A452 2600905032	£5.30	£6.36
4 - SWITCH BSD-1607200256.A49 1607200256	£12.04	£14.45
6 - GROMMET BSD-1600703043.A6 1600703043	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302017.A754 1601302017	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GWS 12-125 CIPX BSD-160111C01U.A0 160111C01U	£2.33	£2.80
21/14 - GROOVE BALL BEARING 8x22x7 BSD-1600905032.A222 1600905032	£5.58	£6.70
21/27 - RUBBER RING BSD-1600206025.A698 1600206025	£2.16	£2.59
21/30 - AIR DISTRIBUTOR BSD-1600591048.A64 1600591048	£2.61	£3.13
21/37 - ROTARY SHAFT LIP SEAL BSD-1600290016.A384 1600290016	£2.61	£3.13
21/40 - RETAINING CLIP BSD-1600119011.A263 1600119011	£2.16	£2.59
21/41 - PLAIN BEARING BSD-1600200029.A181 1600200029	£4.26	£5.11
25 - HOUSING SECTION BSD-160510829A.A10 160510829A	£7.36	£8.83
28/80 - SEALING DISK BSD-3600150021.A84 3600150021	£3.80	£4.56
28/328/31 - O-RING 47.0x1.5 MM BSD-3600210109.A34 3600210109	£2.16	£2.59
29 - AIR-DEFLECTOR RING BSD-1600591047.A20 1600591047	£2.16	£2.59
33 - O-RING 46.0x1.1 MM BSD-1600210035.A229 1600210035	£1.75	£2.10
35 - SHIM 0.1 MM BSD-1600136013.A452 1600136013	£2.61	£3.13
35 - SHIM 0.2 MM BSD-1600136014.A68 1600136014	£2.61	£3.13
35 - SHIM 0.3 MM BSD-1600136015.A452 1600136015	£2.61	£3.13
35 - SHIM 0.15 MM BSD-1600136020.A66 1600136020	£3.72	£4.47
45 - HEX NUT M7. SW10 BSD-1603300016.A254 1603300016	£1.75	£2.10
49 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A60 2914491410	£1.75	£2.10
50 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1232 2603490023	£1.75	£2.10
53 - TORX OVAL-HEAD SCREW BSD-1603435078.A226 1603435078	£1.75	£2.10
54 - TORX OVAL-HEAD SCREW 4x30 BSD-1603414026.A37 1603414026	£1.75	£2.10
55 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A484 2603490021	£1.75	£2.10
59 - PLUG BSD-1600591054.A19 1600591054	£1.75	£2.10
60 - REVERSE-TRANSFER LEVER BSD-1602026095.A2 1602026095	£1.75	£2.10
61 - STRAIGHT PIN BSD-2917890086.A10 2917890086	£1.32	£1.58
301/1 - MOTOR HOUSING BSD-1605108293.A1 1605108293	£13.12	£15.75
301/17 - SPIRAL SPRING BSD-1604652021.A98 1604652021	£1.75	£2.10
301/48 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A36 1613435034	£1.75	£2.10
302/104 - O-RING 4.5x1.0 MM BSD-1600210044.A197 1600210044	£1.75	£2.10
343 - CATCH LEVER BSD-1607000742.A33 1607000742	£7.36	£8.83
343/44 - COMPRESSION SPRING BSD-1604611042.A183 1604611042	£1.75	£2.10
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION BSD-16020250A0.A160 16020250A0	£21.42	£25.71
650/2 - ROUND NUT BSD-1600A001PG.A3 1600A001PG	£2.61	£3.13
650/3 - PIN-TYPE FACE-WRENCH BSD-1607950052.A200 1607950052	£3.72	£4.47
650/5 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A851 2605703014	£7.36	£8.83
650/5/2 - O-RING 20.35x1.78 MM BSD-1600210055.A31 1600210055	-
650/6 - FAST LOCKING FLANGE BSD-1600A008BN.A12 1600A008BN	£36.62	£43.95
651 - PROTECTIVE COVER BSD-1600A00XK9.A128 1600A00XK9	£14.72	£17.67
803 - ARMATURE WITH FAN 230V BSD-1607000V33.A17 1607000V33	£58.76	£70.51
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A115 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3HJ.A8 160111A3HJ	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607000V37.A65 1607000V37	£14.91	£17.89
813 - GROOVE BALL BEARING BSD-1607000V38.A9 1607000V38	£7.36	£8.83
816 - BRUSH HOLDER BSD-1607000V43.A63 1607000V43	£3.72	£4.47
818 - SWITCH-PAWL BSD-1607000504.A14 1607000504	£10.10	£12.12
821 - GEAR HOUSING BSD-1605806559.A9 1605806559	£30.28	£36.33
828 - BEARING FLANGE BSD-1607000D67.A11 1607000D67	£59.53	£71.44
835 - FAN BSD-1606610132.A163 1606610132	£2.16	£2.59
838 - GEAR UNIT BSD-1600A001X6.A9 1600A001X6	£31.64	£37.97
840 - PUSH-BUTTON BSD-1607000V41.A59 1607000V41	£4.26	£5.11
851 - SPEED GOVERNOR BSD-1607233472.A7 1607233472	£37.72	£45.27
852 - PAN HEAD SCREW BSD-1607000V42.A23 1607000V42	£1.75	£2.10
891 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A997 160202509T	£3.72	£4.47
