Bosch ---- / 0601342048 / F 220 Volt Spare Parts

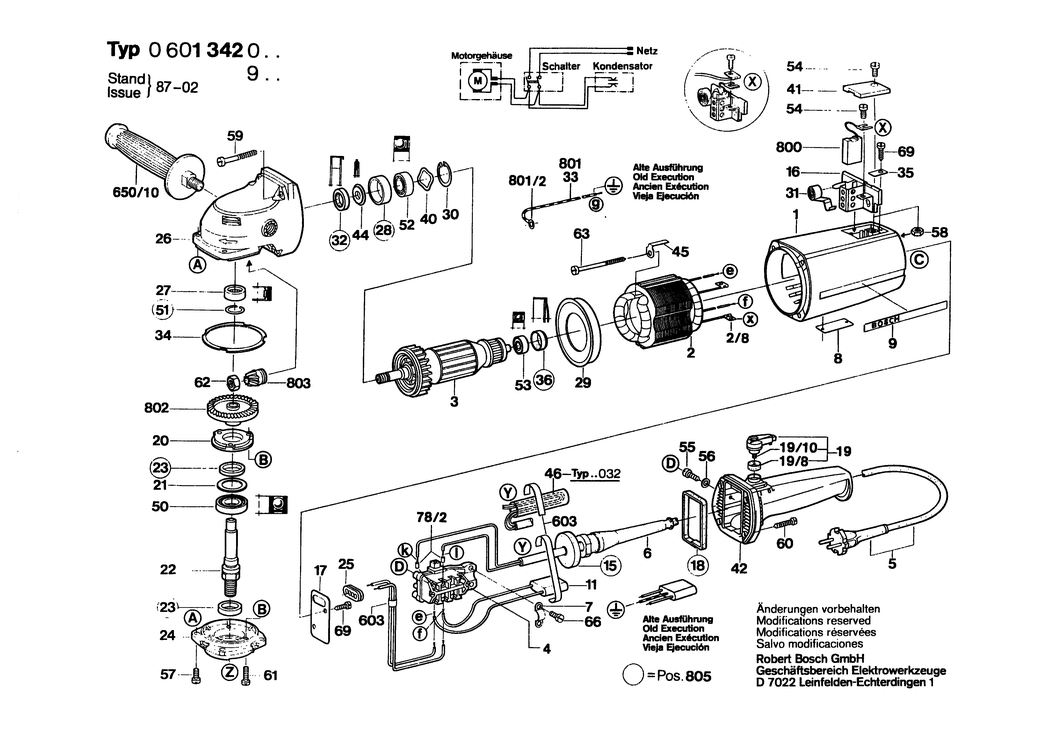

An exploded drawing and listing for the Bosch ---- / 0601342048 / F 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108124.A73 1605108124	-
2 - FIELD 240V BSD-1604220248.A6 1604220248	-
2/8 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A201 1901350003	£1.75	£2.10
3 - ARMATURE 220-240V BSD-1604012047.A13 1604012047	-
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A891 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302013.A121 1601302013	£1.75	£2.10
8 - NAMEPLATE BSD-160111A3H3.A823 160111A3H3	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A38 1601110003	-
11 - SUPPRESSION FILTER BSD-1607328034.A393 1607328034	£4.26	£5.11
15 - SEAL BSD-1600113002.A314 1600113002	£1.75	£2.10
16 - BRUSH HOLDER BSD-1604336008.A79 1604336008	£21.52	£25.83
17 - COVER PLATE BSD-1601037006.A80 1601037006	-
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A164 1601014005	-
19 - CONTROL LEVER BSD-1602026041.A86 1602026041	-
19/8 - FELT WASHER BSD-1600205019.A221 1600205019	£1.75	£2.10
20 - BEARING COVER BSD-1605808054.A115 1605808054	-
21 - COVER DISC BSD-1600102012.A31 1600102012	-
22 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A223 1603523032	£37.27	£44.72
23 - SEALING DISK BSD-1600108055.A227 1600108055	£1.75	£2.10
25 - GROMMET BSD-1600306001.A341 1600306001	£2.61	£3.13
26 - GEAR HOUSING BSD-1605806394.A9 1605806394	-
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A111 1600910010	£45.67	£54.80
28 - RETAINING SNAP RING BSD-1600206019.A48 1600206019	-
29 - GUIDE PULLEY BSD-1600502013.A34 1600502013	-
30 - SPRING RETAINING RING BSD-1600119004.A23 1600119004	£2.80	£3.36
31 - SPIRAL SPRING BSD-1604652015.A246 1604652015	£2.80	£3.36
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A181 1600290008	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190004.A190 1600190004	-
34 - SHIM 0.2 MM BSD-1600190005.A93 1600190005	£1.32	£1.58
35 - TAB WASHER BSD-1601030022.A192 1601030022	£1.75	£2.10
36 - RUBBER BUSHING BSD-1600502006.A94 1600502006	£1.75	£2.10
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM BSD-1600150009.A86 1600150009	£2.80	£3.36
41 - SEALING CAP BSD-1605500089.A216 1605500089	-
42 - HANDLE BSD-1605132079.A120 1605132079	-
44 - FACEPLATE BSD-1600120070.A1 1600120070	-
45 - HOLDING BRACKET BSD-1601331032.A38 1601331032	-
50 - GROOVE BALL BEARING 6203-2 Z DIN 625 BSD-1900905227.A128 1900905227	-
51 - RETAINING RING dia22 MM BSD-2916620011.A325 2916620011	£1.75	£2.10
52 - GROOVE BALL BEARING 6203-TH/C3 DIN 625 BSD-1900900413.A103 1900900413	-
53 - GROOVE BALL BEARING BSD-1600900029.A165 1600900029	-
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1071 2910021118	£1.75	£2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A670 2910211006	£1.75	£2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A517 2916011005	£1.75	£2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A22 2910011157	-
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A543 2915011005	£1.75	£2.10
59 - SCREW B 4.8x45 MM BSD-3603415560.A61 3603415560	£1.75	£2.10
60 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A201 2910211036	£1.75	£2.10
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A191 2910011162	£1.75	£2.10
62 - HEX NUT M12x1.5 MM BSD-1603300009.A155 1603300009	£1.75	£2.10
63 - TAPPING SCREW B4.8x85 MM BSD-1603429001.A112 1603429001	-
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A636 2910021122	£2.16	£2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A180 2910211011	£1.75	£2.10
650/10 - AUXILIARY HANDLE M14 BSD-1602025022.A233 1602025022	£13.41	£16.09
650/10 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A466 1602025030	£18.96	£22.75
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A776 2607950511	£4.26	£5.11
652 - PROTECTIVE COVER dia 230 MM BSD-2605510082.A0 2605510082	-
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8 BSD-2910141240.A180 2910141240	£1.32	£1.58
653 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A55 2607950004	£1.75	£2.10
654 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A209 2600501006	£16.43	£19.72
655 - ROUND NUT M14 BSD-2603345004.A237 2603345004	£6.52	£7.83
656 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A425 1907950007	£5.30	£6.36
700 - PARTS SET BSD-1607000151.A13 1607000151	-
702 - TENSIONER PARTS SET BSD-1607000030.A35 1607000030	-
712 - PARTS SET dia 230 MM BSD-1607000175.A33 1607000175	-
800 - CARBON-BRUSH SET BSD-1607014103.A187 1607014103	£14.91	£17.89
801 - CONNECTING CABLE BSD-1604440004.A151 1604440004	-
801/2 - TERMINAL LUG BSD-1601353003.A107 1601353003	-
802 - CROWN GEAR Z=55 BSD-1606333208.A7 1606333208	-
803 - BEVEL GEAR Z=15 BSD-1606333151.A3 1606333151	-
804 - PARTS SET BSD-1607000037.A0 1607000037	-
804/010 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A444 2910091118	£1.75	£2.10
805 - SEAL KIT BSD-1607000060.A14 1607000060	-
817 - BEARING FLANGE BSD-1607000229.A42 1607000229	-
817/029 - O-RING 79.0x1.78 MM BSD-1600210033.A337 1600210033	£1.75	£2.10
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A627 1607000228	£23.86	£28.63
835/020 - END SPLICE BSD-3604477009.A292 3604477009	£2.61	£3.13
