Bosch ---- / 0601334450 / I 220 Volt Spare Parts

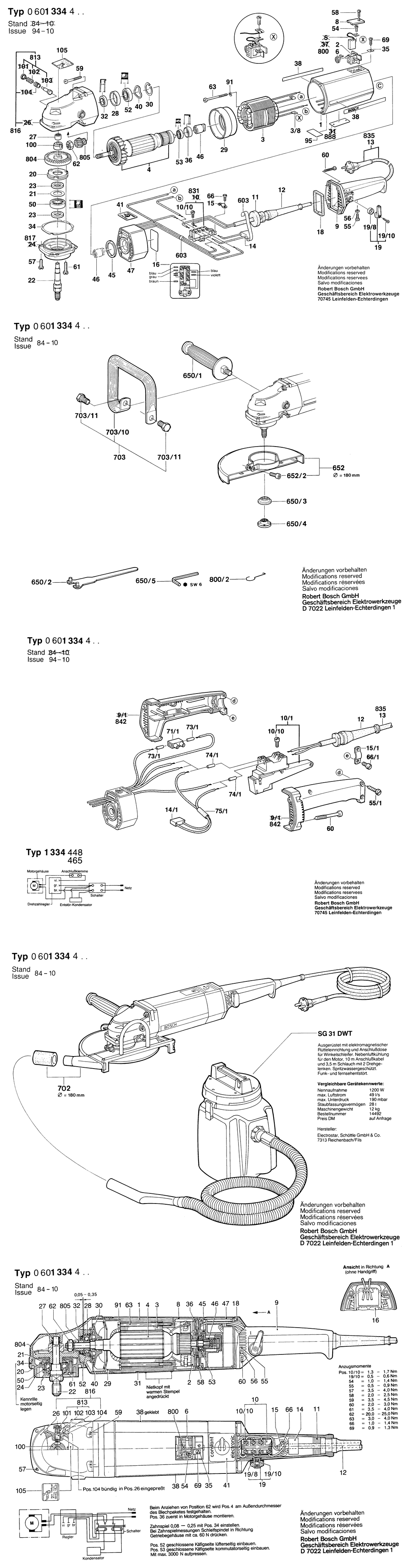

An exploded drawing and listing for the Bosch ---- / 0601334450 / I 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108141.A5 1605108141	-
2 - BRUSH HOLDER BSD-1604336008.A174 1604336008	£21.52	£25.83
3 - POLE SHOE 220V BSD-1604220153.A6 1604220153	-
3/8 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A95 1901350003	£1.75	£2.10
4 - ARMATURE 220V BSD-1604011140.A1 1604011140	-
6 - SPIRAL SPRING BSD-1604652015.A390 1604652015	£2.80	£3.36
8 - SEALING CAP BSD-1605500089.A30 1605500089	-
9 - HANDLE BSD-1605132093.A60 1605132093	-
10/10 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A88 2910091118	£1.75	£2.10
11 - SEAL BSD-1600113002.A23 1600113002	£1.75	£2.10
12 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A408 3600703011	£2.80	£3.36
13 - CABLE BSD-1604460079.A7 1604460079	-
14 - SUPPRESSION FILTER BSD-1607328034.A107 1607328034	£4.26	£5.11
15 - FASTENING CLAMP BSD-1601302013.A591 1601302013	£1.75	£2.10
16 - STICKER BSD-1601110363.A0 1601110363	-
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A6 1601014005	-
19 - CONTROL LEVER BSD-1602026058.A58 1602026058	-
19/8 - FELT WASHER BSD-1600205019.A94 1600205019	£1.75	£2.10
20 - BEARING COVER BSD-1605808054.A221 1605808054	-
21 - COVER DISC BSD-1600102012.A251 1600102012	-
22 - GRINDING SPINDLE M14. L=101 MM BSD-1603523090.A88 1603523090	-
23 - SEALING DISK BSD-1600108055.A111 1600108055	£1.75	£2.10
27 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A208 2600910001	£4.26	£5.11
28 - RUBBER RING 7 MM BSD-1600206020.A633 1600206020	£1.75	£2.10
29 - AIR-DEFLECTOR RING BSD-1600502017.A22 1600502017	-
30 - SPRING RETAINING RING DIN 472 38X1.5MM BSD-2916660017.A14 2916660017	£4.26	£5.11
32 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A152 1600290013	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190004.A69 1600190004	-
34 - SHIM 0.2 MM BSD-1600190005.A214 1600190005	£1.32	£1.58
35 - TAB WASHER BSD-1601030022.A456 1601030022	£1.75	£2.10
36 - RUBBER RING BSD-1600206015.A113 1600206015	£2.16	£2.59
38 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A227 1601110003	-
40 - SPRING WASHER dia27.5x38.4 MM BSD-1600150007.A64 1600150007	£1.75	£2.10
41 - REFERENCE PLATE BSD-1601110310.A25 1601110310	-
45 - RUBBER RING BSD-1600206016.A6 1600206016	-
46 - EXCESS SPEED CUTOUT BSD-1607233018.A7 1607233018	-
47 - SPEED GOVERNOR 220V BSD-1607233017.A0 1607233017	-
50 - GROOVE BALL BEARING 6203-2 Z DIN 625 BSD-1900905227.A33 1900905227	-
52 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A185 1900905234	£31.64	£37.97
53 - GROOVE BALL BEARING BSD-1600900029.A35 1600900029	-
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A227 2910021118	£1.75	£2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A28 2910211006	£1.75	£2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A336 2910011157	-
58 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A526 2910211020	£2.16	£2.59
59 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A216 1613435009	£1.75	£2.10
60 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A87 1603435008	£1.32	£1.58
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A352 2910011162	£1.75	£2.10
62 - HEX NUT BSD-1603300018.A10 1603300018	-
63 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A111 1603435006	-
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A765 2910021116	£2.16	£2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A473 2910211011	£1.75	£2.10
91 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A178 2916060006	£1.32	£1.58
100 - GROOVED RING BSD-1600390011.A63 1600390011	-
105 - STICKER BSD-1601110240.A25 1601110240	-
650/1 - AUXILIARY HANDLE M14 BSD-1602025022.A1534 1602025022	£13.41	£16.09
650/1 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1247 1602025030	£18.96	£22.75
650/2 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A329 2607950511	£4.26	£5.11
650/3 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A120 2600501006	£16.43	£19.72
650/4 - ROUND NUT M14 BSD-2603345004.A127 2603345004	£6.52	£7.83
650/5 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A277 1907950007	£5.30	£6.36
652 - PROTECTIVE COVER dia180 MM BSD-1605510199.A68 1605510199	-
652/2 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8 BSD-2910141240.A55 2910141240	£1.32	£1.58
702 - PROTECTIVE COVER dia 180 MM BSD-1605510138.A20 1605510138	-
702/20 - UNION dia32.3xdia34.9x75 MM BSD-1600309009.A28 1600309009	-
703 - PARTS SET BSD-1607000140.A88 1607000140	-
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A398 2603450007	£5.58	£6.70
712/10 - PROTECTIVE COVER dia 180 MM BSD-1605510110.A10 1605510110	-
712/20 - GUIDE BLOCK BSD-1608135003.A67 1608135003	-
800 - CARBON-BRUSH SET BSD-1607014115.A7 1607014115	-
804 - BEVEL GEAR Z=52 BSD-1606333147.A15 1606333147	-
805 - BEVEL GEAR Z=17 BSD-1606333228.A0 1606333228	-
810 - SEAL KIT BSD-1607000138.A10 1607000138	-
813 - PARTS SET BSD-1607000161.A45 1607000161	-
816 - PARTS SET BSD-1607000905.A18 1607000905	-
817 - BEARING FLANGE BSD-1607000229.A153 1607000229	-
817/029 - O-RING 79.0x1.78 MM BSD-1600210033.A681 1600210033	£1.75	£2.10
831 - ON-OFF SWITCH BSD-1607200093.A5 1607200093	-
888 - NAMEPLATE BSD-160111A3H3.A3764 160111A3H3	£2.61	£3.13
