Bosch ---- / 0601333032 / CH 220 Volt Spare Parts

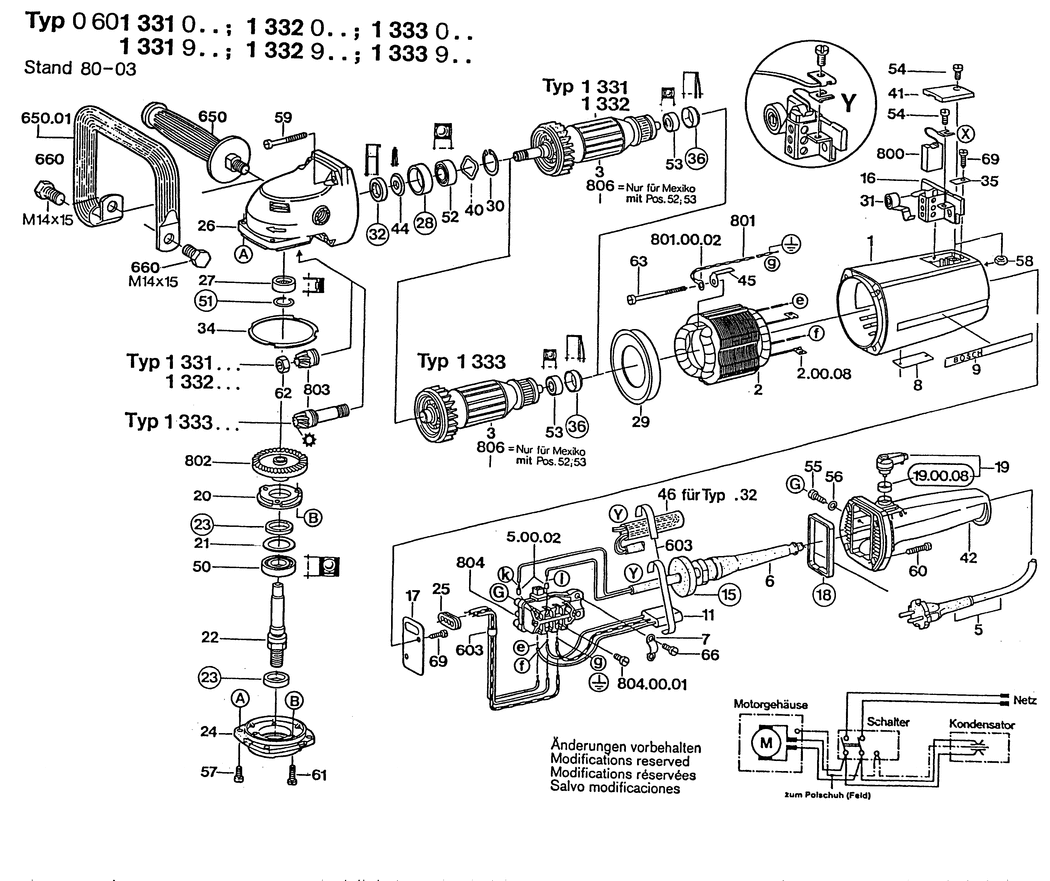

An exploded drawing and listing for the Bosch ---- / 0601333032 / CH 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108124.A34 1605108124	-
2 - FIELD 230V BSD-1604220249.A0 1604220249	-
2/00/08 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A26 1901350003	£1.75	£2.10
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07RN-F BSD-1604460447.A36 1604460447	£21.68	£26.01
5/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A257 1900452012	£1.75	£2.10
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A68 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302013.A421 1601302013	£1.75	£2.10
11 - SUPPRESSION FILTER BSD-1607328034.A197 1607328034	£4.26	£5.11
15 - SEAL BSD-1600113002.A159 1600113002	£1.75	£2.10
16 - BRUSH HOLDER BSD-1604336008.A150 1604336008	£21.52	£25.83
17 - COVER PLATE BSD-1601037006.A186 1601037006	-
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A99 1601014005	-
19 - CONTROL LEVER BSD-1602026041.A23 1602026041	-
19/00/08 - FELT WASHER BSD-1600205019.A39 1600205019	£1.75	£2.10
20 - BEARING COVER BSD-1605808054.A189 1605808054	-
21 - COVER DISC BSD-1600102012.A201 1600102012	-
22 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A113 1603523032	£37.27	£44.72
23 - SEALING DISK BSD-1600108055.A29 1600108055	£1.75	£2.10
25 - GROMMET BSD-1600306001.A43 1600306001	£2.61	£3.13
26 - GEAR HOUSING BSD-1605806346.A3 1605806346	-
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A370 1600910010	£45.67	£54.80
28 - RUBBER RING BSD-1600206022.A33 1600206022	£2.16	£2.59
29 - GUIDE PULLEY BSD-1600502013.A88 1600502013	-
30 - SPRING RETAINING RING BSD-1600119004.A78 1600119004	£2.80	£3.36
31 - SPIRAL SPRING BSD-1604652015.A561 1604652015	£2.80	£3.36
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A14 1600290008	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190004.A24 1600190004	-
34 - SHIM 0.2 MM BSD-1600190005.A260 1600190005	£1.32	£1.58
35 - TAB WASHER BSD-1601030022.A581 1601030022	£1.75	£2.10
36 - RUBBER BUSHING BSD-1600502006.A144 1600502006	£1.75	£2.10
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM BSD-1600150009.A33 1600150009	£2.80	£3.36
41 - SEALING CAP BSD-1605500089.A158 1605500089	-
42 - HANDLE BSD-1605132079.A39 1605132079	-
44 - FACEPLATE BSD-1600120070.A21 1600120070	-
45 - HOLDING BRACKET BSD-1601331032.A72 1601331032	-
50 - GROOVE BALL BEARING 6203-2 Z DIN 625 BSD-1900905227.A78 1900905227	-
51 - RETAINING RING dia22 MM BSD-2916620011.A69 2916620011	£1.75	£2.10
52 - GROOVE BALL BEARING 37x12x12 BSD-1600900028.A59 1600900028	-
53 - GROOVE BALL BEARING BSD-1600900029.A88 1600900029	-
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A965 2910021118	£1.75	£2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A308 2910211006	£1.75	£2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A319 2916011005	£1.75	£2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A524 2910011157	-
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A225 2915011005	£1.75	£2.10
59 - SCREW B 4.8x45 MM BSD-3603415560.A248 3603415560	£1.75	£2.10
60 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A75 2910211036	£1.75	£2.10
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A235 2910011162	£1.75	£2.10
63 - TAPPING SCREW B4.8x85 MM BSD-1603429001.A33 1603429001	-
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A438 2910021122	£2.16	£2.59
82 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A309 2916060006	£1.32	£1.58
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1144 1602025022	£13.41	£16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1172 1602025030	£18.96	£22.75
650/01 - STRAP-SHAPED HANDLE BSD-1600793004.A13 1600793004	-
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A6 2607950511	£4.26	£5.11
652 - PROTECTIVE COVER dia 150 MM (6) BSD-1605510115.A5 1605510115	-
652 - PROTECTIVE COVER dia230 MM (9) BSD-1605510082.A1 1605510082	-
653 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A352 2607950004	£1.75	£2.10
654 - CLAMPING-FLANGE dia 103 MM BSD-1605703067.A5 1605703067	-
655 - ROUND NUT WITH 2 HOLES BSD-1619P09976.A35 1619P09976	£2.16	£2.59
656 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A19 1907950007	£5.30	£6.36
661 - CONICAL SPRING WASHER dia 22.2x103x5.5 MM BSD-1605703066.A3 1605703066	-
662 - GUIDE BLOCK BSD-1608190002.A12 1608190002	-
662/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A50 2910281244	-
662/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A245 2915191007	£3.72	£4.47
662/50 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A122 2916011016	£1.75	£2.10
700 - PARTS SET BSD-1607000151.A31 1607000151	-
701 - SUCTION HOOD dia 300 MM (12) BSD-1605510215.A27 1605510215	£87.49	£104.99
800 - CARBON-BRUSH SET BSD-1607014103.A40 1607014103	£14.91	£17.89
801 - CONNECTING CABLE BSD-1604440004.A21 1604440004	-
801/020 - TERMINAL LUG BSD-1601353003.A82 1601353003	-
802 - CROWN GEAR Z=62. M8 BSD-1606333206.A1 1606333206	-
802/01 - CROWN GEAR Z=62 BSD-1606333187.A5 1606333187	-
803 - BEVEL GEAR Z=13 BSD-1606333227.A8 1606333227	-
803/01 - BEVEL GEAR Z=13. M12 BSD-1606333185.A11 1606333185	-
804 - SWITCH KIT BSD-1607000034.A322 1607000034	-
805 - SEAL KIT BSD-1607000060.A22 1607000060	-
806 - ARMATURE 220V BSD-1604012054.A1 1604012054	-
817 - BEARING FLANGE BSD-1607000229.A178 1607000229	-
817/029 - O-RING 79.0x1.78 MM BSD-1600210033.A758 1600210033	£1.75	£2.10
830 - RUBBER RING dia41xdia37x7.5 MM BSD-1600206029.A9 1600206029	£2.61	£3.13
830/052 - GROOVE BALL BEARING 37x12x12 BSD-1600900028.A58 1600900028	-
830/073 - RETAINING SNAP RING dia44xdia41xdia37x11.8 MM BSD-1600224034.A3 1600224034	-
830/0803 - BEVEL GEAR Z=13 BSD-1606333227.A9 1606333227	-
888 - NAMEPLATE BSD-160111A3H3.A5260 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
