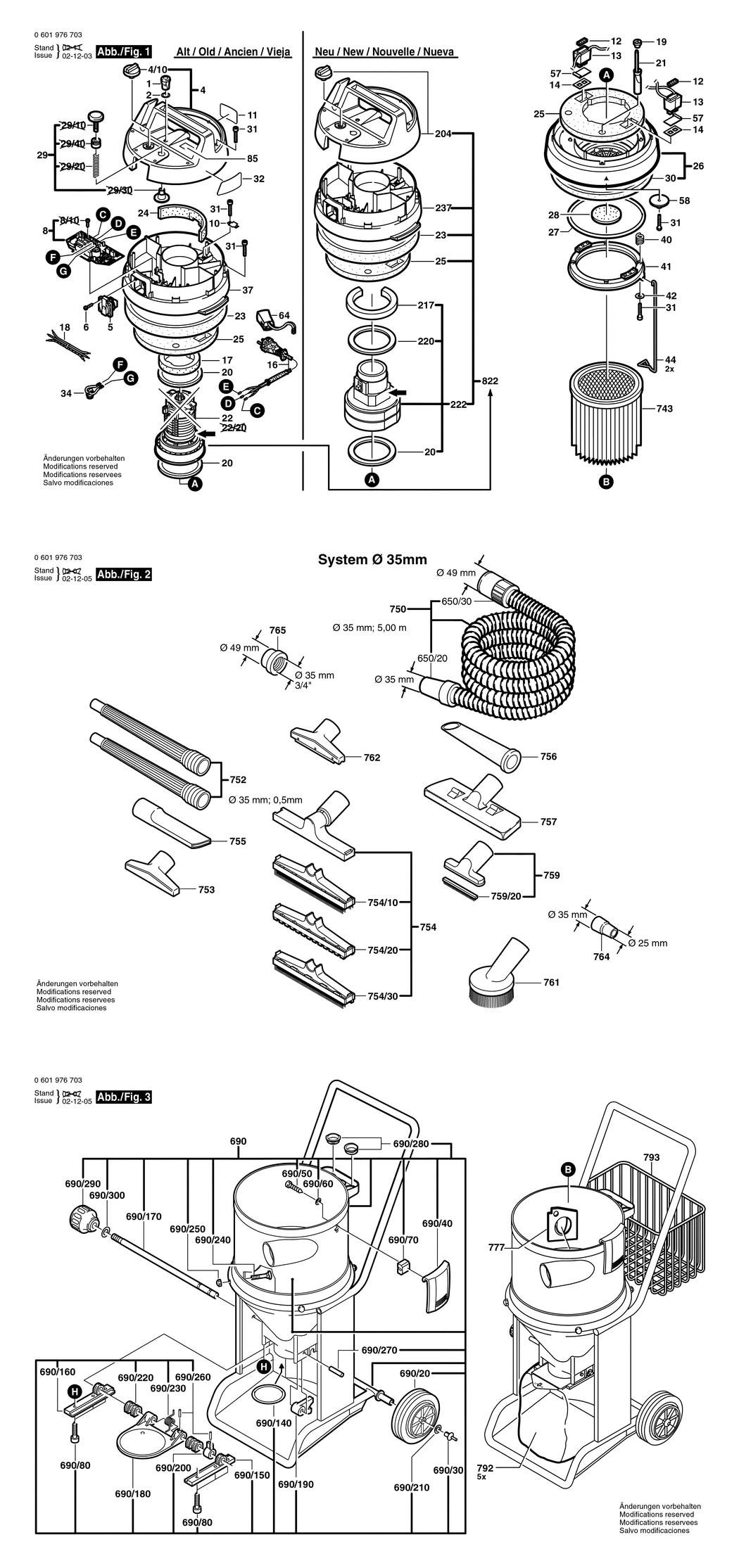

1 - INDICATOR LAMP
BSD-1609201654.A41
1609201654
|
£6.52
|
£7.83
|
|
|
2 - SEAL RING
BSD-1609201655.A15
1609201655
|
£1.84
|
£2.21
|
|
|
4 - COVERING HOOD
BSD-1609202713.A11
1609202713
|
-
|
|
|
|
5 - SOCKET
BSD-1609201707.A6
1609201707
|
-
|
|
|
|
8 - ON-OFF SWITCH
BSD-1609202734.A8
1609202734
|
-
|
|
|
|
10 - CABLE CLIP
BSD-1609202693.A45
1609202693
|
£1.38
|
£1.66
|
|
|
11 - NAMEPLATE
BSD-1601118272.A0
1601118272
|
-
|
|
|
|
12 - DAMPING PLATE
BSD-1609201660.A26
1609201660
|
£1.75
|
£2.10
|
|
|
13 - ATTACHMENT VIBRATOR 220-240V
BSD-1609201662.A0
1609201662
|
£98.57
|
£118.28
|
|
|
14 - SEALING DISK
BSD-1609201663.A67
1609201663
|
£2.27
|
£2.72
|
|
|
16 - POWER SUPPLY CORD
BSD-1609203191.A3
1609203191
|
-
|
|
|
|
17 - AIR-DEFLECTOR RING
BSD-1609201666.A3
1609201666
|
-
|
|
|
|
18 - CABLE SET
BSD-1609202766.A3
1609202766
|
£4.99
|
£5.99
|
|
|
19 - SEAL RING
BSD-1609201668.A54
1609201668
|
£2.16
|
£2.59
|
|
|
20 - SEAL RING
BSD-1609201669.A0
1609201669
|
£5.87
|
£7.04
|
|
|
21 - GUIDE SLEEVE
BSD-1609202735.A4
1609202735
|
£2.05
|
£2.46
|
|
|
23 - DAMPING PLATE
BSD-1609203478.A32
1609203478
|
-
|
|
|
|
24 - DAMPING PLATE
BSD-1609202764.A14
1609202764
|
-
|
|
|
|
25 - DAMPING PLATE
BSD-1609203423.A11
1609203423
|
-
|
|
|
|
26 - INTERMEDIATE FLANGE
BSD-1609203474.A26
1609203474
|
-
|
|
|
|
27 - SEAL RING
BSD-1609201676.A53
1609201676
|
-
|
|
|
|
28 - AIR FILTER
BSD-1609201677.A1
1609201677
|
£2.05
|
£2.46
|
|
|
29 - ROTARY KNOB
BSD-1609202768.A1
1609202768
|
-
|
|
|
|
30 - SEAL
BSD-1609203499.A1
1609203499
|
-
|
|
|
|
30 - DAMPING PLATE
BSD-1609203423.A10
1609203423
|
-
|
|
|
|
31 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A21
2910611015
|
£1.84
|
£2.21
|
|
|
32 - MANUFACTURER'S NAMEPLATE
BSD-1601118203.A3
1601118203
|
-
|
|
|
|
34 - PRESSURE SWITCH
BSD-1609202748.A1
1609202748
|
-
|
|
|
|
37 - INTERMEDIATE HOUSING
BSD-1609202698.A8
1609202698
|
-
|
|
|
|
40 - COMPRESSION SPRING
BSD-1609201685.A10
1609201685
|
£2.16
|
£2.59
|
|
|
41 - RETAINING SNAP RING
BSD-1609203182.A11
1609203182
|
-
|
|
|
|
42 - PLAIN WASHER dia4.2xdia11x1.1MM
BSD-1609201687.A15
1609201687
|
-
|
|
|
|
44 - RETAINING BRACKET
BSD-1609202749.A3
1609202749
|
£6.61
|
£7.93
|
|
|
57 - LEAF SPRING
BSD-1609202192.A26
1609202192
|
-
|
|
|
|
58 - DAMPING DISC
BSD-1609203714.A18
1609203714
|
-
|
|
|
|
64 - SIREN
BSD-1609202738.A8
1609202738
|
£48.38
|
£58.06
|
|
|
204 - COVERING HOOD
BSD-1609202713.A13
1609202713
|
-
|
|
|
|
217 - AIR-DEFLECTOR RING
BSD-1609203B12.A37
1609203B12
|
-
|
|
|
|
220 - SEAL RING
BSD-1609203B13.A4
1609203B13
|
£6.85
|
£8.22
|
|
|
222 - SUCTION BLOWER 230-240V
BSD-1609203B20.A1
1609203B20
|
-
|
|
|
|
237 - INTERMEDIATE HOUSING
BSD-1609203B15.A31
1609203B15
|
-
|
|
|
|
650/20 - FITTING
BSD-1609203V36.A42
1609203V36
|
£25.05
|
£30.06
|
|
|
650/30 - FITTING dia 49 MM
BSD-1609390580.A26
1609390580
|
£5.58
|
£6.70
|
|
|
690 - CHASSIS
BSD-1609202744.A2
1609202744
|
-
|
|
|
|
690/20 - IMPELLER dia 200 MM
BSD-1609202712.A18
1609202712
|
£33.22
|
£39.87
|
|
|
690/30 - PLUG
BSD-1609202727.A46
1609202727
|
£3.91
|
£4.69
|
|
|
690/40 - BENT-LEVER CLOSURE
BSD-1609202708.A26
1609202708
|
-
|
|
|
|
690/50 - TAPPING SCREW DIN 7981-ST3.5x16-C-H
BSD-2910611012.A24
2910611012
|
-
|
|
|
|
690/60 - PLAIN WASHER dia4.2xdia11x1.2MM
BSD-1609202726.A13
1609202726
|
£1.75
|
£2.10
|
|
|
690/70 - LOCKING PIECE
BSD-1609203179.A10
1609203179
|
-
|
|
|
|
690/80 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A22
2910611015
|
£1.84
|
£2.21
|
|
|
690/140 - SEAL RING
BSD-1609390589.A0
1609390589
|
-
|
|
|
|
690/150 - GUIDE
BSD-1609202772.A2
1609202772
|
-
|
|
|
|
690/160 - GUIDE
BSD-1609202773.A2
1609202773
|
£4.48
|
£5.37
|
|
|
690/170 - LEVER
BSD-1609202774.A2
1609202774
|
-
|
|
|
|
690/180 - FLAP
BSD-1609202775.A2
1609202775
|
£5.57
|
£6.68
|
|
|
690/190 - LATCH
BSD-1609202776.A2
1609202776
|
-
|
|
|
|
690/200 - SAFETY CATCH
BSD-1609202777.A2
1609202777
|
£33.22
|
£39.87
|
|
|
690/210 - PLAIN WASHER
BSD-1609202725.A30
1609202725
|
£1.75
|
£2.10
|
|
|
690/220 - BUSHING
BSD-1609202779.A2
1609202779
|
£5.57
|
£6.68
|
|
|
690/230 - COILED SPRING
BSD-1609202780.A2
1609202780
|
-
|
|
|
|
690/240 - ROUND-HEAD BOLT M 6x35 MM
BSD-1609202781.A2
1609202781
|
-
|
|
|
|
690/250 - CAP NUT M6
BSD-1609202782.A2
1609202782
|
-
|
|
|
|
690/260 - SLOTTED SPRING PIN
BSD-1609202783.A2
1609202783
|
-
|
|
|
|
690/270 - TAPER PIN
BSD-1609202784.A2
1609202784
|
-
|
|
|
|
690/280 - RETAINING SNAP RING
BSD-1609203222.A2
1609203222
|
-
|
|
|
|
690/290 - STAR KNOB M8
BSD-1609202786.A2
1609202786
|
£11.87
|
£14.24
|
|
|
690/300 - PLAIN WASHER
BSD-1609202787.A2
1609202787
|
£1.84
|
£2.21
|
|
|
743 - AIR FILTER
BSD-2607432005.A4
2607432005
|
-
|
|
|
|
750 - AIR HOSE dia 35 MM. L=5 M
BSD-1609202230.A133
1609202230
|
£85.74
|
£102.89
|
|
|
752 - SUCTION PIPE dia 35 MM. 0.5 M
BSD-2607000162.A39
2607000162
|
£29.38
|
£35.25
|
|
|
753 - SUCTION NOZZLE dia 35 MM
BSD-2607000170.A33
2607000170
|
£13.78
|
£16.53
|
|
|
754 - SUCTION NOZZLE dia 35 MM
BSD-1609390478.A39
1609390478
|
£34.99
|
£41.99
|
|
|
754/10 - FLAT BRUSH
BSD-1609390493.A39
1609390493
|
£21.68
|
£26.01
|
|
|
754/20 - FLAT BRUSH
BSD-1609390494.A62
1609390494
|
-
|
|
|
|
754/30 - STRIP BRUSH
BSD-1609390495.A39
1609390495
|
£16.41
|
£19.69
|
|
|
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM
BSD-2607000165.A98
2607000165
|
£5.24
|
£6.29
|
|
|
756 - SUCTION NOZZLE dia 35 MM
BSD-1609201229.A44
1609201229
|
£18.37
|
£22.04
|
|
|
757 - SUCTION NOZZLE dia 35 MM
BSD-1609201230.A94
1609201230
|
£41.99
|
£50.39
|
|
|
759 - SUCTION NOZZLE dia 35 MM
BSD-2607000166.A30
2607000166
|
£9.18
|
£11.01
|
|
|
759/20 - BRUSH INSERT
BSD-1609202534.A25
1609202534
|
£2.80
|
£3.36
|
|
|
761 - SUCTION BRUSH dia 35 MM
BSD-1609390481.A42
1609390481
|
£8.74
|
£10.49
|
|
|
762 - SUCTION NOZZLE dia 35 MM
BSD-2607000168.A31
2607000168
|
-
|
|
|
|
764 - FITTING dia 25x35 MM
BSD-1600499005.A25
1600499005
|
£6.99
|
£8.39
|
|
|
765 - REDUCTION SLEEVE dia 49/35 MM+3/4
BSD-1609200933.A82
1609200933
|
£7.57
|
£9.08
|
|
|
777 - DEFLECTOR
BSD-2607001248.A33
2607001248
|
-
|
|
|
|
792 - DUST BAG
BSD-2605411065.A4
2605411065
|
-
|
|
|
|
793 - PARTS BASKET
BSD-2605411066.A0
2605411066
|
-
|
|
|
|
822 - MODIFICATION SET 230V
BSD-1609203G99.A2
1609203G99
|
-
|
|
|
