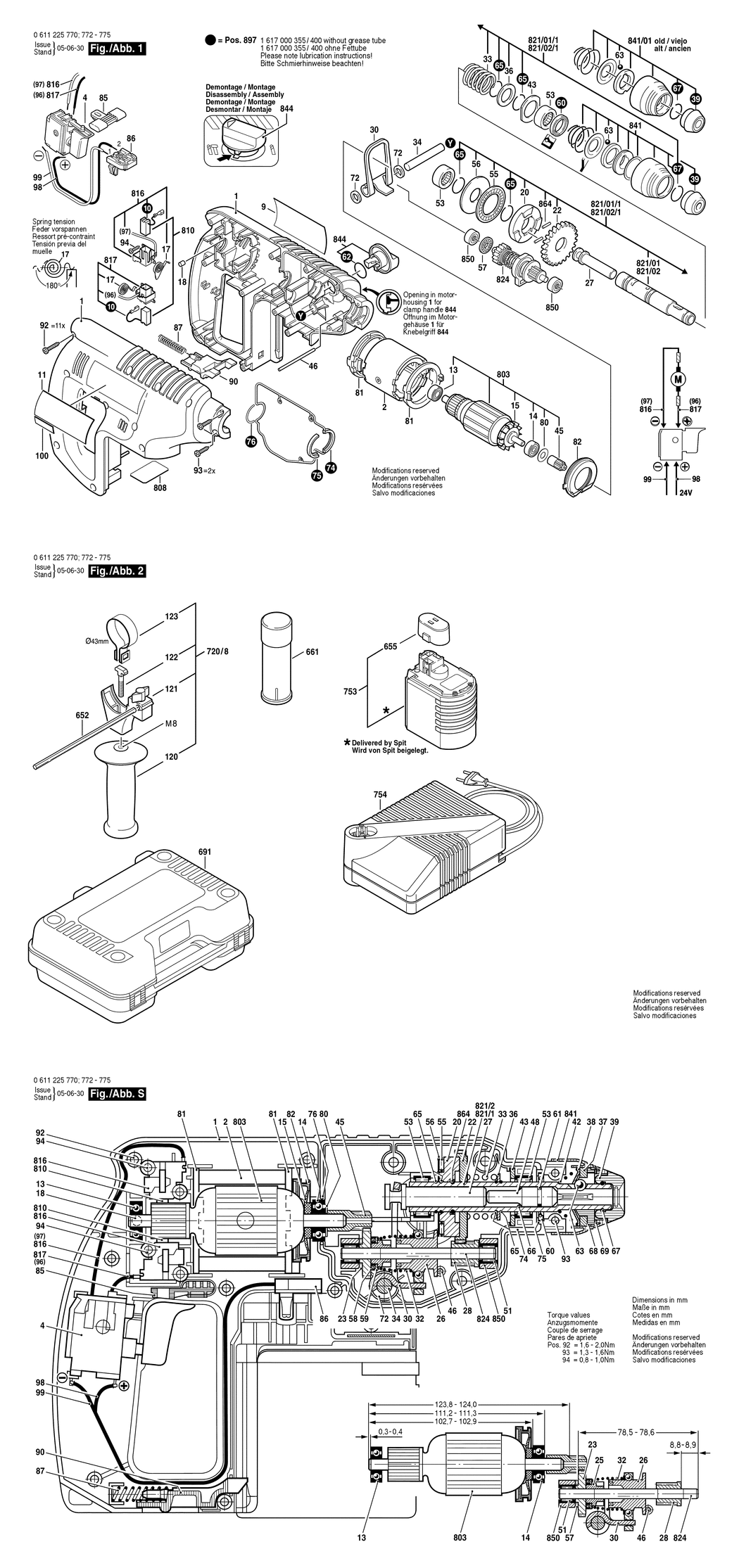

1 - HOUSING SECTION
BSD-1615104012.A3
1615104012
|
£28.68
|
£34.41
|
|
|
2 - POLE HOUSING 14;4-24V
BSD-2610942109.A42
2610942109
|
£22.76
|
£27.31
|
|
|
4 - ON-OFF SWITCH
BSD-1617200067.A12
1617200067
|
£68.42
|
£82.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110919.A2
1611110919
|
£5.30
|
£6.36
|
|
|
11 - WARNING PLATE
BSD-1611110922.A0
1611110922
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905033.A32
1600905033
|
£7.72
|
£9.27
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A370
2600905052
|
£7.72
|
£9.27
|
|
|
15 - FAN
BSD-1616610080.A11
1616610080
|
£8.17
|
£9.80
|
|
|
17 - SPIRAL SPRING
BSD-1614652008.A14
1614652008
|
£2.27
|
£2.72
|
|
|
18 - DAMPING RUBBER
BSD-2603100056.A102
2603100056
|
£1.84
|
£2.21
|
|
|
20 - CATCH DISK
BSD-1616409012.A44
1616409012
|
£5.87
|
£7.04
|
|
|
22 - CYLINDRICAL GEAR Z=53
BSD-1616317613.A3
1616317613
|
-
|
|
|
|
27 - STRIKER
BSD-1618710068.A10
1618710068
|
£7.78
|
£9.33
|
|
|
30 - DRIVE LEVER
BSD-1611911000.A79
1611911000
|
-
|
|
|
|
33 - COMPRESSION SPRING
BSD-1614634008.A30
1614634008
|
£2.05
|
£2.46
|
|
|
34 - BEARING PIN
BSD-1613100021.A19
1613100021
|
£2.45
|
£2.94
|
|
|
36 - SUPPORTING DISC
BSD-1610190021.A38
1610190021
|
£2.27
|
£2.72
|
|
|
39 - PROTECTIVE CAP
BSD-1610508021.A37
1610508021
|
£2.05
|
£2.46
|
|
|
43 - SUPPORTING DISC
BSD-1610190020.A39
1610190020
|
£2.05
|
£2.46
|
|
|
45 - DRIVE PINION Z=9
BSD-1616316602.A10
1616316602
|
£14.75
|
£17.70
|
|
|
46 - STRAIGHT PIN
BSD-1613160022.A37
1613160022
|
£1.84
|
£2.21
|
|
|
53 - NEEDLE BEARING
BSD-1610910077.A37
1610910077
|
£4.48
|
£5.37
|
|
|
55 - ROLLER THRUST BEARING
BSD-1610920012.A74
1610920012
|
£3.34
|
£4.01
|
|
|
56 - SUPPORT DISC 1.0 MM
BSD-1610102030.A16
1610102030
|
£2.61
|
£3.13
|
|
|
57 - ROLLER THRUST BEARING
BSD-1610920009.A11
1610920009
|
£3.51
|
£4.21
|
|
|
60 - SEAL RING
BSD-1610280006.A4
1610280006
|
£3.51
|
£4.21
|
|
|
62 - O-RING 18.0x2.5 MM
BSD-1610210125.A68
1610210125
|
£2.05
|
£2.46
|
|
|
63 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A657
1903230013
|
£2.27
|
£2.72
|
|
|
65 - RETAINING RING
BSD-1614601018.A16
1614601018
|
£1.66
|
£1.99
|
|
|
67 - SPRING RETAINING RING
BSD-3600224038.A8
3600224038
|
£1.38
|
£1.66
|
|
|
72 - SHIM WASHER 1.0 MM
BSD-1610100007.A39
1610100007
|
£1.84
|
£2.21
|
|
|
74 - SEALING FRAME
BSD-1611015045.A21
1611015045
|
£5.57
|
£6.68
|
|
|
75 - SEALING FRAME
BSD-1611015041.A58
1611015041
|
£1.95
|
£2.34
|
|
|
76 - SEAL RING
BSD-1610210138.A52
1610210138
|
£1.84
|
£2.21
|
|
|
80 - SEALING DISK
BSD-1610100008.A46
1610100008
|
£1.75
|
£2.10
|
|
|
81 - LOCATING RING
BSD-1610290043.A16
1610290043
|
£2.27
|
£2.72
|
|
|
82 - AIR-DEFLECTOR RING
BSD-1610591017.A12
1610591017
|
-
|
|
|
|
85 - SWITCH SLIDE
BSD-1613231009.A1
1613231009
|
£1.95
|
£2.34
|
|
|
86 - CONTACT RETAINER
BSD-1609280157.A53
1609280157
|
-
|
|
|
|
87 - COMPRESSION SPRING
BSD-1614611012.A8
1614611012
|
£8.92
|
£10.70
|
|
|
90 - CATCH SLIDE
BSD-1613231007.A49
1613231007
|
£1.32
|
£1.58
|
|
|
92 - TAPPING SCREW DIN7981-ST3.9x22-C-Z
BSD-2912401021.A208
2912401021
|
£1.84
|
£2.21
|
|
|
93 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A283
2912401019
|
£1.84
|
£2.21
|
|
|
94 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A238
2912401005
|
£1.84
|
£2.21
|
|
|
98 - CONNECTING CABLE L=260 MM
BSD-1614416012.A17
1614416012
|
£1.84
|
£2.21
|
|
|
99 - CONNECTING CABLE L=270 MM
BSD-1614416011.A36
1614416011
|
£1.84
|
£2.21
|
|
|
120 - AUXILIARY HANDLE M8
BSD-1612025041.A46
1612025041
|
£21.42
|
£25.71
|
|
|
121 - SUPPORT CLAMP dia43 MM
BSD-1618040064.A11
1618040064
|
£8.92
|
£10.70
|
|
|
122 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A395
1613490002
|
£4.48
|
£5.37
|
|
|
123 - CLAMPING BAND dia43 MM
BSD-1611316006.A206
1611316006
|
£2.61
|
£3.13
|
|
|
652 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A119
1613001009
|
£3.91
|
£4.69
|
|
|
655 - PROTECTIVE CAP
BSD-1610508032.A25
1610508032
|
£2.27
|
£2.72
|
|
|
661 - GREASE TUBE 30 ML
BSD-1615430009.A35
1615430009
|
£13.78
|
£16.54
|
|
|
691 - CARRYING CASE
BSD-1615438272.A1
1615438272
|
-
|
|
|
|
720/8 - AUXILIARY HANDLE dia43 MM
BSD-1612025047.A11
1612025047
|
-
|
|
|
|
753 - ACCUMULATOR BATTERY 24V.1.7Ah.NiCd
BSD-2607335165.A1
2607335165
|
-
|
|
|
|
753 - ACCUMULATOR BATTERY 24V.3.0Ah.NiCd
BSD-2607335282.A2
2607335282
|
-
|
|
|
|
754 - FAST CHARGER GB 240/7.2-24V. 15 MIN.
BSD-2607224354.A0
2607224354
|
-
|
|
|
|
803 - ARMATURE WITH FAN 24V
BSD-1617000319.A8
1617000319
|
£75.79
|
£90.95
|
|
|
808 - NAMEPLATE
BSD-160111A3HD.A101
160111A3HD
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1617014131.A15
1617014131
|
-
|
|
|
|
816 - BRUSH HOLDER L=145 MM
BSD-1617000379.A34
1617000379
|
-
|
|
|
|
817 - BRUSH HOLDER L=45 MM
BSD-1617000380.A19
1617000380
|
-
|
|
|
|
821/01 - HAMMER PIPE
BSD-1617000320.A17
1617000320
|
-
|
|
|
|
821/01/1 - HAMMER PIPE
BSD-1617000375.A11
1617000375
|
-
|
|
|
|
824 - JACK SHAFT Z=31/12
BSD-1617000314.A17
1617000314
|
£49.16
|
£58.99
|
|
|
841 - PROTECTION SLEEVE
BSD-1617000303.A59
1617000303
|
£15.65
|
£18.78
|
|
|
844 - CLAMP HANDLE
BSD-1617000322.A48
1617000322
|
£3.72
|
£4.47
|
|
|
850 - BUSHING
BSD-1617000975.A24
1617000975
|
£6.61
|
£7.93
|
|
|
864 - STRAIGHT PIN DIN6325-2.5x12-RIKO
BSD-1613100019.A40
1613100019
|
£1.84
|
£2.21
|
|
|
897 - WEAR AND TEAR PART SET
BSD-1617000355.A0
1617000355
|
£13.41
|
£16.09
|
|
