Bosch GBH 24 VR / 0611213150 / I 24 Volt Spare Parts

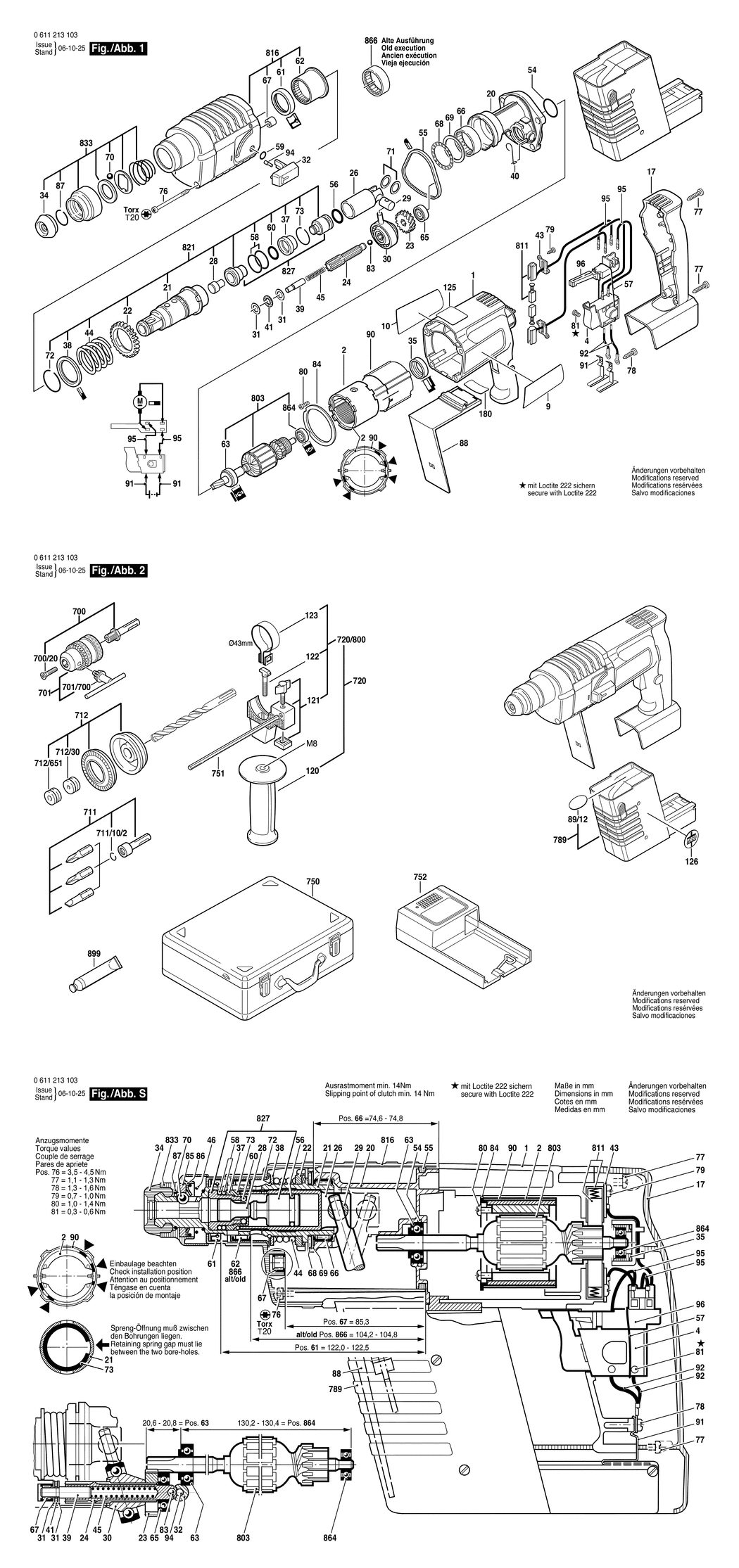

An exploded drawing and listing for the Bosch GBH 24 VR / 0611213150 / I 24 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108046.A15 1615108046	-
2 - POLE HOUSING 24V BSD-1615100007.A13 1615100007	-
4 - ON-OFF SWITCH BSD-2607200134.A23 2607200134	-
9 - MANUFACTURER'S NAMEPLATE BSD-1611110729.A1 1611110729	-
10 - MANUFACTURER'S NAMEPLATE BSD-1611110730.A12 1611110730	£5.01	£6.01
17 - HOUSING COVER BSD-1615132041.A4 1615132041	-
20 - INTERMEDIATE FLANGE BSD-1615700037.A99 1615700037	£40.80	£48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A37 1616490058	£218.41	£262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A123 1616320007	£7.36	£8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A54 1616320002	£24.45	£29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A102 1613060010	£54.42	£65.30
26 - HAMMER PISTON BSD-1618700052.A68 1618700052	£13.12	£15.75
28 - STRIKER PIN BSD-1613124026.A66 1613124026	£2.80	£3.36
29 - PISTON PIN BSD-1613105012.A166 1613105012	£3.72	£4.47
30 - DRIVE BEARING BSD-1615819005.A67 1615819005	£31.64	£37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A98 1610100003	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026023.A57 1612026023	£2.61	£3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A125 1610508008	£2.16	£2.59
35 - RUBBER RING BSD-1610206021.A52 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390011.A100 1610390011	£3.72	£4.47
38 - SUPPORTING DISC BSD-1610102022.A103 1610102022	£2.16	£2.59
39 - STRAIGHT PIN BSD-1613100013.A112 1613100013	£2.16	£2.59
40 - HOLDING SPRING BSD-1614690001.A64 1614690001	£1.75	£2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A153 1610920003	£4.26	£5.11
43 - BRUSH PLATE BSD-2601015047.A105 2601015047	-
44 - COMPRESSION SPRING BSD-1614633001.A103 1614633001	£2.52	£3.02
45 - COMPRESSION SPRING BSD-1614614001.A131 1614614001	£1.75	£2.10
54 - O-RING 24.0x2.5 MM BSD-1610210068.A39 1610210068	£1.75	£2.10
55 - SEAL RING BSD-1610206023.A117 1610206023	£2.80	£3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A36 1610210070	£2.61	£3.13
57 - O-RING 24.0x2.5 MM BSD-1610210068.A40 1610210068	£1.75	£2.10
58 - O-RING 18.0x3.0 MM BSD-1610210058.A78 1610210058	£2.61	£3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A137 1610210069	£1.75	£2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A112 1610210073	£2.16	£2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A114 1610283017	£7.36	£8.83
62 - PLAIN BEARING BSD-1610202026.A95 1610202026	£5.30	£6.36
63 - GROOVE BALL BEARING BSD-1610905012.A27 1610905012	-
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A62 1900900228	£6.61	£7.93
66 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A88 1610910063	£5.58	£6.70
67 - NEEDLE BEARING BSD-1610910064.A245 1610910064	£2.52	£3.02
68 - ROLLER-CAGE ASSEMBLY BSD-1610920004.A19 1610920004	£3.80	£4.56
69 - SUPPORT DISC 1.0 MM BSD-1610102618.A24 1610102618	-
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A482 1903230013	£2.16	£2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A58 1610101011	£1.75	£2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A84 2916540018	£3.72	£4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A91 1614601009	£1.95	£2.34
76 - THREAD-FORMING SCREW B4.8x107.5 MM BSD-1603435009.A17 1603435009	£2.16	£2.59
77 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A237 2910211021	£1.75	£2.10
78 - TAPPING SCREW DIN 7971-B3.9x9.5 BSD-2910211217.A14 2910211217	-
79 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A48 2910211206	£1.32	£1.58
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A364 2603435015	£2.16	£2.59
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2727 2603410001	£1.75	£2.10
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A74 1903230309	£1.75	£2.10
84 - FASTENING FLANGE BSD-1610120024.A42 1610120024	-
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A339 2916540012	-
88 - CONSOLE BSD-1615719016.A8 1615719016	-
89/12 - STICKER BSD-2601110999.A42 2601110999	£1.75	£2.10
90 - INSULATING SLEEVE BSD-1610499010.A21 1610499010	-
91 - CONTACT SPRING BSD-1611329006.A15 1611329006	-
92 - CONNECTING CABLE BSD-1614435011.A4 1614435011	-
94 - DETENT PIN BSD-1613120017.A99 1613120017	£1.75	£2.10
95 - CONNECTING CABLE BSD-3604431010.A11 3604431010	-
96 - CHANGE-OVER SWITCH BSD-2607200206.A79 2607200206	-
120 - AUXILIARY HANDLE M8 BSD-1612025019.A426 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A10 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A490 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A298 1611316006	£2.61	£3.13
125 - MANUFACTURER'S NAMEPLATE BSD-1611110437.A5 1611110437	-
126 - STICKER BSD-1611110274.A19 1611110274	-
700 - DRILL CHUCK SHANK BSD-1617000132.A93 1617000132	£16.84	£20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A188 2603421226	£1.75	£2.10
701 - CHUCK BSD-1608571088.A92 1608571088	£27.23	£32.68
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A495 2607950007	£6.52	£7.83
711 - PARTS SET BSD-1617000133.A106 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A141 2604601004	£1.75	£2.10
712 - DUST TRAY BSD-1615439003.A80 1615439003	-
712/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A45 1610312001	-
712/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A94 1610312002	-
720 - AUXILIARY HANDLE dia43 MM BSD-2602025032.A68 2602025032	-
720/800 - PARTS SET BSD-1617000925.A50 1617000925	£16.41	£19.69
750 - CARRYING CASE BSD-1615438149.A12 1615438149	-
751 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A293 1613001009	£3.72	£4.47
752 - BATTERY CHARGER EU 220V BSD-1617224007.A7 1617224007	-
789 - CADMIUM-NICKEL BATTERY 24V. 1.4AH. NiCd BSD-1617334003.A4 1617334003	-
803 - ARMATURE 24V BSD-1614010114.A28 1614010114	-
811 - CARBON BRUSH BSD-1617014116.A16 1617014116	-
816 - GEAR HOUSING BSD-1615806077.A18 1615806077	£45.67	£54.80
821 - RATCHET SLEEVE BSD-1617000931.A52 1617000931	£283.50	£340.20
827 - STRIKER BSD-1617000338.A64 1617000338	£27.23	£32.68
833 - PROTECTION SLEEVE BSD-1617000163.A79 1617000163	£7.36	£8.83
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A161 1610905032	£5.30	£6.36
866 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A87 1610910063	£5.58	£6.70
899 - GREASE TUBE 225 ML BSD-3605430009.A19 3605430009	£45.67	£54.80
