Bosch GRA 53 / 3600J11000 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

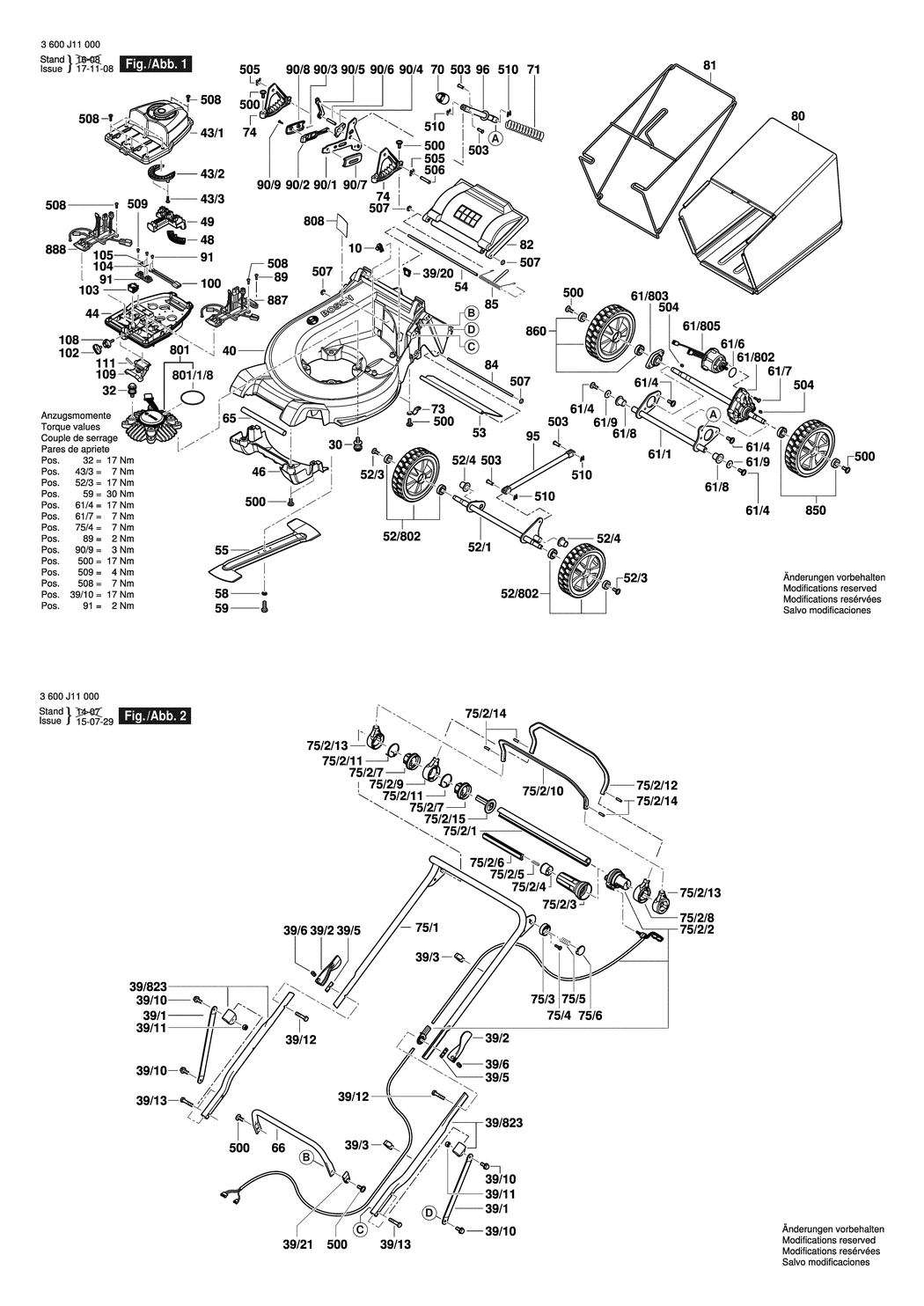

An exploded drawing and listing for the Bosch GRA 53 / 3600J11000 / EU 230 Volt

	Ex VAT	Inc VAT
10 - GROMMET BSD-F016L76343.A7 F016L76343	£1.95	£2.34
30 - DAMPING BUSHING BSD-F016L76018.A8 F016L76018	£1.75	£2.10
32 - BOLT M10x20 BSD-F016L76017.A0 F016L76017	£2.74	£3.29
39/1 - ANGLE SUPPORT BSD-F016L76263.A8 F016L76263	£17.58	£21.09
39/2 - ADJUSTING CAM BSD-F016L76292.A0 F016L76292	£15.65	£18.78
39/3 - CABLE CLIP BSD-F016L76160.A1 F016L76160	£2.61	£3.13
39/5 - INSERT BSD-F016L76189.A8 F016L76189	£25.68	£30.81
39/6 - PIVOT BSD-F016L76159.A7 F016L76159	£3.51	£4.21
39/10 - HEX SCREW BSD-F016L76294.A0 F016L76294	£1.75	£2.10
39/11 - LOCK NUT BSD-F016L76293.A8 F016L76293	£1.84	£2.21
39/12 - BOLT BSD-F016L76158.A1 F016L76158	£1.75	£2.10
39/13 - BOLT BSD-F016L76990.A8 F016L76990	£5.57	£6.68
39/20 - CLAMP BSD-F016L76344.A1 F016L76344	£1.75	£2.10
39/21 - CABLE GUIDE BSD-F016L76345.A7 F016L76345	£1.75	£2.10
39/823 - HANDLE BSD-F016104597.A3 F016104597	£49.16	£58.99
40 - CHASSIS BSD-F016L76019.A0 F016L76019	£481.43	£577.72
43/1 - MOTOR COVER BSD-F016L76025.A1 F016L76025	£25.68	£30.81
43/2 - AXIAL FLOW FAN BSD-F016L76273.A8 F016L76273	£22.60	£27.12
43/3 - SCREW M5x20 BSD-F016L76058.A45 F016L76058	£1.75	£2.10
44 - HOUSING BASE BSD-F016L76274.A0 F016L76274	£71.84	£86.21
46 - CLOSING PLATE BSD-F016L76470.A3 F016L76470	£49.16	£58.99
48 - SEALING RUBBER BSD-F016L76186.A1 F016L76186	£2.94	£3.53
49 - CABLE BRACKET BSD-F016L76291.A8 F016L76291	£4.48	£5.37
52/1 - AXLE BSD-F016L76280.A8 F016L76280	£75.79	£90.95
52/3 - SCREW M8x20 BSD-F016L76173.A4 F016L76173	£1.84	£2.21
52/4 - BUSHING BSD-F016L76044.A0 F016L76044	£1.75	£2.10
52/802 - WHEEL BSD-F016104466.A7 F016104466	£66.68	£80.01
53 - FLAP BSD-F016L76089.A1 F016L76089	£16.74	£20.09
54 - INFEED SPINDLE BSD-F016L76090.A7 F016L76090	£2.94	£3.53
55 - CUTTER BLADE BSD-F016L76030.A0 F016L76030	£31.79	£38.15
58 - SPRING WASHER 1/2 BSD-F016L66173.A58 F016L66173	£1.84	£2.21
59 - BOLT M10x30 BSD-F016L66141.A44 F016L66141	£2.61	£3.13
61/1 - AXLE BSD-F016L76281.A0 F016L76281	£68.42	£82.10
61/4 - SCREW M8x20 BSD-F016L76173.A3 F016L76173	£1.84	£2.21
61/6 - O-RING BSD-F016L76082.A0 F016L76082	£1.84	£2.21
61/7 - SCREW M5x20 BSD-F016L76058.A44 F016L76058	£1.75	£2.10
61/8 - BUSHING BSD-F016L76044.A1 F016L76044	£1.75	£2.10
61/9 - WASHER BSD-F016L76332.A8 F016L76332	£1.84	£2.21
61/802 - DRIVE UNIT BSD-F016104472.A8 F016104472	£188.33	£226.00
61/803 - BEARING HOUSING BSD-F016104560.A8 F016104560	£22.60	£27.12
61/805 - DC MOTOR BSD-F016104473.A1 F016104473	£243.45	£292.14
65 - CARRYING HANDLE BSD-F016L76279.A0 F016L76279	£11.87	£14.24
66 - HANDLE BSD-F016L76265.A0 F016L76265	£42.84	£51.41
70 - SLEEVE BSD-F016L76178.A7 F016L76178	£1.95	£2.34
71 - SPRING BSD-F016L76087.A0 F016L76087	£4.26	£5.11
73 - CLAMPING PIECE BSD-F016L76088.A8 F016L76088	£1.75	£2.10
74 - BASE-INSERT BSD-F016L76272.A1 F016L76272	£57.14	£68.57
75/1 - HANDLE TOP ASSEMBLY BSD-F016L76269.A3 F016L76269	£71.84	£86.21
75/2/1 - THROTTLE CARRIER BSD-F016L76114.A8 F016L76114	£24.45	£29.34
75/2/2 - SWITCHING UNIT BSD-F016L76115.A0 F016L76115	£142.02	£170.42
75/2/3 - CONTROL THROTTLE BSD-F016L76128.A5 F016L76128	£9.97	£11.96
75/2/4 - BUSHING BSD-F016L76129.A0 F016L76129	£2.94	£3.53
75/2/5 - SPRING BSD-F016L76130.A8 F016L76130	£1.75	£2.10
75/2/6 - BLANK COVER BSD-F016L76131.A0 F016L76131	£7.72	£9.27
75/2/7 - BUSHING BSD-F016L76132.A8 F016L76132	£4.26	£5.11
75/2/8 - PIVOT BSD-F016L76135.A0 F016L76135	£3.99	£4.79
75/2/9 - PIVOT BSD-F016L76136.A5 F016L76136	£3.34	£4.01
75/2/10 - CONTROL BAR BSD-F016L76268.A1 F016L76268	£30.28	£36.33
75/2/11 - SPRING BSD-F016L76138.A1 F016L76138	£6.52	£7.83
75/2/12 - CONTROL BAR BSD-F016L76267.A8 F016L76267	£36.62	£43.95
75/2/13 - PIVOT BSD-F016L76141.A7 F016L76141	£3.99	£4.79
75/2/14 - COILED SPRING PIN BSD-F016L76481.A5 F016L76481	£2.05	£2.46
75/2/15 - STOP BUSHING BSD-F016L68665.A0 F016L68665	£1.95	£2.34
75/3 - KNOB SLEEVE BSD-F016L76143.A1 F016L76143	£1.95	£2.34
75/4 - SCREW M5x20 BSD-F016L76058.A43 F016L76058	£1.75	£2.10
75/5 - SPRING BSD-F016L76144.A7 F016L76144	£1.84	£2.21
75/6 - SWITCH BUTTON BSD-F016L76145.A1 F016L76145	£11.30	£13.56
80 - COLLECTION BOX BSD-F016L76152.A0 F016L76152	£49.16	£58.99
81 - FRAME PROFILE BSD-F016L76151.A0 F016L76151	£36.62	£43.95
82 - FLAP GUARD BSD-F016L76105.A1 F016L76105	£22.60	£27.12
84 - INFEED SPINDLE BSD-F016L76106.A7 F016L76106	£2.45	£2.94
85 - SPRING BSD-F016L76107.A1 F016L76107	£2.94	£3.53
89 - SCREW M3x10 BSD-F016L76402.A11 F016L76402	£1.75	£2.10
90/1 - ADJUSTING LEVER BSD-F016L76271.A7 F016L76271	£25.05	£30.06
90/2 - BUTTON BSD-F016L76094.A7 F016L76094	£1.95	£2.34
90/3 - SPRING BSD-F016L76095.A1 F016L76095	£3.72	£4.47
90/4 - LINKAGE BSD-F016L76096.A7 F016L76096	£2.61	£3.13
90/5 - SLIDER BSD-F016L76097.A1 F016L76097	£2.61	£3.13
90/6 - LOCKING PIN BSD-F016L76098.A7 F016L76098	£3.72	£4.47
90/7 - PALM GRIP BSD-F016L76102.A7 F016L76102	£5.57	£6.68
90/8 - PALM GRIP BSD-F016L76190.A0 F016L76190	£5.57	£6.68
90/9 - SCREW M5x20 BSD-F016L76187.A35 F016L76187	£1.84	£2.21
91 - DIODE MODULE BSD-F016L76166.A7 F016L76166	£35.12	£42.15
95 - LINKAGE BSD-F016L76270.A0 F016L76270	£33.22	£39.87
96 - LINKAGE BSD-F016L76277.A8 F016L76277	£33.22	£39.87
100 - CONNECTING CABLE BSD-F016L76086.A8 F016L76086	£7.72	£9.27
102 - SWITCH KEY BSD-F016L76146.A7 F016L76146	£3.99	£4.79
103 - SWITCH BSD-F016L66928.A8 F016L66928	£8.92	£10.70
104 - COUPLING PLATE BSD-F016L76185.A8 F016L76185	£2.05	£2.46
105 - COUPLING PLATE BSD-F016L76473.A8 F016L76473	£2.05	£2.46
108 - CAM BSD-F016L76180.A0 F016L76180	£1.95	£2.34
109 - TRIGGER BSD-F016L76027.A0 F016L76027	£2.61	£3.13
111 - SPRING BSD-F016L76028.A8 F016L76028	£1.84	£2.21
500 - SCREW M8x20 BSD-F016L76173.A2 F016L76173	£1.84	£2.21
503 - CLEVIS BSD-F016L76100.A8 F016L76100	£8.49	£10.19
504 - KEY BSD-F016L76091.A0 F016L76091	£2.74	£3.29
505 - CLIP BSD-F016L76101.A0 F016L76101	£2.61	£3.13
506 - CLEVIS BSD-F016L76099.A0 F016L76099	£19.91	£23.89
507 - SECURING CAP dia8 MM BSD-F016T48990.A38 F016T48990	£1.84	£2.21
508 - SCREW M5x20 BSD-F016L76058.A42 F016L76058	£1.75	£2.10
509 - SCREW BSD-F016L76188.A0 F016L76188	£1.75	£2.10
510 - RETAINING CLIP BSD-F016L68664.A8 F016L68664	£2.05	£2.46
801 - DC MOTOR 36V BSD-F016104471.A0 F016104471	£375.13	£450.16
801/1/8 - O-RING BSD-F016L76214.A12 F016L76214	£1.75	£2.10
808 - NAMEPLATE BSD-F016104577.A1 F016104577	£2.74	£3.29
850 - WHEEL BSD-F016104467.A0 F016104467	£75.79	£90.95
860 - WHEEL BSD-F016104468.A8 F016104468	£75.79	£90.95
887 - DRIVE ELECTRONICS BSD-F016104469.A0 F016104469	£218.41	£262.09
888 - DRIVE ELECTRONICS BSD-F016104470.A5 F016104470	£195.26	£234.31
