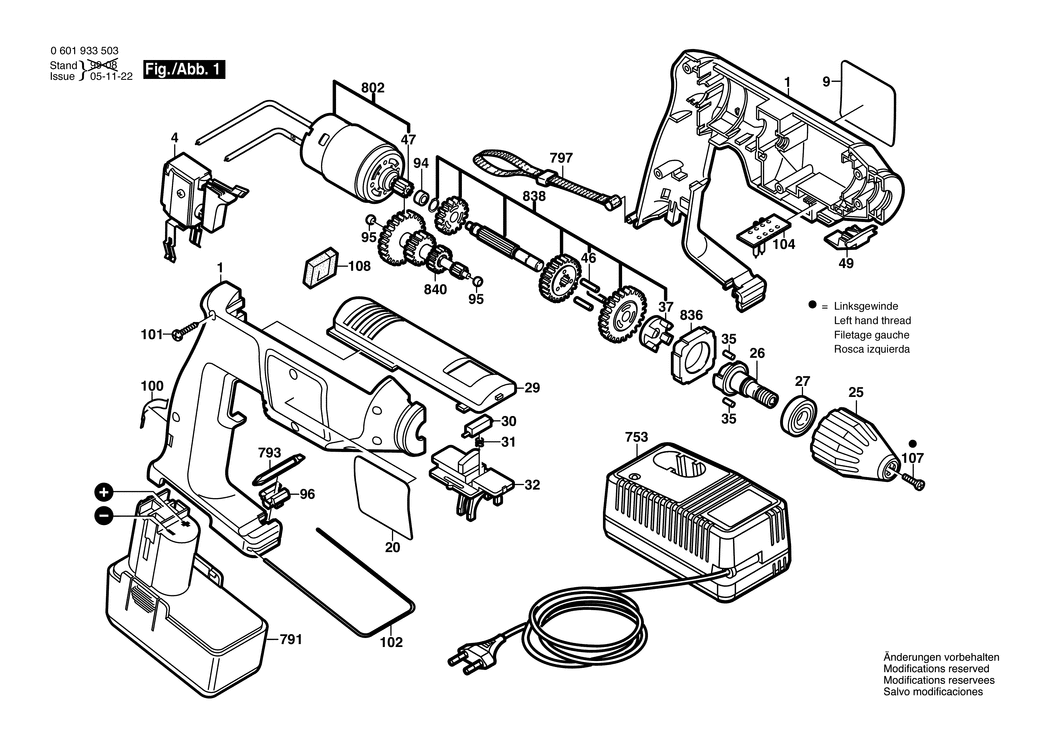

1 - HOUSING SECTION
BSD-2605104405.A1
2605104405
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200329.A1
2607200329
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118519.A1
2601118519
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118520.A8
2601118520
|
-
|
|
|
|
25 - KEYLESS CHUCK dia 2-13 MM. 3/8
BSD-2608572096.A5
2608572096
|
-
|
|
|
|
26 - DRILLING SPINDLE 3/8
BSD-2606135055.A33
2606135055
|
-
|
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A65
1900905120
|
-
|
|
|
|
29 - INSERT PIECE
BSD-2605510098.A16
2605510098
|
-
|
|
|
|
30 - STOP
BSD-2601099035.A24
2601099035
|
-
|
|
|
|
31 - COMPRESSION SPRING
BSD-2604619012.A18
2604619012
|
-
|
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099036.A15
2601099036
|
-
|
|
|
|
35 - ROLLER BODY
BSD-2602329024.A20
2602329024
|
-
|
|
|
|
37 - CARRIER
BSD-2606440003.A34
2606440003
|
-
|
|
|
|
46 - NEEDLE ROLLER
BSD-2603101041.A24
2603101041
|
-
|
|
|
|
47 - PINION Z=11
BSD-2606316138.A28
2606316138
|
-
|
|
|
|
49 - INSERT PIECE
BSD-2605510117.A139
2605510117
|
£1.75
|
£2.10
|
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A279
2600301011
|
£1.84
|
£2.21
|
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302002.A190
2600302002
|
£1.84
|
£2.21
|
|
|
96 - SUPPORT
BSD-2608040131.A276
2608040131
|
£1.95
|
£2.34
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A58
2601322016
|
£2.52
|
£3.02
|
|
|
101 - SCREW 4x16
BSD-2603490022.A1191
2603490022
|
£1.84
|
£2.21
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A415
2601329041
|
£2.33
|
£2.80
|
|
|
104 - CONTACT RETAINER
BSD-2608018004.A113
2608018004
|
£5.58
|
£6.70
|
|
|
107 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A359
2609110721
|
£2.27
|
£2.72
|
|
|
108 - DUST PROTECTION
BSD-2601010038.A116
2601010038
|
-
|
|
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A517
2607224425
|
£88.07
|
£105.68
|
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A115
2607224701
|
£92.47
|
£110.96
|
|
|
791 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd
BSD-2607336145.A0
2607336145
|
-
|
|
|
|
793 - SCREWDRIVER BLADE
BSD-2608521018.A288
2608521018
|
£5.01
|
£6.01
|
|
|
797 - CARRYING LOOP
BSD-2601398009.A324
2601398009
|
-
|
|
|
|
802 - DC MOTOR 9.6-12V
BSD-2607022914.A27
2607022914
|
-
|
|
|
|
836 - RING
BSD-2600202025.A23
2600202025
|
-
|
|
|
|
838 - JACK SHAFT Z= 42/53/67
BSD-2606100917.A34
2606100917
|
-
|
|
|
|
840 - INTMD. TRANSMISSION HSG Z= 66/35/24/10
BSD-2606100918.A5
2606100918
|
-
|
|
|
