Bosch 2300 12 V TIGER / 0600903201 / EU 12 Volt Spare Parts

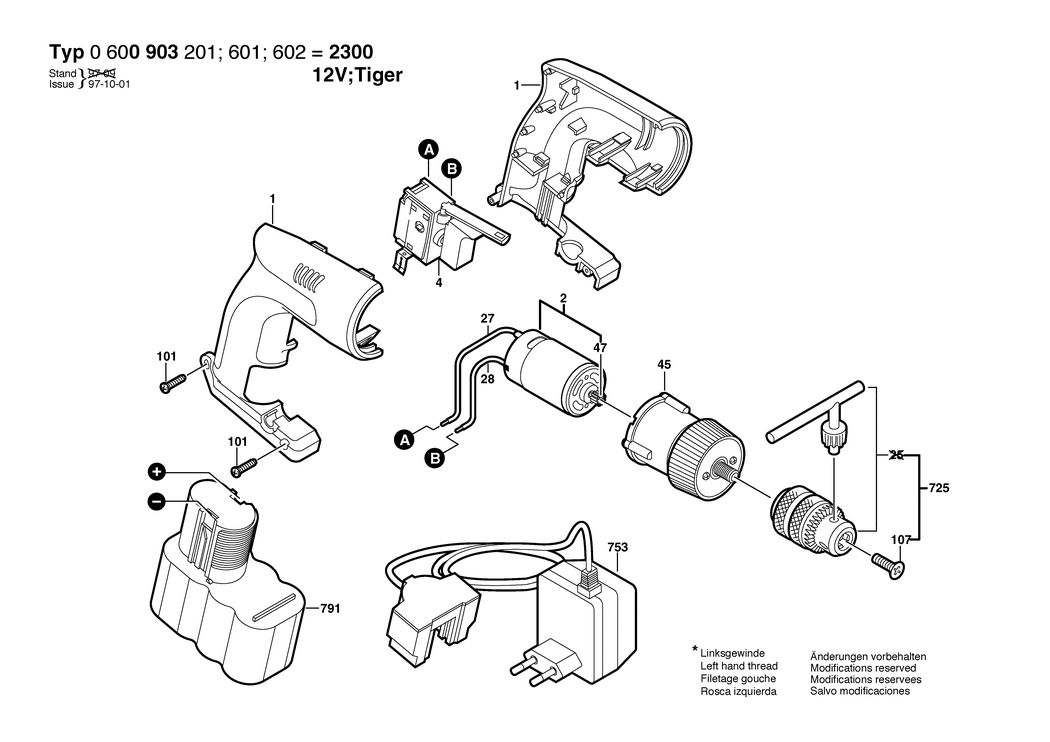

An exploded drawing and listing for the Bosch 2300 12 V TIGER / 0600903201 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104532.A2 2605104532	£11.30	£13.56
2 - DC MOTOR 12V BSD-2607022039.A2 2607022039	-
4 - ON-OFF SWITCH BSD-2607200379.A0 2607200379	-
27 - CONNECTING CABLE BSD-2604448192.A9 2604448192	-
28 - CONNECTING CABLE BSD-2604448193.A1 2604448193	-
45 - GEAR HOUSING BSD-2606200048.A1 2606200048	£13.41	£16.09
47 - PINION Z=9 BSD-2606316164.A29 2606316164	£4.26	£5.11
101 - TAPPING SCREW BSD-2603435065.A0 2603435065	£1.32	£1.58
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A156 2609110721	£2.16	£2.59
725 - CHARGER BSD-2608571049.A2 2608571049	-
725 - CHUCK WRENCH BSD-2607950034.A0 2607950034	-
753 - FAST CHARGER EU 230/12V. 3h BSD-2607224262.A8 2607224262	£16.74	£20.09
791 - ACCUMULATOR BATTERY 12V. 1.3Ah. NiCd BSD-2607335129.A2 2607335129	-
