Bosch GSR 12 VES-2 / 0601936520 / EU 12 Volt Spare Parts

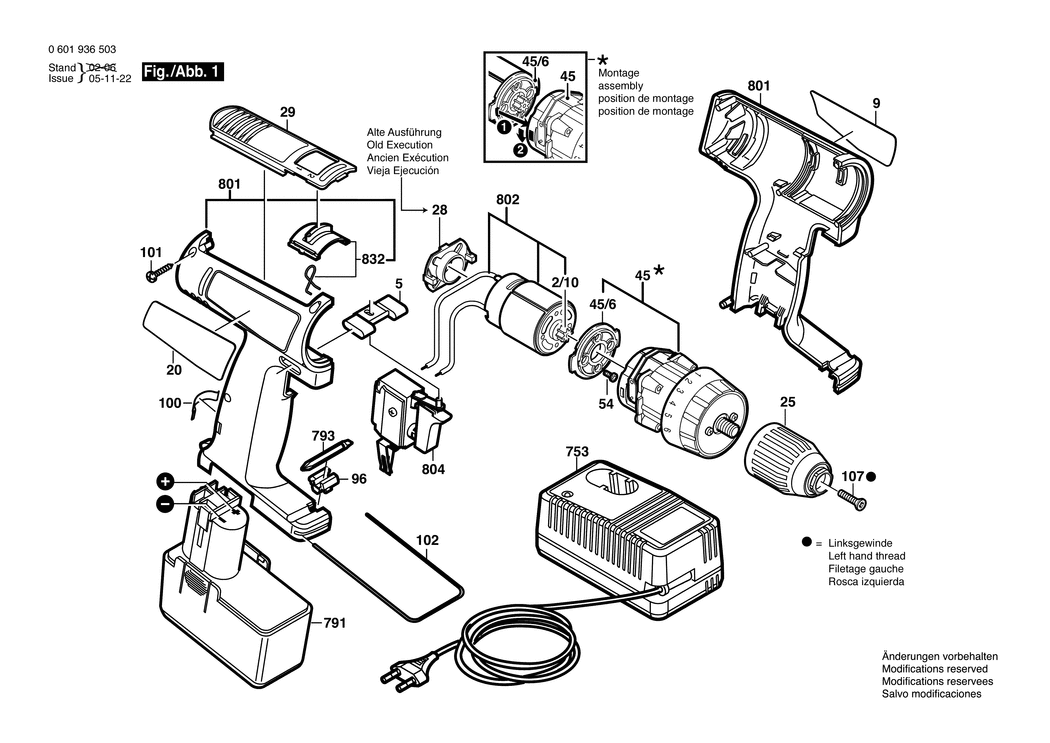

An exploded drawing and listing for the Bosch GSR 12 VES-2 / 0601936520 / EU 12 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2610967116.A4 2610967116	£3.72	£4.47
5 - ADJUSTING SLIDE BSD-2601099055.A54 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118628.A1 2601118628	-
20 - STICKER BSD-2601118629.A1 2601118629	-
25 - KEYLESS CHUCK dia 2-13 MM. 3/8 BSD-2608572096.A25 2608572096	-
28 - ADAPTER INSERT BSD-2605719015.A6 2605719015	£2.80	£3.36
29 - INSERT PIECE BSD-2605510130.A21 2605510130	-
45 - PLANETARY GEAR TRAIN BSD-2606200065.A22 2606200065	-
45/6 - INTERMEDIATE FLANGE BSD-2605719008.A17 2605719008	£3.72	£4.47
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A57 2603414049	-
96 - SUPPORT BSD-2608040131.A137 2608040131	£1.95	£2.34
100 - CLAMP SPRING BSD-2601322016.A143 2601322016	£2.52	£3.02
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A881 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A77 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A99 2609110721	£2.16	£2.59
753 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A84 2607224425	£88.07	£105.68
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A215 2607224701	£88.07	£105.68
791 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd BSD-2607336145.A20 2607336145	-
793 - SCREWDRIVER BLADE BSD-2608521018.A165 2608521018	£5.01	£6.01
801 - HOUSING SECTION BSD-2605104827.A1 2605104827	-
802 - DC MOTOR 9.6-12V BSD-2607022957.A14 2607022957	-
804 - ON-OFF SWITCH BSD-2607200353.A39 2607200353	-
832 - ADJUSTING SLIDE BSD-2601099126.A21 2601099126	-
899 - BATT-OPER SCREWDRIVER BSD-0601936520.A1 0601936520	-

Attribute Name	Value
Brand	Bosch
