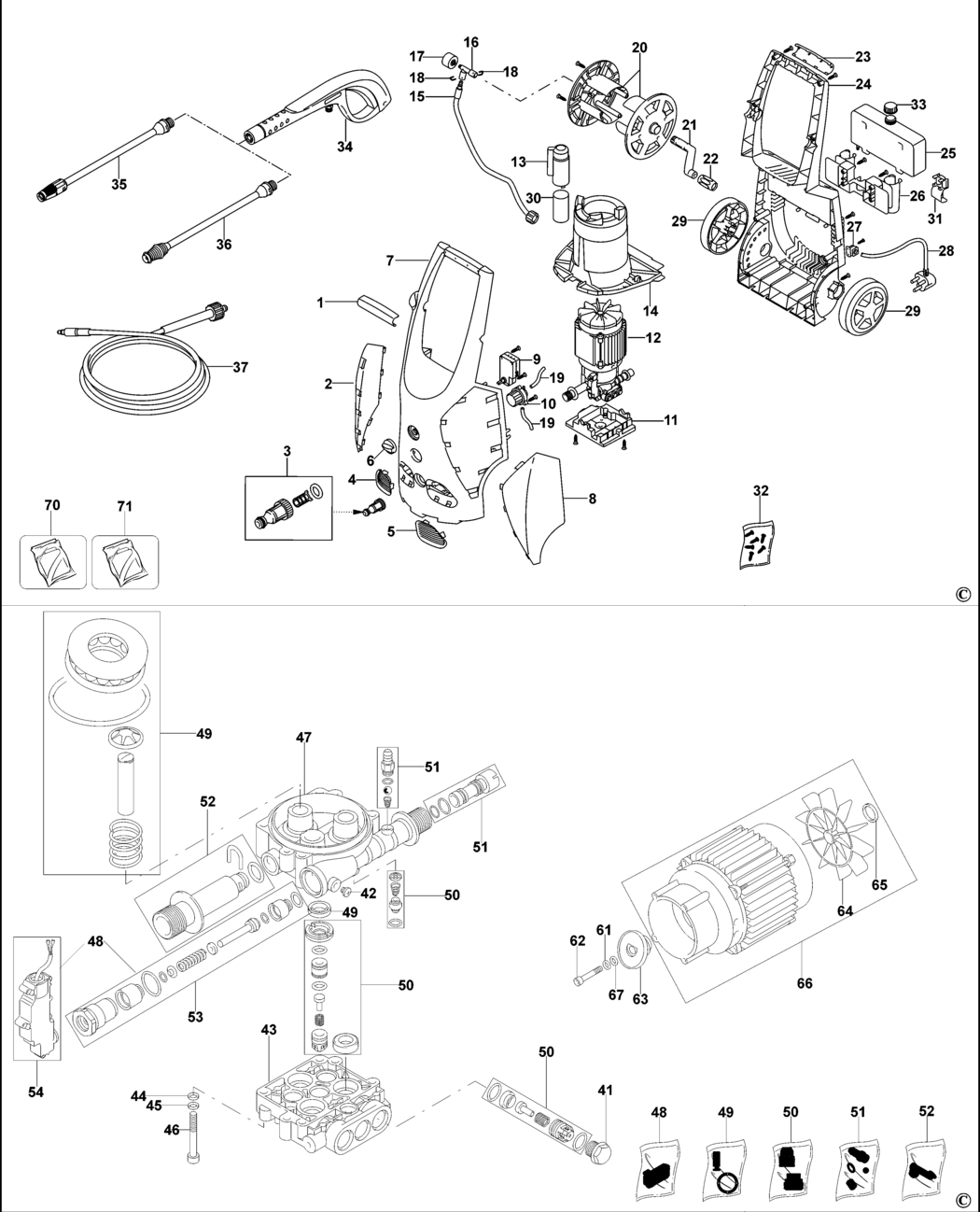

1 - KNOB
BDE-1004512-29.A1
1004512-29
|
£9.17
|
£11.00
|
|
|
2 - GUARD
BDE-1004512-30.A0
1004512-30
|
£9.17
|
£11.00
|
|
|
3 - FILTER & INLET KIT
BDE-1004455-15.A9
1004455-15
|
-
|
|
|
|
4 - GUARD
BDE-1004512-31.A1
1004512-31
|
£9.17
|
£11.00
|
|
|
5 - GUARD
BDE-1004512-32.A0
1004512-32
|
£9.17
|
£11.00
|
|
|
6 - KNOB
BDE-1004512-33.A1
1004512-33
|
£9.17
|
£11.00
|
|
|
7 - HOUSING FRONT
BDE-1004512-34.A0
1004512-34
|
£43.02
|
£51.63
|
|
|
8 - GUARD
BDE-1004512-35.A1
1004512-35
|
£9.17
|
£11.00
|
|
|
9 - BOX
BDE-1004512-36.A0
1004512-36
|
£9.17
|
£11.00
|
|
|
10 - REGULATOR
BDE-1004512-37.A2
1004512-37
|
£9.69
|
£11.63
|
|
|
11 - SUPPORT
BDE-1004512-38
1004512-38
|
£9.69
|
£11.63
|
|
|
12 - MOTOR & PUMP SA 240V
BDE-1004512-39
1004512-39
|
£600.18
|
£720.21
|
|
|
13 - CARRIER
BDE-1004512-40.A0
1004512-40
|
£9.69
|
£11.63
|
|
|
14 - CONVEYOR
BDE-1004512-41.A1
1004512-41
|
£14.19
|
£17.03
|
|
|
15 - HOSE SA
BDE-1004512-42.A0
1004512-42
|
£37.82
|
£45.38
|
|
|
16 - JOINT
BDE-1004512-43.A0
1004512-43
|
£14.19
|
£17.03
|
|
|
17 - PRESSURE GAUGE
BDE-1004512-44.A1
1004512-44
|
£29.32
|
£35.18
|
|
|
18 - FORK
BDE-1004512-45.A0
1004512-45
|
£9.17
|
£11.00
|
|
|
19 - HOSE SA
BDE-1004512-46.A1
1004512-46
|
£9.69
|
£11.63
|
|
|
20 - PLATE
BDE-1004512-47.A0
1004512-47
|
£9.17
|
£11.00
|
|
|
21 - LEVER
BDE-1004455-51.A3
1004455-51
|
£2.26
|
£2.71
|
|
|
22 - KNOB
BDE-1004512-48.A1
1004512-48
|
£9.17
|
£11.00
|
|
|
23 - KNOB
BDE-1004512-49.A0
1004512-49
|
£9.17
|
£11.00
|
|
|
24 - BASE
BDE-1004512-50.A1
1004512-50
|
£43.02
|
£51.63
|
|
|
25 - TANK
BDE-1004512-51.A0
1004512-51
|
£14.19
|
£17.03
|
|
|
26 - CARRIER
BDE-1004455-38.A1
1004455-38
|
-
|
|
|
|
27 - GLAND
BDE-1004455-07.A4
1004455-07
|
£7.64
|
£9.17
|
|
|
29 - WHEEL
BDE-1004512-54.A1
1004512-54
|
£9.69
|
£11.63
|
|
|
30 - CAPACITOR
BDE-1004512-55.A0
1004512-55
|
£20.50
|
£24.60
|
|
|
31 - CARRIER
BDE-1004512-56.A1
1004512-56
|
£9.17
|
£11.00
|
|
|
32 - SCREW
BDE-1004512-57.A0
1004512-57
|
£9.17
|
£11.00
|
|
|
33 - CAP
BDE-1004512-58
1004512-58
|
£9.69
|
£11.63
|
|
|
34 - ADJUSTER HANDLE
BDE-1004512-59.A0
1004512-59
|
£42.48
|
£50.98
|
|
|
35 - SPRAY SA
BDE-1004512-60.A1
1004512-60
|
£18.00
|
£21.60
|
|
|
36 - SPRAY SA Optional
BDE-1004512-61.A0
1004512-61
|
£53.46
|
£64.15
|
|
|
37 - HOSE SA
BDE-1004512-62.A1
1004512-62
|
£135.41
|
£162.49
|
|
|
41 - PLUG
BDE-1004512-91
1004512-91
|
-
|
|
|
|
42 - SCREW
BDE-1004512-92
1004512-92
|
-
|
|
|
|
43 - CYLINDER HEAD
BDE-1004512-93
1004512-93
|
-
|
|
|
|
44 - WASHER
BDE-1004512-94.A0
1004512-94
|
-
|
|
|
|
45 - WASHER
BDE-1004512-95.A3
1004512-95
|
-
|
|
|
|
46 - SCREW
BDE-1004512-96.A0
1004512-96
|
-
|
|
|
|
47 - CYLINDER
BDE-1004512-97
1004512-97
|
-
|
|
|
|
48 - SWITCH KIT
BDE-1004512-98
1004512-98
|
-
|
|
|
|
49 - PISTONS & SEALS KIT
BDE-1004512-99
1004512-99
|
-
|
|
|
|
50 - VALVES & SEALS KIT
BDE-1004553-00
1004553-00
|
-
|
|
|
|
51 - SUCTION GROUP
BDE-1004553-01
1004553-01
|
-
|
|
|
|
52 - SUCTION GROUP
BDE-1004553-02
1004553-02
|
-
|
|
|
|
53 - SWITCH KIT
BDE-1004553-03
1004553-03
|
-
|
|
|
|
54 - MICRO SWITCH
BDE-1004553-04
1004553-04
|
-
|
|
|
|
61 - WASHER
BDE-1004512-95.A4
1004512-95
|
-
|
|
|
|
62 - SCREW
BDE-1004553-05
1004553-05
|
-
|
|
|
|
63 - PLATE
BDE-1004553-06
1004553-06
|
-
|
|
|
|
64 - FAN
BDE-1004553-07.A0
1004553-07
|
-
|
|
|
|
65 - RING
BDE-1004553-08.A1
1004553-08
|
-
|
|
|
|
66 - MOTOR
BDE-1004553-09
1004553-09
|
-
|
|
|
|
67 - WASHER
BDE-1004553-10
1004553-10
|
-
|
|
|
|
70 - ADAPTOR
BDE-1004553-11.A0
1004553-11
|
-
|
|
|
|
71 - PLASTIC ADAPTOR
BDE-1004553-12.A1
1004553-12
|
-
|
|
|
