Black & Decker PW1700SPLP Type 1 Pressure Washer Spare Parts

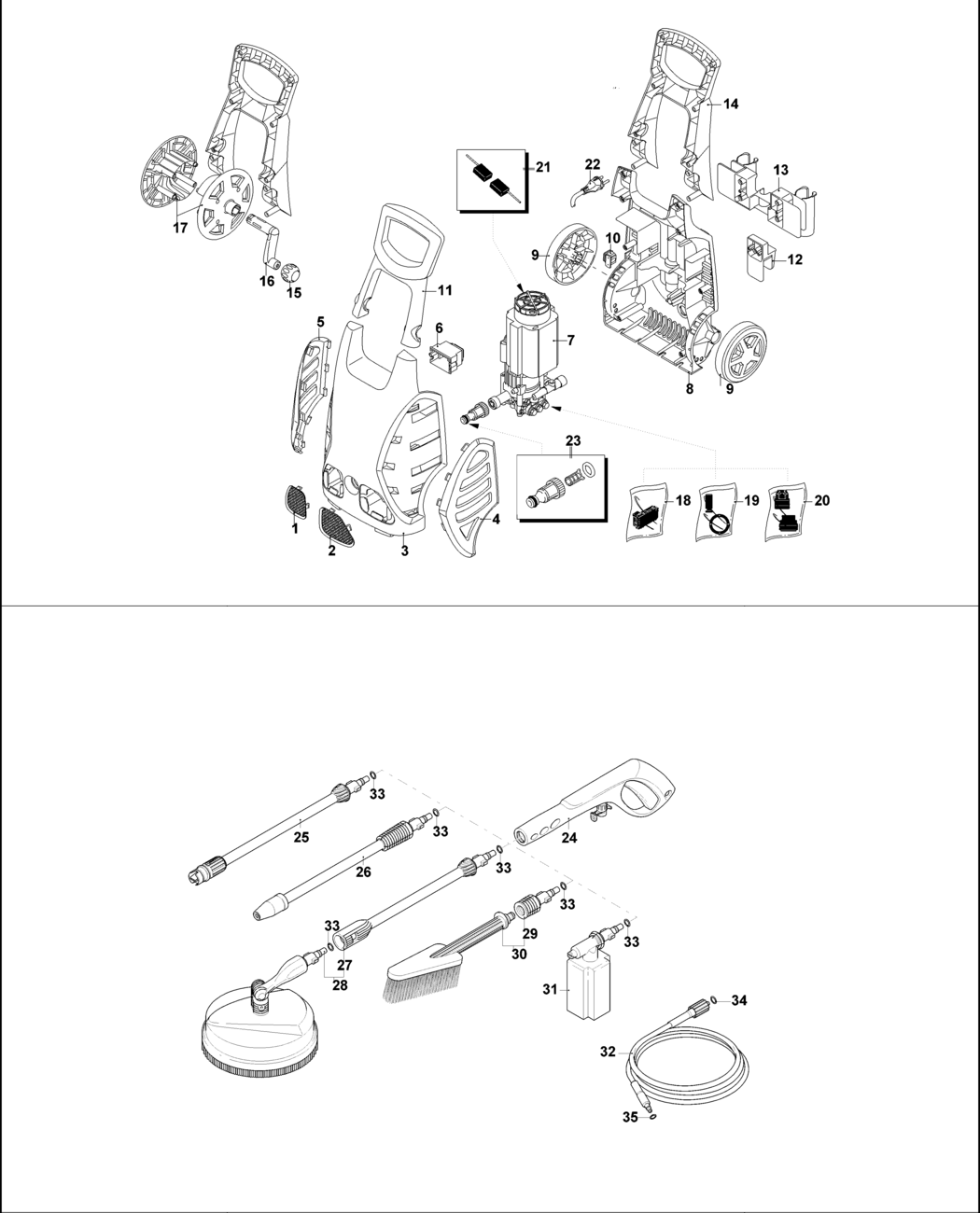

An exploded drawing and spare parts listing for the Black & Decker PW1700SPLP Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - GRILLE BDE-1004700-44.A4 1004700-44	£2.78	£3.34
2 - GRILLE BDE-1004700-45.A0 1004700-45	£2.78	£3.34
3 - HOUSING FRONT BDE-1004512-63.A3 1004512-63	£16.03	£19.24
4 - DOOR BDE-1004455-29.A4 1004455-29	£3.30	£3.96
5 - DOOR BDE-1004455-30.A3 1004455-30	£3.30	£3.96
6 - SWITCH 240V BDE-1004455-31.A2 1004455-31	£9.41	£11.29
7 - MOTOR & PUMP SA 240V BDE-1004455-47.A1 1004455-47	£258.10	£309.72
8 - BASE BDE-1004512-64.A2 1004512-64	£24.39	£29.27
9 - WHEEL BDE-1004455-35.A4 1004455-35	£7.18	£8.62
10 - GLAND BDE-1004455-07.A17 1004455-07	£7.64	£9.17
11 - HANDLE SA BDE-1004700-47.A2 1004700-47	£12.17	£14.60
12 - CARRIER BDE-1004700-48.A0 1004700-48	£3.30	£3.96
13 - CARRIER BDE-1004700-49.A5 1004700-49	£12.17	£14.60
14 - HANDLE BDE-1004700-50.A0 1004700-50	£19.90	£23.88
15 - KNOB BDE-1004455-50.A2 1004455-50	£2.26	£2.71
16 - LEVER BDE-1004455-51.A4 1004455-51	£2.26	£2.71
17 - PLATE BDE-1004455-52.A2 1004455-52	£5.88	£7.06
18 - KIT BDE-3081280.A10 3081280	£16.03	£19.24
19 - SERVICE KIT BDE-1004455-16.A8 1004455-16	£24.39	£29.27
20 - SERVICE KIT BDE-1004455-19.A11 1004455-19	£9.41	£11.29
21 - BRUSH PAIR BDE-3082600.A4 3082600	£16.03	£19.24
23 - COUPLING SA BDE-1004712-93.A46 1004712-93	£7.88	£9.45
24 - ADJUSTER HANDLE BDE-1004455-44.A2 1004455-44	£41.24	£49.49
25 - SPRAY SA BDE-1004455-54.A2 1004455-54	£25.70	£30.84
26 - SPRAY SA BDE-1004455-55.A0 1004455-55	£34.00	£40.80
27 - ADAPTOR BDE-3082860.A0 3082860	£17.48	£20.97
28 - BRUSH BDE-40780.A1 40780	£58.69	£70.43
29 - ADAPTOR BDE-1004512-28.A7 1004512-28	£1.50	£1.80
30 - BRUSH BDE-1004455-56.A8 1004455-56	£14.57	£17.48
31 - TANK BDE-1004455-43.A4 1004455-43	£25.70	£30.84
32 - HOSE SA BDE-1004455-45.A3 1004455-45	£37.35	£44.82
33 - O RING BDE-5170024-35.A4 5170024-35	£1.50	£1.80
34 - O RING BDE-3083380.A6 3083380	£1.50	£1.80
35 - O RING BDE-3083390.A2 3083390	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
