Black & Decker PW1500S Type 1 Pressure Washer Spare Parts

Home Details Reviews Delivery

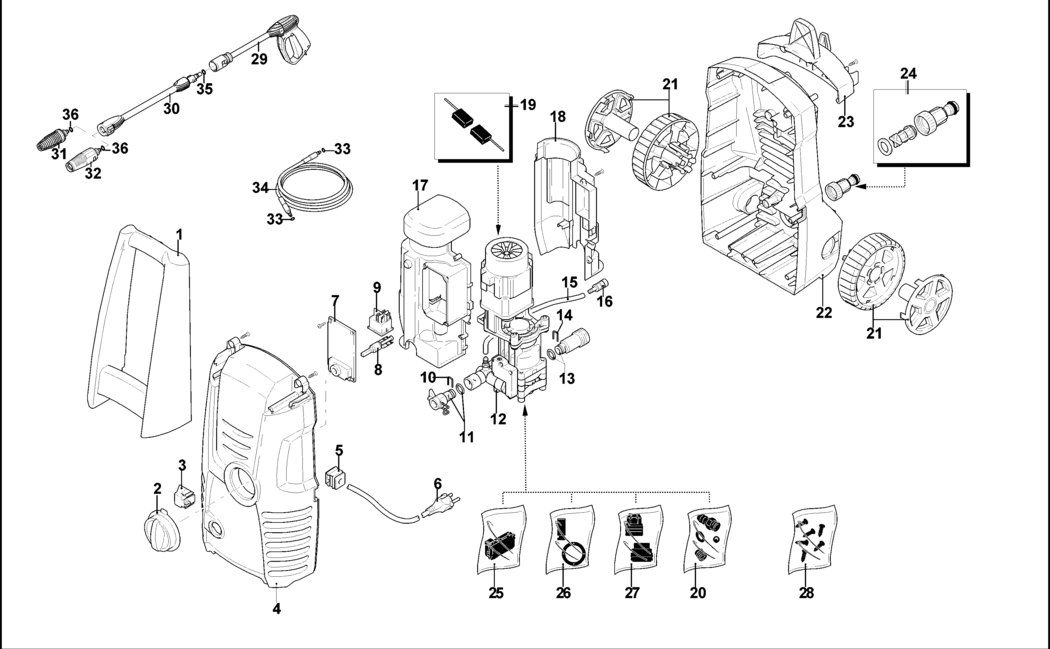

An exploded drawing and spare parts listing for the Black & Decker PW1500S Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - HANDLE BDE-1004700-84.A1 1004700-84	£53.46	£64.15
1 - HANDLE BDE-1004700-84.A2 1004700-84	£53.46	£64.15
2 - KNOB BDE-1004700-62.A2 1004700-62	£7.40	£8.88
2 - KNOB BDE-1004700-62.A3 1004700-62	£7.40	£8.88
3 - LEVER BDE-1004700-63.A1 1004700-63	£1.66	£1.99
3 - LEVER BDE-1004700-63.A2 1004700-63	£1.66	£1.99
4 - CLAMSHELL BDE-1004700-64.A2 1004700-64	£67.48	£80.98
4 - CLAMSHELL BDE-1004700-64.A3 1004700-64	£67.48	£80.98
5 - GLAND BDE-1004455-07.A24 1004455-07	£7.64	£9.17
5 - GLAND BDE-1004455-07.A25 1004455-07	£7.64	£9.17
6 - CORDSET GB PLUG GB BDE-1004690-87.A3 1004690-87	£30.08	£36.10
7 - COVER BDE-1004700-65.A1 1004700-65	£4.83	£5.80
7 - COVER BDE-1004700-65.A2 1004700-65	£4.83	£5.80
8 - PIN BDE-1004700-66.A32 1004700-66	£1.66	£1.99
8 - PIN BDE-1004700-66.A33 1004700-66	£1.66	£1.99
9 - SWITCH SA BDE-1004700-67.A1 1004700-67	£35.02	£42.02
9 - SWITCH SA BDE-1004700-67.A2 1004700-67	£35.02	£42.02
10 - FORK BDE-1004512-08.A13 1004512-08	£6.06	£7.27
10 - FORK BDE-1004512-08.A14 1004512-08	£6.06	£7.27
11 - COUPLING SA BDE-1004700-68.A2 1004700-68	£26.47	£31.76
11 - COUPLING SA BDE-1004700-68.A3 1004700-68	£26.47	£31.76
12 - PUMP SA BDE-1004700-85.A1 1004700-85	£450.25	£540.30
12 - PUMP SA BDE-1004700-85.A2 1004700-85	£450.25	£540.30
13 - SUCTION GROUP BDE-1004512-17.A26 1004512-17	£15.01	£18.01
13 - SUCTION GROUP BDE-1004512-17.A27 1004512-17	£15.01	£18.01
14 - FORK BDE-1004512-19.A31 1004512-19	£1.66	£1.99
14 - FORK BDE-1004512-19.A32 1004512-19	£1.66	£1.99
15 - PIPE BDE-1004700-70.A3 1004700-70	£7.40	£8.88
15 - PIPE BDE-1004700-70.A4 1004700-70	£7.40	£8.88
16 - FILTER BDE-1004700-71.A0 1004700-71	£1.66	£1.99
16 - FILTER BDE-1004700-71.A1 1004700-71	£1.66	£1.99
17 - CONVEYOR BDE-1004700-72.A3 1004700-72	£15.01	£18.01
17 - CONVEYOR BDE-1004700-72.A4 1004700-72	£15.01	£18.01
18 - CONVEYOR BDE-1004700-73.A0 1004700-73	£25.12	£30.15
18 - CONVEYOR BDE-1004700-73.A1 1004700-73	£25.12	£30.15
19 - BRUSH KIT BDE-1004512-06.A3 1004512-06	£9.69	£11.63
19 - BRUSH KIT BDE-1004512-06.A4 1004512-06	£9.69	£11.63
20 - SUCTION GROUP BDE-1004700-80.A0 1004700-80	£18.00	£21.60
20 - SUCTION GROUP BDE-1004700-80.A1 1004700-80	£18.00	£21.60
21 - WHEEL BDE-1004700-87.A1 1004700-87	£15.01	£18.01
21 - WHEEL BDE-1004700-87.A2 1004700-87	£15.01	£18.01
22 - CLAMSHELL BDE-1004700-75.A3 1004700-75	£67.48	£80.98
22 - CLAMSHELL BDE-1004700-75.A4 1004700-75	£67.48	£80.98
23 - GUARD BDE-1004700-76.A0 1004700-76	£7.18	£8.62
23 - GUARD BDE-1004700-76.A1 1004700-76	£7.18	£8.62
24 - COUPLING SA BDE-1004712-93.A8 1004712-93	£11.18	£13.41
24 - FILTER & INLET KIT BDE-1004455-15.A3 1004455-15	-
25 - SERVICE KIT BDE-1004700-78.A0 1004700-78	£18.00	£21.60
25 - SWITCH KIT 220V BDE-1004512-10.A2 1004512-10	£19.48	£23.37
26 - PISTONS & SEALS KIT BDE-1004512-11.A10 1004512-11	£35.02	£42.02
26 - PISTONS & SEALS KIT BDE-1004512-11.A11 1004512-11	£35.02	£42.02
27 - VALVES & SEALS KIT BDE-1004512-12.A3 1004512-12	£15.01	£18.01
27 - VALVES & SEALS KIT BDE-1004512-12.A4 1004512-12	£15.01	£18.01
28 - SCREW KIT BDE-1004700-79.A3 1004700-79	£38.48	£46.17
28 - SCREW KIT BDE-1004700-79.A4 1004700-79	£38.48	£46.17
29 - HANDLE SA BDE-3082280.A6 3082280	£35.02	£42.02
30 - EXTENSION BDE-1004700-82.A6 1004700-82	£39.97	£47.96
31 - HEAD SA BDE-1004700-88.A1 1004700-88	-
31 - ADJUSTER HANDLE BDE-5170024-33.A0 5170024-33	-
32 - HEAD SA BDE-1004700-89.A0 1004700-89	£53.46	£64.15
32 - EXTENSION BDE-1004700-82.A7 1004700-82	£39.97	£47.96
33 - O RING BDE-3083400.A27 3083400	£2.49	£2.99
33 - HEAD SA BDE-1004700-88.A2 1004700-88	-
34 - HEAD BDE-1004700-83.A0 1004700-83	£9.69	£11.63
34 - HOSE SA BDE-1004512-26.A6 1004512-26	£37.35	£44.82
35 - TANK BDE-5170024-34.A1 5170024-34	-
35 - O RING BDE-5140193-41.A46 5140193-41	£1.66	£1.99
36 - O RING BDE-5140206-02.A10 5140206-02	£2.32	£2.78
36 - HOSE SA BDE-1004512-26.A7 1004512-26	£37.35	£44.82
37 - O RING BDE-5140193-41.A52 5140193-41	£1.66	£1.99
38 - O RING BDE-5170024-37.A0 5170024-37	-
39 - O RING BDE-5170024-36.A5 5170024-36	-

Attribute Name	Value
Brand	Black & Decker
