Black & Decker BXPW1500E Type 1 Pressure Washer Spare Parts

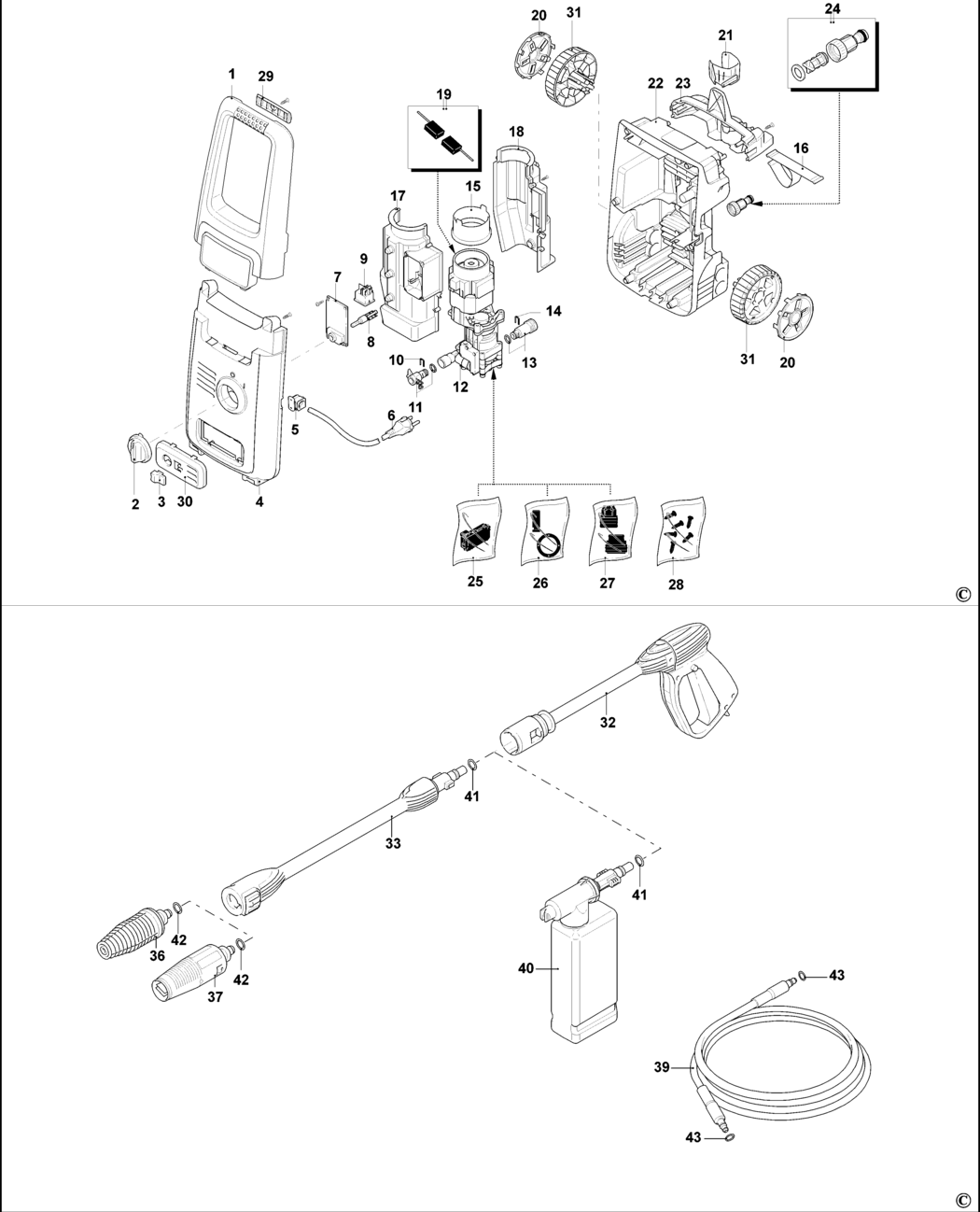

An exploded drawing and spare parts listing for the Black & Decker BXPW1500E Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - HANDLE BDE-4380310.A1 4380310	£18.91	£22.69
2 - KNOB BDE-4380250.A10 4380250	£2.78	£3.34
3 - LEVER BDE-4380390.A17 4380390	£2.26	£2.71
4 - HOUSING BDE-4380210.A7 4380210	£24.39	£29.27
5 - GLAND BDE-3080580.A27 3080580	£1.50	£1.80
7 - COVER BDE-1004700-65.A14 1004700-65	£2.78	£3.34
8 - PIN BDE-1004700-66.A19 1004700-66	£1.50	£1.80
9 - SWITCH BDE-3081450.A4 3081450	-
10 - FORK BDE-1004512-08.A8 1004512-08	£5.95	£7.14
11 - CONNECTOR BDE-4383200.A23 4383200	£10.82	£12.99
12 - PUMP SA BDE-4381650.A2 4381650	£131.46	£157.75
13 - SUCTION GROUP BDE-1004512-17.A24 1004512-17	£12.17	£14.60
14 - FORK BDE-1004512-19.A23 1004512-19	£1.50	£1.80
15 - GUARD BDE-4380180.A5 4380180	£4.69	£5.63
16 - CARRIER BDE-4380280.A7 4380280	£3.30	£3.96
17 - CONVEYOR BDE-4380170.A13 4380170	£14.57	£17.48
18 - CONVEYOR BDE-4380160.A14 4380160	£14.57	£17.48
19 - BRUSH PAIR BDE-1004512-06.A15 1004512-06	£9.42	£11.30
20 - GUARD BDE-4380330.A1 4380330	£10.85	£13.02
21 - CLIP SA BDE-4381280.A6 4381280	£3.80	£4.56
22 - BASE BDE-4380200.A3 4380200	£34.00	£40.80
23 - CARRIER BDE-4380230.A11 4380230	£12.17	£14.60
24 - COUPLING SA BDE-1004712-93.A14 1004712-93	£7.88	£9.45
25 - KIT BDE-3480130.A9 3480130	£14.57	£17.48
26 - PISTONS & SEALS KIT BDE-3480150.A9 3480150	£25.70	£30.84
27 - VALVES & SEALS KIT BDE-3480140.A2 3480140	£5.88	£7.06
28 - SCREW KIT BDE-4381470.A21 4381470	£7.18	£8.62
29 - KNOB BDE-4381300.A12 4381300	£10.85	£13.02
30 - GUARD BDE-4380380.A1 4380380	£5.88	£7.06
31 - WHEEL BDE-4380320.A2 4380320	£14.57	£17.48
32 - HANDLE SA BDE-3082280.A8 3082280	£34.00	£40.80
33 - EXTENSION BDE-1004700-82.A11 1004700-82	£14.57	£17.48
36 - HEAD SA BDE-4100800.A23 4100800	£24.39	£29.27
37 - HEAD SA BDE-4381820.A3 4381820	£24.39	£29.27
39 - HOSE BDE-3500360.A6 3500360	£34.00	£40.80
40 - TANK BDE-4381500.A3 4381500	£7.85	£9.42
41 - O RING BDE-5140193-41.A27 5140193-41	£1.50	£1.80
42 - O RING BDE-5140206-02.A16 5140206-02	£1.51	£1.81
43 - O RING BDE-3083400.A20 3083400	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
