Black & Decker BXPW1400E Type 1 Pressure Washer Spare Parts

Black & Decker BXPW1400E Type 1 Pressure Washer Spare Parts
Home Details Reviews Delivery

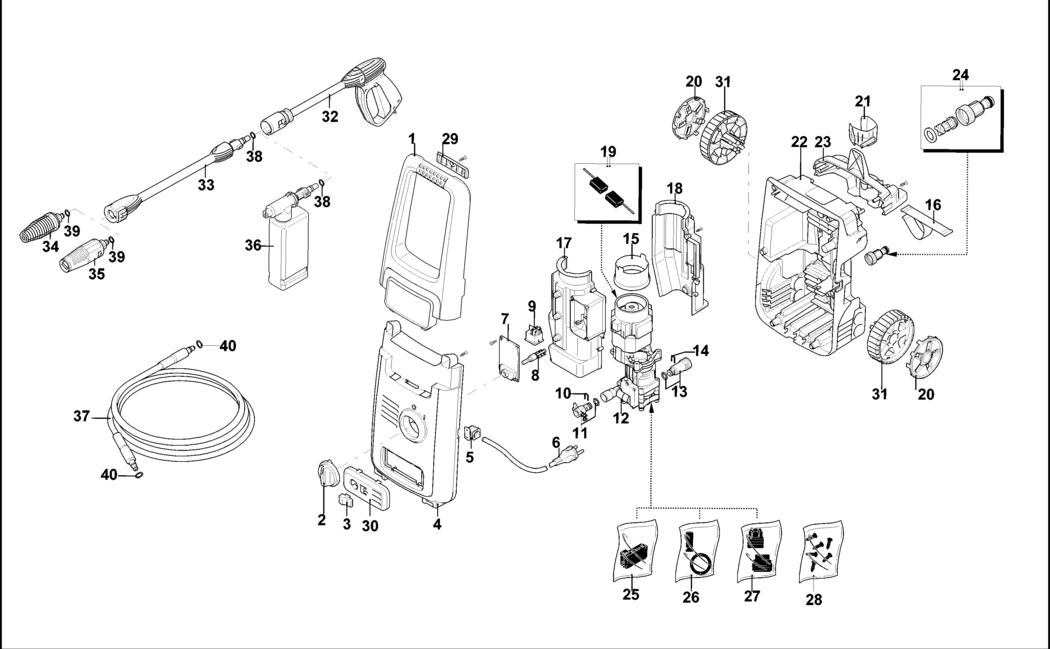

An exploded drawing and spare parts listing for the Black & Decker BXPW1400E Type 1 Pressure Washer
Ex VAT Inc VAT
1 - HANDLE BDE-4380310.A7 4380310 £18.91 £22.69
2 - KNOB BDE-4380250.A14 4380250 £2.78 £3.34
3 - LEVER BDE-4380390.A7 4380390 £2.26 £2.71
4 - HOUSING BDE-4380210.A0 4380210 £24.39 £29.27
5 - GLAND BDE-3080580.A38 3080580 £1.50 £1.80
7 - COVER BDE-1004700-65.A3 1004700-65 £2.78 £3.34
8 - PIN BDE-1004700-66.A31 1004700-66 £1.50 £1.80
9 - SWITCH BDE-3081450.A13 3081450 -
10 - FORK BDE-1004512-08.A17 1004512-08 £5.95 £7.14
11 - CONNECTOR BDE-4383200.A16 4383200 £10.82 £12.99
12 - PUMP SA BDE-4381650.A3 4381650 £131.46 £157.75
13 - SUCTION GROUP BDE-1004512-17.A31 1004512-17 £12.17 £14.60
14 - FORK BDE-1004512-19.A27 1004512-19 £1.50 £1.80
15 - GUARD BDE-4380180.A1 4380180 £4.69 £5.63
16 - CARRIER BDE-4380280.A2 4380280 £3.30 £3.96
17 - CONVEYOR BDE-4380170.A25 4380170 £14.57 £17.48
18 - CONVEYOR BDE-4380160.A1 4380160 £14.57 £17.48
19 - BRUSH PAIR BDE-1004512-06.A19 1004512-06 £9.42 £11.30
20 - GUARD BDE-4380330.A3 4380330 £10.85 £13.02
21 - CLIP SA BDE-4381280.A17 4381280 £3.80 £4.56
22 - BASE BDE-4380200.A7 4380200 £34.00 £40.80
23 - CARRIER BDE-4380230.A2 4380230 £12.17 £14.60
24 - COUPLING SA BDE-1004712-93.A28 1004712-93 £9.16 £10.99
25 - KIT BDE-3480130.A6 3480130 £14.57 £17.48
26 - PISTONS & SEALS KIT BDE-3480150.A6 3480150 £25.70 £30.84
27 - VALVES & SEALS KIT BDE-3480140.A5 3480140 £5.88 £7.06
28 - SCREW KIT BDE-4381470.A17 4381470 £7.18 £8.62
29 - KNOB BDE-4381300.A6 4381300 £10.85 £13.02
30 - GUARD BDE-4380380.A5 4380380 £5.88 £7.06
31 - WHEEL BDE-4380320.A0 4380320 £14.57 £17.48
32 - HANDLE SA BDE-3082280.A4 3082280 £34.00 £40.80
33 - EXTENSION BDE-1004700-82.A9 1004700-82 £14.57 £17.48
34 - HEAD SA BDE-4100800.A16 4100800 £24.39 £29.27
35 - HEAD SA BDE-4381800.A5 4381800 £17.48 £20.97
36 - TANK BDE-4381500.A19 4381500 £7.85 £9.42
37 - HOSE BDE-3500350.A0 3500350 £34.00 £40.80
38 - O RING BDE-5140193-41.A37 5140193-41 £1.50 £1.80
39 - O RING BDE-5140206-02.A6 5140206-02 £1.51 £1.81
40 - O RING BDE-3083400.A30 3083400 £1.50 £1.80
