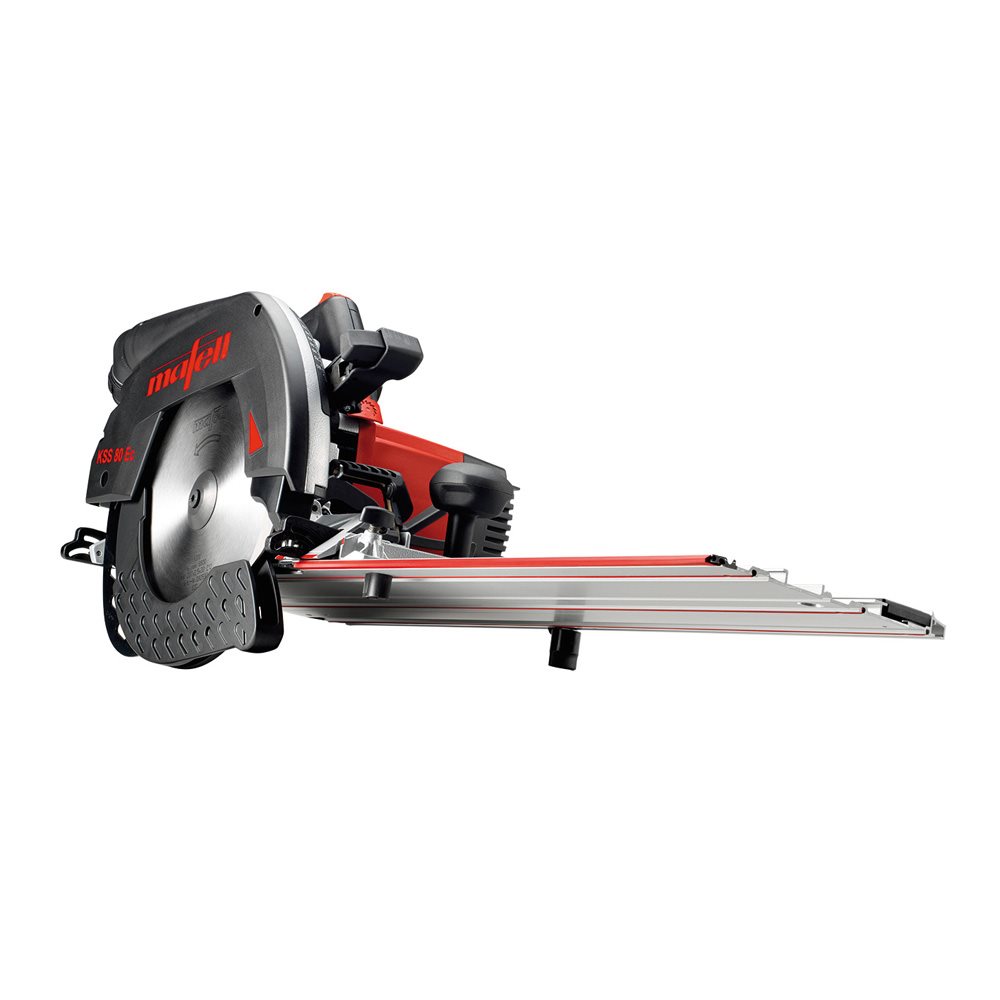

- The new MAFELL KSS 80 Ec / 370 cross-cutting system combines power and precision with ease of use and ergonomic design. These properties transform the machine into an unique carpentry system.
- Once the cut has been executed, the saw automatically returns to the starting position. The maximum cutting length, exploiting the full cutting depth, is 370 mm (14 9/16 in.).
- Sheer power and high torque take on a whole new meaning with the new high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
- It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.
- The cutting depth is set and locked in a single, quick action.
- The rubberized underside ensures a good grip on the work and avoids damage to the surface.

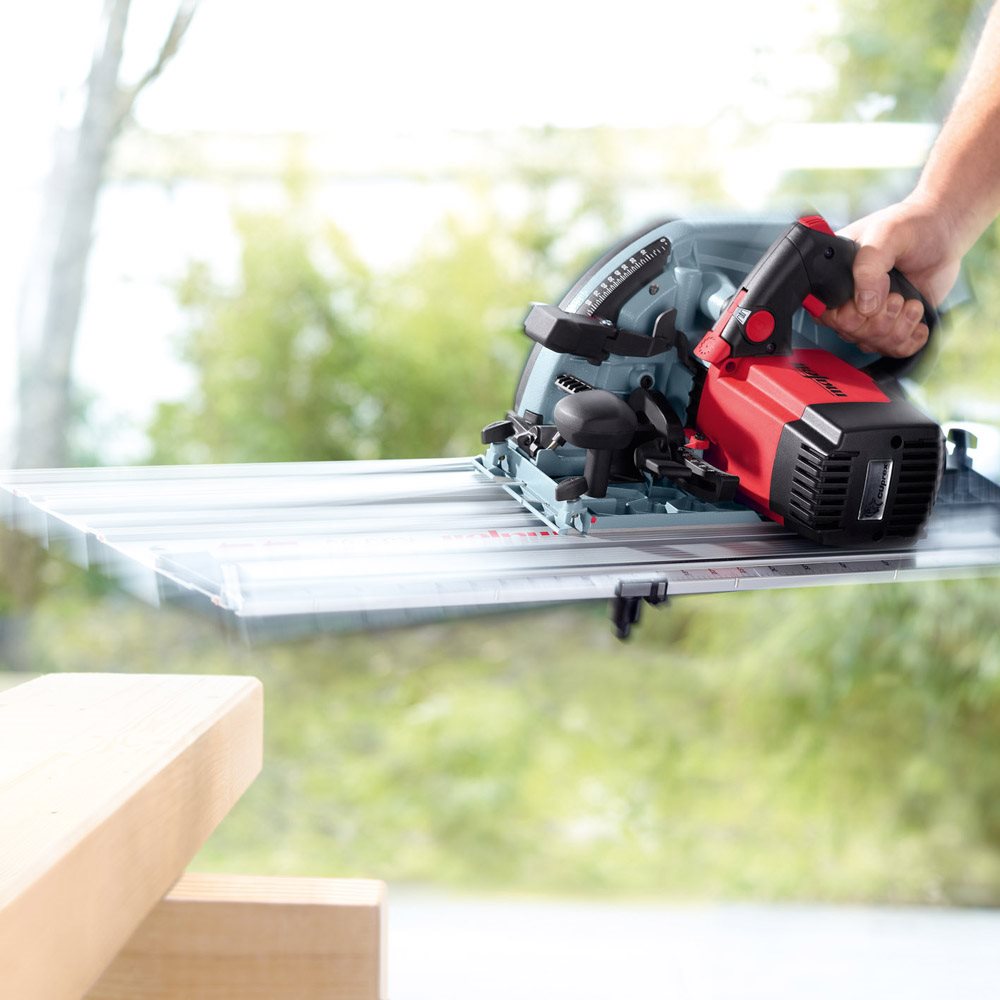

- The quick-release catch enables you to detach the machine from the rail in a single, quick action. The saw can then be used as a separate portable circular unit with all the functionality of the MAFELL KSP series.
- Cross cuts with guide
- Rip cuts and cross-cutting
- Plunge cuts and recesses
- Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials
Specification:
Cutting depth at 0° with guide track : 0 - 3 1/4 Inch
Cutting depth 45° with track : 0 - 2 3/16 Inch
Cutting depth at 0 ° without guide track : 0 - 3 7/16 Inch
Cutting depth at 60° : 0 - 1 1/2 Inch
Angle cuts : -60 - +50 °
Tilt range : 0 - 60 °
Nominal No. of strokes – no load : 2250-4400 1/min
Nominal power input : 3.1 hp
Weight with guide rail : 18.3 lbs
Universal motor : 230 V / 50 Hz
Includes:
1 TCT saw blade 237 x 1.8/2.5 x 30 mm (9 5 /16 in.), AT, 12 teeth, for rip cuts in wood - Ref. No. 092590
1 Parallel guide fence - Ref. 205323
1 Hose connector for chip extraction - Ref. No. 205290
1 Allen key 5 mm - Ref. No. 093034
1 Guide track 370 - Ref. No. 205310
1 Mains cable 4 m (13.1 ft) - Ref. No. 087888
