Fein MSfo 849-1c (300Hz 200V) / 78208000260 Spare Parts

Fein MSfo 849-1c 𨌀Hz 200V) / 78208000260 Spare Parts

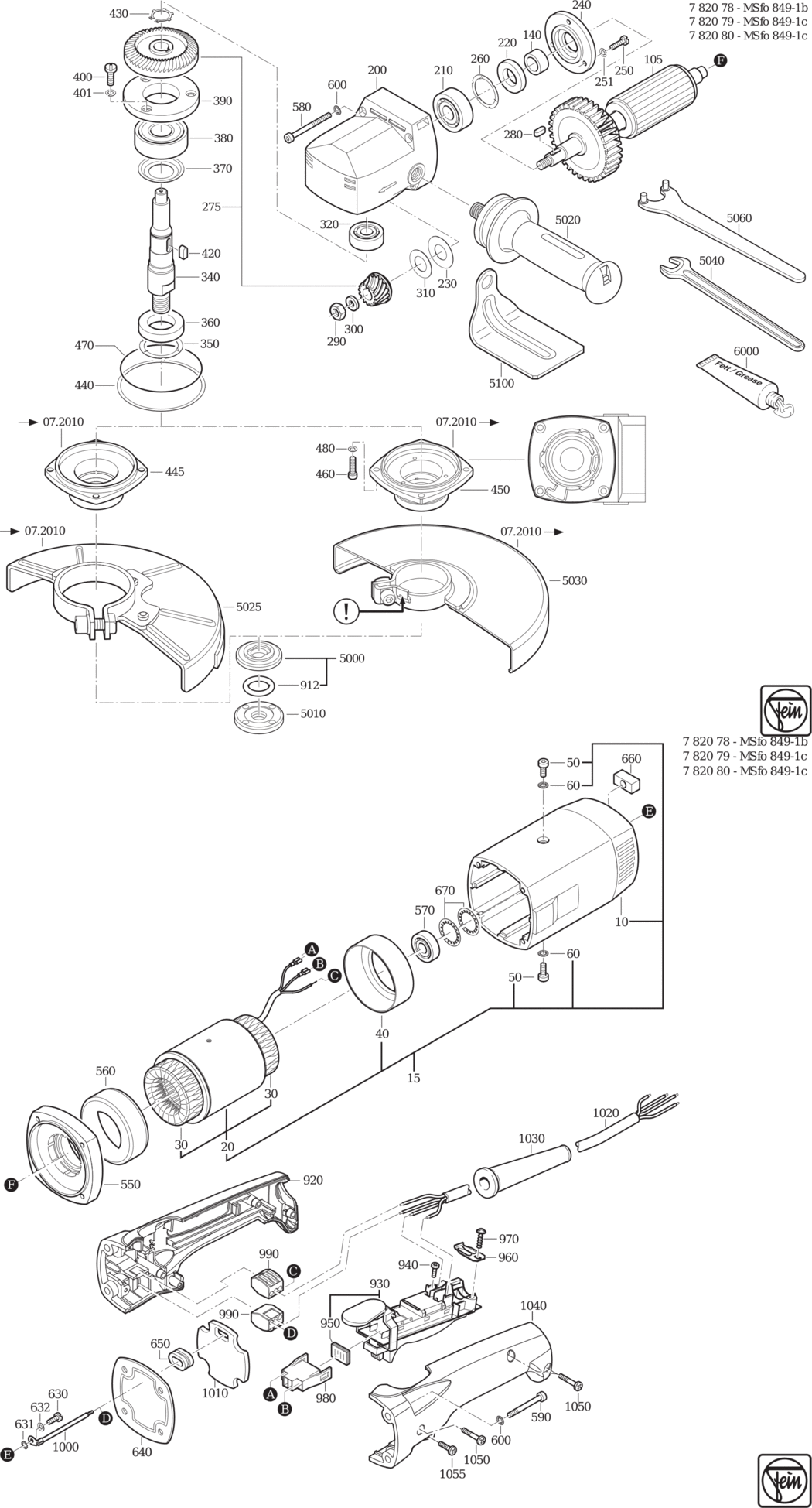

An exploded diagram and spare parts listing for the Fein MSfo 849-1c (300Hz 200V) / 78208000260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903138007.A6 31903138007	£184.65	£221.58
15 - MOTOR HOUSING WITH STAT FEI-52818003160.A0 52818003160	-
20 - STATOR FEI-51818003160.A3 51818003160	£472.38	£566.86
30 - RING FEI-31419033007.A8 31419033007	£3.82	£4.59
40 - SLEEVE FEI-30517007001.A9 30517007001	£37.59	£45.11
50 - CYLINDER HEAD SCREW FEI-43033007050.A10 43033007050	-
60 - CIRCLIP M5 FEI-42443004057.A117 42443004057	£1.60	£1.92
105 - ROTOR FEI-33508044014.A1 33508044014	£326.53	£391.84
140 - RING FEI-32601222007.A1 32601222007	£17.01	£20.41
200 - GEARBOX HOUSING FEI-31206077006.A2 31206077006	£183.32	£219.98
210 - GROOVED BALL BEARING FEI-41701213027.A50 41701213027	£9.82	£11.79
220 - FELT RING FEI-30601050002.A0 30601050002	£1.60	£1.92
230 - DISC FEI-32408227008.A2 32408227008	£8.16	£9.79
240 - PLATE FEI-32416074008.A2 32416074008	£34.94	£41.93
250 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A17 43002033045	£1.60	£1.92
251 - SPRING WASHER FEI-42445001044.A31 42445001044	£1.60	£1.92
260 - DISC FEI-32411059005.A16 32411059005	£1.60	£1.92
275 - BEVEL GEAR Z=14/41 FEI-33809147012.A0 33809147012	£306.16	£367.39
280 - FEATHER KEY FEI-40221001009.A38 40221001009	£1.60	£1.92
290 - NUT FEI-42019002069.A6 42019002069	£4.84	£5.81
300 - RING FEI-32601224009.A0 32601224009	£8.20	£9.84
310 - DISC 8 1/20X0 1 FEI-32624091021.A2 32624091021	£6.96	£8.35
310 - DISC 8 1/20X0 3 FEI-32624091037.A0 32624091037	-
320 - GROOVED BALL BEARING FEI-41701020130.A38 41701020130	£11.73	£14.08
340 - SHAFT FEI-33406218005.A2 33406218005	£87.82	£105.39
350 - DISC FEI-32411062009.A24 32411062009	£1.60	£1.92
360 - FELT RING FEI-30601049000.A33 30601049000	£1.60	£1.92
370 - SEALING RING FEI-42639008005.A25 42639008005	£5.02	£6.03
380 - GROOVED BALL BEARING FEI-41701222022.A6 41701222022	£13.42	£16.11
390 - PLATE FEI-32416058009.A18 32416058009	£19.56	£23.47
400 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A16 43002033045	£1.60	£1.92
401 - SPRING WASHER FEI-42445001044.A30 42445001044	£1.60	£1.92
420 - FEATHER KEY FEI-40223019001.A1 40223019001	-
430 - CIRCLIP FEI-42641001002.A45 42641001002	£1.60	£1.92
440 - DISC FEI-32624093028.A2 32624093028	£7.53	£9.04
440 - DISC FEI-32624093034.A0 32624093034	£5.18	£6.22
450 - BEARING PLATE FEI-32419142010.A1 32419142010	-
460 - CYLINDER HEAD SCREW FEI-43035073052.A1 43035073052	£1.60	£1.92
470 - SEALING RING FEI-40612010006.A8 40612010006	£4.18	£5.01
480 - CIRCLIP M5 FEI-42443004057.A118 42443004057	£1.60	£1.92
550 - RING FEI-32602062002.A10 32602062002	£70.29	£84.35
560 - SLEEVE FEI-30517008009.A3 30517008009	£37.59	£45.11
570 - GROOVED BALL BEARING FEI-41701006028.A7 41701006028	£14.07	£16.88
580 - CYLINDER HEAD SCREW FEI-43035021050.A2 43035021050	-
590 - CYLINDER HEAD SCREW FEI-43035020051.A27 43035020051	£1.60	£1.92
600 - CIRCLIP M5 FEI-42443004057.A119 42443004057	£1.60	£1.92
630 - FLAT HEADED SCREW FEI-43003029048.A120 43003029048	-
631 - LOCK WASHER FEI-42439013046.A160 42439013046	£1.60	£1.92
632 - DISC FEI-42404005048.A42 42404005048	£1.60	£1.92
640 - INSULATION BOARD FEI-31408056000.A63 31408056000	£7.32	£8.79
650 - INSULATING RING FEI-31406033009.A18 31406033009	£2.86	£3.43
660 - PLUG FEI-31415032009.A38 31415032009	£6.34	£7.61
670 - CUP SPRING FEI-30905034008.A6 30905034008	£1.60	£1.92
912 - SEALING RING FEI-40612000007.A77 40612000007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A27 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A76 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A79 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A89 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A122 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A95 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A100 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A44 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A85 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A72 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A16 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A40 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A75 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A46 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A124 43070038007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A224 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A220 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A44 32119117015	£58.22	£69.87
5030 - SAFETY HOOD FEI-31810269020.A8 31810269020	£56.28	£67.54
5040 - JAW SPANNER SW17 FEI-62903011005.A42 62903011005	£7.22	£8.67
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A84 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A16 32160003135	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A16 34130054061	-

Attribute Name	Value
Brand	Fein
