Dewalt DW734 Type 1 Planer Thicknesser Spare Parts

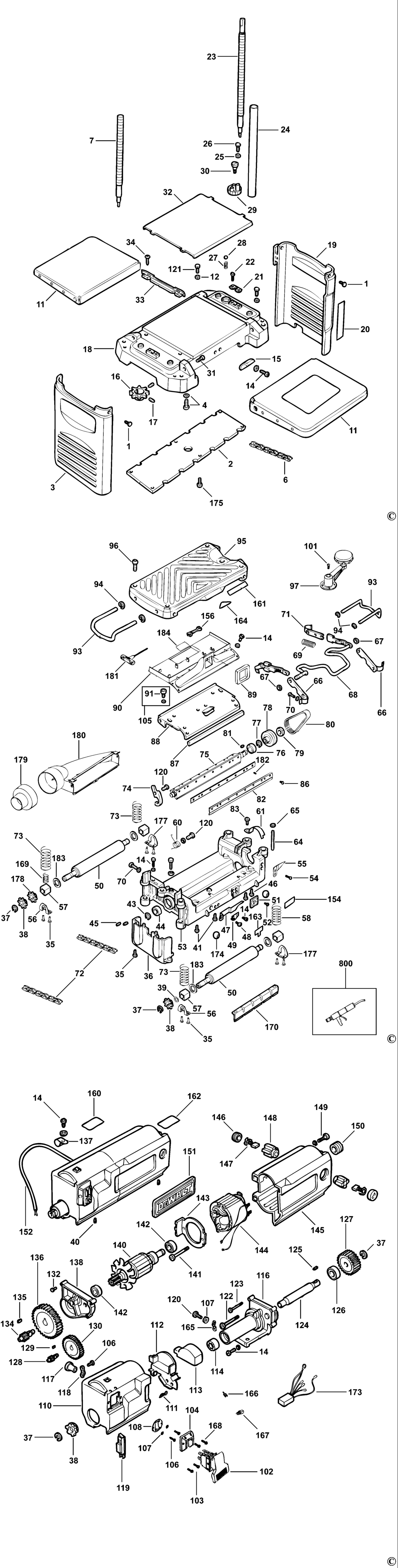

An exploded drawing and spare parts listing for the Dewalt DW734 Type 1 Planer Thicknesser

	Ex VAT	Inc VAT
1 - SCREW BDE-286052-00.A4 286052-00	£1.50	£1.80
2 - BOTTOM PLATE BDE-285895-00.A0 285895-00	£4.69	£5.63
3 - SIDE LH BDE-285896-00.A3 285896-00	£7.18	£8.62
4 - SCREW.SPECIAL BDE-429699-00.A2 429699-00	£1.50	£1.80
6 - CHAIN BDE-429962-05.A1 429962-05	£10.85	£13.02
7 - SCREW.SPECIAL BDE-285899-00.A2 285899-00	£12.17	£14.60
11 - TABLE BDE-285903-00.A3 285903-00	£51.90	£62.28
12 - NUT M6 BDE-286256-00.A1 286256-00	£1.50	£1.80
14 - SCREW BDE-429669-00.A2 429669-00	£1.50	£1.80
15 - PLATE BDE-285907-00.A0 285907-00	£1.50	£1.80
16 - SPROCKET BDE-285908-00.A3 285908-00	£2.78	£3.34
17 - SCREW BDE-285909-00.A0 285909-00	£1.50	£1.80
18 - BASE BDE-5140006-90 5140006-90	-
19 - SIDE RH BDE-285911-00.A2 285911-00	£7.18	£8.62
20 - SCALE BDE-285912-00.A1 285912-00	£2.78	£3.34
21 - PLATE BDE-285913-00.A2 285913-00	£1.50	£1.80
22 - SCREW BDE-285914-00.A1 285914-00	£1.50	£1.80
23 - SCREW.SPECIAL BDE-285915-00.A2 285915-00	£10.85	£13.02
24 - STRUT BDE-285916-00.A1 285916-00	£16.03	£19.24
25 - NUT M5 BDE-285917-00.A2 285917-00	£1.50	£1.80
26 - SCREW BDE-098022-25.A6 098022-25	£1.50	£1.80
27 - SPRING BDE-5140007-95 5140007-95	-
28 - BALL STEEL BDE-5140007-94 5140007-94	-
29 - TURRET BDE-5140007-93 5140007-93	-
30 - SCREW BDE-5140007-92 5140007-92	-
31 - SCREW BDE-5140007-96 5140007-96	-
32 - COVERPLATE BDE-285923-00.A2 285923-00	£30.08	£36.10
33 - GUIDE ROD BDE-285924-00.A1 285924-00	£1.82	£2.19
34 - SCREW BDE-285925-00.A2 285925-00	£1.50	£1.80
35 - SCREW BDE-429991-05 429991-05	-
36 - COVER BDE-285926-00.A1 285926-00	£3.30	£3.96
37 - RETAINER BDE-285927-00.A2 285927-00	£1.50	£1.80
38 - SPROCKET BDE-285928-00.A1 285928-00	£3.80	£4.56
39 - COLLAR BDE-5140006-89 5140006-89	-
40 - PIN BDE-285930-00.A2 285930-00	£1.50	£1.80
41 - SCREW.SPECIAL BDE-429670-00.A1 429670-00	£1.50	£1.80
43 - CIRCLIP BDE-285933-00.A1 285933-00	£1.50	£1.80
44 - BEARING BDE-285934-00.A2 285934-00	£5.88	£7.06
45 - SCREW BDE-285935-00.A1 285935-00	£1.50	£1.80
46 - SCREW BDE-285936-00.A2 285936-00	£1.50	£1.80
47 - INDICATOR BDE-285937-00.A1 285937-00	£3.30	£3.96
48 - SCREW BDE-285938-00.A2 285938-00	£1.50	£1.80
49 - CONTACT PLATE BDE-285939-00.A1 285939-00	£2.78	£3.34
50 - ROLLER BDE-5140006-85 5140006-85	-
51 - PLATE BDE-5140007-91 5140007-91	-
52 - SCREW BDE-330024-00.A2 330024-00	£1.50	£1.80
53 - HEAD BDE-5140006-88 5140006-88	-
54 - SCREW BDE-429962-02.A1 429962-02	£1.50	£1.80
55 - POINTER BDE-429962-06.A1 429962-06	£1.50	£1.80
56 - BRACKET LH BDE-5140006-84 5140006-84	-
57 - BUSHING BDE-5140006-82 5140006-82	-
58 - SPRING BDE-285946-00.A1 285946-00	£1.50	£1.80
60 - SPRING BDE-285948-00.A2 285948-00	£1.50	£1.80
61 - COVER BDE-285949-00.A1 285949-00	£1.82	£2.19
64 - STUD BDE-285952-00.A2 285952-00	£1.50	£1.80
65 - NUT BDE-285953-00.A1 285953-00	£1.50	£1.80
66 - BRACKET BDE-285954-00.A2 285954-00	£3.30	£3.96
67 - CIRCLIP BDE-285955-00.A1 285955-00	£1.50	£1.80
68 - CON ROD SA BDE-285956-00.A2 285956-00	£30.08	£36.10
69 - SPRING BDE-285957-00.A1 285957-00	£1.50	£1.80
70 - SCREW.SPECIAL BDE-429673-00.A2 429673-00	£1.50	£1.80
71 - BRACKET BDE-285959-00.A2 285959-00	£3.30	£3.96
72 - CHAIN BDE-285960-00.A1 285960-00	£5.88	£7.06
73 - SPRING BDE-285961-00.A2 285961-00	£1.50	£1.80
74 - LEVER LOCK BDE-5140006-87 5140006-87	-
75 - CUTTER BLOCK BDE-5140006-81 5140006-81	-
76 - BEARING BDE-285964-00.A1 285964-00	£10.85	£13.02
77 - CIRCLIP BDE-285965-00.A2 285965-00	£1.50	£1.80
78 - PULLEY BDE-5140010-22.A1 5140010-22	£2.78	£3.34
79 - NUT BDE-285967-00.A3 285967-00	£1.50	£1.80
80 - BELT BDE-429962-08.A0 429962-08	£38.80	£46.56
81 - KEY BDE-285969-00.A3 285969-00	£1.50	£1.80
82 - BLADE CLAMP BDE-5140006-79 5140006-79	-
83 - SCREW BDE-285971-00.A0 285971-00	£3.80	£4.56
86 - SCREW BDE-5140010-16 5140010-16	-
87 - SEAL BDE-285975-00.A1 285975-00	£1.50	£1.80
88 - DEFLECTOR BDE-285976-00.A2 285976-00	£16.03	£19.24
89 - SEAL BDE-285977-00.A1 285977-00	£1.50	£1.80
90 - TOOL BDE-5140006-77 5140006-77	-
91 - SCREW.SPECIAL BDE-429674-00.A2 429674-00	£1.50	£1.80
93 - HANDLE BDE-285981-00.A3 285981-00	£7.18	£8.62
94 - CIRCLIP BDE-285982-00.A0 285982-00	£1.50	£1.80
95 - COVER-TOP BDE-5140006-76 5140006-76	-
96 - SCREW BDE-285984-00.A1 285984-00	£1.50	£1.80
97 - HANDLE SA BDE-5140007-90 5140007-90	-
101 - SCREW BDE-429962-03.A0 429962-03	£1.50	£1.80
102 - SWITCH BDE-5140017-62 5140017-62	-
103 - SCREW BDE-285991-00 285991-00	-
104 - SWITCH COVER BDE-285992-00 285992-00	-
105 - SCREW.SPECIAL BDE-429674-00.A1 429674-00	£1.50	£1.80
106 - SCREW BDE-285994-00.A0 285994-00	£1.50	£1.80
107 - WASHER BDE-285995-00.A3 285995-00	£1.50	£1.80
108 - PLATE BDE-285996-00.A0 285996-00	£1.50	£1.80
110 - HOUSING SWITCH BDE-285998-00.A3 285998-00	£10.85	£13.02
111 - PIN BDE-285999-00.A0 285999-00	£1.50	£1.80
112 - PLATE BDE-286000-00.A3 286000-00	£1.50	£1.80
113 - SEAL BDE-286001-00.A0 286001-00	£1.50	£1.80
114 - BEARING BDE-286002-00.A3 286002-00	£5.88	£7.06
116 - GEARCASE SA BDE-286003-00.A0 286003-00	£30.08	£36.10
117 - CORD PROTECTOR BDE-286004-00.A3 286004-00	£1.50	£1.80
118 - CORD CLAMP BDE-286005-00.A0 286005-00	£1.50	£1.80
119 - CIRCUIT BREAKER BDE-5140017-63 5140017-63	-
120 - SCREW.SPECIAL BDE-429672-00.A1 429672-00	£1.50	£1.80
121 - BOLT BDE-489128-00.A0 489128-00	£1.50	£1.80
122 - SCREW BDE-286009-00.A1 286009-00	£1.50	£1.80
123 - SCREW BDE-286010-00.A2 286010-00	£1.50	£1.80
124 - SPINDLE BDE-286011-00.A1 286011-00	£7.18	£8.62
125 - WOODRUFF KEY BDE-286012-00.A2 286012-00	£1.50	£1.80
126 - BEARING BDE-286013-00.A1 286013-00	£5.88	£7.06
127 - GEAR BDE-286014-00.A2 286014-00	£7.85	£9.42
128 - GEAR & SHAFT BDE-5140006-92 5140006-92	-
129 - WOODRUFF KEY BDE-286016-00.A3 286016-00	£1.50	£1.80
130 - GEAR BDE-5140006-93 5140006-93	-
132 - BUSHING BDE-286018-00.A3 286018-00	£1.50	£1.80
134 - SPINDLE BDE-286019-00.A0 286019-00	£10.85	£13.02
135 - WOODRUFF KEY BDE-286020-00.A3 286020-00	£1.50	£1.80
136 - GEAR BDE-5140006-91 5140006-91	-
137 - CLAMP BDE-286022-00.A3 286022-00	£1.50	£1.80
138 - GEARCASE COVER SA BDE-286023-00.A0 286023-00	£7.85	£9.42
140 - ARMATURE BDE-5140017-64 5140017-64	-
141 - SCREW BDE-286026-00.A3 286026-00	£1.50	£1.80
142 - BEARING BDE-286027-00.A0 286027-00	£5.88	£7.06
143 - BAFFLE BDE-286028-00.A3 286028-00	£5.88	£7.06
144 - FIELD SA BDE-5140017-65 5140017-65	-
145 - FIELDCASE BDE-286030-00.A3 286030-00	£41.24	£49.49
146 - BRUSH CAP BDE-286031-00.A0 286031-00	£1.50	£1.80
147 - BRUSH BDE-5140017-66 5140017-66	-
148 - BRUSH HOLDER BDE-286033-00.A1 286033-00	£3.80	£4.56
149 - SCREW BDE-286034-00.A2 286034-00	£1.50	£1.80
150 - DRIVE PULLEY BDE-429962-00.A0 429962-00	£14.57	£17.48
151 - BRAND LABEL BDE-286036-00.A4 286036-00	£1.82	£2.19
154 - WARNING LABEL BDE-286040-00 286040-00	-
156 - WRENCH BDE-286039-00.A3 286039-00	-
160 - NAMEPLATE BDE-622882-00 622882-00	-
161 - LABEL BDE-382589-00 382589-00	-
162 - WARNING LABEL BDE-618560-00 618560-00	-
163 - LABEL BDE-382588-00 382588-00	-
164 - LABEL BDE-382586-00 382586-00	-
165 - TERMINAL BDE-94593-03.A0 94593-03	£1.50	£1.80
166 - TERMINAL BDE-450213-00.A1 450213-00	£1.50	£1.80
167 - TERMINAL BDE-450212-00.A26 450212-00	£2.78	£3.34
168 - SCREW BDE-286424-00 286424-00	-
169 - SPRING BDE-286425-00.A0 286425-00	£1.50	£1.80
170 - ANTI KICK BACK BDE-5140007-97 5140007-97	-
173 - CAPACITOR BDE-5140006-47.A0 5140006-47	-
174 - BUMPER BDE-429676-00.A2 429676-00	£1.50	£1.80
175 - SCREW BDE-330045-13.A27 330045-13	£1.50	£1.80
177 - BRACKET RH BDE-5140006-83 5140006-83	-
178 - SPROCKET BDE-5140010-81.A1 5140010-81	-
179 - VACUUM ADAPTOR BDE-429615-00.A3 429615-00	£7.85	£9.42
180 - DUST DEFLECTOR BDE-5140006-97 5140006-97	-
181 - WRENCH SPECIAL BDE-5140010-73.A1 5140010-73	-
182 - PIN BDE-5140010-14.A1 5140010-14	-
183 - WASHER BDE-5140006-96 5140006-96	-
184 - WARNING LABEL BDE-386411-00 386411-00	-
800 - GREASE BDE-286445-00.A2 286445-00	£200.77	£240.92
