Dewalt DW733 Type 1A Planer Thicknesser Spare Parts

Home Details Reviews Delivery

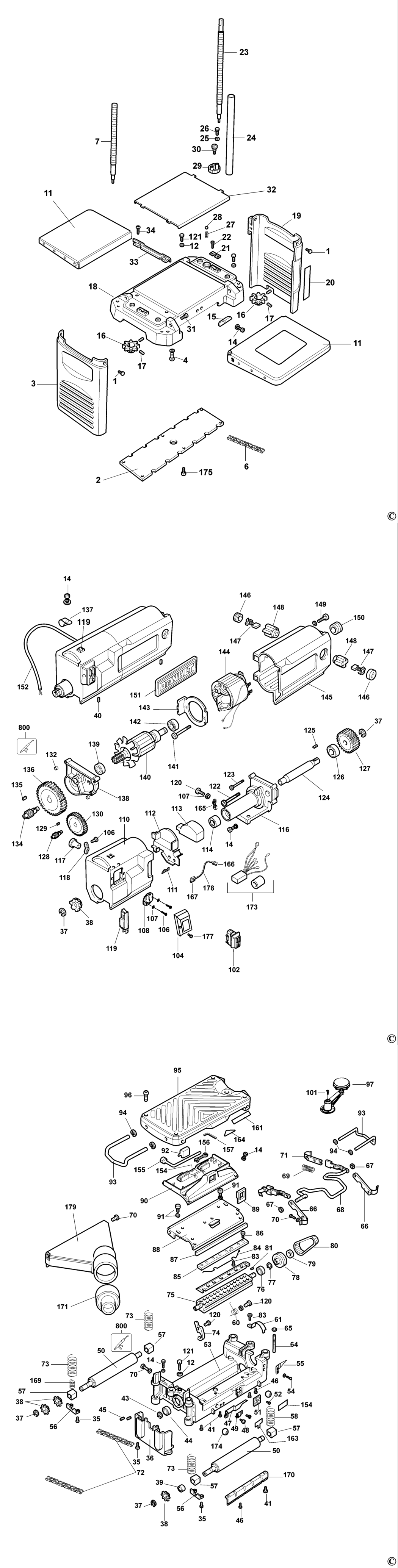

An exploded drawing and spare parts listing for the Dewalt DW733 Type 1A Planer Thicknesser

	Ex VAT	Inc VAT
1 - SCREW BDE-286052-00.A3 286052-00	£1.66	£1.99
2 - BOTTOM PLATE BDE-285895-00.A1 285895-00	£4.83	£5.80
3 - SIDE LH BDE-285896-00.A2 285896-00	£7.40	£8.88
4 - SCREW.SPECIAL BDE-429699-00.A3 429699-00	£1.66	£1.99
6 - CHAIN BDE-429962-05.A0 429962-05	£10.85	£13.02
7 - SCREW.SPECIAL BDE-285899-00.A3 285899-00	£12.53	£15.04
11 - TABLE BDE-285903-00.A2 285903-00	£53.46	£64.15
12 - NUT M6 BDE-286256-00.A2 286256-00	£1.66	£1.99
14 - SCREW BDE-429669-00.A1 429669-00	£1.66	£1.99
15 - PLATE BDE-285907-00.A1 285907-00	£1.66	£1.99
16 - SPROCKET BDE-285908-00.A2 285908-00	£2.87	£3.44
17 - SCREW BDE-285909-00.A1 285909-00	£1.66	£1.99
18 - NO LONGER AVAILABLE BDE-000000-00.A24593 000000-00	-
19 - SIDE RH BDE-285911-00.A1 285911-00	£7.40	£8.88
20 - SCALE BDE-285912-00.A2 285912-00	£2.87	£3.44
21 - PLATE BDE-285913-00.A1 285913-00	£1.66	£1.99
22 - SCREW BDE-285914-00.A2 285914-00	£1.66	£1.99
23 - SCREW.SPECIAL BDE-285915-00.A1 285915-00	£11.18	£13.41
24 - STRUT BDE-285916-00.A2 285916-00	£16.52	£19.82
25 - NUT M5 BDE-285917-00.A1 285917-00	£1.66	£1.99
26 - SCREW BDE-098022-25.A5 098022-25	£1.66	£1.99
27 - SPRING BDE-285918-00.A1 285918-00	£1.66	£1.99
28 - BALL STEEL BDE-285919-00.A1 285919-00	£1.66	£1.99
29 - TURRET BDE-429613-00.A0 429613-00	£4.83	£5.80
30 - SCREW BDE-285921-00.A1 285921-00	£1.66	£1.99
31 - SCREW BDE-285922-00.A1 285922-00	£1.66	£1.99
32 - COVERPLATE BDE-285923-00.A1 285923-00	£30.98	£37.18
33 - GUIDE ROD BDE-285924-00.A2 285924-00	£1.88	£2.26
34 - SCREW BDE-285925-00.A1 285925-00	£1.66	£1.99
35 - SCREW BDE-429735-00.A1 429735-00	£1.66	£1.99
36 - COVER BDE-285926-00.A2 285926-00	£3.39	£4.07
37 - RETAINER BDE-285927-00.A1 285927-00	£1.66	£1.99
38 - SPROCKET BDE-285928-00.A2 285928-00	£3.92	£4.70
39 - COLLAR BDE-285929-00.A1 285929-00	£1.66	£1.99
40 - PIN BDE-285930-00.A1 285930-00	£1.66	£1.99
41 - SCREW.SPECIAL BDE-429670-00.A2 429670-00	£1.66	£1.99
43 - CIRCLIP BDE-285933-00.A2 285933-00	£1.66	£1.99
44 - BEARING BDE-285934-00.A1 285934-00	£6.06	£7.27
45 - SCREW BDE-285935-00.A2 285935-00	£1.66	£1.99
46 - SCREW BDE-285936-00.A1 285936-00	£1.66	£1.99
47 - INDICATOR BDE-285937-00.A2 285937-00	£3.39	£4.07
48 - SCREW BDE-285938-00.A1 285938-00	£1.66	£1.99
49 - CONTACT PLATE BDE-285939-00.A2 285939-00	£2.87	£3.44
50 - ROLLER BDE-285940-00.A1 285940-00	£42.48	£50.98
51 - COVER BDE-429612-00.A2 429612-00	£3.39	£4.07
52 - SCREW BDE-330024-00.A4 330024-00	£1.66	£1.99
53 - HEAD BDE-285942-00.A1 285942-00	£148.42	£178.11
54 - SCREW BDE-429962-02.A0 429962-02	£1.66	£1.99
55 - POINTER BDE-429962-06.A0 429962-06	£1.66	£1.99
56 - BRACKET BDE-285944-00.A2 285944-00	£1.66	£1.99
57 - BUSH BDE-285945-00.A0 285945-00	£3.39	£4.07
58 - SPRING BDE-285946-00.A3 285946-00	£1.66	£1.99
60 - SPRING BDE-285948-00.A0 285948-00	£1.66	£1.99
61 - COVER BDE-285949-00.A3 285949-00	£1.88	£2.26
64 - STUD BDE-285952-00.A0 285952-00	£1.66	£1.99
65 - NUT BDE-285953-00.A3 285953-00	£1.66	£1.99
66 - BRACKET BDE-285954-00.A0 285954-00	£3.39	£4.07
67 - CIRCLIP BDE-285955-00.A3 285955-00	£1.66	£1.99
68 - CON ROD SA BDE-285956-00.A0 285956-00	£30.98	£37.18
69 - SPRING BDE-285957-00.A3 285957-00	£1.66	£1.99
70 - SCREW.SPECIAL BDE-429673-00.A0 429673-00	£1.66	£1.99
71 - BRACKET BDE-285959-00.A0 285959-00	£3.39	£4.07
72 - CHAIN BDE-285960-00.A3 285960-00	£6.06	£7.27
73 - SPRING BDE-285961-00.A0 285961-00	£1.66	£1.99
74 - LOCKING DEVICE BDE-285962-00.A2 285962-00	£1.66	£1.99
75 - CUTTER BLOCK BDE-285963-00.A0 285963-00	-
76 - BEARING BDE-285964-00.A2 285964-00	£11.18	£13.41
77 - CIRCLIP BDE-285965-00.A1 285965-00	£1.66	£1.99
78 - PULLEY BDE-5140010-22.A2 5140010-22	£2.87	£3.44
79 - NUT BDE-285967-00.A1 285967-00	£1.66	£1.99
80 - BELT BDE-429962-08.A1 429962-08	£39.97	£47.96
81 - KEY BDE-285969-00.A1 285969-00	£1.66	£1.99
83 - SCREW BDE-285971-00.A2 285971-00	£3.92	£4.70
84 - SPRING BDE-285972-00.A0 285972-00	-
85 - BLADE CLAMP BDE-285973-00.A1 285973-00	-
86 - SCREW BDE-285974-00.A0 285974-00	£1.66	£1.99
87 - SEAL BDE-285975-00.A2 285975-00	£1.66	£1.99
88 - DEFLECTOR BDE-285976-00.A0 285976-00	£16.52	£19.82
89 - SEAL BDE-285977-00.A3 285977-00	£1.66	£1.99
90 - TOOL TRAY BDE-285978-00.A0 285978-00	£7.40	£8.88
91 - SCREW.SPECIAL BDE-429674-00.A4 429674-00	£1.66	£1.99
92 - GAUGE BDE-285980-00.A1 285980-00	-
93 - HANDLE BDE-285981-00.A0 285981-00	£7.40	£8.88
94 - CIRCLIP BDE-285982-00.A3 285982-00	£1.66	£1.99
95 - COVER HOUSING BDE-285983-00.A0 285983-00	£46.49	£55.79
96 - SCREW BDE-285984-00.A3 285984-00	£1.66	£1.99
97 - HANDLE SA BDE-429962-04 429962-04	£18.42	£22.10
101 - SCREW BDE-429962-03.A1 429962-03	£1.66	£1.99
102 - SWITCH SA GB BDE-429692-00.A2 429692-00	£38.48	£46.17
102 - SWITCH LX BDE-5140005-02.A1 5140005-02	-
104 - SWITCH COVER BDE-429605-00.A2 429605-00	£1.66	£1.99
106 - SCREW BDE-285994-00.A3 285994-00	£1.66	£1.99
107 - WASHER BDE-285995-00.A0 285995-00	£1.66	£1.99
108 - PLATE BDE-285996-00.A2 285996-00	£1.66	£1.99
110 - HOUSING SWITCH BDE-285998-00.A0 285998-00	£11.18	£13.41
111 - PIN BDE-285999-00.A3 285999-00	£1.66	£1.99
112 - PLATE BDE-286000-00.A0 286000-00	£1.66	£1.99
113 - SEAL BDE-286001-00.A3 286001-00	£1.66	£1.99
114 - BEARING BDE-286002-00.A0 286002-00	£6.06	£7.27
116 - GEARCASE SA BDE-286003-00.A3 286003-00	£30.98	£37.18
117 - CORD PROTECTOR BDE-286004-00.A0 286004-00	£1.66	£1.99
118 - CORD CLAMP BDE-286005-00.A3 286005-00	£1.66	£1.99
119 - CIRCUIT BREAKER LX BDE-286006-00.A0 286006-00	-
119 - CIRCUIT BREAKER GB BDE-429607-00.A0 429607-00	£11.18	£13.41
120 - SCREW.SPECIAL BDE-429672-00.A3 429672-00	£1.66	£1.99
121 - SCREW BDE-286260-00.A1 286260-00	£1.66	£1.99
122 - SCREW BDE-286009-00.A2 286009-00	£1.66	£1.99
123 - SCREW BDE-286010-00.A1 286010-00	£1.66	£1.99
124 - SPINDLE BDE-286011-00.A2 286011-00	£7.40	£8.88
125 - WOODRUFF KEY BDE-286012-00.A1 286012-00	£1.66	£1.99
126 - BEARING BDE-286013-00.A2 286013-00	£6.06	£7.27
127 - GEAR BDE-286014-00.A1 286014-00	£8.08	£9.70
128 - SPINDLE BDE-286015-00.A1 286015-00	£15.01	£18.01
129 - WOODRUFF KEY BDE-286020-00.A1 286020-00	£1.66	£1.99
130 - GEAR BDE-286017-00.A1 286017-00	£16.52	£19.82
132 - BUSHING BDE-286018-00.A1 286018-00	£1.66	£1.99
134 - SPINDLE BDE-286019-00.A2 286019-00	£11.18	£13.41
135 - WOODRUFF KEY BDE-286016-00.A1 286016-00	£1.66	£1.99
136 - GEAR BDE-286021-00.A1 286021-00	£15.01	£18.01
137 - CLAMP BDE-286022-00.A1 286022-00	£1.66	£1.99
138 - GEARCASE COVER SA BDE-286023-00.A2 286023-00	£8.08	£9.70
139 - BEARING BDE-286024-00.A1 286024-00	£6.06	£7.27
140 - ARMATURE LX BDE-286025-00.A1 286025-00	£170.23	£204.28
140 - ARMATURE GB BDE-429610-00.A2 429610-00	£161.89	£194.27
141 - SCREW BDE-286026-00.A0 286026-00	£1.66	£1.99
142 - BEARING BDE-286027-00.A3 286027-00	£6.06	£7.27
143 - BAFFLE BDE-286028-00.A0 286028-00	£6.06	£7.27
144 - FIELD SA GB BDE-429609-00.A0 429609-00	£62.77	£75.32
144 - FIELD SA LX BDE-286029-00.A1 286029-00	£38.80	£46.56
145 - FIELDCASE BDE-286030-00.A0 286030-00	£42.48	£50.98
146 - BRUSH CAP BDE-286031-00.A3 286031-00	£1.66	£1.99
147 - BRUSH LX BDE-286032-00.A0 286032-00	£7.01	£8.41
147 - BRUSH GB BDE-429608-00.A2 429608-00	£8.08	£9.70
148 - BRUSH HOLDER BDE-286033-00.A2 286033-00	£3.92	£4.70
149 - SCREW BDE-286034-00.A1 286034-00	£1.66	£1.99
150 - DRIVE PULLEY BDE-429962-00.A1 429962-00	£14.57	£17.48
151 - BRAND LABEL BDE-286036-00.A1 286036-00	£1.88	£2.26
152 - CABLE & PLUG GB BDE-429625-00.A1 429625-00	£39.97	£47.96
152 - NO LONGER AVAILABLE LX BDE-000000-00.A24594 000000-00	-
154 - WARNING LABEL BDE-429620-00.A1 429620-00	£1.66	£1.99
155 - WRENCH BDE-286038-00.A1 286038-00	£11.87	£14.24
156 - WRENCH BDE-286039-00.A0 286039-00	-
157 - HEX KEY 4 MM BDE-98000-09.A26 98000-09	-
161 - LABEL BDE-429621-00.A1 429621-00	£1.66	£1.99
163 - LABEL BDE-429619-00.A1 429619-00	£1.66	£1.99
164 - LABEL BDE-429618-00.A1 429618-00	£1.66	£1.99
165 - TERMINAL BDE-94593-03.A1 94593-03	£1.66	£1.99
166 - TERMINAL BDE-450213-00.A7 450213-00	£1.66	£1.99
167 - TERMINAL BDE-450212-00.A8 450212-00	£2.87	£3.44
169 - SPRING BDE-286425-00.A2 286425-00	£1.66	£1.99
170 - ANTI KICK BACK BDE-429616-00.A2 429616-00	£38.48	£46.17
171 - VACUUM ADAPTOR BDE-429615-00.A0 429615-00	£8.08	£9.70
173 - CAPACITOR BDE-429617-00.A0 429617-00	-
174 - BUMPER BDE-429676-00.A0 429676-00	£1.66	£1.99
175 - SCREW BDE-330045-13.A50 330045-13	£1.66	£1.99
177 - SCREW BDE-330019-02.A143 330019-02	£1.66	£1.99
178 - LEAD BDE-429708-00.A2 429708-00	£3.92	£4.70
179 - DUST EXTRACTOR BDE-429614-00.A2 429614-00	£53.46	£64.15
800 - GREASE BDE-286445-00.A7 286445-00	£206.80	£248.16
