Dewalt DW733 Type 1 Planer Thicknesser Spare Parts

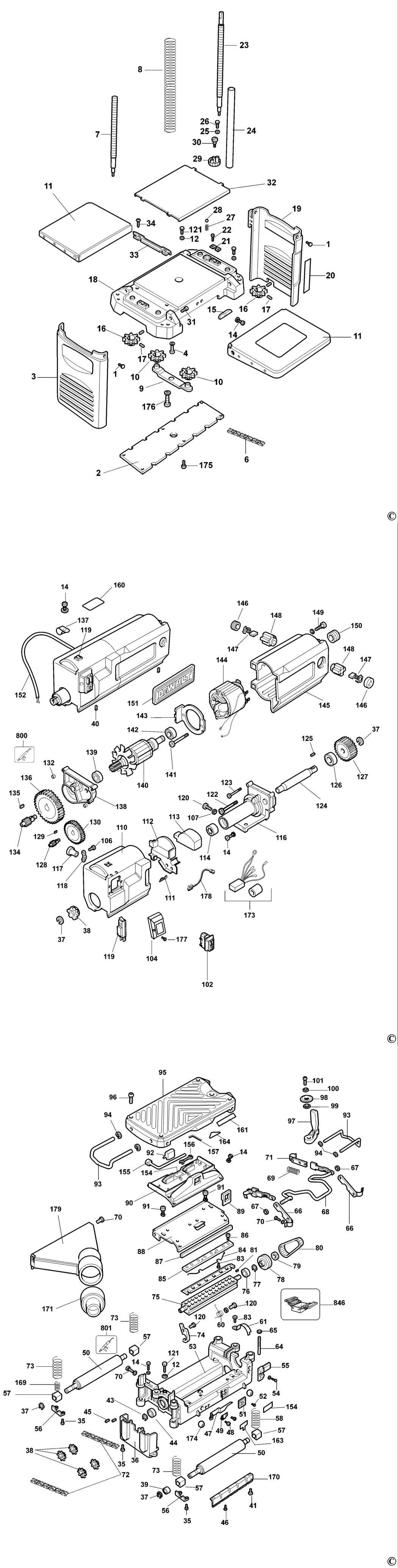

An exploded drawing and spare parts listing for the Dewalt DW733 Type 1 Planer Thicknesser

	Ex VAT	Inc VAT
1 - SCREW BDE-286052-00.A1 286052-00	£1.50	£1.80
2 - BOTTOM PLATE BDE-285895-00.A3 285895-00	£4.69	£5.63
3 - SIDE LH BDE-285896-00.A0 285896-00	£7.18	£8.62
4 - SCREW.SPECIAL BDE-429699-00.A0 429699-00	£1.50	£1.80
6 - CHAIN BDE-285898-00.A1 285898-00	£7.85	£9.42
7 - SCREW.SPECIAL BDE-285899-00.A0 285899-00	£12.17	£14.60
8 - SPRING BDE-285900-00.A1 285900-00	£1.82	£2.19
9 - PLATE BDE-285901-00.A0 285901-00	£14.57	£17.48
10 - SPROCKET BDE-285902-00.A1 285902-00	£2.26	£2.71
11 - TABLE BDE-285903-00.A0 285903-00	£51.90	£62.28
12 - NUT M6 BDE-286256-00.A0 286256-00	£1.50	£1.80
14 - SCREW BDE-429669-00.A3 429669-00	£1.50	£1.80
15 - PLATE BDE-285907-00.A3 285907-00	£1.50	£1.80
16 - SPROCKET BDE-285908-00.A0 285908-00	£2.78	£3.34
17 - SCREW BDE-285909-00.A3 285909-00	£1.50	£1.80
18 - BASE BDE-285910-00.A0 285910-00	£144.10	£172.92
19 - SIDE RH BDE-285911-00.A3 285911-00	£7.18	£8.62
20 - SCALE BDE-285912-00.A0 285912-00	£2.78	£3.34
21 - PLATE BDE-285913-00.A3 285913-00	£1.50	£1.80
22 - SCREW BDE-285914-00.A0 285914-00	£1.50	£1.80
23 - SCREW.SPECIAL BDE-285915-00.A3 285915-00	£10.85	£13.02
24 - STRUT BDE-285916-00.A0 285916-00	£16.03	£19.24
25 - NUT M5 BDE-285917-00.A3 285917-00	£1.50	£1.80
26 - SCREW BDE-098022-25.A0 098022-25	£1.50	£1.80
27 - SPRING BDE-285918-00.A0 285918-00	£1.50	£1.80
28 - BALL STEEL BDE-285919-00.A2 285919-00	£1.50	£1.80
29 - TURRET BDE-429613-00.A2 429613-00	£4.69	£5.63
30 - SCREW BDE-285921-00.A0 285921-00	£1.50	£1.80
31 - SCREW BDE-285922-00.A2 285922-00	£1.50	£1.80
32 - COVERPLATE BDE-285923-00.A0 285923-00	£30.08	£36.10
33 - GUIDE ROD BDE-285924-00.A3 285924-00	£1.82	£2.19
34 - SCREW BDE-285925-00.A0 285925-00	£1.50	£1.80
35 - SCREW BDE-429735-00.A0 429735-00	£1.50	£1.80
36 - COVER BDE-285926-00.A3 285926-00	£3.30	£3.96
37 - RETAINER BDE-285927-00.A0 285927-00	£1.50	£1.80
38 - SPROCKET BDE-285928-00.A3 285928-00	£3.80	£4.56
39 - COLLAR BDE-285929-00.A0 285929-00	£1.50	£1.80
40 - PIN BDE-285930-00.A3 285930-00	£1.50	£1.80
41 - SCREW.SPECIAL BDE-429670-00.A0 429670-00	£1.50	£1.80
43 - CIRCLIP BDE-285933-00.A0 285933-00	£1.50	£1.80
44 - BEARING BDE-285934-00.A3 285934-00	£5.88	£7.06
45 - SCREW BDE-285935-00.A0 285935-00	£1.50	£1.80
46 - SCREW BDE-285936-00.A3 285936-00	£1.50	£1.80
47 - INDICATOR BDE-285937-00.A0 285937-00	£3.30	£3.96
48 - SCREW BDE-285938-00.A3 285938-00	£1.50	£1.80
49 - CONTACT PLATE BDE-285939-00.A0 285939-00	£2.78	£3.34
50 - ROLLER BDE-285940-00.A2 285940-00	£41.24	£49.49
51 - COVER BDE-429612-00.A0 429612-00	£3.30	£3.96
52 - SCREW BDE-330024-00.A1 330024-00	£1.50	£1.80
53 - HEAD BDE-285942-00.A0 285942-00	£144.10	£172.92
54 - SCREW.SPECIAL BDE-429671-00.A1 429671-00	£1.50	£1.80
55 - LENS BDE-285943-00.A1 285943-00	£14.57	£17.48
56 - BRACKET BDE-285944-00.A0 285944-00	£1.50	£1.80
57 - BUSH BDE-285945-00.A2 285945-00	£3.30	£3.96
58 - SPRING BDE-285946-00.A0 285946-00	£1.50	£1.80
60 - SPRING BDE-285948-00.A3 285948-00	£1.50	£1.80
61 - COVER BDE-285949-00.A0 285949-00	£1.82	£2.19
64 - STUD BDE-285952-00.A3 285952-00	£1.50	£1.80
65 - NUT BDE-285953-00.A0 285953-00	£1.50	£1.80
66 - BRACKET BDE-285954-00.A3 285954-00	£3.30	£3.96
67 - CIRCLIP BDE-285955-00.A0 285955-00	£1.50	£1.80
68 - CON ROD SA BDE-285956-00.A3 285956-00	£30.08	£36.10
69 - SPRING BDE-285957-00.A0 285957-00	£1.50	£1.80
70 - SCREW.SPECIAL BDE-429673-00.A3 429673-00	£1.50	£1.80
71 - BRACKET BDE-285959-00.A3 285959-00	£3.30	£3.96
72 - CHAIN BDE-285960-00.A0 285960-00	£5.88	£7.06
73 - SPRING BDE-285961-00.A3 285961-00	£1.50	£1.80
74 - LOCKING DEVICE BDE-285962-00.A0 285962-00	£1.50	£1.80
75 - CUTTER BLOCK BDE-285963-00.A1 285963-00	-
76 - BEARING BDE-285964-00.A0 285964-00	£10.85	£13.02
77 - CIRCLIP BDE-285965-00.A3 285965-00	£1.50	£1.80
78 - PULLEY BDE-285966-00.A0 285966-00	£10.85	£13.02
79 - NUT BDE-285967-00.A2 285967-00	£1.50	£1.80
80 - BELT BDE-285968-00.A0 285968-00	£19.90	£23.88
81 - KEY BDE-285969-00.A2 285969-00	£1.50	£1.80
83 - SCREW BDE-285971-00.A1 285971-00	£3.80	£4.56
84 - SPRING BDE-285972-00.A1 285972-00	-
85 - BLADE CLAMP BDE-285973-00.A0 285973-00	-
86 - SCREW BDE-285974-00.A1 285974-00	£1.50	£1.80
87 - SEAL BDE-285975-00.A0 285975-00	£1.50	£1.80
88 - DEFLECTOR BDE-285976-00.A3 285976-00	£16.03	£19.24
89 - SEAL BDE-285977-00.A0 285977-00	£1.50	£1.80
90 - TOOL TRAY BDE-285978-00.A2 285978-00	£7.18	£8.62
91 - SCREW.SPECIAL BDE-429674-00.A0 429674-00	£1.50	£1.80
92 - GAUGE BDE-285980-00.A0 285980-00	-
93 - HANDLE BDE-285981-00.A2 285981-00	£7.18	£8.62
94 - CIRCLIP BDE-285982-00.A1 285982-00	£1.50	£1.80
95 - COVER HOUSING BDE-285983-00.A2 285983-00	£45.14	£54.17
96 - SCREW BDE-285984-00.A0 285984-00	£1.50	£1.80
97 - HANDLE SA BDE-285985-00.A1 285985-00	£10.85	£13.02
98 - SCALE BDE-429611-00.A1 429611-00	£1.50	£1.80
99 - GASKET BDE-285987-00.A0 285987-00	£1.50	£1.80
100 - WASHER BDE-285988-00.A1 285988-00	£1.50	£1.80
101 - SCREW BDE-285989-00.A0 285989-00	£1.50	£1.80
102 - SWITCH SA GB BDE-429692-00.A0 429692-00	£37.35	£44.82
102 - SWITCH LX BDE-5140005-02.A0 5140005-02	-
104 - SWITCH COVER BDE-429605-00.A0 429605-00	£1.50	£1.80
106 - SCREW BDE-285994-00.A1 285994-00	£1.50	£1.80
107 - WASHER BDE-285995-00.A2 285995-00	£1.50	£1.80
108 - PLATE BDE-285996-00.A1 285996-00	£1.50	£1.80
110 - HOUSING SWITCH BDE-285998-00.A2 285998-00	£10.85	£13.02
111 - PIN BDE-285999-00.A1 285999-00	£1.50	£1.80
112 - PLATE BDE-286000-00.A2 286000-00	£1.50	£1.80
113 - SEAL BDE-286001-00.A1 286001-00	£1.50	£1.80
114 - BEARING BDE-286002-00.A2 286002-00	£5.88	£7.06
116 - GEARCASE SA BDE-286003-00.A1 286003-00	£30.08	£36.10
117 - CORD PROTECTOR BDE-286004-00.A2 286004-00	£1.50	£1.80
118 - CORD CLAMP BDE-286005-00.A1 286005-00	£1.50	£1.80
119 - CIRCUIT BREAKER LX BDE-286006-00.A1 286006-00	-
119 - CIRCUIT BREAKER GB BDE-429607-00.A2 429607-00	£10.85	£13.02
120 - SCREW.SPECIAL BDE-429672-00.A0 429672-00	£1.50	£1.80
121 - SCREW BDE-286260-00.A2 286260-00	£1.50	£1.80
122 - SCREW BDE-286009-00.A0 286009-00	£1.50	£1.80
123 - SCREW BDE-286010-00.A3 286010-00	£1.50	£1.80
124 - SPINDLE BDE-286011-00.A0 286011-00	£7.18	£8.62
125 - WOODRUFF KEY BDE-286012-00.A3 286012-00	£1.50	£1.80
126 - BEARING BDE-286013-00.A0 286013-00	£5.88	£7.06
127 - GEAR BDE-286014-00.A3 286014-00	£7.85	£9.42
128 - SPINDLE BDE-286015-00.A0 286015-00	£14.57	£17.48
129 - WOODRUFF KEY BDE-286020-00.A2 286020-00	£1.50	£1.80
130 - GEAR BDE-286017-00.A0 286017-00	£16.03	£19.24
132 - BUSHING BDE-286018-00.A2 286018-00	£1.50	£1.80
134 - SPINDLE BDE-286019-00.A1 286019-00	£10.85	£13.02
135 - WOODRUFF KEY BDE-286016-00.A2 286016-00	£1.50	£1.80
136 - GEAR BDE-286021-00.A0 286021-00	£14.57	£17.48
137 - CLAMP BDE-286022-00.A2 286022-00	£1.50	£1.80
138 - GEARCASE COVER SA BDE-286023-00.A1 286023-00	£7.85	£9.42
139 - BEARING BDE-286024-00.A2 286024-00	£5.88	£7.06
140 - ARMATURE LX BDE-286025-00.A0 286025-00	£170.23	£204.28
140 - ARMATURE GB BDE-429610-00.A0 429610-00	£157.18	£188.61
141 - SCREW BDE-286026-00.A2 286026-00	£1.50	£1.80
142 - BEARING BDE-286027-00.A1 286027-00	£5.88	£7.06
143 - BAFFLE BDE-286028-00.A2 286028-00	£5.88	£7.06
144 - FIELD SA LX BDE-286029-00.A0 286029-00	£38.80	£46.56
144 - FIELD SA GB BDE-429609-00.A2 429609-00	£60.94	£73.13
145 - FIELDCASE BDE-286030-00.A2 286030-00	£41.24	£49.49
146 - BRUSH CAP BDE-286031-00.A1 286031-00	£1.50	£1.80
147 - BRUSH LX BDE-286032-00.A1 286032-00	£7.01	£8.41
147 - BRUSH GB BDE-429608-00.A0 429608-00	£7.85	£9.42
148 - BRUSH HOLDER BDE-286033-00.A0 286033-00	£3.80	£4.56
149 - SCREW BDE-286034-00.A3 286034-00	£1.50	£1.80
150 - PULLEY BDE-286035-00.A0 286035-00	£4.69	£5.63
151 - BRAND LABEL BDE-286036-00.A3 286036-00	£1.82	£2.19
152 - NO LONGER AVAILABLE LX BDE-000000-00.A84899 000000-00	-
152 - CABLE & PLUG GB BDE-429625-00.A0 429625-00	£38.80	£46.56
154 - WARNING LABEL BDE-429620-00.A0 429620-00	£1.50	£1.80
155 - WRENCH BDE-286038-00.A0 286038-00	£11.87	£14.24
156 - WRENCH BDE-286039-00.A2 286039-00	-
157 - HEX KEY 4 MM BDE-98000-09.A6 98000-09	-
160 - NO LONGER AVAILABLE GB BDE-000000-00.A84900 000000-00	-
161 - LABEL BDE-429621-00.A2 429621-00	£1.50	£1.80
163 - LABEL BDE-429619-00.A2 429619-00	£1.50	£1.80
164 - LABEL BDE-429618-00.A0 429618-00	£1.50	£1.80
166 - TERMINAL BDE-450213-00.A3 450213-00	£1.50	£1.80
167 - TERMINAL BDE-450212-00.A18 450212-00	£2.78	£3.34
169 - SPRING BDE-286425-00.A1 286425-00	£1.50	£1.80
170 - ANTI KICK BACK BDE-429616-00.A0 429616-00	£37.35	£44.82
171 - VACUUM ADAPTOR BDE-429615-00.A2 429615-00	£7.85	£9.42
173 - CAPACITOR BDE-429617-00.A1 429617-00	£34.00	£40.80
174 - BUMPER BDE-429676-00.A3 429676-00	£1.50	£1.80
175 - SCREW > WK9803 BDE-330045-13.A3 330045-13	£1.50	£1.80
175 - SCREW BDE-286052-00.A0 286052-00	£1.50	£1.80
176 - SCREW.SPECIAL BDE-429701-00.A1 429701-00	£1.50	£1.80
177 - SCREW BDE-330019-02.A67 330019-02	£1.50	£1.80
178 - LEAD BDE-429708-00.A0 429708-00	£3.80	£4.56
179 - DUST EXTRACTOR BDE-429614-00.A0 429614-00	£51.90	£62.28
800 - GREASE BDE-286445-00.A4 286445-00	£200.77	£240.92
801 - GREASE BDE-286436-00.A132 286436-00	£126.63	£151.96
846 - SERVICE TOOL BDE-233957-00.A0 233957-00	£113.07	£135.68
