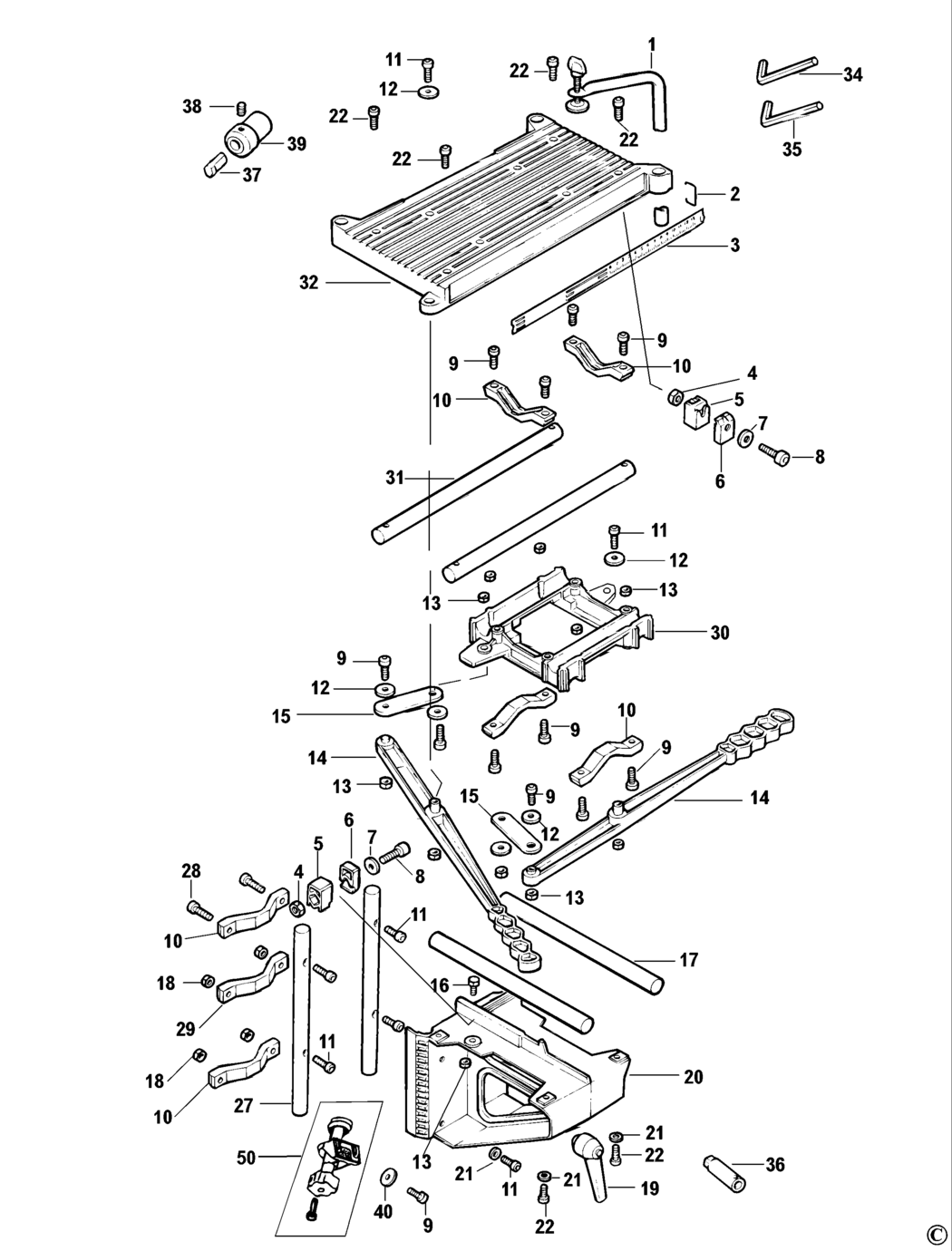

An exploded drawing and spare parts listing for the Dewalt DW600 Type 1 Mortising Attach
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A84859 000000-00 -
2 - SPRING BDE-860569-00.A0 860569-00 -
3 - NO LONGER AVAILABLE BDE-000000-00.A84862 000000-00 -
4 - NUT BDE-860083-04.A286 860083-04 £1.50 £1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A84860 000000-00 -
6 - NO LONGER AVAILABLE BDE-000000-00.A84861 000000-00 -
7 - WASHER M8 BDE-860073-03.A57 860073-03 £1.50 £1.80
8 - SCREW BDE-860093-00.A198 860093-00 £1.50 £1.80
9 - SCREW BDE-860093-09.A5 860093-09 £1.42 £1.70
10 - BRIDGE BDE-860576-01.A0 860576-01 -
11 - SCREW BDE-860093-08.A1 860093-08 £1.50 £1.80
12 - WASHER BDE-860075-01.A28 860075-01 £1.50 £1.80
13 - NUT M5 BDE-860092-03.A67 860092-03 £1.50 £1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A84863 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A84864 000000-00 -
16 - SCREW BDE-860085-06.A90 860085-06 £1.42 £1.70
17 - COLUMN BDE-863568-00.A0 863568-00 £18.42 £22.10
18 - NUT STOP M5 BDE-860092-04.A2 860092-04 £1.50 £1.80
19 - HANDLE BDE-861840-00.A33 861840-00 £7.85 £9.42
20 - NO LONGER AVAILABLE BDE-000000-00.A84865 000000-00 -
21 - WASHER BDE-860073-01.A292 860073-01 £1.50 £1.80
22 - SCREW BDE-860093-10.A1 860093-10 £1.50 £1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A84869 000000-00 -
28 - SCREW BDE-860085-10.A28 860085-10 £1.50 £1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A84866 000000-00 -
30 - NO LONGER AVAILABLE BDE-000000-00.A84867 000000-00 -
31 - NO LONGER AVAILABLE BDE-000000-00.A84868 000000-00 -
32 - TABLE WORK BDE-860570-01.A1 860570-01 £36.42 £43.70
33 - SCREW BDE-860085-11.A17 860085-11 £1.50 £1.80
34 - WRENCH 4 MM BDE-949882-01.A18 949882-01 £1.50 £1.80
35 - WRENCH 6 MM BDE-860098-04.A110 860098-04 £1.50 £1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A84870 000000-00 -
37 - NO LONGER AVAILABLE BDE-000000-00.A84871 000000-00 -
38 - SCREW BDE-860088-07.A3 860088-07 £1.50 £1.80
39 - NO LONGER AVAILABLE BDE-000000-00.A84872 000000-00 -
40 - WASHER BDE-761035-00.A61 761035-00 £1.42 £1.70
41 - NO LONGER AVAILABLE BDE-000000-00.A84873 000000-00 -
50 - SUPPORT SA BDE-862449-00.A10 862449-00 £96.55 £115.86
