Dewalt DW1150----A Type 1 Planer Thicknesser Spare Parts

Home Details Reviews Delivery

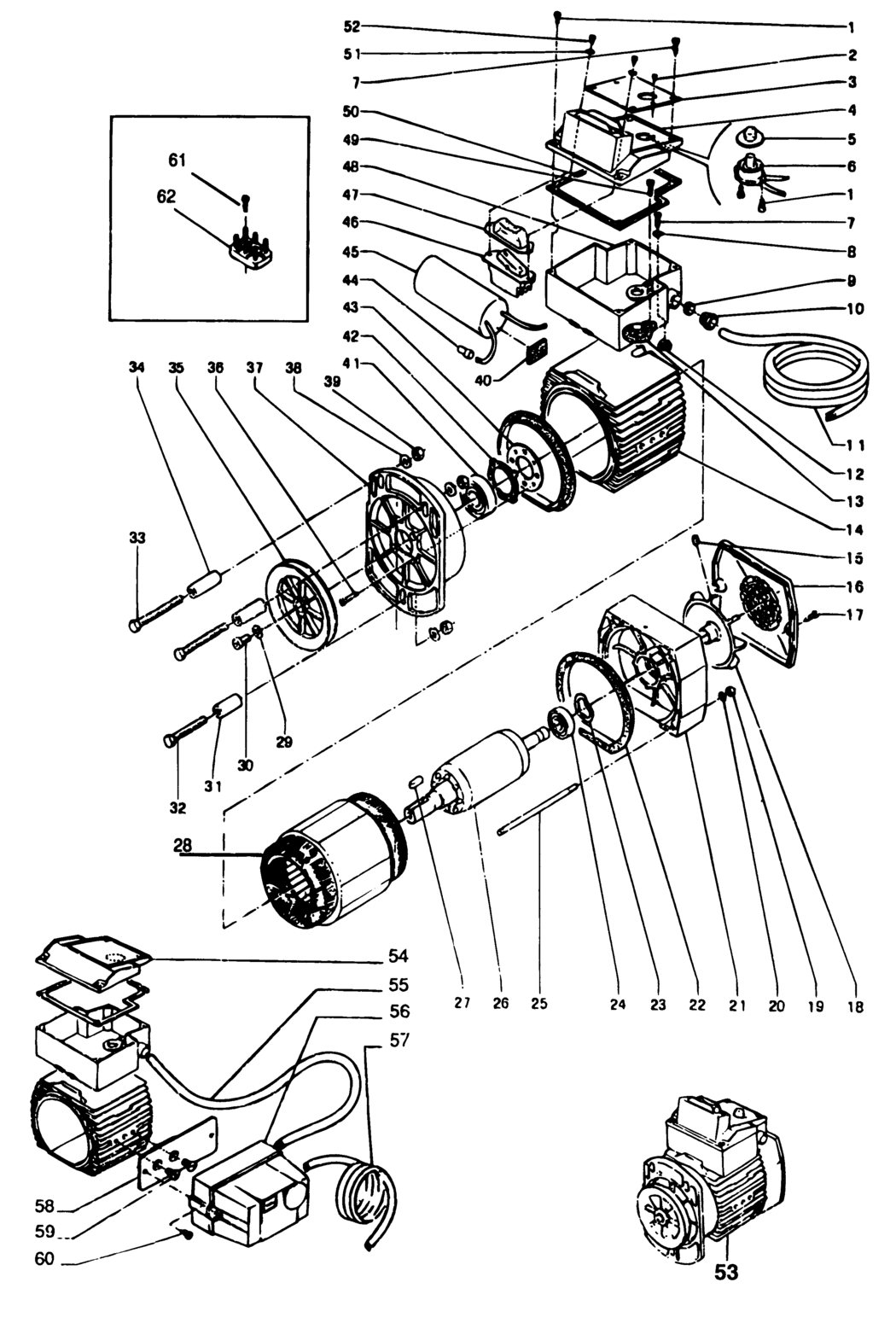

An exploded drawing and spare parts listing for the Dewalt DW1150----A Type 1 Planer Thicknesser

	Ex VAT	Inc VAT
1 - SCREW BDE-860094-05.A83 860094-05	£1.66	£1.99
2 - RIVET BDE-860060-01.A65 860060-01	£1.66	£1.99
3 - NO LONGER AVAILABLE BDE-000000-00.A84795 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A84796 000000-00	-
5 - CAP BDE-860133-00.A29 860133-00	£1.66	£1.99
6 - KLIXON BDE-860692-00.A7 860692-00	-
7 - SCREW BDE-860094-01.A7 860094-01	£1.66	£1.99
8 - WASHER SPRING BDE-944650-00.A71 944650-00	£1.66	£1.99
9 - NO LONGER AVAILABLE BDE-000000-00.A84797 000000-00	-
10 - GLAND BDE-949747-07.A19 949747-07	£1.66	£1.99
11 - NO LONGER AVAILABLE BDE-000000-00.A84798 000000-00	-
12 - GROMMET BDE-944653-00.A56 944653-00	£3.39	£4.07
13 - GROMMET BDE-944652-00.A10 944652-00	£4.83	£5.80
15 - SCREW BDE-860088-25.A42 860088-25	£1.66	£1.99
16 - END CAP BDE-860687-03.A27 860687-03	-
17 - SCREW BDE-860094-05.A36 860094-05	£1.66	£1.99
18 - FAN BDE-860688-00.A10 860688-00	£10.57	£12.68
19 - NUT BDE-860083-02.A114 860083-02	£1.66	£1.99
20 - WASHER BDE-860073-01.A155 860073-01	£1.66	£1.99
21 - HOUSING BDE-860701-00.A11 860701-00	-
22 - SEAL BDE-860718-00.A61 860718-00	£7.40	£8.88
23 - RING BDE-860080-02.A77 860080-02	£1.66	£1.99
24 - BEARING BDE-861721-01.A6 861721-01	£8.08	£9.70
25 - BOLT BDE-860446-01.A11 860446-01	£1.66	£1.99
26 - NO LONGER AVAILABLE BDE-000000-00.A18530 000000-00	-
27 - KEY BDE-860539-01.A10 860539-01	£1.88	£2.26
28 - NO LONGER AVAILABLE 220V BDE-000000-00.A18531 000000-00	-
28 - NO LONGER AVAILABLE 240V BDE-000000-00.A18532 000000-00	-
29 - WASHER BDE-860073-14.A46 860073-14	£1.66	£1.99
30 - SCREW BDE-860093-15.A18 860093-15	£1.66	£1.99
31 - NO LONGER AVAILABLE BDE-000000-00.A18533 000000-00	-
32 - SCREW BDE-942043-00.A50 942043-00	£1.66	£1.99
33 - SCREW BDE-949702-19.A10 949702-19	£1.66	£1.99
34 - NO LONGER AVAILABLE BDE-000000-00.A18534 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A18535 000000-00	-
36 - SCREW BDE-860538-00.A24 860538-00	£1.66	£1.99
37 - NO LONGER AVAILABLE BDE-000000-00.A18536 000000-00	-
38 - WASHER M8 BDE-860073-03.A318 860073-03	£1.66	£1.99
39 - NUT BDE-860083-04.A195 860083-04	£1.66	£1.99
40 - NO LONGER AVAILABLE BDE-000000-00.A18537 000000-00	-
41 - BEARING BDE-868768-10.A53 868768-10	£15.01	£18.01
42 - GASKET BDE-863878-00.A26 863878-00	£3.39	£4.07
43 - NO LONGER AVAILABLE BDE-000000-00.A18538 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A18539 000000-00	-
45 - CONDENSOR BDE-944455-00.A4 944455-00	-
46 - SWITCH 1 PH BDE-860706-00.A12 860706-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A18540 000000-00	-
48 - HOUSING BDE-860702-00.A9 860702-00	-
49 - SCREW.TEMP BDE-860094-00.A76 860094-00	£1.66	£1.99
50 - GASKET BDE-860708-00.A1 860708-00	-
51 - WASHER BDE-860073-00.A100 860073-00	£1.66	£1.99
52 - SCREW BDE-860089-25.A56 860089-25	£1.66	£1.99
53 - NO LONGER AVAILABLE BDE-000000-00.A18541 000000-00	-
54 - COVER TELESWITCH 1PH. BDE-944454-00.A38 944454-00	£10.57	£12.68
55 - NO LONGER AVAILABLE TELESWITCH 1PH. BDE-000000-00.A18542 000000-00	-
56 - NO LONGER AVAILABLE TELESWITCH 1PH. BDE-000000-00.A18543 000000-00	-
57 - NO LONGER AVAILABLE TELESWITCH 1PH. BDE-000000-00.A18544 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A18545 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A18546 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A18547 000000-00	-

Attribute Name	Value
Brand	Dewalt
