Fein RSG Ex18a (50Hz 400V) / 73600600400 Spare Parts

Fein RSG Ex18a ⡐Hz 400V) / 73600600400 Spare Parts

Home Details Reviews Delivery

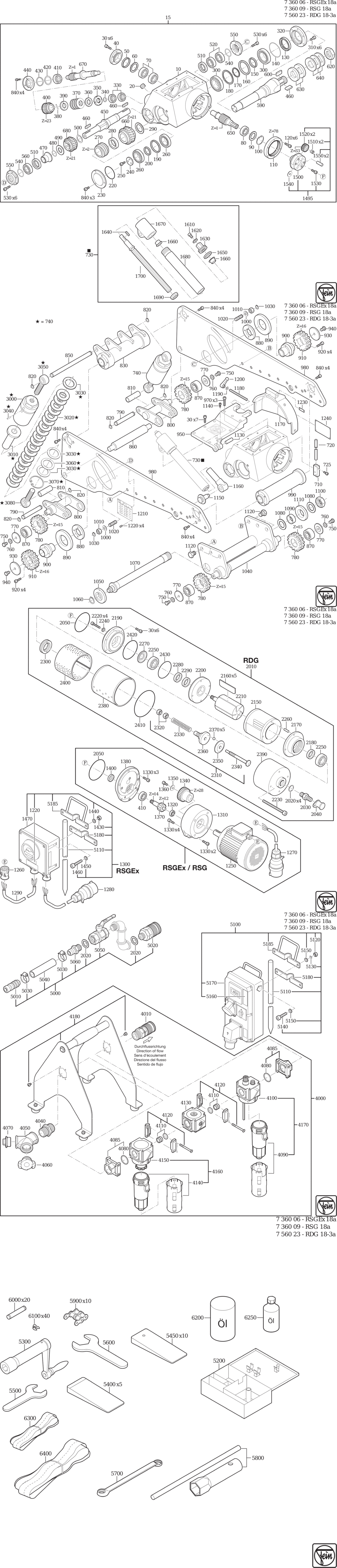

An exploded diagram and spare parts listing for the Fein RSG Ex18a (50Hz 400V) / 73600600400

	Ex VAT	Inc VAT
10 - HOUSING FEI-31207063009.A3 31207063009	£2619.39	£3143.27
15 - GEARBOX FEI-31207063024.A0 31207063024	-
20 - SCREW FEI-43043001009.A11 43043001009	-
30 - CYLINDER HEAD SCREW FEI-43035032065.A1 43035032065	-
40 - COVER FEI-32419057000.A6 32419057000	£114.20	£137.04
50 - SEALING RING FEI-40612015004.A7 40612015004	-
60 - DISC FEI-32624012038.A10 32624012038	-
60 - DISC FEI-32624012022.A1 32624012022	-
70 - INCLINED BALL BEARING FEI-41723002010.A5 41723002010	-
80 - GROOVED BALL BEARING FEI-41701016011.A6 41701016011	-
90 - DISC FEI-32408211003.A2 32408211003	£3.22	£3.86
100 - CIRCLIP FEI-42616022006.A1 42616022006	-
110 - GEAR-WHEEL FEI-33804011006.A9 33804011006	£181.90	£218.28
120 - CYLINDER HEAD SCREW FEI-43035009044.A2 43035009044	-
130 - SEALING RING FEI-40608000008.A4 40608000008	-
140 - SEALING RING FEI-40612018009.A4 40612018009	-
150 - RING FEI-32601165003.A0 32601165003	£56.69	£68.03
160 - RING FEI-32601167000.A0 32601167000	£60.98	£73.17
170 - DISC FEI-32624070024.A7 32624070024	£3.92	£4.70
180 - DISC FEI-32624080023.A6 32624080023	£7.07	£8.48
190 - RING FEI-32601168008.A11 32601168008	£52.56	£63.07
200 - RING FEI-32601166006.A11 32601166006	£58.37	£70.04
220 - SEALING RING FEI-40612021004.A6 40612021004	£3.88	£4.65
230 - COVER FEI-32419062006.A4 32419062006	£91.65	£109.98
240 - DISC FEI-32408452000.A6 32408452000	-
250 - CYLINDER HEAD SCREW FEI-43035031062.A10 43035031062	-
260 - TAPERED ROLLER BEARING FEI-41713006007.A1 41713006007	-
270 - WORM FEI-33805006000.A3 33805006000	-
280 - RING FEI-32601169002.A0 32601169002	£42.46	£50.95
290 - DISC FEI-32624071039.A7 32624071039	£5.89	£7.07
290 - DISC FEI-32624071023.A4 32624071023	£2.60	£3.12
300 - TAPERED ROLLER BEARING FEI-41713008009.A10 41713008009	-
310 - CYLINDER HEAD SCREW FEI-43035086069.A5 43035086069	-
320 - COVER FEI-32419060004.A5 32419060004	£194.68	£233.62
330 - INCLINED BALL BEARING FEI-41723001017.A6 41723001017	-
340 - DISC FEI-32624084027.A1 32624084027	£2.78	£3.34
340 - DISC FEI-32624084011.A10 32624084011	£3.72	£4.47
340 - DISC FEI-32624084033.A10 32624084033	£3.70	£4.44
350 - NUT FEI-42008021008.A6 42008021008	-
360 - RING FEI-32601170004.A11 32601170004	£39.83	£47.80
370 - CUP SPRING FEI-30905022007.A6 30905022007	-
380 - STRAIGHT PIN FEI-40201041003.A6 40201041003	-
390 - RING FEI-32601171003.A0 32601171003	£81.92	£98.30
400 - WORM FEI-33807013000.A4 33807013000	-
410 - GROOVED BALL BEARING FEI-41701222016.A2 41701222016	-
420 - DISC FEI-32624019027.A2 32624019027	£6.01	£7.21
420 - DISC FEI-32624019011.A10 32624019011	£6.01	£7.21
430 - SEALING RING FEI-40612022007.A7 40612022007	-
440 - COVER FEI-32419056006.A9 32419056006	£82.56	£99.07
450 - SHAFT FEI-33406099006.A6 33406099006	£938.77	£1126.52
460 - FEATHER KEY FEI-40221044000.A3 40221044000	£3.78	£4.54
470 - SLEEVE FEI-30503064001.A3 30503064001	£162.34	£194.81
480 - SEALING RING FEI-40612016007.A8 40612016007	-
490 - DISC FEI-32408191009.A8 32408191009	£14.52	£17.42
500 - DISC FEI-32624072032.A4 32624072032	£6.51	£7.81
500 - DISC FEI-32624072026.A8 32624072026	£1.60	£1.92
510 - SEALING RING FEI-40608026009.A2 40608026009	-
520 - INCLINED BALL BEARING FEI-41723003014.A4 41723003014	-
530 - CYLINDER HEAD SCREW FEI-43035005045.A5 43035005045	-
540 - SEALING RING FEI-40612019003.A5 40612019003	-
550 - COVER FEI-32419061003.A3 32419061003	£218.93	£262.72
560 - GROOVED BALL BEARING FEI-41701017015.A10 41701017015	-
590 - SHAFT FEI-33406098002.A1 33406098002	£1722.35	£2066.82
600 - FEATHER KEY FEI-40221050005.A4 40221050005	£6.28	£7.53
620 - HEX NUT FEI-42003009007.A4 42003009007	-
630 - DISC FEI-32408188004.A4 32408188004	£77.29	£92.75
640 - DISC FEI-32408187006.A7 32408187006	£93.68	£112.41
650 - WORM FEI-33806002006.A3 33806002006	-
660 - WORM FEI-33807008008.A3 33807008008	-
670 - WORM FEI-33806005002.A4 33806005002	£663.12	£795.75
680 - WORM FEI-33807011003.A7 33807011003	-
710 - PLATE FEI-32433027008.A10 32433027008	-
720 - MOUNTING SHAFT FEI-32715112003.A10 32715112003	-
725 - CYLINDER HEAD SCREW FEI-43033083066.A17 43033083066	£1.60	£1.92
730 - DELIVERY FIXTURE FEI-30520068017.A9 30520068017	£764.38	£917.26
740 - CLAMPING UNIT FEI-32715069041.A10 32715069041	£387.69	£465.23
750 - HEXAGON SOCKET SCREW FEI-43048054109.A10 43048054109	-
760 - DISC FEI-42401017104.A8 42401017104	-
770 - DISC FEI-32415059008.A4 32415059008	-
780 - HOOK AND LOOP WHEEL FEI-32715115009.A4 32715115009	£83.08	£99.70
790 - BOLT FEI-30217317004.A10 30217317004	-
800 - HINGE FEI-33406279012.A0 33406279012	-
810 - SLEEVE FEI-30501340005.A4 30501340005	-
820 - CIRCLIP FEI-42616023000.A10 42616023000	-
830 - CROSSBAR FEI-32715118013.A6 32715118013	-
840 - CYLINDER HEAD SCREW FEI-43033083066.A16 43033083066	£1.60	£1.92
850 - BOLT FEI-30217213009.A10 30217213009	£30.08	£36.09
860 - BOLT FEI-30217316000.A1 30217316000	-
870 - INCLINED BALL BEARING FEI-41711021008.A4 41711021008	-
880 - DISC FEI-32408378007.A4 32408378007	-
890 - DISC FEI-32715117006.A1 32715117006	£136.72	£164.06
900 - SLEEVE FEI-32715122002.A5 32715122002	-
910 - HOOK AND LOOP WHEEL FEI-32715116002.A7 32715116002	£103.88	£124.66
920 - CYLINDER HEAD SCREW FEI-43035097059.A11 43035097059	£1.60	£1.92
930 - DISC FEI-32408374008.A10 32408374008	-
940 - HEXAGON SOCKET SCREW FEI-43001041105.A4 43001041105	-
950 - COVER FEI-32429120000.A3 32429120000	£535.71	£642.85
970 - CYLINDER HEAD SCREW FEI-43035037068.A9 43035037068	-
980 - PAIR OF SIDE PLATES FEI-32715113016.A1 32715113016	-
990 - CROSSBAR FEI-30240361010.A10 30240361010	-
1000 - DISC FEI-42401020139.A4 42401020139	£1.60	£1.92
1010 - HEX NUT FEI-42001034120.A10 42001034120	-
1020 - THREAD BOLT FEI-33021098000.A4 33021098000	£40.53	£48.64
1030 - CIRCLIP FEI-42616013001.A14 42616013001	£1.60	£1.92
1040 - SHAFT FEI-33406283010.A2 33406283010	-
1050 - DISC FEI-32715120000.A5 32715120000	£170.66	£204.79
1060 - CIRCLIP FEI-42616044006.A5 42616044006	-
1070 - SHAFT FEI-33406336000.A7 33406336000	-
1080 - DISC FEI-32408376005.A7 32408376005	£50.00	£60.00
1090 - SLEEVE FEI-30501339003.A7 30501339003	£57.22	£68.67
1100 - HEX NUT FEI-30509052000.A1 30509052000	-
1110 - DISC FEI-32715121009.A6 32715121009	£157.99	£189.59
1120 - SCREW FEI-43012051122.A11 43012051122	-
1130 - BOLT FEI-30217314003.A10 30217314003	£16.47	£19.76
1140 - CYLINDER HEAD SCREW FEI-43033084045.A3 43033084045	-
1150 - THREAD BOLT FEI-33021097002.A2 33021097002	£102.96	£123.55
1160 - HINGE FEI-30509019010.A7 30509019010	£138.71	£166.45
1170 - SAFETY HOOD FEI-31810234000.A4 31810234000	-
1180 - STUD BOLT FEI-43007059080.A6 43007059080	£5.21	£6.25
1190 - DISC FEI-42401019085.A36 42401019085	£1.60	£1.92
1200 - LEVER FEI-32170002005.A4 32170002005	£52.40	£62.88
1210 - INFORMATION SIGN FEI-32215103069.A4 32215103069	-
1220 - RIVET FEI-40204001009.A4 40204001009	-
1230 - INFORMATION SIGN FEI-32215026007.A28 32215026007	£1.60	£1.92
1240 - INFORMATION SIGN FEI-32215104067.A1 32215104067	-
1250 - MOTOR FEI-54399002153.A7 54399002153	-
1260 - CABLE CLAMPING PIECE FEI-30723053004.A4 30723053004	-
1280 - CABLE WITH PLUG FEI-30707555010.A1 30707555010	-
1290 - CABLE FEI-30706354010.A1 30706354010	-
1300 - SWITCH FEI-30732024017.A1 30732024017	£2078.02	£2493.62
1310 - FLANGE FEI-32436060002.A4 32436060002	-
1320 - GROOVED BALL BEARING FEI-41701010010.A15 41701010010	£8.58	£10.30
1330 - CYLINDER HEAD SCREW FEI-43035048087.A7 43035048087	-
1340 - GEAR-WHEEL FEI-33669025002.A3 33669025002	-
1350 - DISC FEI-42402010082.A3 42402010082	-
1360 - CYLINDER HEAD SCREW FEI-43033077088.A2 43033077088	-
1370 - SHAFT TOOTHED FEI-33811066000.A1 33811066000	-
1380 - FLANGE FEI-32436061001.A3 32436061001	-
1400 - SEALING RING FEI-40608062006.A4 40608062006	-
1430 - HEX NUT FEI-42001039065.A0 42001039065	-
1440 - LOCK WASHER M6 FEI-42439005068.A0 42439005068	£1.60	£1.92
1450 - DISC FEI-42401018069.A30 42401018069	£1.60	£1.92
1460 - CYLINDER HEAD SCREW FEI-43033074065.A3 43033074065	-
1470 - SWITCH 2-POL. FEI-30732024008.A2 30732024008	-
1495 - PLANETARY GEAR FEI-32715055021.A10 32715055021	£784.80	£941.76
1500 - PLANETARY CARRIER FEI-32715055015.A1 32715055015	£628.10	£753.72
1510 - NEEDLE CAGE FEI-41715016004.A4 41715016004	-
1520 - GEAR-WHEEL FEI-33613071004.A1 33613071004	£66.63	£79.96
1530 - CYLINDER HEAD SCREW FEI-43033064066.A30 43033064066	£1.60	£1.92
1540 - DISC FEI-32402002000.A10 32402002000	£14.39	£17.27
1550 - PIN FEI-40242017000.A4 40242017000	-
1610 - CYLINDER HEAD SCREW FEI-43035029061.A13 43035029061	£1.60	£1.92
1620 - DISC FEI-32402001007.A1 32402001007	£31.64	£37.97
1630 - CLUTCH PART FEI-30101026001.A1 30101026001	£94.46	£113.35
1640 - FEATHER KEY FEI-40221018002.A0 40221018002	-
1650 - SEALING RING FEI-40612020005.A6 40612020005	-
1660 - BUSH FEI-31602087007.A11 31602087007	£8.60	£10.32
1670 - BEARING PIECE FEI-32715114005.A6 32715114005	£244.44	£293.33
1680 - PIPE FEI-30520068008.A1 30520068008	-
1690 - RING FEI-30606008008.A7 30606008008	£24.01	£28.81
1700 - THREAD BOLT FEI-33406146004.A11 33406146004	£233.70	£280.44
2050 - SEALING RING FEI-40612017001.A5 40612017001	£8.16	£9.79
3000 - CLAMPING SLEEVE FEI-32715069013.A1 32715069013	£150.26	£180.31
3010 - BOLT FEI-32715071005.A1 32715071005	£96.34	£115.61
3020 - CUP SPRING FEI-30905023001.A10 30905023001	£11.03	£13.24
3030 - RING FEI-32601172006.A2 32601172006	£19.99	£23.99
3040 - PIN FEI-40247005009.A9 40247005009	-
3050 - RING BOLT FEI-43040004165.A1 43040004165	-
3060 - DISC FEI-32624078049.A9 32624078049	£7.35	£8.82
3070 - CIRCLIP FEI-42616048005.A8 42616048005	-
3080 - RING BOLT FEI-43040005004.A10 43040005004	-
5100 - SWITCHING BOX FEI-30702041014.A5 30702041014	£1950.18	£2340.22
5110 - EXTENSION FEI-32715025009.A6 32715025009	£88.06	£105.67
5120 - HEX NUT FEI-42001007053.A10 42001007053	£1.60	£1.92
5130 - LOCK WASHER M5 FEI-42439004051.A6 42439004051	-
5140 - CYLINDER HEAD SCREW FEI-43002058056.A2 43002058056	£1.60	£1.92
5150 - DISC FEI-42402006059.A6 42402006059	-
5160 - INFORMATION SIGN FEI-32217376065.A5 32217376065	-
5170 - SWITCH FEI-30702041005.A2 30702041005	-
5180 - CLAMP FEI-30230054022.A6 30230054022	£136.28	£163.54
5185 - HANDLE FEI-30230054038.A1 30230054038	-
5200 - TOOL CASE FEI-33901031001.A2 33901031001	-
5300 - N.A. FEI-32122007017.A1 32122007017	-
5400 - WEDGE FEI-63305013002.A2 63305013002	-
5500 - JAW SPANNER SW46 FEI-62901016002.A7 62901016002	£31.91	£38.29
5600 - SINGLE HEAD WRENCH FEI-62903010006.A10 62903010006	-
5700 - RING SPANNER 17X19 FEI-62911010000.A9 62911010000	-
5800 - PIPE SOCKET WRENCH FEI-62906014000.A1 62906014000	-
5900 - ROLLER CHAIN FEI-30231029002.A8 30231029002	-
6000 - BOLT FEI-30217216004.A1 30217216004	£3.50	£4.20
6100 - CIRCLIP FEI-42634020005.A9 42634020005	£1.60	£1.92
6200 - LUBRICANT CAN 1.800 KG FEI-32132009013.A9 32132009013	-
6300 - WRIST STRAP FEI-32174009001.A10 32174009001	-
6400 - WRIST STRAP FEI-32174010003.A1 32174010003	-

Attribute Name	Value
Brand	Fein

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Fein RSG Ex18a (50Hz 400V) / 73600600400 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Fein RSG Ex18a (50Hz 400V) / 73600600400 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Fein RSG Ex18a (50Hz 400V) / 73600600400 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
