Fein RSG 1500 A (50Hz 400V) / 73601661000 Spare Parts

Fein RSG 1500 A ⡐Hz 400V) / 73601661000 Spare Parts

Home Details Reviews Delivery

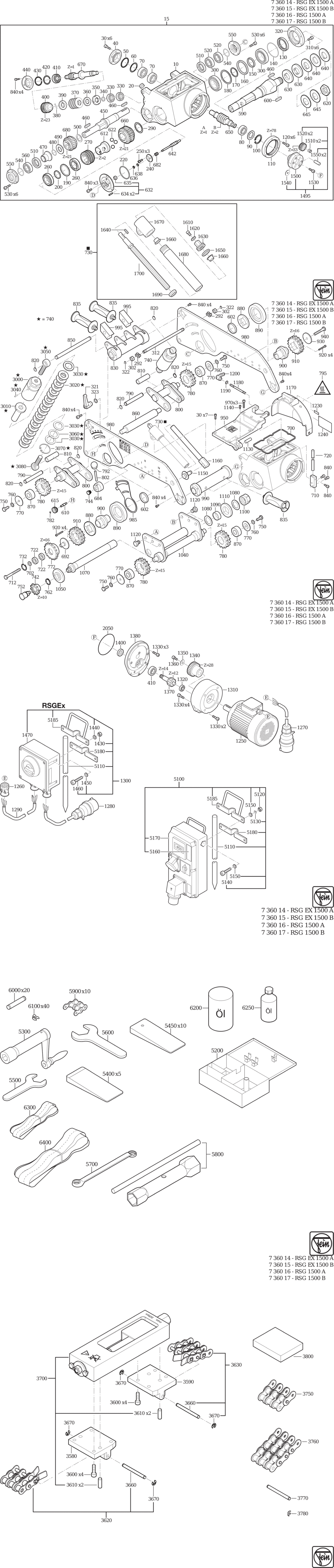

An exploded diagram and spare parts listing for the Fein RSG 1500 A (50Hz 400V) / 73601661000

	Ex VAT	Inc VAT
10 - HOUSING FEI-31207332000.A1 31207332000	-
15 - GEARBOX FEI-31207332010.A2 31207332010	-
20 - SCREW FEI-43043001009.A4 43043001009	-
30 - CYLINDER HEAD SCREW FEI-43035032065.A13 43035032065	-
40 - COVER FEI-32419057000.A0 32419057000	£114.20	£137.04
50 - SEALING RING FEI-40612015004.A4 40612015004	-
60 - DISC FEI-32624012038.A2 32624012038	-
60 - DISC FEI-32624012022.A9 32624012022	-
70 - INCLINED BALL BEARING FEI-41723002010.A9 41723002010	-
80 - GROOVED BALL BEARING FEI-41701016011.A0 41701016011	-
90 - DISC FEI-32408211003.A11 32408211003	£3.22	£3.86
100 - CIRCLIP FEI-42616022006.A16 42616022006	-
110 - GEAR-WHEEL FEI-33804011006.A0 33804011006	£181.90	£218.28
120 - CYLINDER HEAD SCREW FEI-43035009044.A15 43035009044	-
130 - SEALING RING FEI-40608000008.A9 40608000008	-
140 - SEALING RING FEI-40612018009.A8 40612018009	-
150 - RING FEI-32601165003.A11 32601165003	£56.69	£68.03
160 - RING FEI-32601167000.A11 32601167000	£60.98	£73.17
170 - DISC FEI-32624070024.A2 32624070024	£3.92	£4.70
180 - DISC FEI-32624080023.A2 32624080023	£7.07	£8.48
190 - RING FEI-32601168008.A0 32601168008	£52.56	£63.07
200 - RING FEI-32601166006.A0 32601166006	£58.37	£70.04
220 - SEALING RING FEI-40612021004.A4 40612021004	£3.88	£4.65
240 - DISC FEI-32408452000.A2 32408452000	-
250 - CYLINDER HEAD SCREW FEI-43035031062.A2 43035031062	-
260 - TAPERED ROLLER BEARING FEI-41713006007.A9 41713006007	-
270 - WORM FEI-33805007000.A3 33805007000	-
290 - DISC FEI-32624071039.A2 32624071039	£5.89	£7.07
290 - DISC FEI-32624071023.A9 32624071023	£2.60	£3.12
292 - CIRCLIP FEI-30229430000.A5 30229430000	-
300 - TAPERED ROLLER BEARING FEI-41713008009.A2 41713008009	-
302 - HEX NUT FEI-42001034120.A11 42001034120	-
310 - CYLINDER HEAD SCREW FEI-43035086069.A8 43035086069	-
312 - THREAD BOLT FEI-33024078000.A3 33024078000	-
320 - COVER FEI-32419060004.A10 32419060004	£194.68	£233.62
321 - LEVER FEI-32170026000.A3 32170026000	-
322 - CIRCLIP FEI-42616013001.A13 42616013001	£1.60	£1.92
322 - DISC FEI-32408453000.A4 32408453000	-
330 - INCLINED BALL BEARING FEI-41723001017.A2 41723001017	-
340 - DISC FEI-32624084027.A7 32624084027	£2.78	£3.34
340 - DISC FEI-32624084011.A4 32624084011	£3.72	£4.47
340 - DISC FEI-32624084033.A4 32624084033	£3.70	£4.44
350 - NUT FEI-42008021008.A11 42008021008	-
360 - RING FEI-32601170004.A2 32601170004	£39.83	£47.80
370 - CUP SPRING FEI-30905022007.A0 30905022007	-
380 - STRAIGHT PIN FEI-40201041003.A0 40201041003	-
390 - RING FEI-32601171003.A9 32601171003	£81.92	£98.30
400 - WORM FEI-33807013000.A2 33807013000	-
410 - GROOVED BALL BEARING FEI-41701222016.A1 41701222016	-
420 - DISC FEI-32624019027.A3 32624019027	£6.01	£7.21
420 - DISC FEI-32624019011.A8 32624019011	£6.01	£7.21
430 - SEALING RING FEI-40612022007.A6 40612022007	-
440 - COVER FEI-32419056006.A11 32419056006	£82.56	£99.07
450 - SHAFT FEI-33406099006.A8 33406099006	£938.77	£1126.52
460 - FEATHER KEY FEI-40221044000.A5 40221044000	£3.78	£4.54
470 - SLEEVE FEI-30503064001.A2 30503064001	£162.34	£194.81
480 - SEALING RING FEI-40612016007.A6 40612016007	-
490 - DISC FEI-32408191009.A6 32408191009	£14.52	£17.42
500 - DISC FEI-32624072032.A2 32624072032	£6.51	£7.81
500 - DISC FEI-32624072026.A9 32624072026	£1.60	£1.92
510 - SEALING RING FEI-40608026009.A3 40608026009	-
520 - INCLINED BALL BEARING FEI-41723003014.A2 41723003014	-
530 - CYLINDER HEAD SCREW FEI-43035005045.A4 43035005045	-
540 - SEALING RING FEI-40612019003.A3 40612019003	-
550 - COVER FEI-32419061003.A1 32419061003	£218.93	£262.72
560 - GROOVED BALL BEARING FEI-41701017015.A11 41701017015	-
590 - SHAFT FEI-33406335000.A3 33406335000	-
600 - FEATHER KEY FEI-40221050005.A2 40221050005	£6.28	£7.53
602 - BUSH FEI-30501387000.A3 30501387000	-
610 - BOLT FEI-30216163000.A5 30216163000	-
612 - SLEEVE FEI-30501388000.A2 30501388000	-
615 - NUT FEI-42010000000.A0 42010000000	-
620 - HEX NUT FEI-42003009007.A3 42003009007	-
622 - BALL FEI-41708000000.A3 41708000000	-
630 - DISC FEI-32408188004.A5 32408188004	£77.29	£92.75
632 - FLANGE FEI-32419156010.A5 32419156010	-
634 - ROLLER FEI-41709005007.A38 41709005007	£1.60	£1.92
635 - RING FEI-40608000006.A0 40608000006	-
636 - HEX NUT FEI-42002007004.A8 42002007004	£2.66	£3.19
638 - DISC FEI-42401018069.A31 42401018069	£1.60	£1.92
640 - DISC FEI-32408187006.A6 32408187006	£93.68	£112.41
642 - CONTROL ROD FEI-30216165000.A5 30216165000	-
645 - DISC FEI-32408454000.A0 32408454000	-
650 - WORM FEI-33806002006.A2 33806002006	-
660 - WORM FEI-33807008008.A2 33807008008	-
670 - WORM FEI-33806005002.A5 33806005002	£663.12	£795.75
680 - WORM FEI-33807011003.A8 33807011003	-
682 - SPRING FEI-30901390000.A4 30901390000	-
684 - CONNECTING PIECE FEI-32119151010.A5 32119151010	-
692 - SLEEVE FEI-30501389000.A2 30501389000	-
700 - SEAL FEI-30610057000.A5 30610057000	-
702 - DISC FEI-32408459000.A5 32408459000	-
710 - PLATE FEI-32433027008.A9 32433027008	-
712 - HEXAGON SOCKET SCREW FEI-43001000001.A2 43001000001	-
720 - MOUNTING SHAFT FEI-32715112003.A9 32715112003	-
722 - GROOVED BALL BEARING FEI-41701012056.A1 41701012056	-
730 - DELIVERY FIXTURE FEI-30520068017.A10 30520068017	£764.38	£917.26
732 - CIRCLIP FEI-42616012007.A7 42616012007	-
740 - CLAMPING UNIT FEI-32715069041.A9 32715069041	£387.69	£465.23
742 - GEAR-WHEEL Z=10 FEI-32103046000.A3 32103046000	-
744 - PLUG FEI-31420128000.A3 31420128000	-
750 - HEXAGON SOCKET SCREW FEI-43048054109.A9 43048054109	-
752 - ADAPTER FEI-30216167000.A5 30216167000	-
760 - DISC FEI-42401017104.A7 42401017104	-
762 - CIRCLIP FEI-42616044006.A4 42616044006	-
770 - DISC FEI-32415059008.A3 32415059008	-
772 - HOOK AND LOOP WHEEL Z=16 FEI-32103045000.A2 32103045000	-
780 - HOOK AND LOOP WHEEL FEI-32715115009.A5 32715115009	£83.08	£99.70
782 - CIRCLIP FEI-42616046003.A18 42616046003	£1.60	£1.92
790 - BOLT FEI-30217317004.A9 30217317004	-
792 - HANDLE FEI-32119151000.A0 32119151000	-
795 - INFORMATION SIGN FEI-32217465060.A2 32217465060	-
800 - HINGE FEI-33406279012.A1 33406279012	-
802 - THREAD BOLT FEI-30216164000.A0 30216164000	-
810 - SLEEVE FEI-30501340005.A3 30501340005	-
820 - CIRCLIP FEI-42616023000.A9 42616023000	-
830 - CROSSBAR FEI-32715118013.A7 32715118013	-
840 - CYLINDER HEAD SCREW FEI-43033083066.A15 43033083066	£1.60	£1.92
850 - BOLT FEI-30217213009.A9 30217213009	£30.08	£36.09
860 - BOLT FEI-30217316000.A2 30217316000	-
870 - INCLINED BALL BEARING FEI-41711021008.A3 41711021008	-
880 - DISC FEI-32408378007.A3 32408378007	-
890 - DISC FEI-32103044000.A3 32103044000	-
900 - SLEEVE FEI-32715122002.A4 32715122002	-
910 - HOOK AND LOOP WHEEL FEI-32715116002.A6 32715116002	£103.88	£124.66
920 - CYLINDER HEAD SCREW FEI-43035097059.A10 43035097059	£1.60	£1.92
930 - DISC FEI-32408374008.A9 32408374008	-
940 - HEXAGON SOCKET SCREW FEI-43001041105.A3 43001041105	-
950 - COVER FEI-32429120000.A4 32429120000	£535.71	£642.85
970 - CYLINDER HEAD SCREW FEI-43035037068.A10 43035037068	-
980 - PAIR OF SIDE PLATES FEI-32422341010.A5 32422341010	-
985 - SCALE FEI-30229431000.A0 30229431000	-
990 - CROSSBAR FEI-30240361010.A9 30240361010	-
995 - FLANGE FEI-30240360000.A0 30240360000	-
1040 - SHAFT FEI-33406283010.A1 33406283010	-
1050 - DISC FEI-32715120000.A4 32715120000	£170.66	£204.79
1070 - SHAFT FEI-33406336000.A6 33406336000	-
1080 - DISC FEI-32408376005.A8 32408376005	£50.00	£60.00
1090 - SLEEVE FEI-30501339003.A8 30501339003	£57.22	£68.67
1100 - HEX NUT FEI-30509052000.A0 30509052000	-
1110 - DISC FEI-32715121009.A7 32715121009	£157.99	£189.59
1120 - SCREW FEI-43012051122.A10 43012051122	-
1130 - BOLT FEI-30217314003.A9 30217314003	£16.47	£19.76
1140 - CYLINDER HEAD SCREW FEI-43033084045.A4 43033084045	-
1150 - THREAD BOLT FEI-33021097002.A1 33021097002	£102.96	£123.55
1160 - HINGE FEI-30509019010.A8 30509019010	£138.71	£166.45
1170 - SAFETY HOOD FEI-31810234000.A5 31810234000	-
1180 - STUD BOLT FEI-43007059080.A7 43007059080	£5.21	£6.25
1190 - DISC FEI-42401019085.A35 42401019085	£1.60	£1.92
1200 - LEVER FEI-32170002005.A3 32170002005	£52.40	£62.88
1230 - INFORMATION SIGN FEI-32215026007.A27 32215026007	£1.60	£1.92
1240 - INFORMATION SIGN FEI-32215104067.A2 32215104067	-
1250 - MOTOR FEI-54399002153.A6 54399002153	-
1260 - CABLE CLAMPING PIECE FEI-30723053004.A3 30723053004	-
1270 - CABLE WITH PLUG FEI-30707371017.A0 30707371017	-
1310 - FLANGE FEI-32436060002.A5 32436060002	-
1320 - GROOVED BALL BEARING FEI-41701010010.A14 41701010010	£8.58	£10.30
1330 - CYLINDER HEAD SCREW FEI-43035048087.A6 43035048087	-
1340 - GEAR-WHEEL FEI-33669025002.A2 33669025002	-
1350 - DISC FEI-42402010082.A4 42402010082	-
1360 - CYLINDER HEAD SCREW FEI-43033077088.A3 43033077088	-
1370 - SHAFT TOOTHED FEI-33811066000.A2 33811066000	-
1380 - FLANGE FEI-32436061001.A2 32436061001	-
1400 - SEALING RING FEI-40608062006.A3 40608062006	-
1495 - PLANETARY GEAR FEI-32715055021.A9 32715055021	£784.80	£941.76
1500 - PLANETARY CARRIER FEI-32715055015.A2 32715055015	£628.10	£753.72
1510 - NEEDLE CAGE FEI-41715016004.A5 41715016004	-
1520 - GEAR-WHEEL FEI-33613071004.A2 33613071004	£66.63	£79.96
1530 - CYLINDER HEAD SCREW FEI-43033064066.A31 43033064066	£1.60	£1.92
1540 - DISC FEI-32402002000.A11 32402002000	£14.39	£17.27
1550 - PIN FEI-40242017000.A5 40242017000	-
1610 - CYLINDER HEAD SCREW FEI-43035029061.A12 43035029061	£1.60	£1.92
1620 - DISC FEI-32402001007.A0 32402001007	£31.64	£37.97
1630 - CLUTCH PART FEI-30101026001.A0 30101026001	£94.46	£113.35
1640 - FEATHER KEY FEI-40221018002.A1 40221018002	-
1650 - SEALING RING FEI-40612020005.A7 40612020005	-
1660 - BUSH FEI-31602087007.A10 31602087007	£8.60	£10.32
1670 - BEARING PIECE FEI-32715114005.A7 32715114005	£244.44	£293.33
1680 - PIPE FEI-30520068008.A2 30520068008	-
1690 - RING FEI-30606008008.A8 30606008008	£24.01	£28.81
1700 - THREAD BOLT FEI-33406146004.A10 33406146004	£233.70	£280.44
2050 - SEALING RING FEI-40612017001.A4 40612017001	£8.16	£9.79
3000 - CLAMPING SLEEVE FEI-32715069013.A2 32715069013	£150.26	£180.31
3010 - BOLT FEI-32715071005.A2 32715071005	£96.34	£115.61
3020 - CUP SPRING FEI-30905023001.A9 30905023001	£11.03	£13.24
3030 - RING FEI-32601172006.A1 32601172006	£19.99	£23.99
3040 - PIN FEI-40247005009.A8 40247005009	-
3050 - RING BOLT FEI-43040004165.A2 43040004165	-
3060 - DISC FEI-32624078049.A8 32624078049	£7.35	£8.82
3070 - CIRCLIP FEI-42616048005.A9 42616048005	-
3080 - RING BOLT FEI-43040005004.A9 43040005004	-
3580 - HOLDER FEI-30240353000.A0 30240353000	-
3590 - HOLDER FEI-30240354000.A5 30240354000	-
3600 - CYLINDER HEAD SCREW FEI-43033062051.A9 43033062051	£1.60	£1.92
3610 - PIN FEI-40242046003.A7 40242046003	-
3620 - GUIDE FEI-30231033010.A4 30231033010	-
3630 - GUIDE FEI-30231032010.A1 30231032010	-
3660 - BOLT FEI-30216166000.A0 30216166000	-
3670 - CIRCLIP FEI-42634009004.A5 42634009004	-
3700 - CHAIN TIGHTENER FEI-31207333020.A4 31207333020	-
3750 - CHAIN PIECE FEI-30231035010.A1 30231035010	-
3760 - CHAIN PIECE FEI-30231036010.A3 30231036010	-
3770 - BOLT FEI-30216166000.A1 30216166000	-
3780 - CIRCLIP FEI-42634003003.A0 42634003003	£1.60	£1.92
3800 - SPACER FEI-32422346000.A0 32422346000	-
5100 - SWITCHING BOX FEI-30702041014.A6 30702041014	£1950.18	£2340.22
5110 - EXTENSION FEI-32715025009.A5 32715025009	£88.06	£105.67
5120 - HEX NUT FEI-42001007053.A11 42001007053	£1.60	£1.92
5130 - LOCK WASHER M5 FEI-42439004051.A7 42439004051	-
5140 - CYLINDER HEAD SCREW FEI-43002058056.A3 43002058056	£1.60	£1.92
5150 - DISC FEI-42402006059.A7 42402006059	-
5160 - INFORMATION SIGN FEI-32217376065.A6 32217376065	-
5170 - SWITCH FEI-30702041005.A1 30702041005	-
5180 - CLAMP FEI-30230054022.A5 30230054022	£136.28	£163.54
5185 - HANDLE FEI-30230054038.A2 30230054038	-
5200 - TOOL CASE FEI-33901031001.A3 33901031001	-
5300 - N.A. FEI-32122007017.A2 32122007017	-
5450 - SPLITTER WEDGE FEI-63305006008.A1 63305006008	£17.89	£21.47
5500 - JAW SPANNER SW46 FEI-62901016002.A8 62901016002	£31.91	£38.29
5600 - SINGLE HEAD WRENCH FEI-62903010006.A9 62903010006	-
5700 - RING SPANNER 17X19 FEI-62911010000.A8 62911010000	-
5800 - PIPE SOCKET WRENCH FEI-62906014000.A2 62906014000	-
5900 - ROLLER CHAIN FEI-30231029002.A7 30231029002	-
6000 - BOLT FEI-30217216004.A2 30217216004	£3.50	£4.20
6100 - CIRCLIP FEI-42634020005.A8 42634020005	£1.60	£1.92
6200 - LUBRICANT CAN 1.800 KG FEI-32132009013.A8 32132009013	-
6300 - WRIST STRAP FEI-32174009001.A9 32174009001	-
6400 - WRIST STRAP FEI-32174010003.A2 32174010003	-

Attribute Name	Value
Brand	Fein

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Fein RSG 1500 A (50Hz 400V) / 73601661000 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Fein RSG 1500 A (50Hz 400V) / 73601661000 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Fein RSG 1500 A (50Hz 400V) / 73601661000 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
