Stanley SXFPW30E Type 1 Pressure Washer Spare Parts

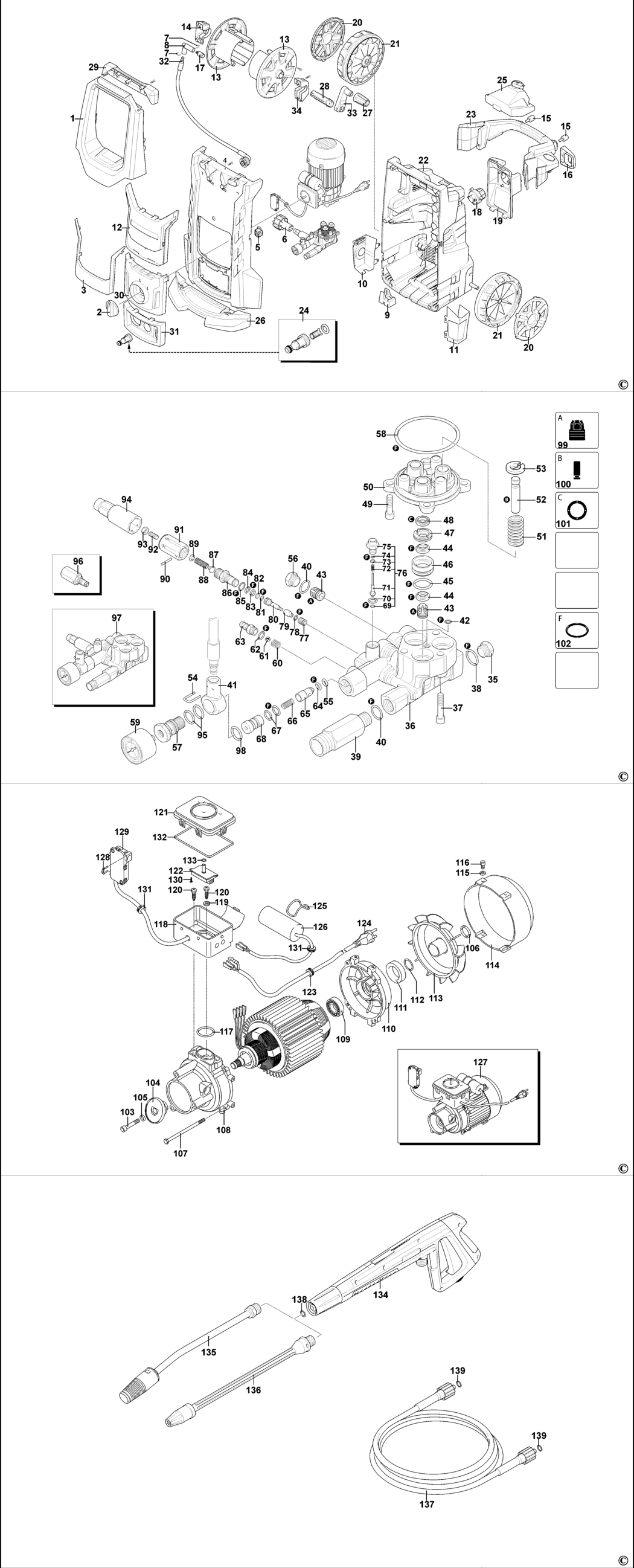

An exploded drawing and spare parts listing for the Stanley SXFPW30E Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - HANDLE UPPER BDE-4381020.A1 4381020	£24.39	£29.27
2 - KNOB BDE-4381120.A6 4381120	£3.30	£3.96
3 - GUARD BDE-4381950.A0 4381950	£7.18	£8.62
4 - COVER BDE-4380970.A6 4380970	£34.00	£40.80
5 - GLAND BDE-3080580.A16 3080580	£1.66	£1.99
6 - KNOB BDE-1004712-40.A9 1004712-40	£7.18	£8.62
7 - FORK BDE-3081650.A9 3081650	£2.78	£3.34
8 - COUPLING BDE-4101250.A1 4101250	£19.90	£23.88
9 - SUPPORT BDE-4381150.A1 4381150	£2.78	£3.34
10 - CARRIER BDE-4381070.A6 4381070	£7.18	£8.62
11 - CARRIER BDE-4381060.A1 4381060	£7.18	£8.62
12 - GUARD BDE-4381940.A5 4381940	£12.17	£14.60
13 - PLATE BDE-4381840.A2 4381840	£30.08	£36.10
14 - BRACKET BDE-4381170.A3 4381170	£2.26	£2.71
15 - FOOT BDE-1004712-16.A15 1004712-16	£7.18	£8.62
16 - HANDLE BDE-4381050.A8 4381050	£3.30	£3.96
17 - PLUG BDE-4101030.A1 4101030	£19.90	£23.88
18 - REGULATOR BDE-1004512-37.A9 1004512-37	£9.41	£11.29
19 - COVER BDE-4381040.A1 4381040	£16.03	£19.24
20 - GUARD BDE-4381110.A1 4381110	£9.41	£11.29
21 - WHEEL BDE-4381100.A8 4381100	£34.00	£40.80
22 - BASE SA BDE-4380960.A4 4380960	£47.08	£56.49
23 - CARRIER BDE-4380230.A16 4380230	£12.17	£14.60
24 - COUPLING SA BDE-1004712-93.A13 1004712-93	£9.16	£10.99
25 - TANK BDE-4381080.A1 4381080	£19.90	£23.88
26 - FOOT BDE-4381230.A6 4381230	£17.48	£20.97
27 - KNOB BDE-4381180.A6 4381180	£2.78	£3.34
28 - PIN BDE-4381200.A6 4381200	£7.18	£8.62
29 - HANDLE BDE-4381030.A6 4381030	£7.85	£9.42
30 - GUARD BDE-4381960.A5 4381960	£14.57	£17.48
31 - GUARD BDE-4381680.A1 4381680	£7.85	£9.42
32 - HOSE SA REINFORCED BDE-4382140.A3 4382140	£34.00	£40.80
33 - LEVER BDE-4381190.A3 4381190	£7.18	£8.62
34 - BRACKET BDE-4381160.A6 4381160	£3.30	£3.96
35 - PLUG BDE-3720730.A1 3720730	£5.88	£7.06
36 - HEAD BDE-3400970.A1 3400970	£96.55	£115.86
37 - SCREW BDE-1004709-97.A2 1004709-97	£1.66	£1.99
38 - O RING BDE-1004710-05.A23 1004710-05	£1.50	£1.80
39 - COUPLING BDE-3401000.A2 3401000	£16.03	£19.24
40 - O RING BDE-2841520.A0 2841520	£1.50	£1.80
41 - COUPLING BDE-3960430.A1 3960430	£25.70	£30.84
42 - O RING BDE-1004709-78.A28 1004709-78	£1.50	£1.80
43 - VALVE BDE-1004712-74.A0 1004712-74	£2.78	£3.34
44 - SEAL BDE-1004712-18.A4 1004712-18	£4.69	£5.63
45 - O RING BDE-1004709-93.A10 1004709-93	£1.66	£1.99
46 - BUSHING BDE-1004712-69.A8 1004712-69	£9.41	£11.29
47 - BUSHING BDE-1004712-68.A0 1004712-68	£3.30	£3.96
48 - SEAL BDE-1004711-74.A4 1004711-74	£5.88	£7.06
49 - SCREW BDE-1004712-82.A0 1004712-82	£1.66	£1.99
50 - GUIDE BDE-1004712-76.A2 1004712-76	£24.39	£29.27
51 - SPRING BDE-1004712-87.A5 1004712-87	£3.30	£3.96
52 - PISTON BDE-1004712-67.A6 1004712-67	£9.41	£11.29
53 - LOCK BDE-1004712-64.A0 1004712-64	£1.66	£1.99
54 - FORK BDE-4240270.A1 4240270	£7.85	£9.42
55 - O RING BDE-1004711-50.A3 1004711-50	£1.66	£1.99
56 - PLUG BDE-1004712-73.A4 1004712-73	£5.88	£7.06
57 - PLUG BDE-3960440.A1 3960440	£19.90	£23.88
58 - O RING BDE-1004712-92.A6 1004712-92	£1.66	£1.99
59 - PRESSURE GAUGE BDE-1004730-85.A1 1004730-85	£30.08	£36.10
60 - SPRING BDE-1004711-70.A7 1004711-70	£1.50	£1.80
61 - BALL BDE-1004710-50.A10 1004710-50	£1.66	£1.99
62 - O RING BDE-1004709-78.A27 1004709-78	£1.50	£1.80
63 - COUPLING BDE-3700240.A1 3700240	£3.80	£4.56
64 - O RING BDE-1004711-49.A4 1004711-49	£1.50	£1.80
65 - SHUTTER BDE-1004712-85.A7 1004712-85	£5.88	£7.06
66 - SPRING BDE-1004713-55.A6 1004713-55	£1.66	£1.99
67 - O RING BDE-1004710-00.A0 1004710-00	£1.66	£1.99
68 - VALVE BDE-3700200.A2 3700200	£16.03	£19.24
69 - O RING BDE-1004710-43.A3 1004710-43	£1.66	£1.99
70 - O RING BDE-1004709-81.A20 1004709-81	£1.50	£1.80
71 - PIN BDE-1004712-08.A1 1004712-08	£5.88	£7.06
72 - SPRING BDE-1004712-05.A4 1004712-05	£1.66	£1.99
73 - WASHER BDE-1004712-06.A1 1004712-06	£1.66	£1.99
74 - O RING BDE-1004710-62.A6 1004710-62	£1.66	£1.99
75 - BOLT BDE-1004711-06.A3 1004711-06	£14.57	£17.48
76 - KIT BDE-1004709-35.A5 1004709-35	£25.70	£30.84
77 - SEAT BDE-2901270.A2 2901270	£14.57	£17.48
78 - O RING BDE-1004709-81.A18 1004709-81	£1.50	£1.80
79 - PISTON BDE-1004711-46.A1 1004711-46	£24.39	£29.27
80 - PISTON BDE-1004712-07.A4 1004712-07	£12.17	£14.60
81 - O RING BDE-1004710-38.A3 1004710-38	£1.50	£1.80
82 - O RING BDE-1004709-81.A19 1004709-81	£1.50	£1.80
83 - RING BDE-1004710-41.A5 1004710-41	£1.66	£1.99
84 - O RING BDE-1004710-05.A22 1004710-05	£1.50	£1.80
85 - O RING BDE-1004709-90.A11 1004709-90	£1.50	£1.80
86 - GUIDE BDE-1004711-07.A2 1004711-07	£24.39	£29.27
87 - PLATE BDE-1004710-96.A5 1004710-96	£3.30	£3.96
88 - SPRING BDE-1004711-47.A4 1004711-47	£3.80	£4.56
89 - PLATE BDE-1004711-87.A6 1004711-87	£1.50	£1.80
90 - PIN BDE-1004710-36.A4 1004710-36	£1.66	£1.99
91 - INSERT BDE-1004711-08.A3 1004711-08	£19.90	£23.88
92 - SCREW BDE-1004711-90.A4 1004711-90	£1.66	£1.99
93 - NUT BDE-1004710-34.A11 1004710-34	£1.66	£1.99
94 - KNOB BDE-4240530.A2 4240530	£7.85	£9.42
95 - O RING BDE-1004710-49.A7 1004710-49	£1.50	£1.80
96 - VALVE KIT BDE-1004730-86.A2 1004730-86	£38.80	£46.56
97 - HEAD SA BDE-4389104.A3 4389104	£245.11	£294.13
98 - O RING BDE-1004712-71.A3 1004712-71	£1.66	£1.99
99 - VALVE KIT BDE-1004708-87.A5 1004708-87	£14.57	£17.48
100 - PISTON KIT BDE-1004708-88.A1 1004708-88	£14.57	£17.48
101 - SEALS KIT BDE-1004709-23.A2 1004709-23	£9.41	£11.29
102 - GASKET SET BDE-1004730-87.A2 1004730-87	£24.39	£29.27
103 - SCREW BDE-1004701-09.A1 1004701-09	-
104 - PLATE BDE-3400600.A0 3400600	£16.03	£19.24
105 - WASHER BDE-3081750.A3 3081750	£1.66	£1.99
106 - RING BDE-3441000.A2 3441000	£1.66	£1.99
107 - SCREW BDE-1004712-31.A0 1004712-31	£1.66	£1.99
108 - BODY BDE-1004714-14.A3 1004714-14	£30.08	£36.10
109 - BEARING BDE-1004711-53.A3 1004711-53	£7.85	£9.42
110 - COVER BDE-1004711-45.A3 1004711-45	£25.70	£30.84
111 - SEAL BDE-1004711-54.A3 1004711-54	£1.66	£1.99
112 - O RING BDE-1004709-75.A8 1004709-75	£1.66	£1.99
113 - FAN BDE-1004553-07.A3 1004553-07	-
114 - CONVEYOR BDE-1004714-15.A1 1004714-15	£14.57	£17.48
115 - WASHER BDE-1004711-73.A3 1004711-73	£1.66	£1.99
116 - SCREW BDE-1004711-51.A2 1004711-51	£1.66	£1.99
117 - O RING BDE-1004709-87.A2 1004709-87	£1.66	£1.99
118 - BOX BDE-1004712-32.A6 1004712-32	£9.41	£11.29
119 - WASHER BDE-1004710-65.A3 1004710-65	£1.66	£1.99
120 - SCREW BDE-1004712-03.A5 1004712-03	£1.66	£1.99
121 - COVER BDE-1004714-13.A1 1004714-13	£7.85	£9.42
122 - SWITCH BDE-1004712-80.A12 1004712-80	£16.03	£19.24
123 - GLAND BDE-1004712-04.A2 1004712-04	£3.80	£4.56
125 - O RING BDE-1004712-35.A2 1004712-35	£1.66	£1.99
126 - CAPACITOR BDE-1004711-98.A2 1004711-98	£25.70	£30.84
127 - MOTOR SA BDE-4381930.A1 4381930	£523.98	£628.77
128 - FORK BDE-1004712-09.A10 1004712-09	£2.78	£3.34
129 - BOX BDE-4389600.A0 4389600	£24.39	£29.27
130 - SCREW BDE-1004712-01.A13 1004712-01	£1.66	£1.99
131 - GLAND BDE-1004712-04.A3 1004712-04	£3.80	£4.56
132 - O RING BDE-1004712-17.A2 1004712-17	£3.30	£3.96
133 - O RING BDE-1004709-71.A5 1004709-71	£1.66	£1.99
134 - HANDLE SA BDE-4381910.A1 4381910	£58.69	£70.43
135 - EXTENSION BDE-4382190.A1 4382190	£37.35	£44.82
136 - EXTENSION BDE-4382350.A0 4382350	£44.14	£52.97
137 - HOSE BDE-4382170.A0 4382170	£165.92	£199.11
138 - O RING BDE-3083690.A5 3083690	£1.66	£1.99
139 - O RING BDE-3083380.A4 3083380	£1.66	£1.99

Attribute Name	Value
Brand	Stanley
