Stanley SXFPW28PE Type 1 Pressure Washer Spare Parts

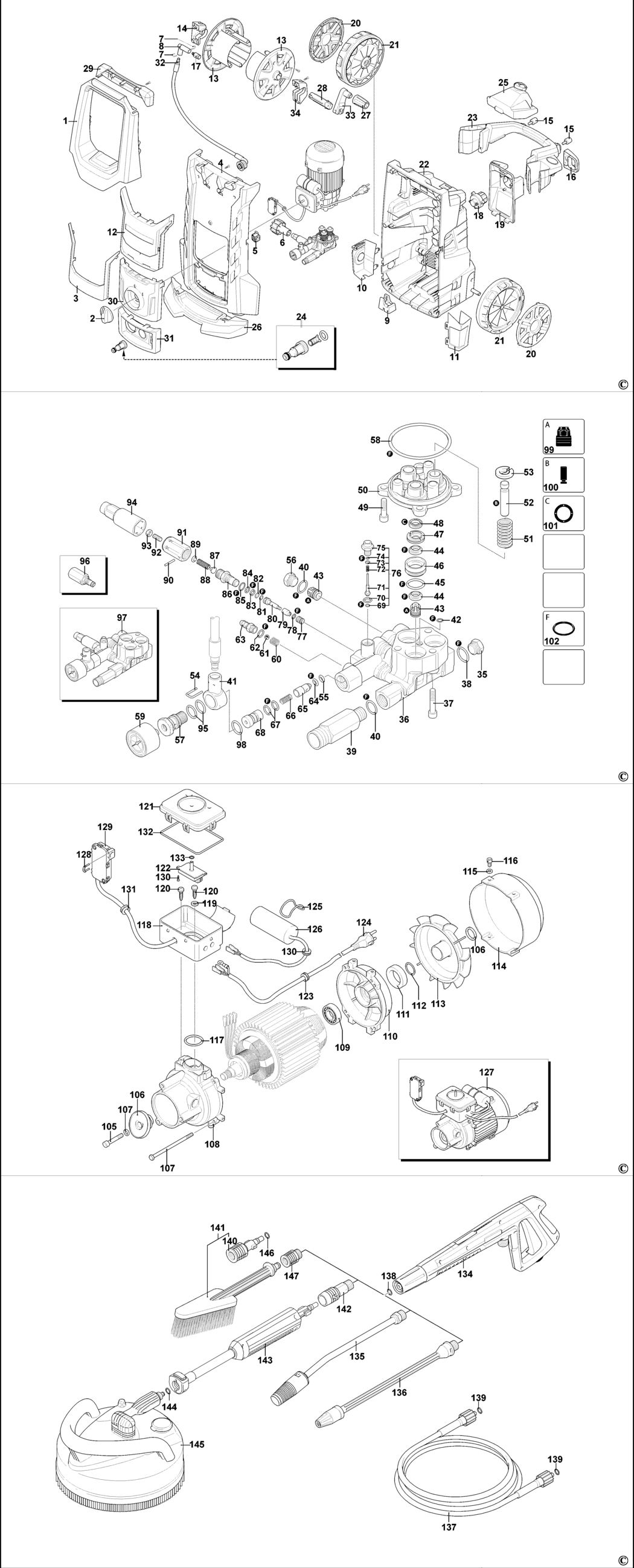

An exploded drawing and spare parts listing for the Stanley SXFPW28PE Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - HANDLE UPPER BDE-4381020.A6 4381020	£24.39	£29.27
2 - KNOB BDE-4381120.A2 4381120	£3.30	£3.96
3 - GUARD BDE-4381950.A5 4381950	£7.18	£8.62
4 - COVER BDE-4380970.A3 4380970	£34.00	£40.80
5 - GLAND BDE-3080580.A42 3080580	£1.50	£1.80
6 - KNOB BDE-1004712-40.A4 1004712-40	£7.18	£8.62
7 - FORK BDE-3081650.A2 3081650	£2.78	£3.34
8 - COUPLING BDE-4101250.A6 4101250	£19.90	£23.88
9 - SUPPORT BDE-4381150.A3 4381150	£2.78	£3.34
10 - CARRIER BDE-4381070.A1 4381070	£7.18	£8.62
11 - CARRIER BDE-4381060.A6 4381060	£7.18	£8.62
12 - GUARD BDE-4381940.A0 4381940	£12.17	£14.60
13 - PLATE BDE-4381840.A6 4381840	£30.08	£36.10
14 - BRACKET BDE-4381170.A7 4381170	£2.26	£2.71
15 - FOOT BDE-1004712-16.A28 1004712-16	£7.18	£8.62
16 - HANDLE BDE-4381050.A3 4381050	£3.30	£3.96
17 - PLUG BDE-4101030.A5 4101030	£19.90	£23.88
18 - REGULATOR BDE-1004512-37.A3 1004512-37	£9.41	£11.29
19 - COVER BDE-4381040.A6 4381040	£16.03	£19.24
20 - GUARD BDE-4381110.A6 4381110	£9.41	£11.29
21 - WHEEL BDE-4381100.A2 4381100	£34.00	£40.80
22 - BASE SA BDE-4380960.A12 4380960	£47.08	£56.49
23 - CARRIER BDE-4380230.A4 4380230	£12.17	£14.60
24 - COUPLING SA BDE-1004712-93.A23 1004712-93	£9.16	£10.99
25 - TANK BDE-4381080.A7 4381080	£19.90	£23.88
26 - FOOT BDE-4381230.A1 4381230	£17.48	£20.97
27 - KNOB BDE-4381180.A2 4381180	£2.78	£3.34
28 - PIN BDE-4381200.A2 4381200	£7.18	£8.62
29 - HANDLE BDE-4381030.A2 4381030	£7.85	£9.42
30 - GUARD BDE-4381960.A1 4381960	£14.57	£17.48
31 - GUARD BDE-4381680.A2 4381680	£7.85	£9.42
32 - HOSE SA REINFORCED BDE-4382140.A8 4382140	£34.00	£40.80
33 - LEVER BDE-4381190.A7 4381190	£7.18	£8.62
34 - BRACKET BDE-4381160.A2 4381160	£3.30	£3.96
35 - PLUG BDE-3720730.A3 3720730	£5.88	£7.06
36 - HEAD BDE-3400970.A2 3400970	£96.55	£115.86
37 - SCREW BDE-1004709-97.A5 1004709-97	£1.50	£1.80
38 - O RING BDE-1004710-05.A19 1004710-05	£1.50	£1.80
39 - COUPLING BDE-3401000.A1 3401000	£16.03	£19.24
40 - O RING BDE-2841520.A4 2841520	£1.50	£1.80
41 - COUPLING BDE-3960430.A2 3960430	£25.70	£30.84
42 - O RING BDE-1004709-78.A24 1004709-78	£1.50	£1.80
43 - VALVE BDE-1004712-74.A3 1004712-74	£2.78	£3.34
44 - SEAL BDE-1004712-18.A8 1004712-18	£4.69	£5.63
45 - O RING BDE-1004709-93.A7 1004709-93	£1.50	£1.80
46 - BUSHING BDE-1004712-69.A5 1004712-69	£9.41	£11.29
47 - BUSHING BDE-1004712-68.A2 1004712-68	£3.30	£3.96
48 - SEAL BDE-1004711-74.A2 1004711-74	£5.88	£7.06
49 - SCREW BDE-1004712-82.A1 1004712-82	£1.50	£1.80
50 - GUIDE BDE-1004712-76.A3 1004712-76	£24.39	£29.27
51 - SPRING BDE-1004712-87.A6 1004712-87	£3.30	£3.96
52 - PISTON BDE-1004712-67.A5 1004712-67	£9.41	£11.29
53 - LOCK BDE-1004712-64.A1 1004712-64	£1.50	£1.80
54 - FORK BDE-4240270.A2 4240270	£7.85	£9.42
55 - O RING BDE-1004711-50.A2 1004711-50	£1.50	£1.80
56 - PLUG BDE-1004712-73.A3 1004712-73	£5.88	£7.06
57 - PLUG BDE-3960440.A2 3960440	£19.90	£23.88
58 - O RING BDE-1004712-92.A5 1004712-92	£1.50	£1.80
59 - PRESSURE GAUGE BDE-1004730-85.A2 1004730-85	£30.08	£36.10
60 - SPRING BDE-1004711-70.A6 1004711-70	£1.50	£1.80
61 - BALL BDE-1004710-50.A11 1004710-50	£1.50	£1.80
62 - O RING BDE-1004709-78.A29 1004709-78	£1.50	£1.80
63 - COUPLING BDE-3700240.A2 3700240	£3.80	£4.56
64 - O RING BDE-1004711-49.A5 1004711-49	£1.50	£1.80
65 - SHUTTER BDE-1004712-85.A6 1004712-85	£5.88	£7.06
66 - SPRING BDE-1004713-55.A7 1004713-55	£1.50	£1.80
67 - O RING BDE-1004710-00.A1 1004710-00	£1.50	£1.80
68 - VALVE BDE-3700200.A1 3700200	£16.03	£19.24
69 - O RING BDE-1004710-43.A4 1004710-43	£1.50	£1.80
70 - O RING BDE-1004709-81.A15 1004709-81	£1.50	£1.80
71 - PIN BDE-1004712-08.A0 1004712-08	£5.88	£7.06
72 - SPRING BDE-1004712-05.A5 1004712-05	£1.50	£1.80
73 - WASHER BDE-1004712-06.A0 1004712-06	£1.50	£1.80
74 - O RING BDE-1004710-62.A5 1004710-62	£1.50	£1.80
75 - BOLT BDE-1004711-06.A4 1004711-06	£14.57	£17.48
76 - KIT BDE-1004709-35.A4 1004709-35	£25.70	£30.84
77 - SEAT BDE-2901270.A3 2901270	£14.57	£17.48
78 - O RING BDE-1004709-81.A16 1004709-81	£1.50	£1.80
79 - PISTON BDE-1004711-46.A2 1004711-46	£24.39	£29.27
80 - PISTON BDE-1004712-07.A5 1004712-07	£12.17	£14.60
81 - O RING BDE-1004710-38.A4 1004710-38	£1.50	£1.80
82 - O RING BDE-1004709-81.A17 1004709-81	£1.50	£1.80
83 - RING BDE-1004710-41.A4 1004710-41	£1.50	£1.80
84 - O RING BDE-1004710-05.A21 1004710-05	£1.50	£1.80
85 - O RING BDE-1004709-90.A10 1004709-90	£1.50	£1.80
86 - GUIDE BDE-1004711-07.A1 1004711-07	£24.39	£29.27
87 - PLATE BDE-1004710-96.A4 1004710-96	£3.30	£3.96
88 - SPRING BDE-1004711-47.A3 1004711-47	£3.80	£4.56
89 - PLATE BDE-1004711-87.A7 1004711-87	£1.50	£1.80
90 - PIN BDE-1004710-36.A3 1004710-36	£1.50	£1.80
91 - INSERT BDE-1004711-08.A4 1004711-08	£19.90	£23.88
92 - SCREW BDE-1004711-90.A3 1004711-90	£1.50	£1.80
93 - NUT BDE-1004710-34.A12 1004710-34	£1.50	£1.80
94 - KNOB BDE-4240530.A1 4240530	£7.85	£9.42
95 - O RING BDE-1004710-49.A6 1004710-49	£1.50	£1.80
96 - VALVE KIT BDE-1004730-86.A1 1004730-86	£38.80	£46.56
97 - HEAD SA BDE-4389104.A2 4389104	£245.11	£294.13
98 - O RING BDE-1004712-71.A4 1004712-71	£1.50	£1.80
99 - VALVE KIT BDE-1004708-87.A6 1004708-87	£14.57	£17.48
100 - PISTON KIT BDE-1004708-88.A0 1004708-88	£14.57	£17.48
101 - SEALS KIT BDE-1004709-23.A3 1004709-23	£9.41	£11.29
102 - GASKET SET BDE-1004730-87.A3 1004730-87	£24.39	£29.27
105 - WASHER BDE-3081750.A4 3081750	£1.50	£1.80
106 - RING BDE-3441000.A4 3441000	£1.50	£1.80
107 - SCREW BDE-1004712-31.A1 1004712-31	£1.50	£1.80
108 - BODY BDE-1004714-14.A4 1004714-14	£30.08	£36.10
109 - BEARING BDE-1004711-53.A2 1004711-53	£7.85	£9.42
110 - COVER BDE-1004711-45.A2 1004711-45	£25.70	£30.84
111 - SEAL BDE-1004711-54.A4 1004711-54	£1.50	£1.80
112 - O RING BDE-1004709-75.A7 1004709-75	£1.50	£1.80
113 - FAN BDE-3440370.A4 3440370	£1.50	£1.80
114 - CONVEYOR BDE-1004714-15.A0 1004714-15	£14.57	£17.48
115 - WASHER BDE-1004711-73.A4 1004711-73	£1.50	£1.80
116 - SCREW BDE-1004711-51.A3 1004711-51	£1.50	£1.80
117 - O RING BDE-1004709-87.A3 1004709-87	£1.50	£1.80
118 - BOX BDE-1004712-32.A5 1004712-32	£9.41	£11.29
119 - WASHER BDE-1004710-65.A4 1004710-65	£1.50	£1.80
120 - SCREW BDE-1004712-03.A6 1004712-03	£1.50	£1.80
121 - COVER BDE-1004714-13.A0 1004714-13	£7.85	£9.42
122 - SWITCH BDE-1004712-80.A11 1004712-80	£16.03	£19.24
123 - GLAND BDE-1004712-04.A0 1004712-04	£3.80	£4.56
125 - O RING BDE-1004712-35.A3 1004712-35	£1.50	£1.80
126 - CAPACITOR BDE-1004711-98.A3 1004711-98	£25.70	£30.84
127 - MOTOR SA BDE-4381930.A0 4381930	£523.98	£628.77
128 - FORK BDE-1004712-09.A11 1004712-09	£2.78	£3.34
129 - BOX BDE-4389600.A1 4389600	£24.39	£29.27
130 - SCREW BDE-1004712-01.A12 1004712-01	£1.50	£1.80
131 - GLAND BDE-1004712-04.A1 1004712-04	£3.80	£4.56
132 - O RING BDE-1004712-17.A3 1004712-17	£3.30	£3.96
133 - O RING BDE-1004709-71.A6 1004709-71	£1.50	£1.80
134 - HANDLE SA BDE-4381910.A2 4381910	£58.69	£70.43
135 - EXTENSION BDE-4382190.A0 4382190	£37.35	£44.82
136 - EXTENSION BDE-4382350.A2 4382350	£44.14	£52.97
137 - HOSE BDE-4382170.A1 4382170	£165.92	£199.11
138 - O RING BDE-3083690.A7 3083690	£1.50	£1.80
139 - O RING BDE-3083380.A3 3083380	£1.50	£1.80
140 - ADAPTOR BDE-1004512-28.A5 1004512-28	£1.50	£1.80
141 - BRUSH BDE-1004455-56.A10 1004455-56	£14.57	£17.48
142 - ADAPTOR BDE-1004553-11.A2 1004553-11	-
143 - EXTENSION BDE-4381490.A2 4381490	£25.70	£30.84
144 - O RING BDE-5140206-02.A20 5140206-02	£1.51	£1.81
145 - BRUSH SA BDE-3084342.A5 3084342	£55.30	£66.36
146 - O RING BDE-5140193-41.A20 5140193-41	£1.50	£1.80
147 - ADAPTOR BDE-3081600.A3 3081600	£3.30	£3.96
