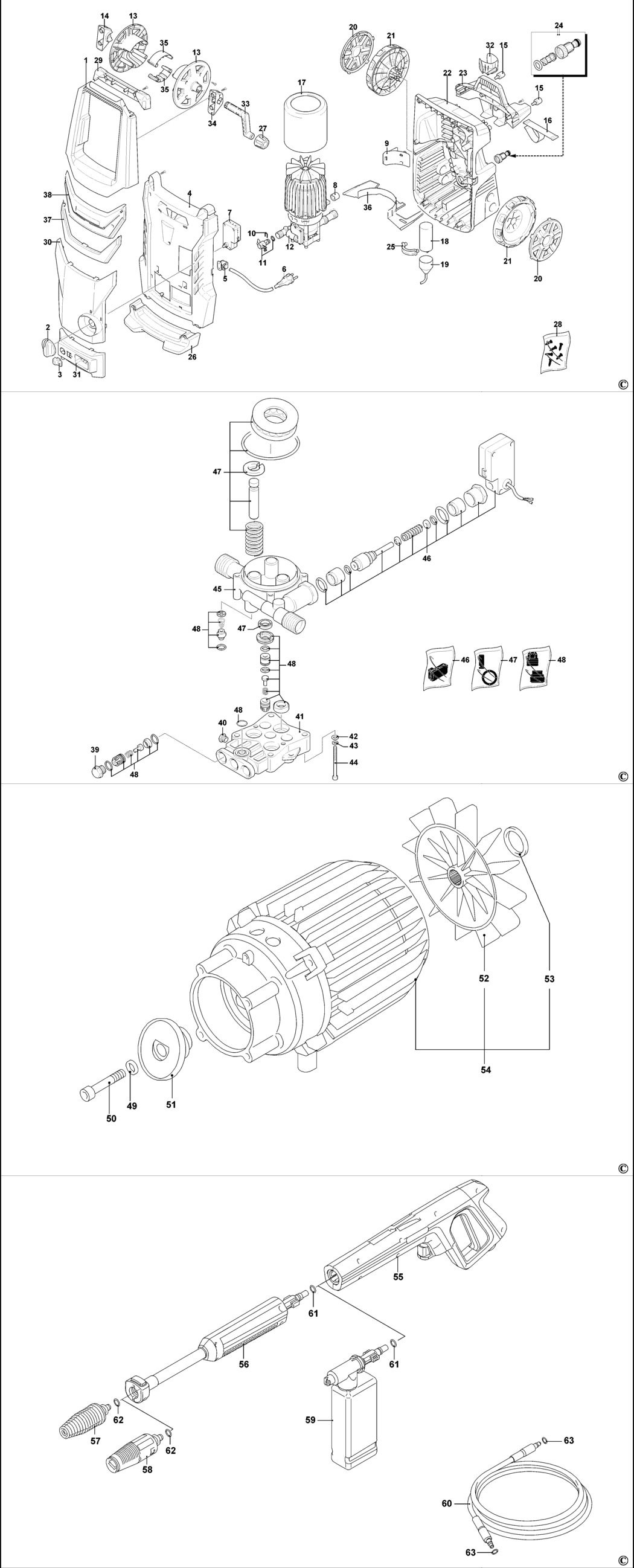

An exploded drawing and spare parts listing for the Stanley SXFPW21ME Type 1 Pressure Washer
Ex VAT Inc VAT
1 - HANDLE SA BDE-4380640.A12 4380640 £24.39 £29.27
2 - KNOB BDE-4381361.A0 4381361 £2.78 £3.34
3 - LEVER BDE-4380391.A16 4380391 £1.82 £2.19
4 - COVER BDE-4381320.A4 4381320 £30.08 £36.10
5 - GLAND BDE-3080580.A14 3080580 £1.50 £1.80
7 - SWITCHBOX BDE-4381740.A10 4381740 £17.48 £20.97
8 - FOOT BDE-4381890.A10 4381890 £7.18 £8.62
9 - GUARD BDE-4380800.A4 4380800 £7.18 £8.62
10 - FORK BDE-1004512-08.A38 1004512-08 £5.95 £7.14
11 - COUPLING BDE-4382480 4382480 £17.48 £20.97
12 - PUMP SA BDE-4383010 4383010 £336.69 £404.03
13 - PLATE BDE-3080200.A13 3080200 £14.57 £17.48
14 - BRACKET BDE-4380470.A16 4380470 £5.88 £7.06
15 - FOOT BDE-1004712-16.A10 1004712-16 £7.18 £8.62
16 - HOOK SA BDE-4380810.A0 4380810 £3.30 £3.96
17 - FAN COVER BDE-3440130.A0 3440130 £12.17 £14.60
18 - CAPACITOR BDE-3081620.A6 3081620 £24.39 £29.27
19 - CONNECTOR BDE-4101080.A0 4101080 £2.26 £2.71
20 - GUARD BDE-4380630.A0 4380630 £7.18 £8.62
21 - WHEEL BDE-4380610.A9 4380610 £14.57 £17.48
22 - BASE SA BDE-4380960.A25 4380960 £47.08 £56.49
23 - CARRIER SA BDE-4380990.A14 4380990 £16.03 £19.24
24 - COUPLING SA BDE-1004712-93.A43 1004712-93 £9.16 £10.99
25 - BRACKET BDE-1004721-16.A6 1004721-16 £1.50 £1.80
26 - FOOT BDE-4380680.A8 4380680 £14.57 £17.48
27 - KNOB BDE-4380451.A6 4380451 £2.26 £2.71
28 - SCREW KIT BDE-4382180.A0 4382180 £7.18 £8.62
29 - HANDLE BDE-4380690.A0 4380690 £7.85 £9.42
30 - GUARD BDE-4381330.A0 4381330 £18.91 £22.69
31 - GUARD BDE-4381340.A4 4381340 £9.41 £11.29
32 - CLIP SA BDE-4381280.A36 4381280 £3.80 £4.56
33 - LEVER BDE-4380560.A0 4380560 £7.18 £8.62
34 - BRACKET BDE-4380460.A6 4380460 £5.88 £7.06
35 - SHIM BDE-4380550.A18 4380550 £3.30 £3.96
36 - GUARD BDE-4381880.A0 4381880 £9.41 £11.29
37 - GUARD BDE-4381870.A3 4381870 £12.17 £14.60
38 - GUARD BDE-4381860.A0 4381860 £12.17 £14.60
39 - PLUG BDE-3083210.A1 3083210 £5.88 £7.06
40 - SCREW BDE-3081730.A11 3081730 £1.50 £1.80
41 - HEAD SA BDE-3083220.A10 3083220 £14.57 £17.48
42 - WASHER BDE-3081760.A0 3081760 £1.50 £1.80
43 - WASHER BDE-3081750.A24 3081750 £1.50 £1.80
44 - SCREW BDE-3081740.A0 3081740 £3.30 £3.96
45 - PUMP SA BDE-3084870 3084870 £25.70 £30.84
46 - KIT BDE-3440560.A0 3440560 £25.70 £30.84
47 - PISTONS & SEALS KIT BDE-4383020 4383020 £30.08 £36.10
48 - VALVES & SEALS KIT BDE-3081290.A23 3081290 -
49 - WASHER BDE-3081750.A25 3081750 £1.50 £1.80
50 - SCREW BDE-3081950.A10 3081950 £1.50 £1.80
51 - PLATE BDE-4382080.A5 4382080 £10.85 £13.02
52 - FAN BDE-3440370.A13 3440370 £1.50 £1.80
53 - RING BDE-3441000.A14 3441000 £1.50 £1.80
54 - MOTOR 220/240 BDE-4382130.A4 4382130 £301.55 £361.86
55 - HANDLE SA BDE-4381480.A16 4381480 £34.00 £40.80
56 - EXTENSION BDE-4381490.A11 4381490 £25.70 £30.84
57 - HEAD SA BDE-4100800.A5 4100800 £24.39 £29.27
58 - HEAD SA BDE-4381800.A2 4381800 £17.48 £20.97
59 - TANK BDE-4381500.A34 4381500 £7.85 £9.42
60 - HOSE SA BDE-4581030.A0 4581030 £47.08 £56.49
61 - O RING BDE-5140193-41.A11 5140193-41 £1.50 £1.80
62 - O RING BDE-5140206-02.A30 5140206-02 £1.51 £1.81
63 - O RING BDE-3083400.A6 3083400 £1.50 £1.80
