Stanley SW19 Type 1 Pressure Washer Spare Parts

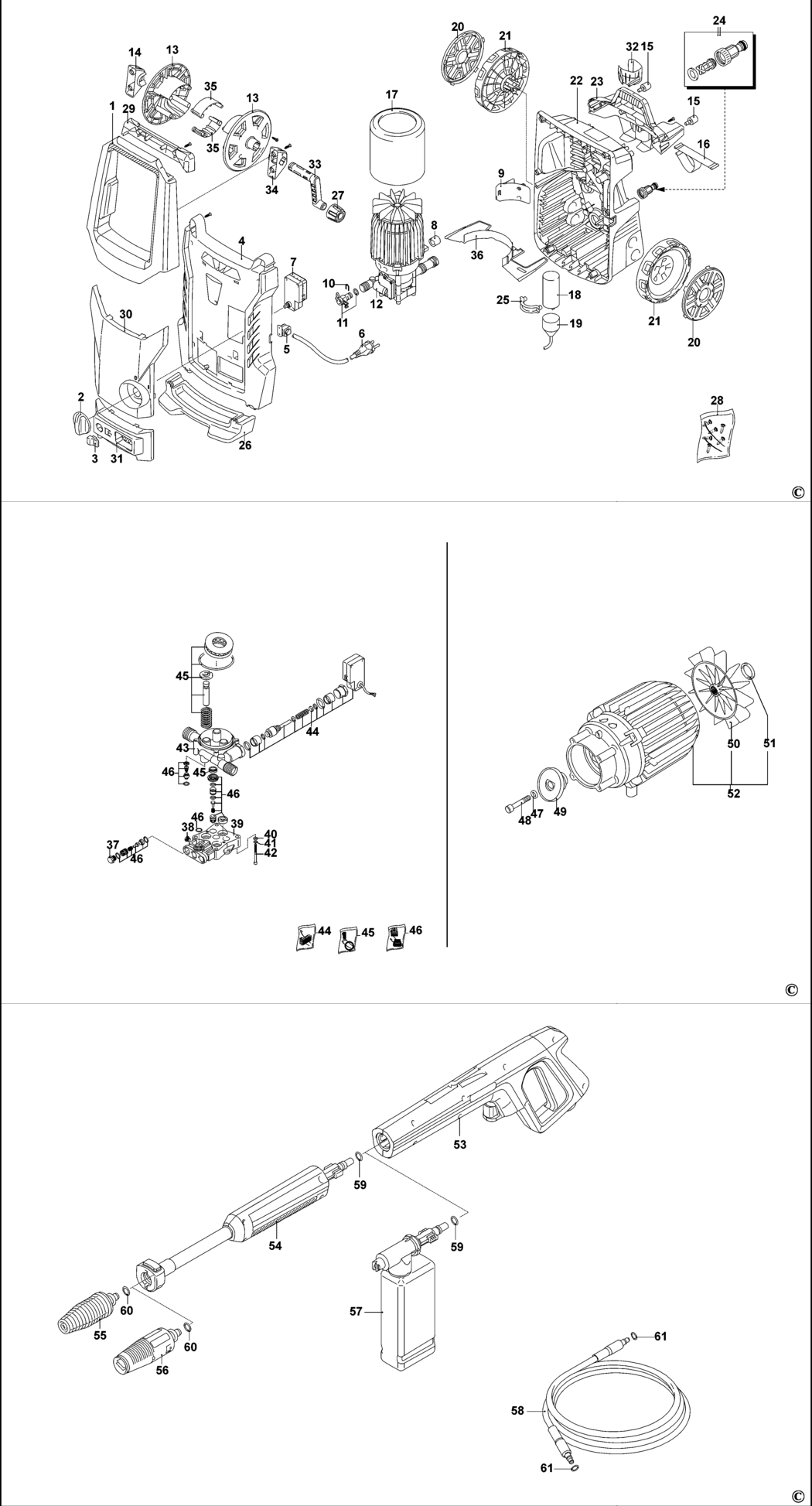

An exploded drawing and spare parts listing for the Stanley SW19 Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - HANDLE SA BDE-4380640.A4 4380640	£24.39	£29.27
1 - HANDLE BDE-5170027-59.A1 5170027-59	-
2 - KNOB BDE-5170027-60.A0 5170027-60	-
2 - KNOB BDE-4381361.A3 4381361	£2.78	£3.34
3 - LEVER BDE-4380391.A5 4380391	£1.82	£2.19
3 - LEVER BDE-5170027-61.A1 5170027-61	-
4 - COVER BDE-4381320.A0 4381320	£30.08	£36.10
4 - CASTING BDE-5170027-62.A0 5170027-62	-
5 - GLAND BDE-5170027-01.A2 5170027-01	-
5 - GLAND BDE-3080580.A35 3080580	£1.50	£1.80
7 - SWITCHBOX BDE-4381740.A3 4381740	£17.48	£20.97
7 - BOX BDE-5170027-04.A1 5170027-04	-
8 - FOOT BDE-4381890.A3 4381890	£7.18	£8.62
8 - FOOT BDE-5170027-05.A0 5170027-05	-
9 - GUARD BDE-4380800.A1 4380800	£7.18	£8.62
9 - GUARD BDE-5170027-88.A0 5170027-88	-
10 - FORK BDE-1004512-08.A19 1004512-08	£5.95	£7.14
10 - FORK BDE-5170027-63.A1 5170027-63	-
11 - KIT SA BDE-5170027-64.A0 5170027-64	-
11 - KIT BDE-4382200.A0 4382200	£24.39	£29.27
12 - PUMP SA BDE-5170027-09 5170027-09	-
12 - PUMP SA BDE-4381550.A1 4381550	£319.22	£383.07
13 - PLATE BDE-5170027-65.A1 5170027-65	-
13 - PLATE BDE-3080200.A2 3080200	£14.57	£17.48
14 - BRACKET BDE-5170027-67.A2 5170027-67	-
14 - BRACKET BDE-4380470.A11 4380470	£5.88	£7.06
15 - FOOT BDE-1004712-16.A29 1004712-16	£7.18	£8.62
15 - FOOT BDE-5170027-12.A0 5170027-12	-
16 - HOOK SA BDE-4380810.A13 4380810	£3.30	£3.96
16 - CARRIER BDE-5170027-68.A0 5170027-68	-
17 - FAN COVER BDE-5170027-14.A1 5170027-14	-
17 - FAN COVER BDE-3440130.A6 3440130	£12.17	£14.60
18 - CAPACITOR BDE-3081620.A3 3081620	£24.39	£29.27
18 - CAPACITOR BDE-5170027-69.A1 5170027-69	-
19 - CONNECTOR BDE-4101080.A2 4101080	£2.26	£2.71
19 - CONNECTOR BDE-5170027-70.A0 5170027-70	-
20 - GUARD BDE-4380630.A8 4380630	£7.18	£8.62
20 - GUARD BDE-5170027-71.A1 5170027-71	-
21 - WHEEL BDE-4380610.A12 4380610	£14.57	£17.48
21 - WHEEL BDE-5170027-72.A0 5170027-72	-
22 - BASE SA BDE-4380960.A13 4380960	£47.08	£56.49
22 - BASE SA BDE-5170027-19.A0 5170027-19	-
23 - CARRIER SA BDE-4380990.A2 4380990	£16.03	£19.24
23 - CARRIER BDE-5170027-73.A1 5170027-73	-
24 - COUPLING SA BDE-1004712-93.A27 1004712-93	£9.16	£10.99
24 - COUPLING BDE-5170008-04.A4 5170008-04	-
25 - BRACKET BDE-5170027-74.A0 5170027-74	-
25 - BRACKET BDE-1004721-16.A3 1004721-16	£1.50	£1.80
26 - FOOT BDE-4380680.A3 4380680	£14.57	£17.48
26 - FOOT BDE-5170027-75.A1 5170027-75	-
27 - KNOB BDE-4380451.A4 4380451	£2.26	£2.71
27 - KNOB BDE-5170027-76.A0 5170027-76	-
28 - SCREW KIT BDE-4382180.A2 4382180	£7.18	£8.62
28 - SCREW KIT BDE-5170027-77.A1 5170027-77	-
29 - HANDLE BDE-4380690.A9 4380690	£7.85	£9.42
29 - KNOB BDE-5170027-78.A0 5170027-78	-
30 - GUARD BDE-4381330.A3 4381330	£18.91	£22.69
30 - GUARD BDE-5170027-79.A1 5170027-79	-
31 - GUARD BDE-4381340.A1 4381340	£9.41	£11.29
31 - GUARD BDE-5170027-80.A0 5170027-80	-
32 - CARRIER SA BDE-5170027-81.A1 5170027-81	-
32 - CLIP SA BDE-4381280.A19 4381280	£3.80	£4.56
33 - LEVER BDE-4380560.A13 4380560	£7.18	£8.62
33 - LEVER BDE-5170027-82.A1 5170027-82	-
34 - BRACKET BDE-5170027-83.A1 5170027-83	-
34 - BRACKET BDE-4380460.A11 4380460	£5.88	£7.06
35 - SHIM BDE-4380550.A8 4380550	£3.30	£3.96
35 - SHIM BDE-5170027-84.A0 5170027-84	-
36 - GUARD BDE-4381880.A3 4381880	£9.41	£11.29
36 - GUARD BDE-5170027-85.A1 5170027-85	-
37 - PLUG BDE-3083210.A2 3083210	£5.88	£7.06
37 - PLUG BDE-5170027-34.A1 5170027-34	-
38 - SCREW BDE-5170027-35.A0 5170027-35	-
38 - SCREW BDE-3081730.A8 3081730	£1.50	£1.80
39 - HEAD SA BDE-5170027-36.A1 5170027-36	-
39 - HEAD SA BDE-3083220.A9 3083220	£14.57	£17.48
40 - WASHER BDE-3081760.A3 3081760	£1.50	£1.80
40 - WASHER BDE-5170027-37.A0 5170027-37	-
41 - WASHER BDE-3081750.A20 3081750	£1.50	£1.80
41 - WASHER BDE-5170027-38.A3 5170027-38	-
42 - SCREW BDE-5170027-39.A0 5170027-39	-
42 - SCREW BDE-3081740.A3 3081740	£3.30	£3.96
43 - PUMP SA BDE-5170027-40 5170027-40	-
43 - PUMP SA BDE-3083230.A1 3083230	£18.91	£22.69
44 - KIT BDE-3440560.A7 3440560	£25.70	£30.84
44 - KIT BDE-5170027-41.A1 5170027-41	-
45 - PISTONS & SEALS KIT BDE-5170027-42.A0 5170027-42	-
45 - PISTONS & SEALS KIT BDE-3440570.A3 3440570	£19.90	£23.88
46 - VALVES & SEALS KIT BDE-5170027-43.A1 5170027-43	-
46 - VALVES & SEALS KIT BDE-3081290.A14 3081290	-
47 - WASHER BDE-3081750.A2 3081750	£1.50	£1.80
48 - SCREW BDE-3081950.A1 3081950	£1.50	£1.80
48 - WASHER BDE-5170027-38.A2 5170027-38	-
49 - SCREW BDE-5170027-45.A0 5170027-45	-
49 - PLATE BDE-4382080.A0 4382080	£10.85	£13.02
50 - FAN BDE-3440370.A3 3440370	£1.50	£1.80
50 - PLATE BDE-5170027-46 5170027-46	-
51 - FAN BDE-5170027-47.A0 5170027-47	-
51 - RING BDE-3441000.A3 3441000	£1.50	£1.80
52 - RING BDE-5170027-48.A1 5170027-48	-
53 - MOTOR 220/240 BDE-5170027-49 5170027-49	-
53 - HANDLE SA BDE-4381480.A5 4381480	£34.00	£40.80
54 - EXTENSION BDE-4381490.A0 4381490	£25.70	£30.84
54 - HANDLE SA BDE-5170027-50.A0 5170027-50	-
55 - HEAD SA BDE-4100800.A26 4100800	£24.39	£29.27
55 - EXTENSION BDE-5170027-51.A1 5170027-51	-
56 - HEAD SA BDE-3980110 3980110	£24.39	£29.27
56 - HEAD SA BDE-5170027-52.A0 5170027-52	-
57 - HEAD SA BDE-5170027-53 5170027-53	-
57 - TANK BDE-4381500.A7 4381500	£7.85	£9.42
58 - HOSE SA BDE-4581030.A7 4581030	£47.08	£56.49
58 - TANK BDE-5170027-54.A0 5170027-54	-
59 - O RING BDE-5140193-41.A22 5140193-41	£1.50	£1.80
59 - HOSE SA BDE-5170027-55.A1 5170027-55	-
60 - O RING BDE-5140206-02.A19 5140206-02	£1.51	£1.81
60 - O RING BDE-5170024-35.A3 5170024-35	£1.50	£1.80
61 - O RING BDE-3083400.A16 3083400	£1.50	£1.80
61 - O RING BDE-5170024-36.A2 5170024-36	-
62 - O RING BDE-5170024-37.A3 5170024-37	-
