Bosch S 8 / 0603999002 / --- Spare Parts

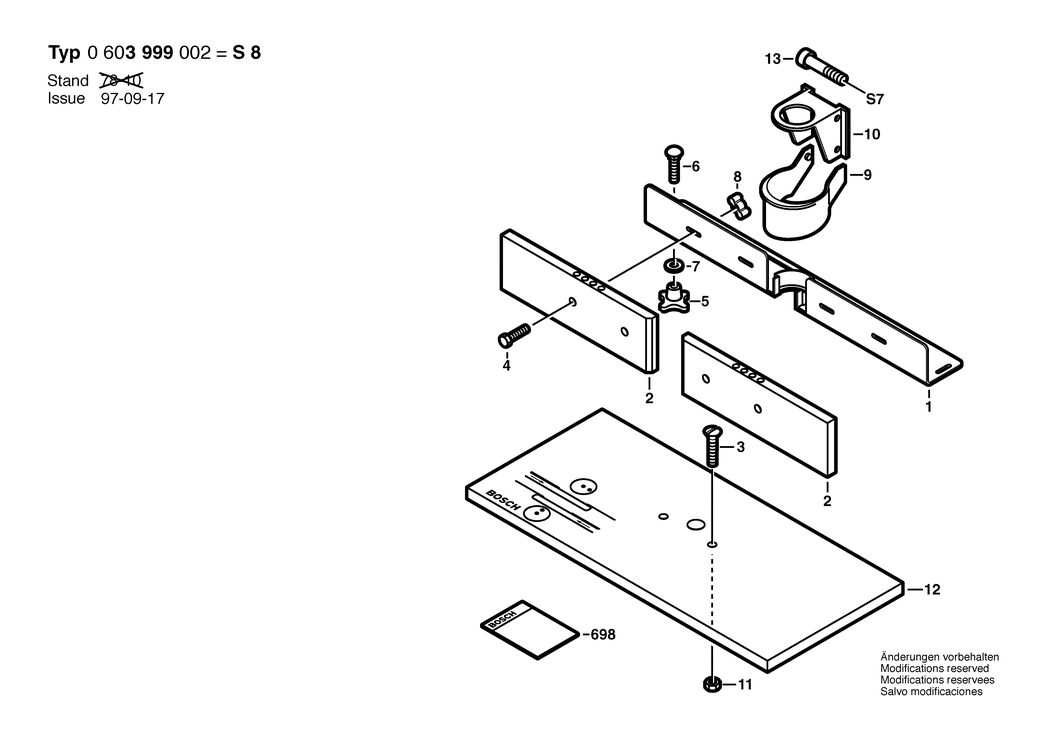

An exploded drawing and listing for the Bosch S 8 / 0603999002 / ---

	Ex VAT	Inc VAT
1 - END STOP BSD-1601334004.A5 1601334004	-
2 - STOP PLATE BSD-1602388020.A5 1602388020	-
3 - COUNTERSUNK-HEAD SCREW DIN 963-M8x35-4.8 BSD-2910761248.A0 2910761248	-
4 - HEX SCREW DIN 933-M6x25-8.8 BSD-2911061203.A11 2911061203	-
9 - PROTECTIVE COVER dia 115 MM BSD-1605510128.A0 1605510128	-
10 - SUSPENSION LOOP BSD-1605510129.A0 1605510129	£2.80	£3.36
11 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A89 2915011009	£2.61	£3.13
12 - WORK BOARD BSD-1602388021.A0 1602388021	-
13 - HEX SOCKET HEAD CAP SCREW DIN 912-M 8x45-8.8 BSD-2910141252.A2 2910141252	-
14 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x35-8.8 BSD-2910141207.A35 2910141207	-
15 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A62 2916011013	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
