Bosch S 500 / 0601190020 / EU Spare Parts

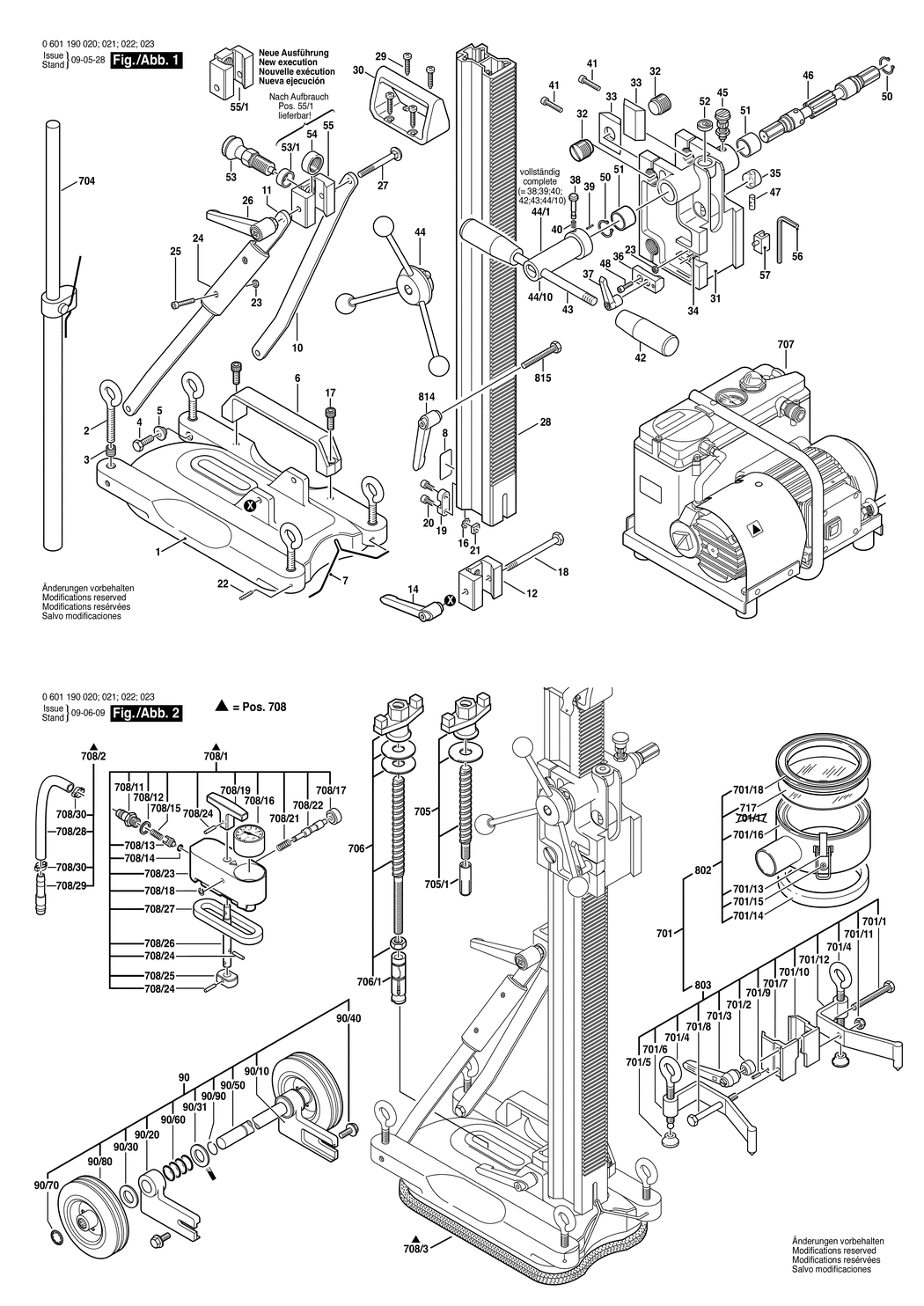

An exploded drawing and listing for the Bosch S 500 / 0601190020 / EU

	Ex VAT	Inc VAT
1 - BASE PLATE BSD-1609203662.A0 1609203662	-
2 - LIFTING EYE BOLT BSD-1609203663.A0 1609203663	£5.58	£6.70
3 - THREADED INSERT BSD-1609203664.A1 1609203664	£7.36	£8.83
4 - HEX SCREW BSD-1609203665.A0 1609203665	£1.75	£2.10
5 - HEADED BUSH BSD-1609203666.A0 1609203666	£12.04	£14.45
6 - HANDLE BSD-1609203667.A1 1609203667	£27.23	£32.68
7 - POSITION PICKUP BSD-1609203668.A0 1609203668	-
8 - NAMEPLATE BSD-1601106902.A0 1601106902	-
10 - SUPPORT BSD-1609203670.A1 1609203670	£21.52	£25.83
11 - SUPPORT BSD-1609203671.A0 1609203671	£21.52	£25.83
12 - CLAMPING PIECE BSD-1609203672.A1 1609203672	£16.41	£19.69
14 - CLAMPING LEVER BSD-1609203674.A0 1609203674	£13.12	£15.75
16 - SERRATED LOCK-WASHER BSD-1609203676.A1 1609203676	£1.75	£2.10
17 - HEX SOCKET HEAD CAP SCREW BSD-1609203677.A0 1609203677	£1.75	£2.10
18 - HEX SCREW BSD-1609203678.A1 1609203678	£4.26	£5.11
19 - PARALLEL KEY BSD-1609203679.A0 1609203679	£13.12	£15.75
20 - HEX SOCKET HEAD CAP SCREW BSD-1609203680.A1 1609203680	£1.75	£2.10
21 - SQUARE NUT BSD-1609203681.A0 1609203681	£1.75	£2.10
22 - SET SCREW BSD-1609203682.A1 1609203682	£1.75	£2.10
23 - HEX NUT BSD-1609203683.A0 1609203683	£1.75	£2.10
24 - HANDLE BSD-1609203684.A1 1609203684	£3.72	£4.47
25 - SOCKET HEAD CAP SCREW DIN 84ZN-M4x25 BSD-1609203685.A0 1609203685	£1.75	£2.10
26 - CLAMPING LEVER BSD-1609203686.A1 1609203686	£48.38	£58.06
27 - ROUND-HEAD BOLT BSD-1609203687.A0 1609203687	£2.61	£3.13
28 - COLUMN BSD-1609203688.A0 1609203688	-
29 - TAPPING SCREW BSD-1609203689.A0 1609203689	£1.75	£2.10
30 - STRAP-SHAPED HANDLE BSD-1609203690.A1 1609203690	£10.10	£12.12
31 - GUIDE BLOCK BSD-1609203691.A0 1609203691	£283.50	£340.20
32 - ADJUSTING SCREW BSD-1609203692.A0 1609203692	£23.86	£28.63
33 - GUIDE COMPONENT BSD-1609203693.A1 1609203693	£3.72	£4.47
34 - SET SCREW BSD-1609203694.A0 1609203694	£1.75	£2.10
35 - PROTECTIVE GLASS BSD-1609203695.A1 1609203695	£54.42	£65.30
36 - CLAMPING PIECE BSD-1609203696.A0 1609203696	£48.38	£58.06
37 - CLAMPING LEVER BSD-1609203697.A0 1609203697	£21.52	£25.83
38 - DETENT PIN BSD-1609203699.A0 1609203699	-
39 - COILED SPRING PIN BSD-1609203700.A0 1609203700	-
40 - COMPRESSION SPRING BSD-1609203701.A0 1609203701	-
41 - HEX SOCKET HEAD CAP SCREW BSD-1609203702.A0 1609203702	£18.96	£22.75
42 - CYLINDRICAL KNOB BSD-1609203703.A0 1609203703	-
43 - FEED LEVER BSD-1609203704.A0 1609203704	-
44 - ROTARY CROSS BSD-1609203H33.A1 1609203H33	£135.25	£162.30
44/1 - ROTARY CROSS BSD-1609203H33.A2 1609203H33	£135.25	£162.30
44/10 - CARRIER BSD-1609203705.A0 1609203705	-
45 - LOCKING BOLT BSD-1609203706.A0 1609203706	£27.23	£32.68
46 - TOOTHED SHAFT BSD-1609203707.A1 1609203707	£27.23	£32.68
47 - SPIRIT LEVEL BSD-1609203708.A0 1609203708	£2.33	£2.80
48 - SOCKET HEAD CAP SCREW DIN 84ZN-M4x25 BSD-1609203685.A2 1609203685	£1.75	£2.10
50 - SPRING RETAINING RING BSD-1609203711.A1 1609203711	£10.10	£12.12
51 - MAIN BEARING BSD-1609203712.A0 1609203712	£6.52	£7.83
52 - BOX LEVEL BSD-1609203713.A1 1609203713	£6.52	£7.83
53 - DETENT PIN BSD-1609203777.A0 1609203777	£59.53	£71.44
53/1 - SPACER BUSHING BSD-1609203778.A0 1609203778	-
54 - THREADED PLATE BSD-1609203779.A0 1609203779	-
55 - CLAMPING PIECE BSD-1609203780.A0 1609203780	-
55/1 - CLAMPING PIECE BSD-1609203H46.A1 1609203H46	£21.52	£25.83
90 - TRANSPORT REEL BSD-1609203F74.A1 1609203F74	£251.67	£302.00
90/10 - SUPPORT BSD-1609203N96.A0 1609203N96	£93.88	£112.65
90/20 - SUPPORT BSD-1609203N97.A1 1609203N97	£93.88	£112.65
90/30 - PLAIN WASHER BSD-1609203P27.A0 1609203P27	£1.75	£2.10
90/31 - PLAIN WASHER BSD-1609203N98.A0 1609203N98	£10.10	£12.12
90/40 - HEX SCREW BSD-1609203P26.A1 1609203P26	£2.61	£3.13
90/50 - AXLE BSD-1609203N99.A1 1609203N99	£40.80	£48.96
90/60 - O-RING BSD-1609203P08.A0 1609203P08	£2.61	£3.13
90/70 - TOOTHED RING BSD-1609203P28.A1 1609203P28	£2.16	£2.59
90/80 - WHEEL BSD-1609203P07.A1 1609203P07	£27.23	£32.68
90/90 - SPRING RETAINING RING BSD-1609203P00.A0 1609203P00	-
701 - WATER REFLECTOR BSD-2609390310.A0 2609390310	-
701/1 - HEX SCREW DIN 931-M8x70 BSD-2911011260.A0 2911011260	-
701/2 - SPACER BUSHING BSD-2609390325.A0 2609390325	-
701/3 - CLAMPING LEVER M 6 BSD-2609390326.A0 2609390326	-
701/4 - LIFTING EYE BOLT M 10x80 MM BSD-2609390327.A0 2609390327	£11.30	£13.56
701/5 - SUPPORT ELEMENT 22x8 MM BSD-2609390328.A0 2609390328	£2.61	£3.13
701/6 - CLAMPING SADDLE BSD-2609390329.A0 2609390329	£48.38	£58.06
701/7 - CLAMPING PIECE BSD-2609390330.A0 2609390330	£18.96	£22.75
701/8 - HEX SCREW DIN 931-M8x80 BSD-2911011262.A0 2911011262	-
701/9 - COILED SPRING PIN 3 x 14MM BSD-2917800078.A0 2917800078	£1.75	£2.10
701/10 - CLAMPING PIECE BSD-2609390331.A0 2609390331	£18.96	£22.75
701/11 - HEX NUT DIN 985-M8-8 BSD-2915061005.A100 2915061005	£2.61	£3.13
701/12 - CLAMPING SADDLE BSD-2609390332.A0 2609390332	£48.38	£58.06
701/13 - BENT-LEVER CLOSURE BSD-2609390333.A0 2609390333	£21.52	£25.83
701/14 - SEAL RING BSD-2609390334.A0 2609390334	£14.91	£17.89
701/15 - COUNTERSUNK-HEAD SCREW DIN 965-M4x8MM BSD-2910871118.A0 2910871118	-
701/16 - SUCTION CONNECTOR BSD-2609390335.A0 2609390335	£218.41	£262.09
701/18 - LID RING BSD-2609390337.A0 2609390337	£72.18	£86.62
704 - COLUMN BSD-2608598111.A1 2608598111	-
705 - DOWEL SET BSD-2607000744.A1 2607000744	£81.82	£98.18
705/1 - DOWEL SET BSD-2607000746.A1 2607000746	£58.88	£70.65
706 - DOWEL SET BSD-2607000745.A0 2607000745	£62.23	£74.68
706/1 - DOWEL SET BSD-2607000747.A0 2607000747	£125.54	£150.65
707 - VACUUM PUMP EU BSD-0601191003.A0 0601191003	-
708 - SEAL KIT BSD-2609390314.A0 2609390314	-
708/1 - FITTING BSD-2609390377.A0 2609390377	£458.51	£550.21
708/2 - FLEXIBLE CONNECTION BSD-2609390378.A1 2609390378	£63.50	£76.20
708/3 - SEAL RING BSD-2609390376.A1 2609390376	£27.23	£32.68
708/11 - HOSE FITTING 1/4 BSD-2609390359.A0 2609390359	-
708/12 - SEALING DISK BSD-2609390360.A1 2609390360	-
708/13 - SEALING CONE BSD-2609390361.A0 2609390361	-
708/14 - O-RING 7x2.72 MM BSD-2609390362.A1 2609390362	£5.58	£6.70
708/15 - COMPRESSION SPRING BSD-2609390363.A0 2609390363	£4.26	£5.11
708/16 - PRESSURE GAUGE BSD-2609390364.A1 2609390364	£30.28	£36.33
708/17 - PUSH-BUTTON BSD-2609390365.A0 2609390365	-
708/18 - LOCKING WASHER DIN 6799-4-FST BSD-2916089057.A0 2916089057	-
708/19 - ROTARY HANDLE BSD-2609390366.A1 2609390366	£27.23	£32.68
708/21 - COMPRESSION SPRING BSD-2609390367.A0 2609390367	-
708/22 - BLEEDER PLUG BSD-2609390368.A1 2609390368	-
708/23 - BASE BODY BSD-2609390369.A0 2609390369	-
708/24 - COILED SPRING PIN DIN-EN/28750-4x16 BSD-2917800097.A0 2917800097	£1.75	£2.10
708/25 - LOCK BOLT BSD-2609390370.A1 2609390370	£37.27	£44.72
708/26 - RETAINING PIN BSD-2609390371.A0 2609390371	£21.68	£26.01
708/27 - SEAL RING BSD-2609390372.A1 2609390372	£12.04	£14.45
708/28 - HOSE BSD-2609390373.A0 2609390373	-
708/29 - INSERT NIPPLE 1/4 BSD-2609390374.A1 2609390374	£6.52	£7.83
708/30 - HOSE CLAMPER BSD-2609390375.A0 2609390375	-
717 - PLASTIC DISC BSD-2609390311.A0 2609390311	-
802 - SEAL CARRIER BSD-2609390356.A0 2609390356	£93.88	£112.65
803 - HOLDING DEVICE BSD-1609203878.A0 1609203878	£102.57	£123.08
814 - CLAMPING LEVER BSD-1609203674.A2 1609203674	£13.12	£15.75
815 - HEX SCREW BSD-1609203675.A1 1609203675	£2.61	£3.13
