Bosch ---- / 2608005025 / --- Spare Parts

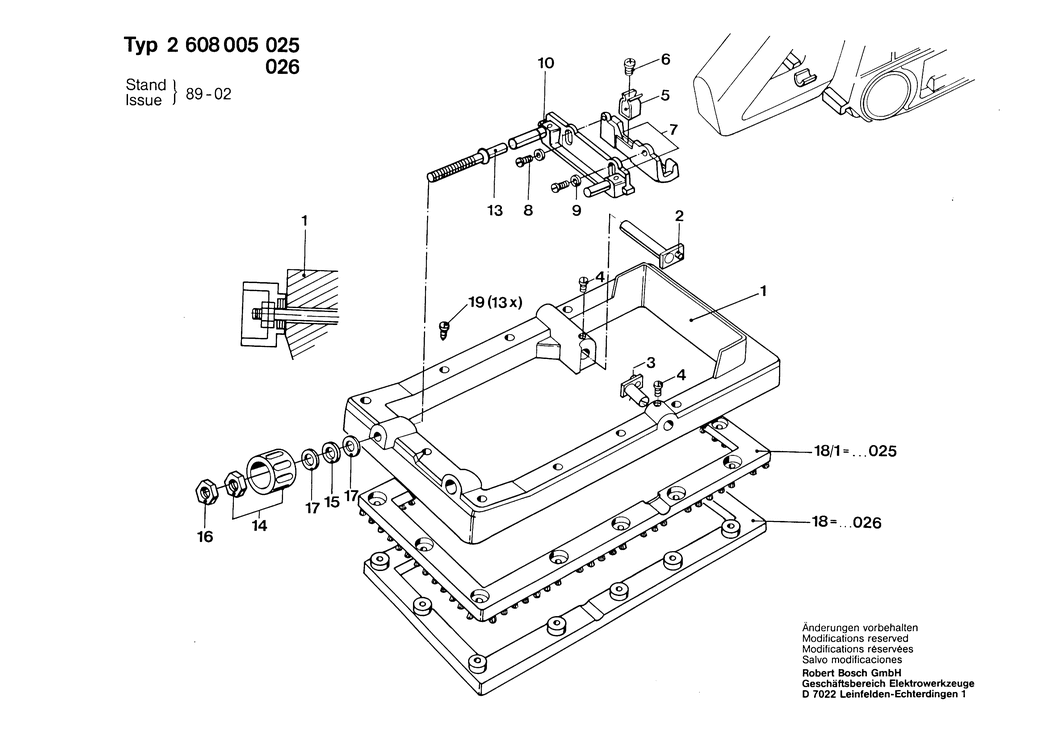

An exploded drawing and listing for the Bosch ---- / 2608005025 / ---

	Ex VAT	Inc VAT
1 - SANDING FRAME BSD-2609200064.A1 2609200064	-
2 - ECCENTRIC BOLT BSD-2609200065.A0 2609200065	-
3 - ECCENTRIC BOLT BSD-2609200066.A1 2609200066	-
4 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A130 2910021118	£1.75	£2.10
5 - HOLDING SPRING BSD-2609200067.A0 2609200067	-
6 - TORX OVAL-HEAD SCREW M 4x6MM - 4.8 BSD-2912761116.A1 2912761116	-
7 - ADJUSTING PART BSD-2609200068.A1 2609200068	-
8 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-8.8 BSD-2910021152.A2 2910021152	-
9 - PLAIN WASHER DIN 433-5.3-ST BSD-2916011011.A96 2916011011	£1.75	£2.10
10 - ADJUSTING SLIDE BSD-2609200069.A0 2609200069	-
13 - ADJUSTING BOLT BSD-2609200071.A1 2609200071	-
14 - ADJUSTING GRIP M 6 BSD-2609200007.A1 2609200007	-
15 - SPRING WASHER DIN 137-A 6-ST BSD-2916060007.A31 2916060007	£1.75	£2.10
16 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A324 2915011007	-
17 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A14 2916011013	£1.75	£2.10
18 - PLASTIC INSERT BSD-2609200073.A0 2609200073	-
19 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A505 2603490017	£2.16	£2.59

Attribute Name	Value
Brand	Bosch
