Bosch S 9 / 0603035101 / --- Spare Parts

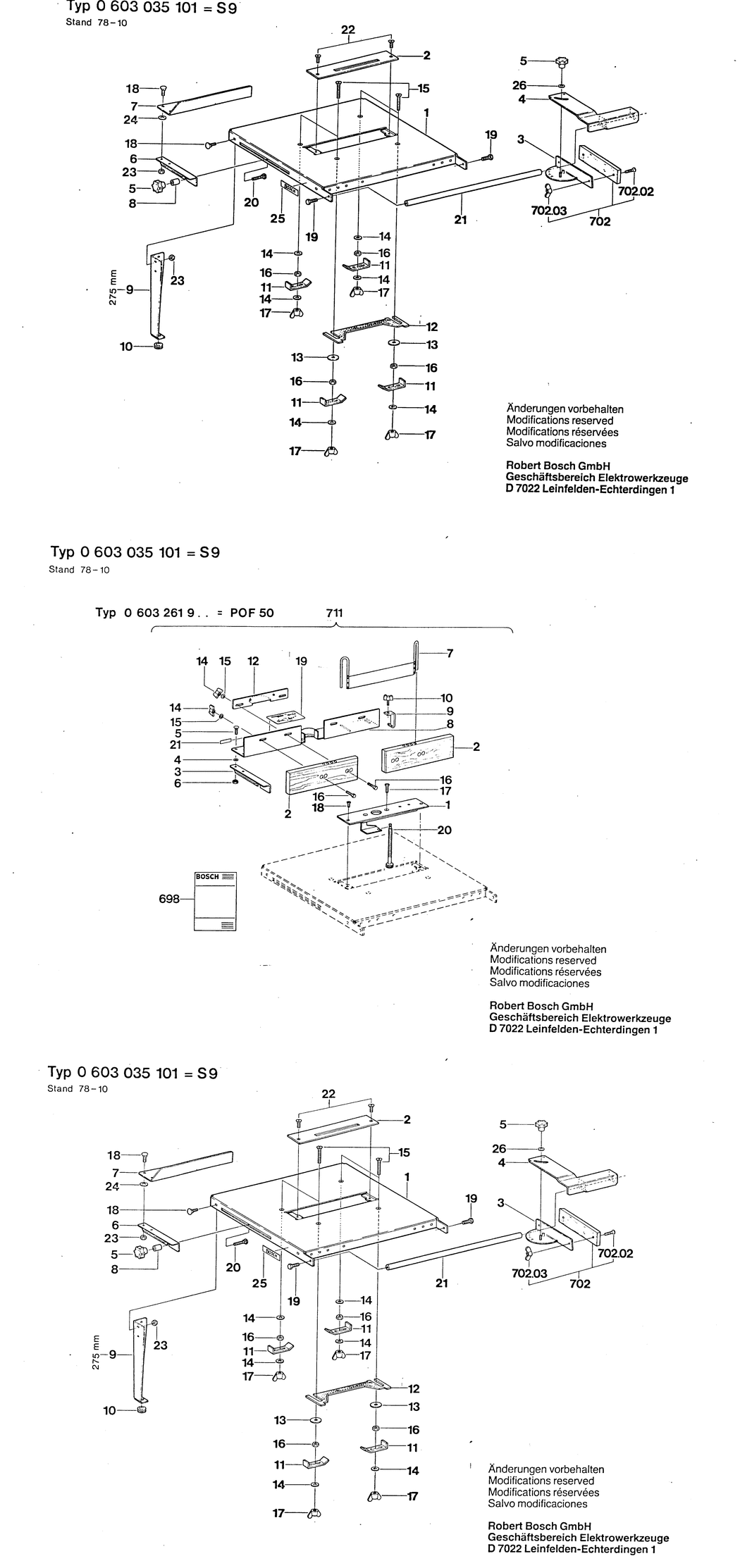

An exploded drawing and listing for the Bosch S 9 / 0603035101 / ---

	Ex VAT	Inc VAT
1 - TABLE TOP BSD-1608000072.A1 1608000072	-
2 - COVER PLATE BSD-1608000069.A1 1608000069	-
3 - STOP BRACKET BSD-1601334001.A1 1601334001	-
4 - TABLE TOP BSD-1608000073.A0 1608000073	-
5 - STAR KNOB BSD-1603349015.A1 1603349015	-
6 - STOP BRACKET BSD-1601332016.A5 1601332016	-
7 - PARALLEL-GUIDE BSD-1601334003.A1 1601334003	-
8 - SPACER BUSHING BSD-1600300085.A1 1600300085	-
9 - TABLE LEG BSD-1601334002.A1 1601334002	-
10 - RUBBER RING BSD-1602380012.A24 1602380012	£1.32	£1.58
11 - MOUNTING BRACKET BSD-1601321034.A1 1601321034	-
12 - GUIDE BSD-1601098004.A2 1601098004	-
13 - PLAIN WASHER BSD-1600100022.A0 1600100022	-
14 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A519 2916011014	£1.75	£2.10
15 - COUNTERSUNK-HEAD SCREW BSD-1603421000.A3 1603421000	-
16 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A475 2915011007	-
17 - WING NUT M6 DIN 315-G-GTW-40 BSD-2915191006.A9 2915191006	-
18 - ROUND-HEAD BOLT M5x12 MM BSD-1603434004.A11 1603434004	-
19 - HEX SCREW M6x12 DIN 933-5.8 BSD-2911052193.A3 2911052193	-
20 - ROUND-HEAD BOLT M6x3.5-DIN 603 BSD-2910261207.A0 2910261207	-
21 - GUIDE ROD BSD-1603052011.A2 1603052011	-
22 - COUNTERSUNK-HEAD SCREW DIN 963-M4x6-4.8 BSD-2910761116.A3 2910761116	-
23 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A141 2915011006	-
24 - LOCKING WASHER BSD-2916070232.A7 2916070232	£1.75	£2.10
25 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A337 1601110481	£2.16	£2.59
26 - PLAIN WASHER DIN 9021-A6.4-ST BSD-2916011884.A11 2916011884	-
702/02 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A139 3603435051	£1.75	£2.10
702/03 - WING NUT DIN 315-M4-GT-C BSD-2915191004.A1 2915191004	-
