Bosch PFS 5000 E / 3603B07230 / CH 230 Volt Spare Parts

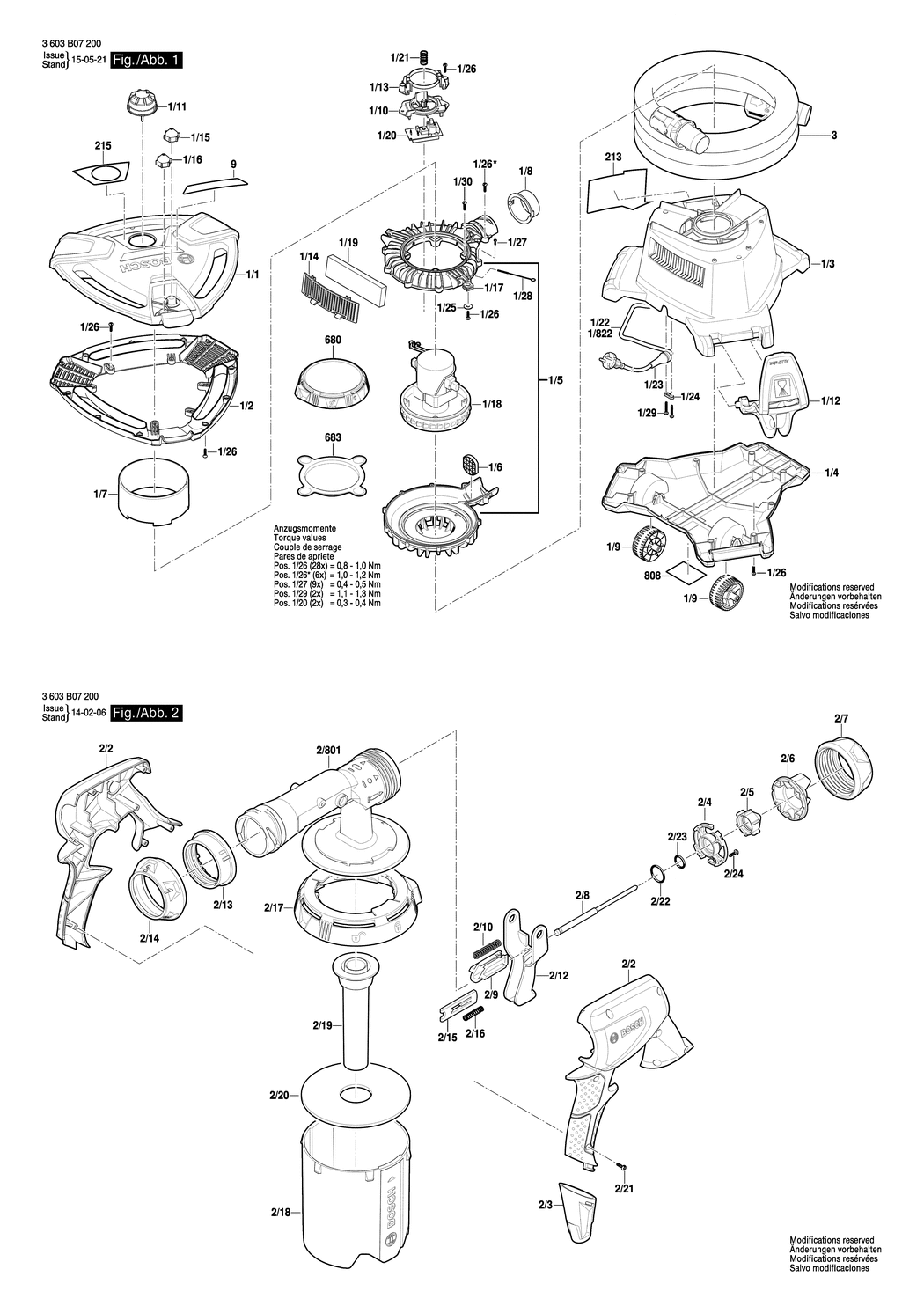

An exploded drawing and listing for the Bosch PFS 5000 E / 3603B07230 / CH 230 Volt

	Ex VAT	Inc VAT
1/1 - HOUSING SECTION BSD-2609006571.A1 2609006571	£18.96	£22.75
1/2 - HOUSING SECTION BSD-2609006572.A1 2609006572	£11.30	£13.56
1/3 - HOUSING SECTION BSD-2609006573.A1 2609006573	£21.68	£26.01
1/4 - HOUSING SECTION BSD-2609006570.A1 2609006570	£12.04	£14.45
1/5 - MOTOR HOUSING BSD-2609006485.A0 2609006485	£21.68	£26.01
1/6 - SAFETY COVER BSD-2609006785.A1 2609006785	£2.16	£2.59
1/7 - AIR GUIDE PLATE BSD-2609006752.A1 2609006752	£5.30	£6.36
1/8 - BUSHING BSD-2609006753.A1 2609006753	£2.80	£3.36
1/9 - WHEEL BSD-2609006756.A1 2609006756	£3.72	£4.47
1/10 - FIXING PLATE BSD-2609006758.A1 2609006758	£2.80	£3.36
1/11 - PUSH-BUTTON BSD-2609006759.A1 2609006759	£2.80	£3.36
1/12 - HANDLE BSD-2609006762.A1 2609006762	£8.67	£10.41
1/13 - FIXING PLATE BSD-2609006774.A1 2609006774	£2.61	£3.13
1/14 - SUPPORT BSD-2609006755.A1 2609006755	£2.80	£3.36
1/15 - NOZZLE BSD-2609006620.A4 2609006620	£1.75	£2.10
1/16 - NOZZLE BSD-2609006883.A1 2609006883	£1.75	£2.10
1/17 - VIBRATION DAMPER BSD-2609006797.A1 2609006797	£1.75	£2.10
1/18 - MOTOR BSD-2609006569.A1 2609006569	£57.02	£68.42
1/19 - AIR FILTER BSD-2609006754.A1 2609006754	£6.52	£7.83
1/20 - ELECTRONIC MODULE BSD-2609006757.A1 2609006757	£31.64	£37.97
1/21 - COMPRESSION SPRING BSD-2609006760.A1 2609006760	£1.75	£2.10
1/22 - POWER SUPPLY CORD CH 2.65m 2 x 0.75mm H05 VV-F BSD-1604460433.A10 1604460433	£11.30	£13.56
1/23 - GROMMET BSD-2609002019.A112 2609002019	£2.61	£3.13
1/24 - CABLE CLIP BSD-2601035001.A874 2601035001	£1.75	£2.10
1/25 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A6 2916011892	£1.75	£2.10
1/26 - SCREW 4x16 BSD-2603490022.A1056 2603490022	£1.75	£2.10
1/27 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A870 2603490017	£2.16	£2.59
1/28 - BRUSH BSD-2609007096.A1 2609007096	£4.26	£5.11
1/29 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A355 2603490024	£1.75	£2.10
1/30 - THREAD-FORMING TAP. SCREW M4x16 BSD-2914491410.A245 2914491410	£1.75	£2.10
2/2 - HOUSING BSD-2609006611.A0 2609006611	£14.75	£17.70
2/3 - END CAP BSD-2609006612.A5 2609006612	£1.32	£1.58
2/4 - INSERT BSD-2609006613.A0 2609006613	£1.75	£2.10
2/5 - NOZZLE BSD-2609006614.A5 2609006614	£1.75	£2.10
2/6 - SPRAYING NOZZLE BSD-2609006615.A0 2609006615	£7.36	£8.83
2/7 - UNION NUT BSD-2609006616.A5 2609006616	£5.30	£6.36
2/8 - VALVE NEEDLE BSD-2609006617.A0 2609006617	-
2/9 - SWITCHING BUSHING BSD-2609006618.A5 2609006618	£2.33	£2.80
2/10 - COMPRESSION SPRING BSD-2609006630.A4 2609006630	£1.32	£1.58
2/12 - TRIGGER BSD-2609006622.A0 2609006622	£2.33	£2.80
2/13 - UNION NUT BSD-2609006624.A0 2609006624	£3.80	£4.56
2/14 - UNION NUT BSD-2609006619.A0 2609006619	£3.80	£4.56
2/15 - ADJUSTING PIN BSD-2609006623.A5 2609006623	£1.95	£2.34
2/16 - COMPRESSION SPRING BSD-2604610073.A77 2604610073	-
2/17 - RESERVOIR CAP BSD-2609006625.A5 2609006625	£6.61	£7.93
2/18 - INK RESERVOIR BSD-2609006626.A0 2609006626	-
2/19 - SUCTION PIPE BSD-2609006627.A5 2609006627	-
2/20 - SEALING PLATE BSD-2609006628.A0 2609006628	£2.70	£3.24
2/21 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A867 2603490017	£2.16	£2.59
2/22 - O-RING 17.0x2.0 MM BSD-1610210201.A8 1610210201	£1.75	£2.10
2/23 - O-RING 10.82x1.78 MM BSD-2600210004.A3 2600210004	£4.26	£5.11
2/24 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A338 2603490018	£1.75	£2.10
2/801 - HOUSING BASE BSD-2609007309.A4 2609007309	-
3 - AIR HOSE BSD-2609007047.A2 2609007047	£63.50	£76.20
9 - MANUFACTURER'S NAMEPLATE PFS 5000-E BSD-2609007208.A0 2609007208	£2.61	£3.13
213 - STICKER BSD-2609007025.A0 2609007025	£2.61	£3.13
215 - STICKER BSD-2609007222.A2 2609007222	£2.61	£3.13
680 - COVER BSD-2609007102.A2 2609007102	£6.52	£7.83
683 - FILTER BSD-2609007097.A4 2609007097	£5.58	£6.70
808 - NAMEPLATE BSD-160111A2M7.A0 160111A2M7	£2.61	£3.13
